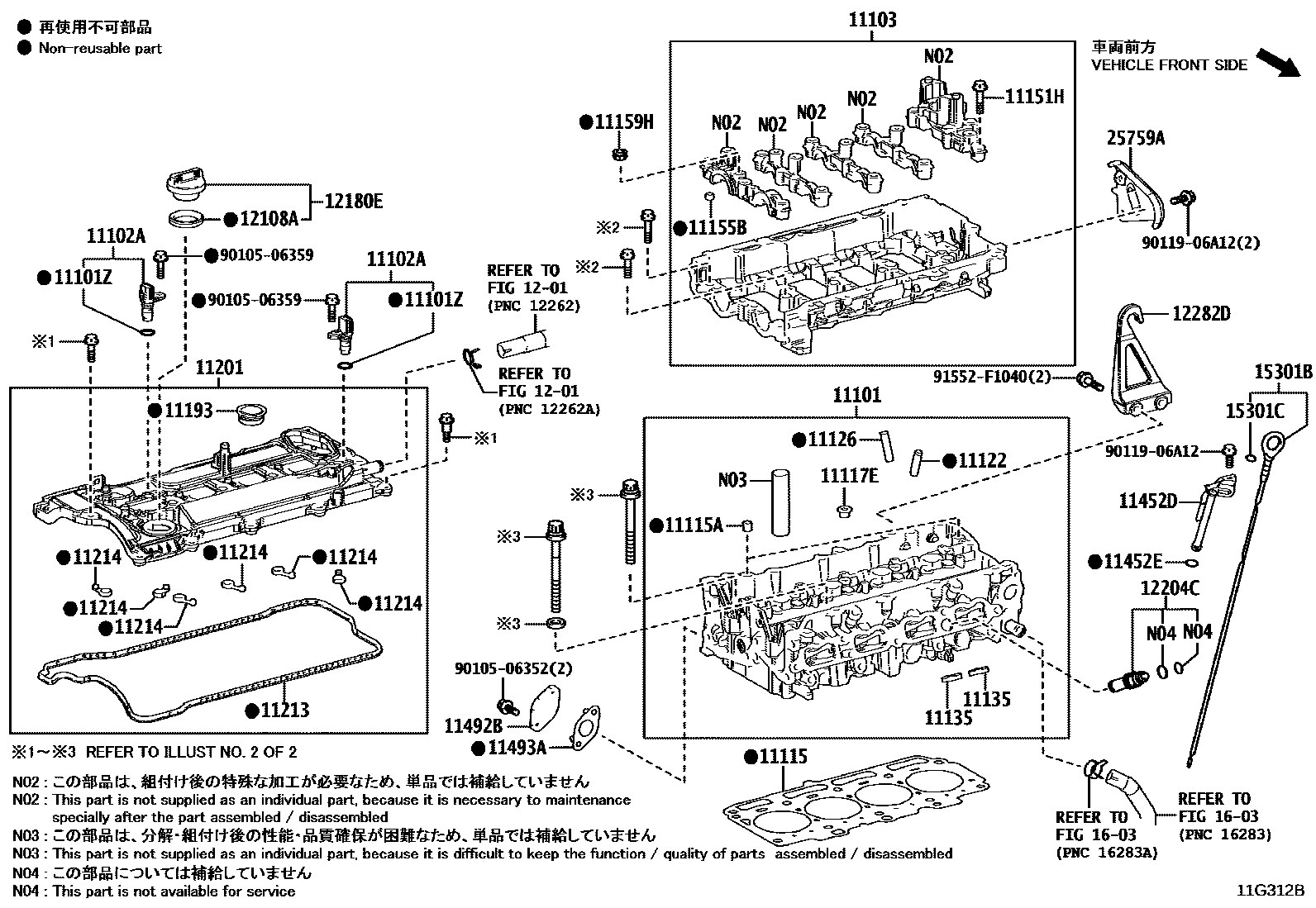

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-29635iM20AFKS..MZRA9#¥96,900202201-202211

sub11101-29636¥97,000

main11101-29636iM20AFKS..MZRA9#¥97,000202212-202410

main11101-29637iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥88,100202410-202605

main11101-80000i2ZRFXE..ZWR9#..SG,SZ,X¥83,100202201-202501

11101ZO RING, CAM POSITION SENSOR

main90301-11038iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥0202201-202605

11102ASENSOR, CAMSHAFT POSITION

main90919-05096iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥4,130202201-202605

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-24011iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥23,900202201-202605

main11103-37040i2ZRFXE..ZWR9#..G,Z¥24,400202201-202501

11115GASKET, CYLINDER HEAD

main11115-24040iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥4,380202201-202605

main11115-37071i2ZRFXE..ZWR9#..G,Z¥3,970202201-202501

11115APIN, RING

main90253-12002iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥50202201-202605

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥120202201-202605

11122BUSH, INTAKE VALVE GUIDE

main11122-31090iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥550202201-202605

main11123-31090iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥550202201-202605

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥610202201-202605

sub11122-47010¥550

main11123-31041iM20AFKS..MZRA9#¥620202201-202401

sub11123-47010¥550

main11123-47010iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥550202401-202605

main11126-31040i2ZRFXE..ZWR9#..SG,SZ,X¥550202201-202501

main11127-31040i2ZRFXE..ZWR9#..SG,SZ,X¥550202201-202501

11135SEAT, EXHAUST VALVE

main11135-24020iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥490202201-202605

main11135-37020i2ZRFXE..ZWR9#..SG,SZ,X¥770202201-202501

main11136-37020i2ZRFXE..ZWR9#..G,Z¥770202201-202501

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009i2ZRFXE..ZWR9#..G,Z¥90202201-202605

11155BPIN, RING

main90253-13005iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥50202201-202605

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-31040iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥340202201-202605

main11159-37010i2ZRFXE..ZWR9#..SG,SZ,X¥340202201-202501

11193GASKET, SPARK PLUG TUBE

main11193-37030iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥230202201-202605

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-24032iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥12,600202201-202605

main11201-37061i2ZRFXE..ZWR9#..G,Z¥16,600202201-202501

11213GASKET, CYLINDER HEAD COVER

main11213-24020iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥700202201-202605

main11213-37050i2ZRFXE..ZWR9#..SG,SZ,X¥790202201-202501

11214GASKET, CYLINDER HEAD COVER, NO.2

main11213-31080iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥370202201-202605

11452DGUIDE, OIL LEVEL GAGE

main11452-24020iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥700202201-202605

11452ERING, O(FOR OIL LEVEL GAGE GUIDE)

main96741-19010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥250202201-202605

11492BPLATE, WATER SEAL

main11492-24010iM20AFKS..MZRA9#¥500202201-202301

main90341-20012iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥200202301-202605

11493AGASKET, WATER SEAL PLATE

main16258-24010iM20AFKS..MZRA9#¥270202201-202301

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i2ZRFXE..ZWR9#..G,Z¥640202201-202501

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i2ZRFXE..ZWR9#..G,Z¥120202201-202605

12180ECAP ASSY, OIL FILLER

main12180-38010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥640202201-202605

12204CVALVE SUB-ASSY, VENTILATION

main12204-25010iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥800202201-202605

12282DHANGER, ENGINE, NO.2

main12282-25010iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥4,190202201-202605

main12282-37011i2ZRFXE..ZWR9#..G,Z¥1,170202201-202501

main12282-37060i2ZRFXE..ZWR9#..SG,SZ,X¥1,170202201-202501

15301BGAGE SUB-ASSY, OIL LEVEL

main15301-24020iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥750202201-202605

15301CRING, O(FOR OIL LEVEL GAGE)

main96741-19005iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥140202201-202605

1603

25759ABRACKET, VACUUM SURGE TANK

main25759-24010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥450202201-202605

9010506352

main90105-06352¥60

9010506359

main90105-06359¥60

9011906A12

main90119-06A12¥60

91552F1040

main91552-F1040¥120

35 parts on this diagram · 4 diagrams in section
