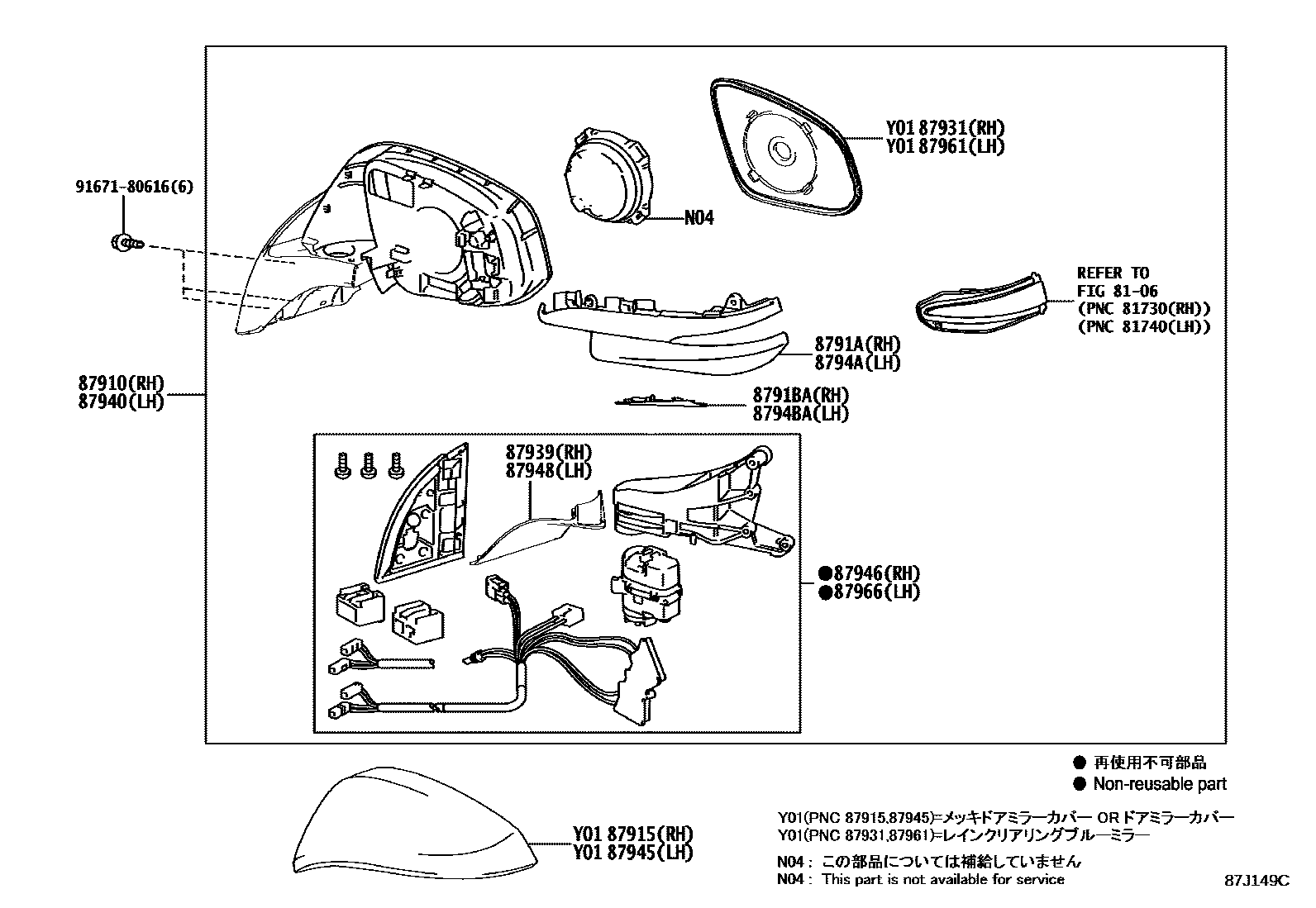

MIRROR

0001 1������������ 0002 1����� & ���������������

8106

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-28B50iZRR8#,ZWR80201401-201706

sub87910-28B51

main87910-28B50iZRR8#,ZWR80201706-201712

sub87910-28B51

main87910-28B51iZRR8#,ZWR80201801-202005

main87910-28C50iZRR8#,ZWR80202005

87915COVER, OUTER MIRROR, RH

main87915-48040-A0iZRR8#,ZWR80201401-201706

WHITE PEARL CS.,070

main87915-48040-A2iZRR8#,ZWR80..NOAH201706

LUXURY WHITE PEARL CS.GF.,086

main87915-48040-B0iZRR8#,ZWR80..G,GI,V,X,XI;ZRR80..07S..(SI,ZS)..CBU201401-201706

SILVER ME.,1F7

main87915-48040-B3iZRR8#,ZWR80..NOAH..X..CBU;ZRR8#,ZWR80..(GI,SI,ZS)..CBU201504-201706

ICE TITANIUM M.M.,1H4

main87915-48040-C0iZRR8#,ZWR80201401-201706

BLACK,202

main87915-48040-C1iZRR8#,ZWR80..ESQIR201410-201706

SPARKLING BLACK PEARL CS.,220

main87915-48040-C2iZRR8#,ZWR80..VOXY201401-201706

BLACKISH AGEHA M.M.,221

main87915-48040-C5iZRR8#,ZWR80..VOXY201706

INAZUMA SPARKING BLACK GF,224

main87915-48040-D1iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,XI,ZS201401-201706

DEEP RED M.M.,3R9

main87915-48040-E1iZRR8#,ZWR80..NOAH..(G,X)201401-201706

ROSE CHAMPAGNE M.M.,4W4

main87915-48040-E5iZRR8#,ZWR80..G,GI,V,X,XI201706

AVANT-GARDE BRONZE ME.,4V8

main87915-48040-H0iZRR8#,ZWR80..G,GI,V,X,XI201401-201706

OCEAN MINT ME.,789

main87915-48040-K0iZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI201401-201706

DK.VIOLET M.M.,9AF

8791ACOVER, OUTER MIRROR, RH NO.2

main8791B-35C00iZRR8#,ZWR80202005

main8791B-42C10iZRR8#,ZWR80201401-202005

8791BACOVER, OUTER MIRROR, RH NO.3

main87939-48B10iZRR8#,ZWR80202005

87931OUTER MIRROR, RH

main87931-28B50iZRR8#,ZWR80201401-202005

main87931-58210iZRR8#,ZWR80202005

87939COVER, OUTER MIRROR HOLE, RH

main87939-28B50iZRR8#,ZWR80201401-201706

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-28B70iZRR8#,ZWR80201401-201706

sub87940-28B71

main87940-28B70iZRR8#,ZWR80201706-201712

sub87940-28B71

main87940-28B71iZRR8#,ZWR80201801-202005

main87940-28C60iZRR80,ZWR80202005

main87940-28C80iZRR85202005

87945COVER, OUTER MIRROR, LH

main87945-48040-A0iZRR8#,ZWR80201401-201706

WHITE PEARL CS.,070

main87945-48040-A2iZRR8#,ZWR80..NOAH201706

LUXURY WHITE PEARL CS.GF.,086

main87945-48040-B0iZRR8#,ZWR80201401-201706

SILVER ME.,1F7

main87945-48040-B3iZRR8#,ZWR80..NOAH..X..CBU;ZRR8#,ZWR80..(GI,SI,ZS)..CBU201504-201706

ICE TITANIUM M.M.,1H4

main87945-48040-C0iZRR8#,ZWR80201401-201706

BLACK,202

main87945-48040-C1iZRR8#,ZWR80..ESQIR201410-201706

SPARKLING BLACK PEARL CS.,220

main87945-48040-C2iZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS201401-201706

BLACKISH AGEHA M.M.,221

main87945-48040-C5iZRR8#,ZWR80..VOXY201706

INAZUMA SPARKING BLACK GF,224

main87945-48040-D1iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,XI,ZS201401-201706

DEEP RED M.M.,3R9

main87945-48040-E1iZRR8#,ZWR80..NOAH..(G,X)201401-201706

ROSE CHAMPAGNE M.M.,4W4

main87945-48040-E5iZRR8#,ZWR80..G,GI,V,X,XI201706

AVANT-GARDE BRONZE ME.,4V8

main87945-48040-H0iZRR8#,ZWR80..G,GI,V,X,XI201401-201706

OCEAN MINT ME.,789

main87945-48040-K0iZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI201401-201706

DK.VIOLET M.M.,9AF

87946RETRACTOR, OUTER MIRROR, RH

main87946-28B50iZRR8#,ZWR80201401-201706

87948COVER, OUTER MIRROR HOLE, LH

main87948-28B70iZRR8#,ZWR80201401-201706

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-48B10iZRR85202005

main8794B-35B70iZRR80,ZWR80202005

main8794B-42B80iZRR8#,ZWR80201401-202005

8794BACOVER, OUTER MIRROR, LH NO.3

main87948-48B10iZRR80,ZWR80202005

87961MIRROR OUTER, LH

main87961-28B70iZRR8#,ZWR80201401-202005

main87961-58260iZRR8#,ZWR80202005

87966RETRACTOR, OUTER MIRROR, LH

main87966-28B70iZRR8#,ZWR80201401-201706

9167180616

main91671-80616

16 parts on this diagram · 2 diagrams in section
