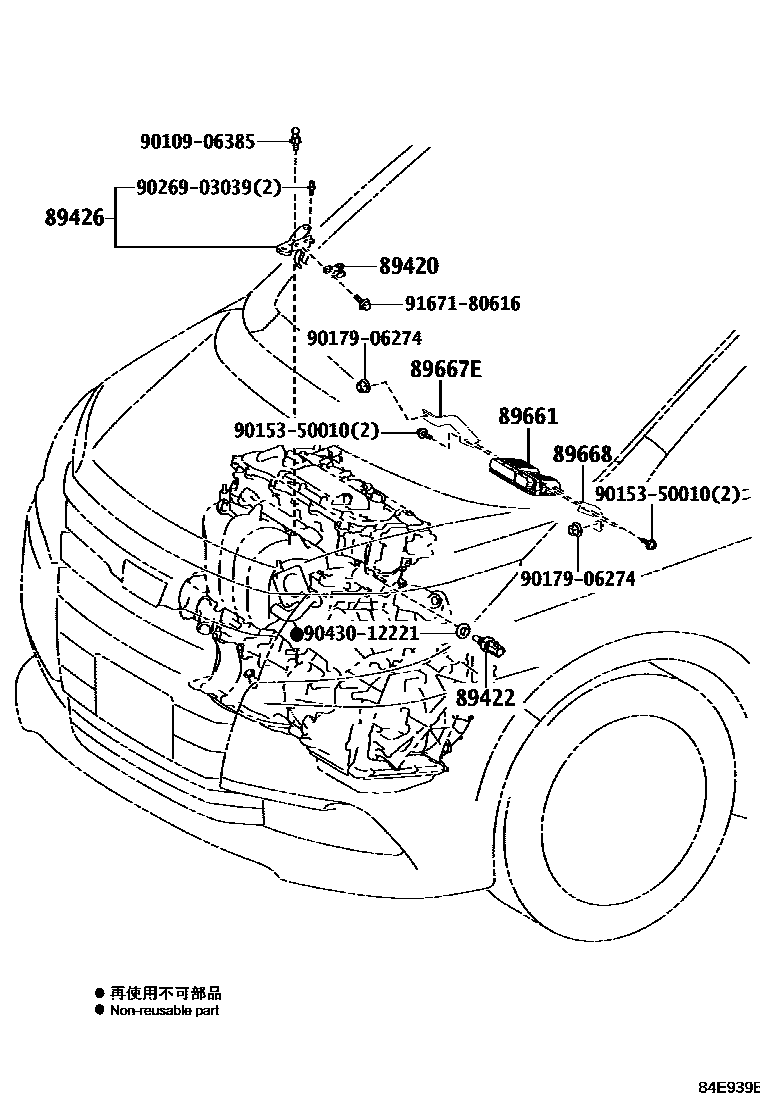

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89420SENSOR ASSY, VACUUM

main89421-26030iZRR8#..NOAH..X;ZRR8#..G,GI,SI,ZS201401-202004

main89421-47010iZWR80..(ESQIR,VOXY)..(V,X,XI)201402-202004

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRR8#,ZWR80201401-202004

89426BRACKET, VACUUM SENSOR

main89426-13020iZRR8#201401-202004

89661COMPUTER, ENGINE CONTROL

main89661-28F30iZWR80201402-202005

main89661-28F50iZRR80201401-201601

sub89661-28F51

main89661-28F70iZRR85201401-201601

sub89661-28F71

main89661-28G20iZWR80..NOAH..X;ZWR80..G,GI,SI,ZS202005

main89661-28J20iZRR80201601-201604

sub89661-28J21

main89661-28J21iZRR80201605-201706

main89661-28J40iZRR85201601-201604

sub89661-28J41

main89661-28J41iZRR85201605-201706

main89661-28J50iZRR80201706-201901

main89661-28J60iZRR85201706-201901

main89661-28J90iZRR80..(ESQIR,VOXY)..(V,X,XI)201901-202005

main89661-28K00iZRR85..(ESQIR,VOXY)..(V,X,XI)201901-202005

main89661-28K10iZRR80..NOAH..X;ZRR80..G,GI,SI,ZS202005

main89661-28K20iZRR85..NOAH..X;ZRR85..G,GI,SI,ZS202005

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-28160iZRR8#,ZWR80201401-202004

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28160iZRR8#,ZWR80201401-202004

9010906385

main90109-06385

9015350010

main90153-50010

9017906274

main90179-06274

9026903039

main90269-03039

9043012221

main90430-12221

9167180616

main91671-80616

12 parts on this diagram · 2 diagrams in section
