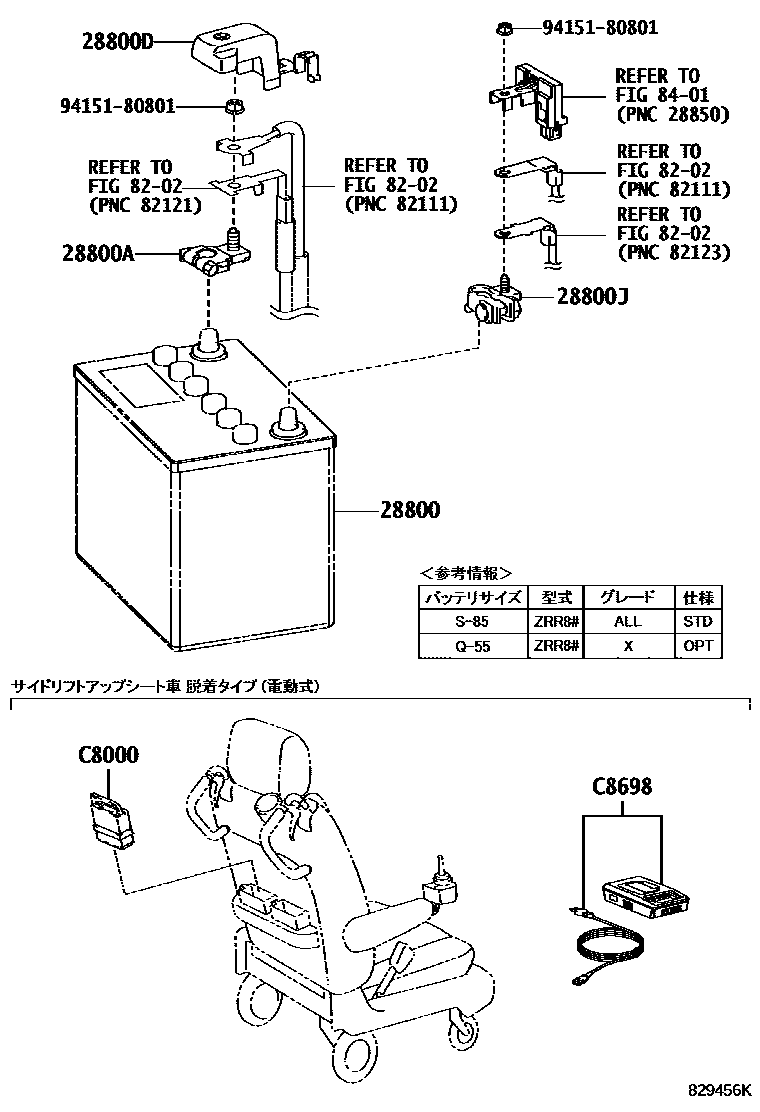

BATTERY & BATTERY CABLE

0001 1 0002 112V ����� 0003 1HV ����� 0004 1HV �����

28800BATTERY

main28800-37110i2ZRFXE..ZWR80..NOAH..X;2ZRFXE..ZWR80..G,GI,SI,ZS201402-202004

sub28800-37111

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i3ZRFAE..ZRR8#..NOAH..X;3ZRFAE..ZRR8#..G,GI,SI,ZS201401-202004

main90982-05056i2ZRFXE..ZWR80..NOAH..X;2ZRFXE..ZWR80..G,GI,SI,ZS201402-202004

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-28260i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201402-202004

main82821-28280i3ZRFAE..ZRR8#..(ESQIR,VOXY)..(V,X,XI)201401-202004

28800JTERMINAL, BATTERY NEGATIVE

main90982-06056i3ZRFAE..ZRR8#201401-202004

8202

8401

C8000BATTERY

main28800-D1010iZRR8#201601-201706

mainC800022010iZRR85..07S..(SI,ZS);ZRR80..07S..(SI,X,XI,ZS)..CBU201404-201512

sub28800-D1010

C8698CHARGER, BATTERY

mainC869822010iZRR85..07S..(SI,ZS);ZRR80..07S..(SI,X,XI,ZS)..CBU201404-201512

subC8698-D1010

mainC8698D1010iZRR85..07S..(SI,ZS);ZRR80..07S..(SI,X,XI,ZS)..CBU201601-201706

9415180801

main94151-80801

9 parts on this diagram · 4 diagrams in section
