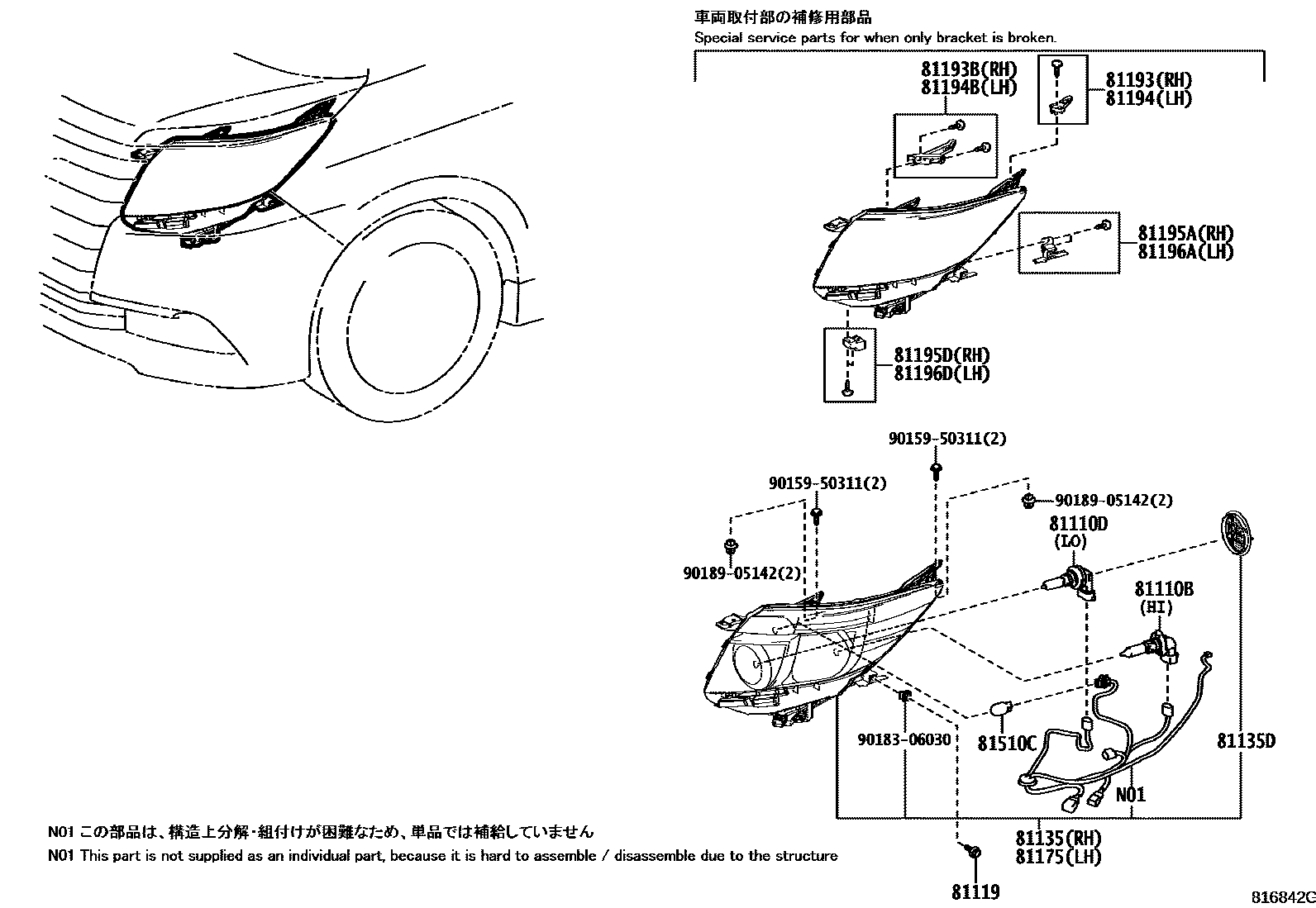

HEADLAMP

0001 1������������� 0002 1LED�������� 0003 1������������� 0004 1LED�������� 0005 1 0006 1 0007 1GR-SPORT 0008 1GR-SPORT

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iZRR8#,ZWR80201401-201706

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13082×2iZRR80..X;ZRR85..X..CBU201401-201706

sub90981-13075

81119SCREW, HEADLAMP

main90105-06298×2iZRR8#,ZWR80201706

81135UNIT ASSY, HEADLAMP, RH

main81130-28D00iZRR8#,ZWR80..NOAH..(G,X)201401-201504

main81130-28D01iZRR8#,ZWR80..NOAH..(G,X)201504-201706

main81130-28D20iZRR8#,ZWR80..VOXY201401-201504

main81130-28D21iZRR8#,ZWR80..VOXY201504-201706

main81130-28F70iZRR8#,ZWR80..GI,SI,XI201401-201504

main81130-28F71iZRR8#,ZWR80..GI,SI,XI201504-201706

main81130-28G40iZRR8#,ZWR80..NOAH..(G,X)201706

main81130-28G50iZRR8#,ZWR80..SI201706

main81130-28G60iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main81130-28G70iZRR8#,ZWR80..ZS201706

main81130-28G90iZRR8#,ZWR80..ESQIR201706

main81130-28D10iZRR80..NOAH..X;ZRR85..NOAH..X..CBU201401-201706

main81130-28D30iZRR80..VOXY..X;ZRR85..VOXY..X..CBU201401-201706

main81130-28G00iZRR8#..ZS..CBU201411-201504

main81130-28G01iZRR8#..ZS..CBU201504-201607

main81130-28G30iZRR80..07S..SI..CBU201604-201706

main81130-28G80iZRR8#,ZWR80..07S..GI201901

main81130-28J10iZRR8#,ZWR80..ZS..CBU201712

main81130-28J20iZRR8#,ZWR80..SI..CBU201901

81135DCOVER, HEADLAMP BACK, NO.2

main81135-58050×2iZRR80..X;ZRR85..X..CBU201401-201706

81175UNIT ASSY, HEADLAMP, LH

main81170-28720iZRR8#,ZWR80..NOAH..(G,X)201401-201504

main81170-28721iZRR8#,ZWR80..NOAH..(G,X)201504-201706

main81170-28D00iZRR8#,ZWR80..VOXY201401-201504

main81170-28D01iZRR8#,ZWR80..VOXY201504-201706

main81170-28D20iZRR8#,ZWR80..GI,SI,XI201401-201504

main81170-28D21iZRR8#,ZWR80..GI,SI,XI201504-201706

main81170-28G40iZRR8#,ZWR80..NOAH..(G,X)201706

main81170-28G50iZRR8#,ZWR80..SI201706

main81170-28G60iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main81170-28G70iZRR8#,ZWR80..ZS201706

main81170-28G90iZRR8#,ZWR80..ESQIR201706

main81170-28C90iZRR80..NOAH..X;ZRR85..NOAH..X..CBU201401-201706

main81170-28D10iZRR80..VOXY..X;ZRR85..VOXY..X..CBU201401-201706

main81170-28G00iZRR8#..ZS..CBU201411-201504

main81170-28G01iZRR8#..ZS..CBU201504-201607

main81170-28G30iZRR8#,ZWR80..GI201601-201706

main81170-28G80iZRR8#,ZWR80..07S..GI201901

main81170-28J10iZRR8#,ZWR80..ZS..CBU201712

main81170-28J20iZRR8#,ZWR80..SI..CBU201901

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-28170iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main81193-28190iZRR8#,ZWR80..ZS201706

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-28180iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main81193-28200iZRR8#,ZWR80..VOXY..(V,X)201706-202004

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-28170iZRR8#,ZWR80..XI201706-202004

main81194-28190iZRR8#,ZWR80..VOXY..(V,X)201706-202004

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-28180iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main81194-28200iZRR8#,ZWR80..VOXY201401-201706

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-28010iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main81195-28030iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main81195-28050iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,SI,X)201706

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-28020iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main81195-28040iZRR8#,ZWR80..ZS201706

main81195-28060iZRR8#,ZWR80..XI201706-202004

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-28010iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main81196-28030iZRR8#,ZWR80..ZS201706

main81196-28050iZRR8#,ZWR80..XI201706-202004

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-28020iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main81196-28040iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main81196-28060iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,SI,X)201706

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iZRR8#,ZWR80201706

9015950311

main90159-50311

9018306030

main90183-06030

9018905142

main90189-05142

18 parts on this diagram · 8 diagrams in section
