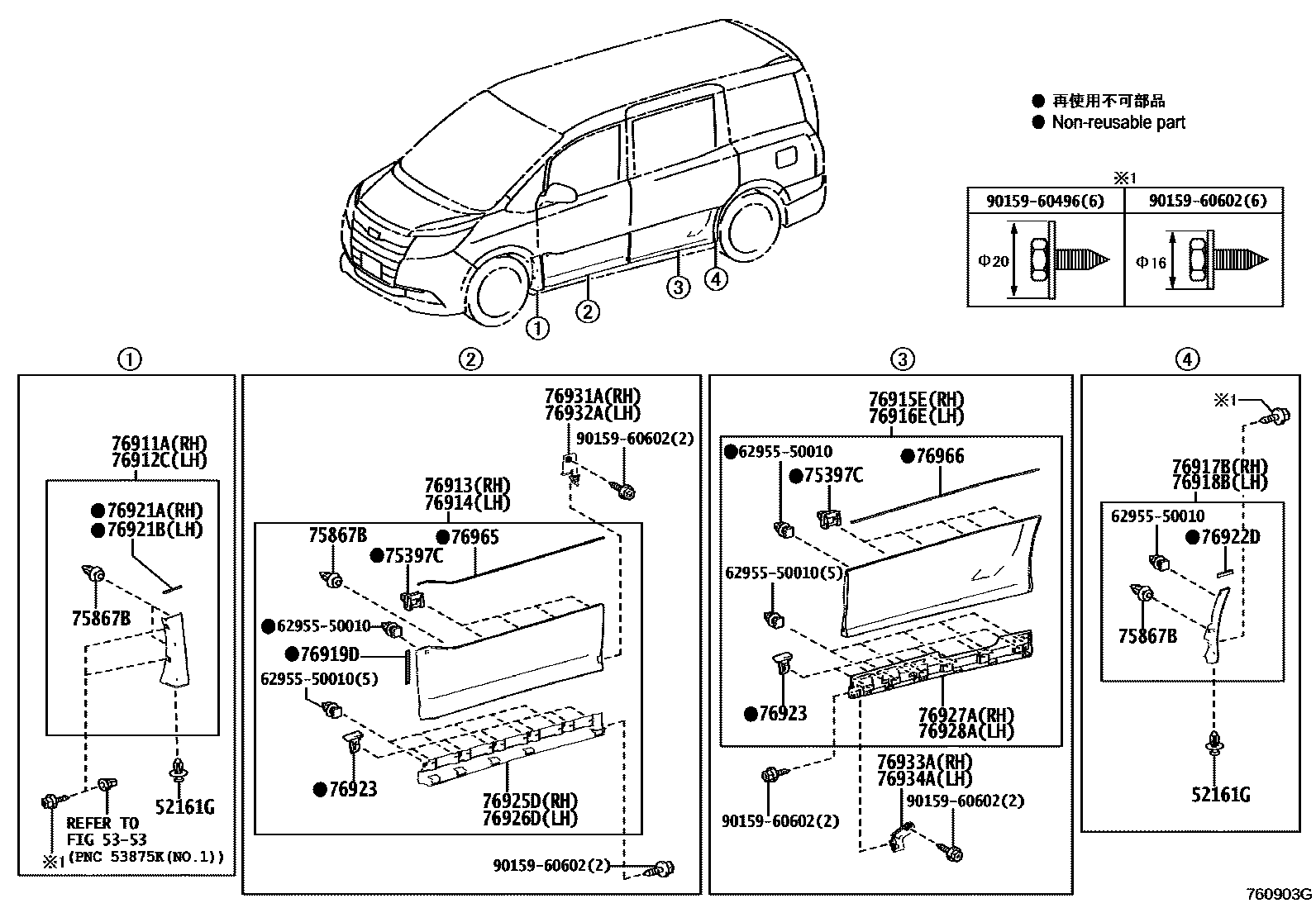

SPOILER & SIDE MUDGUARD

0001 1���� 0002 1����(G'S OR GR SPORT) 0003 1��

52161GPIECE, REAR BUMPER

main52161-16010iZRR8#,ZWR80..SI,ZS201401-201706

main52161-16010iZRR80..07S..(SI,ZS)..CBU201709

main52161-16010iZRR80..07S..(SI,ZS)..CBU201605-201706

5353

75397CCLIP, OUTSIDE MOULDING, NO.3

main75397-58030iZRR8#,ZWR80..SI,ZS201401-201706

75867BCLIP, ROCKER PANEL MOULDING

main75867-33030iZRR8#,ZWR80..SI,ZS201401-201706

76911AMUDGUARD, FENDER PANEL, RH

main76901-28090-A0iZRR8#,ZWR80..SI,ZS201401-201706

WHITE PEARL CS.,070

main76901-28090-A1iZRR8#,ZWR80..SI201706

LUXURY WHITE PEARL CS.GF.,086

main76901-28090-B0iZRR8#,ZWR80..SI,ZS201401-201706

SILVER ME.,1F7

main76901-28090-B0iZRR80..07S..(SI,ZS)..CBU201709

main76901-28090-B2iZRR8#,ZWR80..(SI,ZS)..CBU201412-201706

ICE TITANIUM M.M.,1H4

main76901-28090-C0iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,202

main76901-28090-C1iZRR8#,ZWR80..ZS201401-201706

BLACKISH AGEHA M.M.,221

main76901-28090-C3iZRR8#,ZWR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main76901-28090-D0iZRR8#,ZWR80..SI,ZS201401-201706

DEEP RED M.M.,3R9

main76901-28090-K0iZRR8#,ZWR80..SI201401-201706

DK.VIOLET M.M.,9AF

76912CMUDGUARD, FENDER PANEL, LH

main76902-28090-A0iZRR8#,ZWR80..SI,ZS201401-201706

WHITE PEARL CS.,070

main76902-28090-A1iZRR8#,ZWR80..SI201706

LUXURY WHITE PEARL CS.GF.,086

main76902-28090-B0iZRR8#,ZWR80..SI,ZS201401-201706

SILVER ME.,1F7

main76902-28090-B0iZRR80..07S..(SI,ZS)..CBU201709

main76902-28090-B2iZRR8#,ZWR80..(SI,ZS)..CBU201412-201706

ICE TITANIUM M.M.,1H4

main76902-28090-C0iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,202

main76902-28090-C1iZRR8#,ZWR80..SI,ZS201401-201706

BLACKISH AGEHA M.M.,221

main76902-28090-C3iZRR8#,ZWR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main76902-28090-D0iZRR8#,ZWR80..SI,ZS201401-201706

DEEP RED M.M.,3R9

main76902-28090-K0iZRR8#,ZWR80..SI201401-201706

DK.VIOLET M.M.,9AF

76913MUDGUARD, FRONT DOOR, RH

main76903-28160-A0iZRR8#,ZWR80..SI,ZS201401-201706

WHITE PEARL CS.,070

main76903-28160-A1iZRR8#,ZWR80..SI201706

LUXURY WHITE PEARL CS.GF.,086

main76903-28160-B0iZRR80..07S..(SI,ZS)..CBU201709

main76903-28160-B0iZRR8#,ZWR80..SI,ZS201401-201706

SILVER ME.,1F7

main76903-28160-B2iZRR8#,ZWR80..(SI,ZS)..CBU201412-201706

ICE TITANIUM M.M.,1H4

main76903-28160-C0iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,202

main76903-28160-C1iZRR8#,ZWR80..ZS201401-201706

BLACKISH AGEHA M.M.,221

main76903-28160-C3iZRR8#,ZWR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main76903-28160-D0iZRR8#,ZWR80..SI,ZS201401-201706

DEEP RED M.M.,3R9

main76903-28160-K0iZRR8#,ZWR80..SI201401-201706

DK.VIOLET M.M.,9AF

76914MUDGUARD, FRONT DOOR, LH

main76904-28140-A0iZRR8#,ZWR80..SI,ZS201401-201706

WHITE PEARL CS.,070

main76904-28140-A1iZRR8#,ZWR80..SI201706

LUXURY WHITE PEARL CS.GF.,086

main76904-28140-B0iZRR8#,ZWR80..SI,ZS201401-201706

SILVER ME.,1F7

main76904-28140-B0iZRR80..07S..(SI,ZS)..CBU201709

main76904-28140-B2iZRR8#,ZWR80..(SI,ZS)..CBU201412-201706

ICE TITANIUM M.M.,1H4

main76904-28140-C0iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,202

main76904-28140-C1iZRR8#,ZWR80..ZS201401-201706

BLACKISH AGEHA M.M.,221

main76904-28140-C3iZRR8#,ZWR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main76904-28140-D0iZRR8#,ZWR80..SI,ZS201401-201706

DEEP RED M.M.,3R9

main76904-28140-K0iZRR8#,ZWR80..SI201401-201706

DK.VIOLET M.M.,9AF

76915EMUDGUARD, SLIDE DOOR, RH

main76905-28080-A0iZRR8#,ZWR80..SI,ZS201401-201706

WHITE PEARL CS.,070

main76905-28080-A1iZRR8#,ZWR80..SI201706

LUXURY WHITE PEARL CS.GF.,086

main76905-28080-B0iZRR8#,ZWR80..SI,ZS201401-201706

SILVER ME.,1F7

main76905-28080-B0iZRR80..07S..(SI,ZS)..CBU201709

main76905-28080-B2iZRR8#,ZWR80..(SI,ZS)..CBU201412-201706

ICE TITANIUM M.M.,1H4

main76905-28080-C0iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,202

main76905-28080-C1iZRR8#,ZWR80..SI,ZS201401-201706

BLACKISH AGEHA M.M.,221

main76905-28080-C3iZRR8#,ZWR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main76905-28080-D0iZRR8#,ZWR80..SI,ZS201401-201706

DEEP RED M.M.,3R9

main76905-28080-K0iZRR8#,ZWR80..SI201401-201706

DK.VIOLET M.M.,9AF

76916EMUDGUARD, SLIDE DOOR, LH

main76906-28160-A0iZRR8#,ZWR80..SI,ZS201401-201706

WHITE PEARL CS.,070

main76906-28160-A1iZRR8#,ZWR80..SI201706

LUXURY WHITE PEARL CS.GF.,086

main76906-28160-B0iZRR80..07S..(SI,ZS)..CBU201709

main76906-28160-B0iZRR8#,ZWR80..SI,ZS201401-201706

SILVER ME.,1F7

main76906-28160-B2iZRR8#,ZWR80..(SI,ZS)..CBU201412-201706

ICE TITANIUM M.M.,1H4

main76906-28160-C0iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,202

main76906-28160-C1iZRR8#,ZWR80..SI,ZS201401-201706

BLACKISH AGEHA M.M.,221

main76906-28160-C3iZRR8#,ZWR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main76906-28160-D0iZRR8#,ZWR80..SI,ZS201401-201706

DEEP RED M.M.,3R9

main76906-28160-K0iZRR8#,ZWR80..SI201401-201706

DK.VIOLET M.M.,9AF

76917BMUDGUARD, QUARTER PANEL, RH

main76907-28100-A0iZRR8#,ZWR80..SI,ZS201401-201706

WHITE PEARL CS.,070

main76907-28100-A1iZRR8#,ZWR80..SI201706

LUXURY WHITE PEARL CS.GF.,086

main76907-28100-B0iZRR80..07S..(SI,ZS)..CBU201709

main76907-28100-B0iZRR8#,ZWR80..SI,ZS201401-201706

SILVER ME.,1F7

main76907-28100-B2iZRR8#,ZWR80..(SI,ZS)..CBU201412-201706

ICE TITANIUM M.M.,1H4

main76907-28100-C0iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,202

main76907-28100-C1iZRR8#,ZWR80..ZS201401-201706

BLACKISH AGEHA M.M.,221

main76907-28100-C3iZRR8#,ZWR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main76907-28100-D0iZRR8#,ZWR80..SI,ZS201401-201706

DEEP RED M.M.,3R9

main76907-28100-K0iZRR8#,ZWR80..SI201401-201706

DK.VIOLET M.M.,9AF

76918BMUDGUARD, QUARTER PANEL, LH

main76908-28100-A0iZRR8#,ZWR80..SI,ZS201401-201706

WHITE PEARL CS.,070

main76908-28100-A1iZRR8#,ZWR80..SI201706

LUXURY WHITE PEARL CS.GF.,086

main76908-28100-B0iZRR80..07S..(SI,ZS)..CBU201709

main76908-28100-B0iZRR8#,ZWR80..SI,ZS201401-201706

SILVER ME.,1F7

main76908-28100-B2iZRR8#,ZWR80..(SI,ZS)..CBU201412-201706

ICE TITANIUM M.M.,1H4

main76908-28100-C0iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,202

main76908-28100-C1iZRR8#,ZWR80..SI,ZS201401-201706

BLACKISH AGEHA M.M.,221

main76908-28100-C3iZRR8#,ZWR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main76908-28100-D0iZRR8#,ZWR80..SI,ZS201401-201706

DEEP RED M.M.,3R9

main76908-28100-K0iZRR8#,ZWR80..SI201401-201706

DK.VIOLET M.M.,9AF

76919DPAD, SIDE MUDGUARD

main76919-28220iZRR8#,ZWR80..SI,ZS201401-201706

76921APROTECTOR, SIDE MUDGUARD, NO.1

main76921-28120-B0iZRR80..SI..IV5201401-201706

DARK GRAY,202 ,3R9 ,9AF

main76921-28120-B0iZRR80..SI..IV5201401-201706

DARK GRAY,202 ,221 ,3R9

main76921-28120-B0iZRR80..SI..IV5201401-201706

DARK GRAY,1H4 ,202 ,221 ,3R9

main76921-28120-B0iZRR80..SI..IV5201401-201706

DARK GRAY,1H4 ,202 ,3R9 ,9AF

main76921-28120-B0iZRR8#,ZWR80..SI201706

DARK GRAY,202 ,221 ,224 ,3R9

main76921-28120-B1iZRR8#,ZWR80..ZS201706

LT. GRAY,070 ,086

main76921-28120-B1iZRR8#,ZWR80..SI201401-201706

LT. GRAY,070

main76921-28120-B2iZRR80..07S..(SI,ZS)..CBU201709

main76921-28120-B2iZRR8#,ZWR80..SI,ZS201401-201706

MEDIUM GRAY,1F7

76921BPROTECTOR, SIDE MUDGUARD, NO.1

main76921-28130-B0iZRR8#,ZWR80..SI..CBU201401-201706

DARK GRAY,202 ,221 ,3R9

main76921-28130-B0iZRR80..SI..IV5201401-201706

DARK GRAY,202 ,3R9 ,9AF

main76921-28130-B0iZRR80..SI..IV5201401-201706

DARK GRAY,1H4 ,202 ,221 ,3R9

main76921-28130-B0iZRR80..SI..IV5201401-201706

DARK GRAY,1H4 ,202 ,3R9 ,9AF

main76921-28130-B0iZRR8#,ZWR80..SI201706

DARK GRAY,202 ,221 ,224 ,3R9

main76921-28130-B1iZRR8#,ZWR80..SI201706

LT. GRAY,070 ,086

main76921-28130-B1iZRR8#,ZWR80..SI201401-201706

LT. GRAY,070

main76921-28130-B2iZRR80..07S..(SI,ZS)..CBU201709

main76921-28130-B2iZRR8#,ZWR80..SI,ZS201401-201706

MEDIUM GRAY,1F7

76922DPROTECTOR, SIDE MUDGUARD, NO.2

main76922-28110-B0iZRR8#,ZWR80..ZS..CBU201401-201706

DARK GRAY,1H4 ,202 ,221 ,3R9

main76922-28110-B0iZRR8#,ZWR80..ZS..CBU201401-201706

DARK GRAY,1H4 ,202 ,3R9 ,9AF

main76922-28110-B0iZRR8#,ZWR80..SI..CBU201401-201706

DARK GRAY,202 ,3R9 ,9AF

main76922-28110-B0iZRR8#,ZWR80..SI..CBU201401-201706

DARK GRAY,202 ,221 ,3R9

main76922-28110-B0iZRR8#,ZWR80..SI201706

DARK GRAY,202 ,221 ,224 ,3R9

main76922-28110-B1iZRR8#,ZWR80..ZS201401-201706

LT. GRAY,070

main76922-28110-B1iZRR8#,ZWR80..SI201706

LT. GRAY,070 ,086

main76922-28110-B2iZRR80..07S..(SI,ZS)..CBU201709

main76922-28110-B2iZRR8#,ZWR80..SI,ZS201401-201706

MEDIUM GRAY,1F7

76923RETAINER, SIDE MUDGUARD

main75392-35220iZRR8#,ZWR80..SI,ZS201401-201706

76925DPROTECTOR, SIDE MUDGUARD, RH

main76925-28160iZRR8#,ZWR80..SI,ZS201401-201706

76926DPROTECTOR, SIDE MUDGUARD, LH

main76926-28130iZRR8#,ZWR80..SI,ZS201401-201706

76927APROTECTOR, SIDE MUDGUARD, REAR RH

main76927-28100iZRR8#,ZWR80..SI,ZS201401-201706

sub76927-28101

76928APROTECTOR, SIDE MUDGUARD, REAR LH

main76928-28070iZRR8#,ZWR80..SI,ZS201401-201706

sub76928-28071

76931ABRACKET, SIDE MUDGUARD, NO.1 RH

main76931-28050iZRR8#,ZWR80..SI,ZS201401-201706

76932ABRACKET, SIDE MUDGUARD, NO.1 LH

main76932-28060iZRR8#,ZWR80..SI,ZS201401-201706

76933ABRACKET, SIDE MUDGUARD, NO.2 RH

main76933-28050iZRR8#,ZWR80..SI,ZS201401-201706

76934ABRACKET, SIDE MUDGUARD, NO.2 LH

main76934-28050iZRR8#,ZWR80..SI,ZS201401-201706

76965PROTECTOR, FRONT DOOR LOWER MUDGUARD

main76965-28120-B0iZRR8#,ZWR80..SI..CBU201401-201706

DARK GRAY,202 ,3R9 ,9AF

main76965-28120-B0iZRR80..SI..IV5201401-201706

DARK GRAY,202 ,221 ,3R9

main76965-28120-B0iZRR80..SI..IV5201401-201706

DARK GRAY,1H4 ,202 ,221 ,3R9

main76965-28120-B0iZRR80..SI..IV5201401-201706

DARK GRAY,1H4 ,202 ,3R9 ,9AF

main76965-28120-B0iZRR8#,ZWR80..SI201706

DARK GRAY,202 ,221 ,224 ,3R9

main76965-28120-B1iZRR8#,ZWR80..SI201401-201706

LT. GRAY,070

main76965-28120-B1iZRR8#,ZWR80..SI201706

LT. GRAY,070 ,086

main76965-28120-B2iZRR80..07S..(SI,ZS)..CBU201709

main76965-28120-B2iZRR8#,ZWR80..SI,ZS201401-201706

MEDIUM GRAY,1F7

76966PROTECTOR, SLIDE DOOR LOWER MUDGUARD

main76966-28130-B0iZRR8#,ZWR80..ZS..CBU201401-201706

DARK GRAY,1H4 ,202 ,221 ,3R9

main76966-28130-B0iZRR8#,ZWR80..ZS..CBU201401-201706

DARK GRAY,1H4 ,202 ,3R9 ,9AF

main76966-28130-B0iZRR8#,ZWR80..SI..CBU201401-201706

DARK GRAY,202 ,3R9 ,9AF

main76966-28130-B0iZRR8#,ZWR80..SI..CBU201401-201706

DARK GRAY,202 ,221 ,3R9

main76966-28130-B0iZRR8#,ZWR80..SI201706

DARK GRAY,202 ,221 ,224 ,3R9

main76966-28130-B1iZRR8#,ZWR80..ZS201706

LT. GRAY,070 ,086

main76966-28130-B1iZRR8#,ZWR80..SI,ZS201401-201706

LT. GRAY,070

main76966-28130-B2iZRR8#,ZWR80..SI,ZS201401-201706

MEDIUM GRAY,1F7

main76966-28130-B2iZRR80..07S..(SI,ZS)..CBU201709

6295550010SEAL, ROOF SIDE VENT

main62955-50010

9015960496

main90159-60496

9015960602

main90159-60602

30 parts on this diagram · 3 diagrams in section
