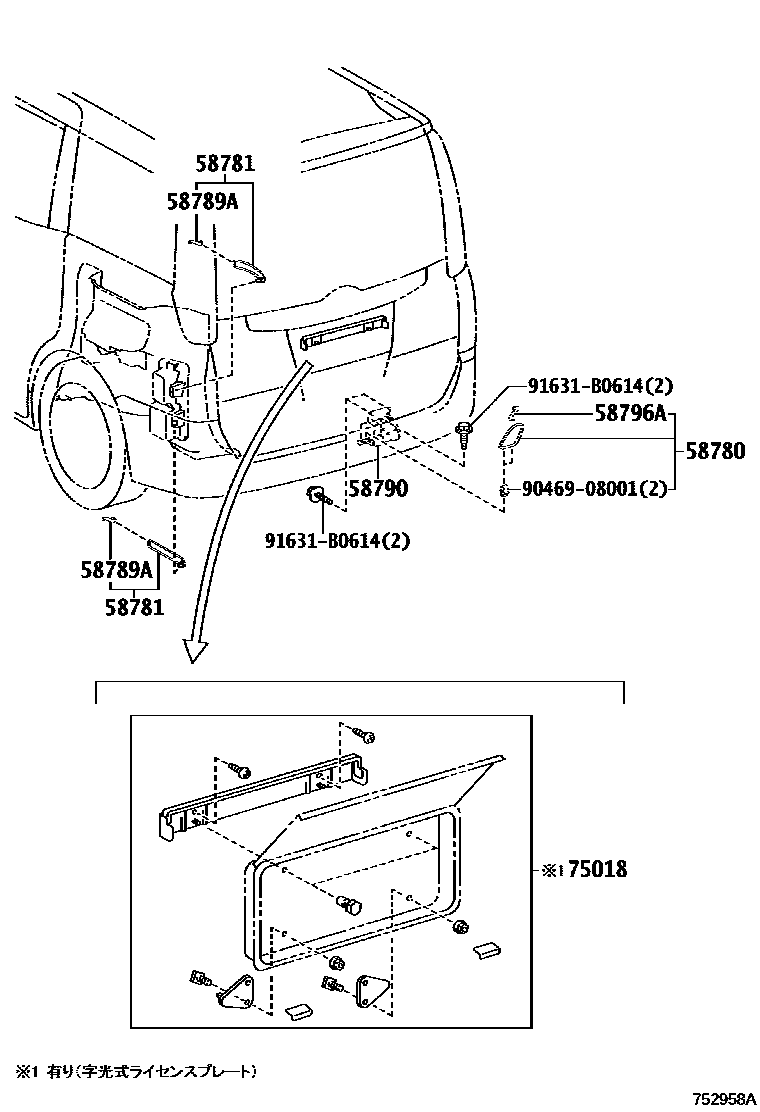

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

58780BAND ASSY, TOOL BOX

main58780-28090iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU201706-202004

main58780-95J01iZRR80..(SI,ZS)..IV5;ZRR8#..NOAH..X..IV5201706

58781BAND, TOOL BAG

main58424-28020×2iZRR8#,ZWR80201706

58789AHOOK, TOOL BOX BAND, NO.2

main58788-28030×2iZRR8#,ZWR80201401-201706

58790CARRIER ASSY, JACK

main58790-28070iZRR8#,ZWR80..CBU201401-201706

58796AHOOK, JACK CLAMP

main58788-95J01iZRR8#,ZWR80..CBU201401-201706

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-44010iZRR8#,ZWR80201401-201706

9046908001

main90469-08001

91631B0614

main91631-B0614

8 parts on this diagram · 2 diagrams in section
