MOULDING

0001 1 0002 1

5353

6152

65631CPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-28030iZRR8#,ZWR80..SI,ZS201401-201706

main65631-28030iZRR8#,ZWR80201706

65632BPLATE, REAR WHELL HOUSE, FRONT LH

main65632-28030iZRR8#,ZWR80201401-201706

main65632-28030iZRR8#,ZWR80201706

6751

6755

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-30170iZRR8#,ZWR80201401-202004

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-51021iZRR8#,ZWR80201401-202004

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-28070iZRR8#,ZWR80201401-201706

main75551-28070iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-28070iZRR8#,ZWR80201401-201706

main75552-28070iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-28050iZRR8#,ZWR80201401-202004

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-28050iZRR8#,ZWR80201401-202004

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-28100iZRR8#,ZWR80201401-201606

sub75555-28101

main75555-28101iZRR8#,ZWR80201607-201710

sub75555-28120

main75555-28110iZRR8#,ZWR80201710-201806

sub75555-28111

main75555-28111iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201806-202004

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-28100iZRR8#,ZWR80201401-201606

sub75556-28101

main75556-28101iZRR8#,ZWR80201607-201710

sub75556-28120

main75556-28110iZRR8#,ZWR80201710-201806

sub75556-28111

main75556-28111iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201806-202004

75557AMOULDING, ROOF DRIP SIDE FINISH OUTER, RH

main75557-28030iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

75558BMOULDING, ROOF DRIP SIDE FINISH OUTER, LH

main75558-28030iZRR8#,ZWR80201401-202004

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52040iZRR8#,ZWR80201401-202004

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75561-28080iZRR8#,ZWR80201401-202004

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-28030iZRR8#,ZWR80201401-201404

sub75765-28031

main75765-28031iZRR8#,ZWR80201405-202004

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-28030iZRR8#,ZWR80201401-201404

sub75766-28031

main75766-28031iZRR8#,ZWR80201405-202004

75770MOULDING ASSY, HOOD, FRONT

main75770-28120iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main75770-28130iZRR8#,ZWR80..VOXY201401-201706

main75770-28170-A0iZRR8#,ZWR80..NOAH..(G,X)201706

WHITE PEARL CS.,070

main75770-28170-A1iZRR8#,ZWR80..NOAH..(G,X)201706

LUXURY WHITE PEARL CS.GF.,086

main75770-28170-B0iZRR8#,ZWR80..NOAH..(G,X)201706

SILVER ME.,1F7

main75770-28170-C0iZRR8#,ZWR80..NOAH..(G,X)201706

BLACK,202

main75770-28170-D0iZRR8#,ZWR80..NOAH..(G,X)201706

DEEP RED M.M.,3R9

main75770-28170-E0iZRR8#,ZWR80..NOAH..(G,X)201706

AVANT-GARDE BRONZE ME.,4V8

main75770-28180iZRR8#,ZWR80..SI201706

main75770-28190iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main75770-28190iZRR8#,ZWR80..ZS201706

main75770-28200iZRR8#,ZWR80..GI201706

main75770-28200iZRR8#,ZWR80..XI201706-202004

75777EPAD, HOOD FRONT MOULDING

main75777-28060iZRR8#,ZWR80..XI201401-202004

main75777-28070iZRR8#,ZWR80..VOXY201401-201706

main75777-28100iZRR8#,ZWR80..VOXY..(V,X)201706-202004

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-28050-A0iZRR8#,ZWR80..G,GI,V,X,XI201401-202004

WHITE PEARL CS.,070

main75850-28050-A1iZRR8#,ZWR80..NOAH..(G,X)201706

LUXURY WHITE PEARL CS.GF.,086

main75850-28050-B0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X)201401-202004

SILVER ME.,1F7

main75850-28050-B2iZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU201504-201706

ICE TITANIUM M.M.,1H4

main75850-28050-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X)201401-202004

BLACK,202

main75850-28050-C1iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

BLACKISH AGEHA M.M.,221

main75850-28050-C2iZRR8#,ZWR80..XI201410-202004

SPARKLING BLACK PEARL CS.,220

main75850-28050-C3iZRR8#,ZWR80..VOXY..(V,X)201706-202004

INAZUMA SPARKING BLACK GF,224

main75850-28050-D0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-202004

DEEP RED M.M.,3R9

main75850-28050-E0iZRR8#,ZWR80..NOAH..(G,X)201401-201706

ROSE CHAMPAGNE M.M.,4W4

main75850-28050-E2iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X)201706-202004

AVANT-GARDE BRONZE ME.,4V8

main75850-28050-H0iZRR8#,ZWR80..G,GI,V,X,XI201401-201706

OCEAN MINT ME.,789

main75850-28050-K0iZRR8#,ZWR80..(ESQIR,VOXY)..(GI,V,X,XI)201401-201706

DK.VIOLET M.M.,9AF

main75850-28060iZRR8#,ZWR80..SI,ZS201401-201706

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-28040-A0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X)201401-202004

WHITE PEARL CS.,070

main75860-28040-A1iZRR8#,ZWR80..NOAH..(G,X)201706

LUXURY WHITE PEARL CS.GF.,086

main75860-28040-B0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X)201401-202004

SILVER ME.,1F7

main75860-28040-B2iZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU201504-201706

ICE TITANIUM M.M.,1H4

main75860-28040-C0iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

BLACK,202

main75860-28040-C1iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

BLACKISH AGEHA M.M.,221

main75860-28040-C2iZRR8#,ZWR80..GI201410-202004

SPARKLING BLACK PEARL CS.,220

main75860-28040-C3iZRR8#,ZWR80..VOXY..(V,X)201706-202004

INAZUMA SPARKING BLACK GF,224

main75860-28040-D0iZRR8#,ZWR80..XI201401-202004

DEEP RED M.M.,3R9

main75860-28040-E0iZRR8#,ZWR80..NOAH..(G,X)201401-201706

ROSE CHAMPAGNE M.M.,4W4

main75860-28040-E2iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X)201706-202004

AVANT-GARDE BRONZE ME.,4V8

main75860-28040-H0iZRR8#,ZWR80..G,GI,V,X,XI201401-201706

OCEAN MINT ME.,789

main75860-28040-K0iZRR8#,ZWR80..(ESQIR,VOXY)..(GI,V,X,XI)201401-201706

DK.VIOLET M.M.,9AF

main75860-28050iZRR8#,ZWR80..SI,ZS201401-201706

75861FRETAINER, ROCKER PANEL MOULDING, RH

main75861-28020iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

75862DRETAINER, ROCKER PANEL MOULDING, LH

main75862-28020iZRR8#,ZWR80201401-202004

75866ARETAINER, ROCKER PANEL MOULDING

main76923-52021iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201401-202004

75867ACLIP, ROCKER PANEL MOULDING

main75867-68010iZRR8#,ZWR80..SI,ZS201401-201706

75868BCLIP, ROCKER PANEL MOULDING, NO.2

main75867-68010iZRR8#,ZWR80202009

main75868-33020iZRR8#,ZWR80201401-202009

6295550010SEAL, ROOF SIDE VENT

main62955-50010

7586733050MOULDING, FRONT PANEL

main75867-33050

9010506325

main90105-06325

9010905107

main90109-05107

9011905051

main90119-05051

9015960431

main90159-60431

9015960496

main90159-60496

9015960602

main90159-60602

9016240034

main90162-40034

9016240035

main90162-40035

9017605023

main90176-05023

9017906349

main90179-06349

9018904059

main90189-04059

9018906241

main90189-06241

9046708225

main90467-08225

9046710077

main90467-10077

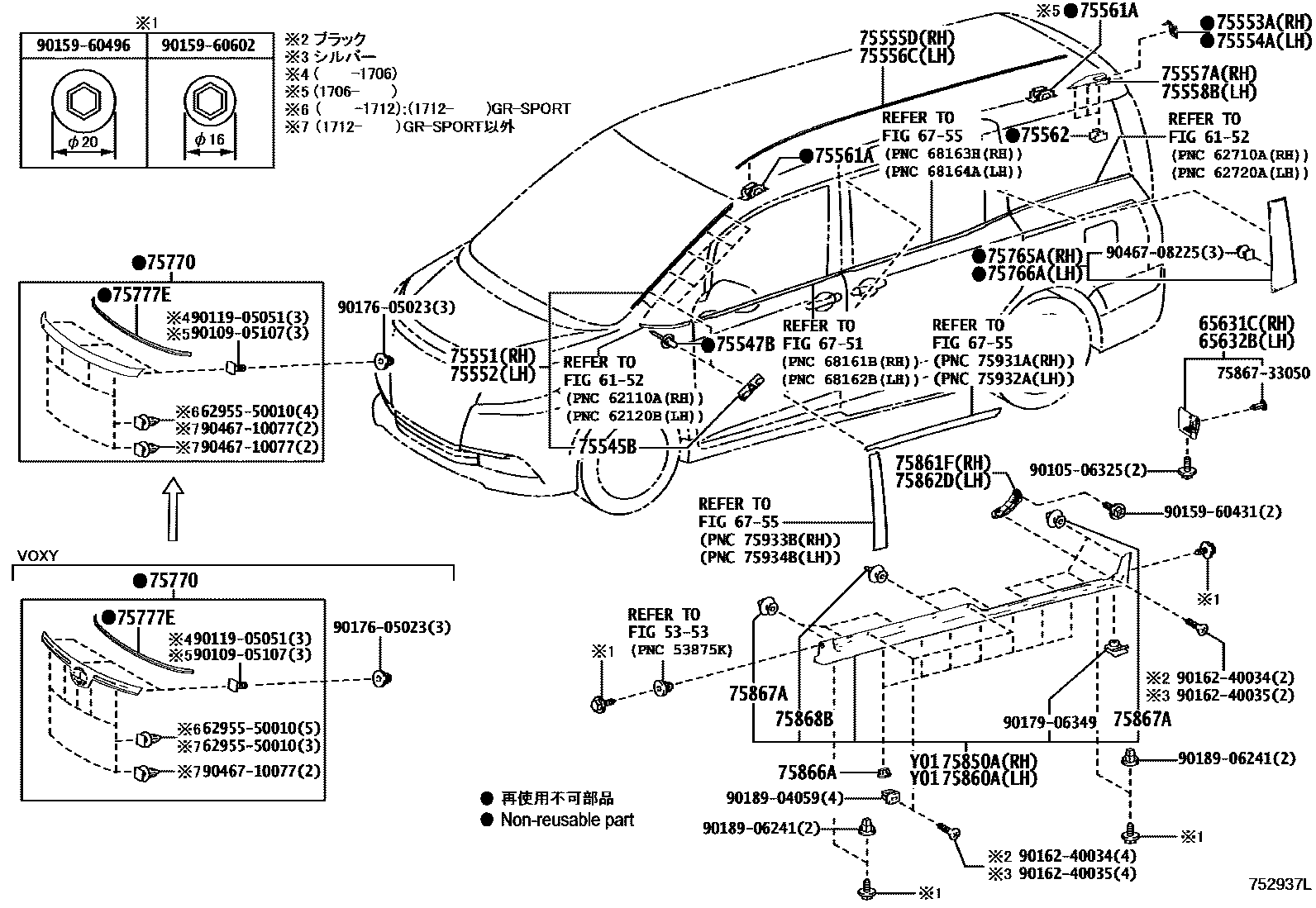

45 parts on this diagram · 2 diagrams in section
