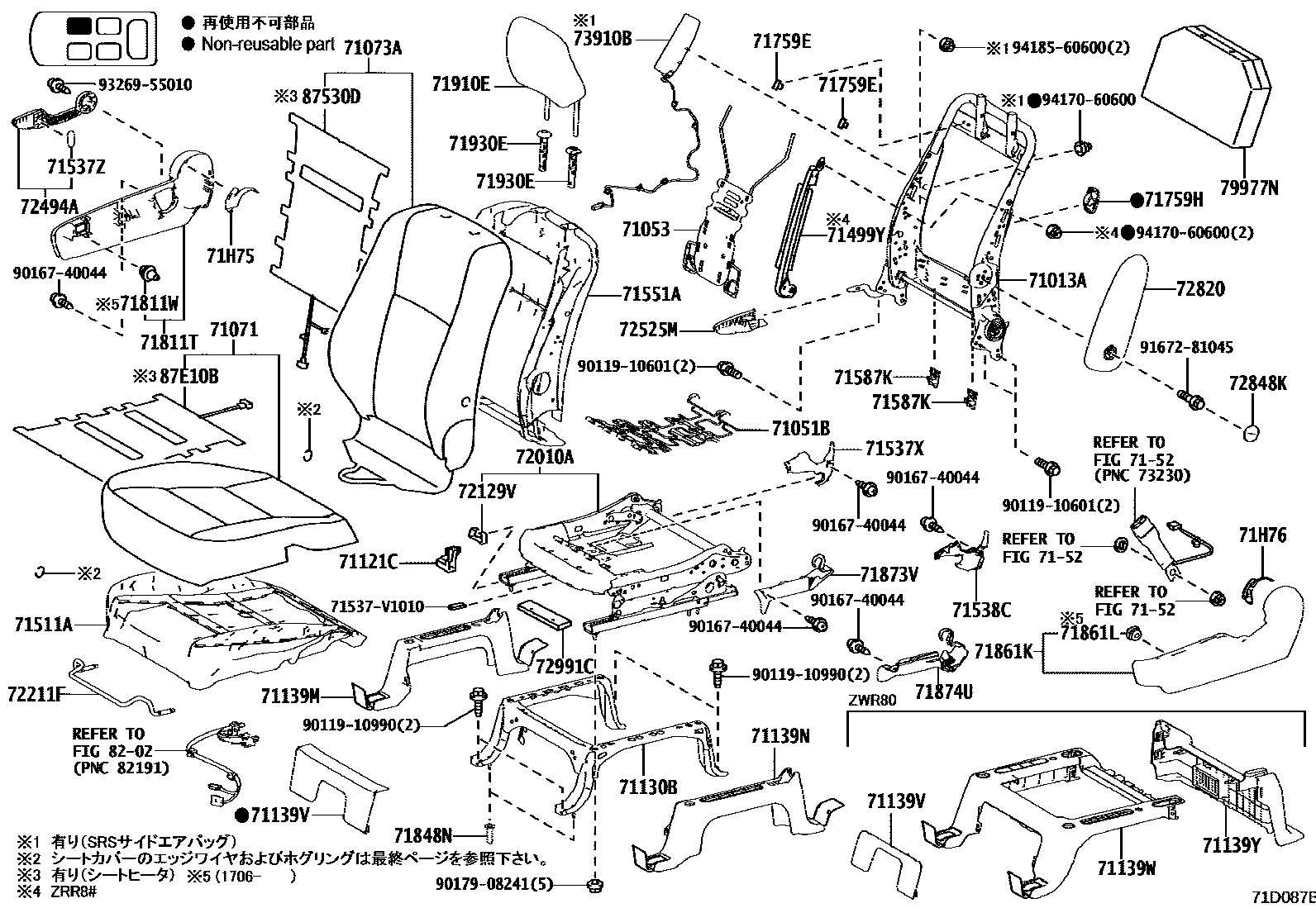

FRONT SEAT & SEAT TRACK

0001 1������ 0002 1������� 0003 1�������(����������) 0004 1�������(����������) 0005 1�������(����������) 0006 1�������(����������) 0007 1�������(����������) 0008 1������� & �������

71013AFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-28400iZWR80201402-201901

sub71013-28500

main71013-28410iZWR80..SI201712-201901

sub71013-28510

main71013-28410iZWR80201402-201901

sub71013-28510

main71013-28410iZWR80201706-201901

sub71013-28510

main71013-28410iZWR80..GI201601-201706

sub71013-28510

main71013-28410iZWR80..SI201607-201706

sub71013-28510

main71013-28420iZRR8#201401-201901

sub71013-28520

main71013-28430iZRR80..07S..(SI,ZS)..CBU201404-201706

sub71013-28530

main71013-28430iZRR8#..CBU201401-201901

sub71013-28530

main71013-28430iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201901

sub71013-28530

main71013-28430iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201706

sub71013-28530

main71013-28430iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201706

sub71013-28530

main71013-28430iZRR8#..GI201601-201706

sub71013-28530

main71013-28430iZRR8#..SI..CBU201607-201706

sub71013-28530

main71013-28430iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201706-201901

sub71013-28530

main71013-28430iZRR8#..08S..(X,XI)..CBU201709-201901

sub71013-28530

main71013-28430iZRR8#..08S..(X,XI)..CBU201709-201901

sub71013-28530

main71013-28430iZRR8#..07S..(X,XI)..CBU201710-201901

sub71013-28530

main71013-28430iZRR8#..07S..(X,XI)..CBU201710-201901

sub71013-28530

main71013-28430iZRR8#..SI..CBU201712-201901

sub71013-28530

main71013-28440iZRR80..07S..(SI,ZS)..CBU201605-201706

sub71013-28540

main71013-28440iZRR80..07S..(SI,ZS)..CBU201709-201812

sub71013-28540

main71013-28450iZRR80..07S..(SI,ZS)..CBU201605-201706

sub71013-28550

main71013-28450iZRR80..07S..(SI,ZS)..CBU201709-201812

sub71013-28550

main71013-28500iZWR80201901-201903

sub71013-28501

main71013-28501iZWR80201904

main71013-28510iZWR80..SI201901-201903

sub71013-28511

main71013-28510iZWR80..GI201901-201903

sub71013-28511

main71013-28510iZWR80..GI201901-201903

sub71013-28511

main71013-28510iZWR80..GI201901-201903

sub71013-28511

main71013-28510iZWR80201901-201903

sub71013-28511

main71013-28511iZWR80..GI201904

main71013-28511iZWR80..SI201904

main71013-28511iZWR80..SI201904

main71013-28511iZWR80..SI201904

main71013-28511iZWR80..ZS202010

main71013-28511iZWR80..GI201904-202005

main71013-28520iZRR8#201901-201903

sub71013-28521

main71013-28521iZRR8#201904

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28530iZRR8#..SI..CBU201901-201903

sub71013-28531

main71013-28531iZRR80..08S..(X,XI)..CBU201904

main71013-28531iZRR8#..07S..GI201904-202005

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201904

main71013-28531iZRR8#..ZS..CBU202010

main71013-28540iZRR80..07S..SI..CBU201901-201903

sub71013-28541

main71013-28540iZRR80..07S..SI..CBU201901-201903

sub71013-28541

main71013-28541iZRR80..07S..ZS..CBU201904

main71013-28541iZRR80..07S..SI..CBU201904

main71013-28550iZRR80..07S..SI..CBU201901-201903

sub71013-28551

main71013-28550iZRR80..07S..ZS..CBU201901-201903

sub71013-28551

main71013-28551iZRR80..07S..SI..CBU201904

main71013-28551iZRR80..07S..SI..CBU201904

71051BSPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-21050iZRR80..07S..(SI,ZS)..CBU201605-201706

main71051-21050iZRR80..07S..(SI,ZS)..CBU201605-201706

main71051-21050iZRR80..07S..SI..CBU201709-201901

main71051-21050iZRR80..07S..SI..CBU201709-201901

main71051-21050iZRR80..07S..SI..CBU201901

main71051-21050iZRR80..07S..SI..CBU201901

main71051-47060iZWR80..GI;ZRR8#..X..CBU201706-201901

main71051-47060iZRR8#,ZWR80201401-201706

main71051-47060iZRR80..07S..(SI,ZS)..CBU201710-201901

main71051-47060iZRR80..07S..(SI,ZS)..CBU201710-201901

main71051-47060iZRR8#..08S..X..CBU201709-201901

71053SPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-52050iZRR8#,ZWR80201401-201706

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-28G40-A2iZRR8#,ZWR80..NOAH..X201401-201706

IVORY,TRIM0#

sub71071-28G41

main71071-28G40-C1iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

sub71071-28G41

main71071-28G40-C1iZRR8#,ZWR80..X201401-201706

BLACK,TRIM2#

sub71071-28G41

main71071-28G40-C1iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201901

sub71071-28G41

main71071-28G40-C1iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

sub71071-28G41

main71071-28G40-C1iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

sub71071-28G41

main71071-28G40-C1iZRR8#..07S..SI..CBU201710-201901

sub71071-28G41

main71071-28G40-C1iZRR80..08S..(SI,ZS)..IV5201911-202005

sub71071-28G41

main71071-28G40-C1iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

sub71071-28G41

main71071-28G40-C1iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

sub71071-28G41

main71071-28G80-A2iZRR8#,ZWR80..NOAH..X..CBU201401-201706

sub71071-28G81

main71071-28G80-A2iZRR80..NOAH..08S..X..CBU;ZRR85..NOAH..07S..X..CBU201404-201706

sub71071-28G81

main71071-28G80-C1iZRR80..07S..(SI,ZS)..CBU201404-201901

sub71071-28G81

main71071-28G80-C1iZRR80..07S..(SI,ZS)..CBU201404-201706

sub71071-28G81

main71071-28G80-C1iZRR8#..08S..X..CBU201709

sub71071-28G81

main71071-28G80-C1iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

sub71071-28G81

main71071-28G80-C1iZRR80..07S..SI..CBU201901

sub71071-28G81

main71071-28G80-C1iZRR80..07S..(SI,ZS)..CBU201404-201706

sub71071-28G81

main71071-28G80-C1iZRR80..07S..(SI,ZS)..CBU201404-201706

sub71071-28G81

main71071-28G80-C1iZRR80..07S..SI..CBU201710-201901

sub71071-28G81

main71071-28G80-C1iZRR80..08S..(X,ZS)..CBU;ZRR85..07S..(X,ZS)..CBU201401-201706

sub71071-28G81

main71071-28G80-C1iZRR8#..08S..X..CBU201709

sub71071-28G81

main71071-28G80-C1iZRR8#..07S..X..CBU201710

sub71071-28G81

main71071-28G90-C4iZRR8#,ZWR80..SI,ZS201401-201706

BLACK/BLACK,TRIM2#

main71071-28J00-C3iZRR8#,ZWR80..(SI,ZS)..CBU201401-201706

main71071-28J10-A1iZRR8#..G201401-201706

IVORY,TRIM0#

main71071-28J10-C1iZRR8#..G,V201401-201706

BLACK,TRIM2#

main71071-28J20-A1iZRR8#..G201401-201706

main71071-28J20-C1iZRR8#..G,V201401-201706

main71071-28J50-C0iZRR8#,ZWR80..GI201410-201901

BURGUNDY BLACK,TRIM22

main71071-28J50-C1iZRR8#,ZWR80..GI201706-201901

BLACK,TRIM20

main71071-28J50-C1iZRR8#,ZWR80..GI201410-201706

BLACK,TRIM23

main71071-28J60-C0iZRR8#,ZWR80..GI201410-201901

main71071-28J60-C1iZRR8#,ZWR80..GI201706-201901

main71071-28J60-C1iZRR8#,ZWR80..GI201410-201706

main71071-28J70-A1iZWR80..G201402-201706

IVORY,TRIM0#

main71071-28J70-C1iZWR80..G,V201402-201706

BLACK,TRIM2#

main71071-28J80-A1iZWR80..G201402-201706

main71071-28J80-C1iZWR80..G,V201402-201706

main71071-28K10-C0iZRR8#,ZWR80..GI201601-201706

main71071-28K70-C0iZRR8#,ZWR80..SI..CBU201607-201706

main71071-28K70-C1iZRR8#..SI..CBU201712-201901

main71071-28K90-C0iZRR8#,ZWR80..SI..CBU201607-201706

main71071-28K90-C1iZRR8#..SI..CBU201712-201901

main71071-28M00-C0iZRR8#..XI201410-201812

BLACK,TRIM2#

sub71071-28R40

main71071-28M10-C0iZRR8#..08S..XI..CBU201709-201812

sub71071-28R50

main71071-28M10-C0iZRR8#..XI..CBU201410-201812

sub71071-28R50

main71071-28M10-C0iZRR8#..XI..CBU201410-201812

sub71071-28R50

main71071-28M10-C0iZRR8#..08S..XI..CBU201709-201812

sub71071-28R50

main71071-28M10-C0iZRR8#..07S..XI..CBU201710-201812

sub71071-28R50

main71071-28M20-C0iZWR80..XI201410-201812

BLACK,TRIM2#

sub71071-28R60

main71071-28M30-C0iZWR80..XI201410-201812

sub71071-28R70

main71071-28N10-C1iZRR80..07S..(SI,ZS)..CBU201605-201706

main71071-28N20-C1iZRR80..07S..(SI,ZS)..CBU201605-201706

main71071-28N30-C0iZRR8#,ZWR80..GI201601-201706

main71071-28N40-B0iZRR8#..ZS201706-201812

DARK GRAY,TRIM20

sub71071-28R00

main71071-28N40-B0iZRR8#..SI201706-201812

DARK GRAY,TRIM2#

sub71071-28R00

main71071-28N40-D0iZRR8#..ZS201706-201812

BLOOD ORANGE,TRIM23

sub71071-28R00

main71071-28N50-B0iZRR8#..SI..CBU201706-201812

sub71071-28R10

main71071-28N50-B0iZRR8#..ZS..CBU201706-201812

sub71071-28R10

main71071-28N50-D0iZRR8#..ZS..CBU201706-201812

sub71071-28R10

main71071-28N60-B0iZWR80..ZS201706-201812

DARK GRAY,TRIM20

sub71071-28R20

main71071-28N60-B0iZWR80..SI201706-201812

DARK GRAY,TRIM2#

sub71071-28R20

main71071-28N60-D0iZWR80..ZS201706-201812

BLOOD ORANGE,TRIM23

sub71071-28R20

main71071-28N70-B0iZWR80..ZS201706-201812

sub71071-28R30

main71071-28N70-B0iZWR80..ZS201706-201812

sub71071-28R30

main71071-28N70-D0iZWR80..ZS201706-201812

sub71071-28R30

main71071-28N90-E1iZRR8#,ZWR80..07S..GI201706-201901

main71071-28P00-E1iZRR8#,ZWR80..07S..GI201706-201901

main71071-28P10-C0iZRR8#,ZWR80..G,V201706

BLACK,TRIM2#

sub71071-28P11

main71071-28P10-E0iZRR8#,ZWR80..G201706

DARKBROWN,TRIM0#

sub71071-28P11

main71071-28P20-C0iZRR8#,ZWR80..G,V201706

sub71071-28P21

main71071-28P20-E0iZRR8#,ZWR80..G201706

sub71071-28P21

main71071-28P30-C0iZRR80..07S..SI..CBU201709-201901

main71071-28P30-C0iZRR80..07S..SI..CBU201901

main71071-28P40-C0iZRR80..07S..SI..CBU201901

main71071-28P40-C0iZRR80..07S..ZS..CBU201709-201901

main71071-28P50-C0iZWR80..SI201712-201901

main71071-28P60-C0iZWR80..SI201712-201901

main71071-28P70-C0iZRR8#,ZWR80..GI201901

BURGUNDY BLACK,TRIM22

sub71071-28P72

main71071-28P70-C1iZRR8#,ZWR80..GI201901

BLACK,TRIM20

sub71071-28P72

main71071-28P80-C0iZRR8#,ZWR80..GI201901

sub71071-28P82

main71071-28P80-C1iZRR8#,ZWR80..GI201901

sub71071-28P82

main71071-28Q00-C0iZRR8#,ZWR80..07S..GI201901-202005

sub71071-28Q02

main71071-28Q00-C0iZRR8#,ZWR80..07S..GI201901-202005

sub71071-28Q02

main71071-28Q00-C0iZRR8#,ZWR80..07S..GI202005

sub71071-28Q02

main71071-28Q00-E0iZRR8#,ZWR80..07S..GI201901-202005

sub71071-28Q02

main71071-28Q00-E0iZRR8#,ZWR80..07S..GI201901-202005

sub71071-28Q02

main71071-28Q10-C0iZRR8#,ZWR80..07S..GI201901-202005

sub71071-28Q12

main71071-28Q10-C0iZRR8#,ZWR80..07S..GI202005

sub71071-28Q12

main71071-28Q10-C0iZRR8#,ZWR80..07S..GI201901-202005

sub71071-28Q12

main71071-28Q10-E0iZRR8#,ZWR80..07S..GI201901-202005

sub71071-28Q12

main71071-28Q10-E0iZRR8#,ZWR80..07S..GI201901-202005

sub71071-28Q12

main71071-28Q20-C0iZRR8#..SI..CBU201901

sub71071-28Q22

main71071-28Q30-C0iZRR8#..SI..CBU201901

sub71071-28Q32

main71071-28Q40-C0iZWR80..SI201901

sub71071-28Q42

main71071-28Q50-C0iZWR80..SI201901

sub71071-28Q52

main71071-28Q60-A0iZRR8#..SI..CBU201901

sub71071-28Q62

main71071-28Q70-A0iZRR8#..SI..CBU201901

sub71071-28Q72

main71071-28Q80-A0iZWR80..SI201901

main71071-28Q90-A0iZWR80..SI201901

sub71071-28Q92

main71071-28R00-B2iZRR8#..ZS201901

DARK GRAY,TRIM2#

sub71071-28R01

main71071-28R00-B2iZRR8#..ZS201901

DARK GRAY,TRIM20

sub71071-28R01

main71071-28R00-D2iZRR8#..ZS201901

BLOOD ORANGE,TRIM23

sub71071-28R01

main71071-28R10-B2iZRR8#..ZS..CBU201901

sub71071-28R11

main71071-28R10-B2iZRR8#..ZS..CBU201901

sub71071-28R11

main71071-28R10-D2iZRR8#..ZS..CBU201901

sub71071-28R11

main71071-28R20-B2iZWR80..SI201901

DARK GRAY,TRIM2#

sub71071-28R21

main71071-28R20-B2iZWR80..ZS201901

DARK GRAY,TRIM20

sub71071-28R21

main71071-28R20-D2iZWR80..ZS201901

BLOOD ORANGE,TRIM23

sub71071-28R21

main71071-28R30-B2iZWR80..SI201901

sub71071-28R31

main71071-28R30-B2iZWR80..ZS201901

sub71071-28R31

main71071-28R30-D2iZWR80..ZS201901

sub71071-28R31

main71071-28R40-C2iZRR8#..XI201901-202004

BLACK,TRIM2#

main71071-28R50-C2iZRR8#..XI..CBU201901-202004

main71071-28R50-C2iZRR80..08S..XI..CBU;ZRR85..07S..XI..CBU201901-202004

main71071-28R50-C2iZRR80..08S..XI..CBU;ZRR85..07S..XI..CBU201901-202004

main71071-28R50-C2iZRR80..08S..XI..CBU;ZRR85..07S..XI..CBU201901-202004

main71071-28R50-C2iZRR80..08S..XI..CBU;ZRR85..07S..XI..CBU201901-202004

main71071-28R60-C2iZWR80..XI201901-202004

BLACK,TRIM2#

main71071-28R70-C2iZWR80..XI201901-202004

main71071-V1110-C0iZRR8#..ZS..CBU202010

sub71071-V1112

main71071-V1120-C0iZRR8#..ZS..CBU202010

sub71071-V1122

main71071-V1130-C0iZWR80..ZS202010

sub71071-V1132

main71071-V1140-C0iZWR80..ZS202010

sub71071-V1142

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-28L20-C1iZRR80..07S..(SI,ZS)..CBU201605-201706

main71073-28L60-A2iZRR8#,ZWR80..NOAH..X201401-201706

IVORY,TRIM0#

main71073-28L60-C2iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201901

main71073-28L60-C2iZRR8#,ZWR80..X201401-201901

BLACK,TRIM2#

main71073-28L60-C2iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

main71073-28L60-C2iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

main71073-28L60-C2iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

main71073-28L60-C2iZRR8#..07S..(SI,ZS)..CBU201710-201901

main71073-28L70-A4iZRR8#,ZWR80..NOAH..X..CBU201401-201706

main71073-28L70-A4iZRR80..NOAH..08S..X..CBU;ZRR85..NOAH..07S..X..CBU201404-201706

main71073-28L70-C4iZRR80..07S..(SI,ZS)..CBU201710-201901

main71073-28L70-C4iZRR8#,ZWR80..X..CBU201401-201901

main71073-28L70-C4iZRR8#,ZWR80..X..CBU201404-201901

main71073-28L70-C4iZRR80..07S..(SI,ZS)..CBU201404-201706

main71073-28L70-C4iZRR80..07S..(SI,ZS)..CBU201404-201706

main71073-28L70-C4iZRR80..07S..(SI,ZS)..CBU201404-201706

main71073-28L70-C4iZRR8#..08S..X..CBU201709-201901

main71073-28L70-C4iZRR8#..08S..X..CBU201709-201901

main71073-28L70-C4iZRR8#..07S..X..CBU201710-201901

main71073-28L80-C4iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,TRIM2#

main71073-28L90-C6iZRR8#,ZWR80..(SI,ZS)..CBU201401-201706

main71073-28M00-A2iZRR8#..G201401-201706

IVORY,TRIM0#

main71073-28M00-C3iZRR8#..G,V201401-201706

BLACK,TRIM2#

main71073-28M10-A4iZRR8#..G201401-201706

main71073-28M10-C5iZRR8#..G,V201401-201706

main71073-28M40-C0iZRR8#,ZWR80..GI201410-201604

BURGUNDY BLACK,TRIM22

sub71073-28M40

main71073-28M40-C1iZRR8#,ZWR80..GI201410-201604

BLACK,TRIM23

sub71073-28M40

main71073-28M40-C2iZRR8#,ZWR80..GI201604-201901

BURGUNDY BLACK,TRIM22

sub71073-28M40

main71073-28M40-C3iZRR8#,ZWR80..GI201706-201901

BLACK,TRIM20

sub71073-28M40

main71073-28M40-C3iZRR8#,ZWR80..GI201604-201706

BLACK,TRIM23

sub71073-28M40

main71073-28M50-C0iZRR8#,ZWR80..GI201410-201604

sub71073-28M50

main71073-28M50-C1iZRR8#,ZWR80..GI201410-201604

sub71073-28M50

main71073-28M50-C2iZRR8#,ZWR80..GI201604-201901

sub71073-28M50

main71073-28M50-C3iZRR8#,ZWR80..GI201706-201901

sub71073-28M50

main71073-28M50-C3iZRR8#,ZWR80..GI201604-201706

sub71073-28M50

main71073-28M60-A2iZWR80..G201402-201706

IVORY,TRIM0#

main71073-28M60-C3iZWR80..G,V201402-201706

BLACK,TRIM2#

main71073-28M70-A3iZWR80..G201402-201706

main71073-28M70-C4iZWR80..G,V201402-201706

main71073-28N10-C0iZRR8#,ZWR80..GI201601-201706

main71073-28N20-C0iZRR8#,ZWR80..GI201601-201706

main71073-28Q20-C0iZRR8#..XI201410-201901

BLACK,TRIM2#

main71073-28Q30-C0iZRR80..08S..XI..CBU;ZRR85..07S..XI..CBU201410-201901

main71073-28Q30-C0iZRR80..08S..XI..CBU201709-201901

main71073-28Q30-C0iZRR8#..08S..XI..CBU201709-201901

main71073-28Q30-C0iZRR8#..07S..XI..CBU201710-201901

main71073-28Q30-C0iZRR8#..XI..CBU201410-201901

main71073-28Q40-C0iZWR80..XI201410-201901

BLACK,TRIM2#

main71073-28Q50-C0iZWR80..XI201410-201901

main71073-28S50-C1iZRR80..07S..(SI,ZS)..CBU201605-201706

main71073-28T00-C0iZRR8#,ZWR80..SI..CBU201607-201706

main71073-28T00-C0iZRR8#..SI..CBU201712-201901

main71073-28T40-C0iZRR8#..SI..CBU201712-201901

main71073-28T40-C0iZRR8#,ZWR80..SI..CBU201607-201706

main71073-28T90-B0iZRR8#..ZS201706-201901

DARK GRAY,TRIM20

main71073-28T90-B0iZRR8#..SI201706-201901

DARK GRAY,TRIM2#

main71073-28T90-D0iZRR8#..ZS201706-201901

BLOOD ORANGE,TRIM23

main71073-28U00-B0iZRR8#..SI..CBU201706-201901

main71073-28U00-B0iZRR8#..ZS..CBU201706-201901

main71073-28U00-D0iZRR8#..ZS..CBU201706-201901

main71073-28U10-B0iZWR80..ZS201706-201901

DARK GRAY,TRIM20

main71073-28U10-B0iZWR80..ZS201706-201901

DARK GRAY,TRIM2#

main71073-28U10-D0iZWR80..ZS201706-201901

BLOOD ORANGE,TRIM23

main71073-28U20-B0iZWR80..ZS201706-201901

main71073-28U20-B0iZWR80..SI201706-201901

main71073-28U20-D0iZWR80..ZS201706-201901

main71073-28U30-C1iZRR8#,ZWR80..G,V201706-201901

BLACK,TRIM2#

main71073-28U30-E0iZRR8#,ZWR80..G201706-201901

DARKBROWN,TRIM0#

main71073-28U40-C1iZRR8#,ZWR80..G,V201706-201901

main71073-28U40-E0iZRR8#,ZWR80..G201706-201901

main71073-28U80-E0iZRR8#,ZWR80..07S..GI201706-201901

main71073-28U90-E0iZRR8#,ZWR80..07S..GI201706-201901

main71073-28V40-C0iZRR80..07S..SI..CBU201901

main71073-28V40-C0iZRR80..07S..ZS..CBU201709-201901

main71073-28V50-C0iZRR80..07S..ZS..CBU201709-201901

main71073-28V50-C0iZRR80..07S..SI..CBU201901

main71073-28V60-C0iZWR80..SI201712-201901

main71073-28V70-C0iZWR80..SI201712-201901

main71073-28X10-C0iZRR8#,ZWR80..X201901

main71073-28X10-C0iZRR8#,ZWR80..X201901

main71073-28X10-C0iZRR8#,ZWR80..X201901

BLACK,TRIM2#

main71073-28X10-C0iZRR8#..07S..SI..CBU201901

main71073-28X10-C0iZRR8#..07S..SI..CBU201901

main71073-28X10-C0iZRR80..08S..(SI,ZS)..IV5201911-202005

main71073-28X20-C0iZRR80..07S..SI..CBU201901

sub71073-28X21

main71073-28X20-C0iZRR80..07S..SI..CBU201901

sub71073-28X21

main71073-28X20-C0iZRR80..07S..SI..CBU201901

sub71073-28X21

main71073-28X20-C0iZRR80..07S..SI..CBU201901

sub71073-28X21

main71073-28X20-C0iZRR80..07S..SI..CBU201901

sub71073-28X21

main71073-28X20-C0iZRR80..07S..SI..CBU201901

sub71073-28X21

main71073-28X20-C0iZRR80..08S..(X,ZS)..CBU;ZRR85..07S..(X,ZS)..CBU201901

sub71073-28X21

main71073-28X20-C0iZRR80..08S..(X,ZS)..CBU;ZRR85..07S..(X,ZS)..CBU201901

sub71073-28X21

main71073-28X30-B0iZRR8#..SI201901

DARK GRAY,TRIM2#

main71073-28X30-B0iZRR8#..SI201901

DARK GRAY,TRIM20

main71073-28X30-D0iZRR8#..ZS201901

BLOOD ORANGE,TRIM23

main71073-28X40-B0iZRR8#..ZS..CBU201901

sub71073-28X41

main71073-28X40-B0iZRR8#..ZS..CBU201901

sub71073-28X41

main71073-28X40-D0iZRR8#..ZS..CBU201901

sub71073-28X41

main71073-28X50-B0iZWR80..ZS201901

DARK GRAY,TRIM20

sub71073-28X51

main71073-28X50-B0iZWR80..ZS201901

DARK GRAY,TRIM2#

sub71073-28X51

main71073-28X50-D0iZWR80..ZS201901

BLOOD ORANGE,TRIM23

sub71073-28X51

main71073-28X60-B0iZWR80..ZS201901

sub71073-28X61

main71073-28X60-B0iZWR80..ZS201901

sub71073-28X61

main71073-28X60-D0iZWR80..ZS201901

sub71073-28X61

main71073-28X70-C0iZRR8#,ZWR80..G,V201901

BLACK,TRIM2#

sub71073-28X71

main71073-28X70-E0iZRR8#,ZWR80..G201901

DARKBROWN,TRIM0#

sub71073-28X71

main71073-28X80-C0iZRR8#,ZWR80..G,V201901

sub71073-28X81

main71073-28X80-E0iZRR8#,ZWR80..G201901

sub71073-28X81

main71073-28X90-C0iZRR8#..XI201901-202004

BLACK,TRIM2#

main71073-28Y00-C0iZRR8#..XI..CBU201901-202004

main71073-28Y00-C0iZRR80..08S..XI..CBU;ZRR85..07S..XI..CBU201901-202004

main71073-28Y00-C0iZRR80..08S..XI..CBU;ZRR85..07S..XI..CBU201901-202004

main71073-28Y00-C0iZRR80..08S..XI..CBU;ZRR85..07S..XI..CBU201901-202004

main71073-28Y00-C0iZRR80..08S..XI..CBU;ZRR85..07S..XI..CBU201901-202004

main71073-28Y10-C0iZWR80..XI201901-202004

BLACK,TRIM2#

main71073-28Y20-C0iZWR80..XI201901-202004

main71073-28Y30-C0iZRR8#,ZWR80..GI201901

BLACK,TRIM22

sub71073-28Y31

main71073-28Y30-C1iZRR8#,ZWR80..GI201901

BLACK,TRIM20

sub71073-28Y31

main71073-28Y40-C0iZRR8#,ZWR80..GI201901

sub71073-28Y41

main71073-28Y40-C1iZRR8#,ZWR80..GI201901

sub71073-28Y41

main71073-28Y60-C0iZRR8#,ZWR80..07S..GI201901-202005

sub71073-28Y61

main71073-28Y60-C0iZRR8#,ZWR80..07S..GI202005

sub71073-28Y61

main71073-28Y60-C0iZRR8#,ZWR80..07S..GI201901-202005

sub71073-28Y61

main71073-28Y60-E0iZRR8#,ZWR80..07S..GI201901-202005

sub71073-28Y61

main71073-28Y60-E0iZRR8#,ZWR80..07S..GI201901-202005

sub71073-28Y61

main71073-28Y70-C0iZRR8#,ZWR80..07S..GI201901-202005

sub71073-28Y71

main71073-28Y70-C0iZRR8#,ZWR80..07S..GI202005

sub71073-28Y71

main71073-28Y70-C0iZRR8#,ZWR80..07S..GI201901-202005

sub71073-28Y71

main71073-28Y70-E0iZRR8#,ZWR80..07S..GI201901-202005

sub71073-28Y71

main71073-28Y70-E0iZRR8#,ZWR80..07S..GI201901-202005

sub71073-28Y71

main71073-28Y80-C0iZRR8#..SI..CBU201901

sub71073-28Y81

main71073-28Y90-C0iZRR8#..SI..CBU201901

sub71073-28Y91

main71073-28Z00-C0iZWR80..SI201901

sub71073-28Z01

main71073-28Z10-C0iZWR80..SI201901

sub71073-28Z11

main71073-28Z20-A0iZRR8#..SI..CBU201901

sub71073-28Z21

main71073-28Z30-A0iZRR8#..SI..CBU201901

sub71073-28Z31

main71073-28Z40-A0iZWR80..SI201901

main71073-28Z50-A0iZWR80..SI201901

sub71073-28Z51

main71073-V1110-C0iZRR8#..ZS..CBU202010

sub71073-V1111

main71073-V1120-C0iZRR8#..ZS..CBU202010

sub71073-V1121

main71073-V1130-C0iZWR80..ZS202010

sub71073-V1131

main71073-V1140-C0iZWR80..ZS202010

sub71073-V1141

71121CBRACKET, FRONT SEAT CUSHION, RH

main71121-47010iZRR8#,ZWR80201401-201706

71130BLEG ASSY, FRONT SEAT, RH

main71130-28080iZRR8#,ZWR80201401-201706

71139MCOVER, FRONT SEAT LEG, RH OUTER

main71139-28230-C0iZRR80..SI..IV5;ZRR8#..GI,V,X,XI,ZS201401-201706

BLACK,TRIM0#,2#

main71139-28230-C0iZRR8#..(ESQIR,NOAH)..(G,X,XI)201401-201706

BLACK,TRIM2#

71139NCOVER, FRONT SEAT LEG, RH INNER

main71149-28200-C0iZRR8#..(G,SI)..CBU201401-201706

BLACK,TRIM2#

main71149-28200-C0iZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS201401-201706

BLACK,TRIM0#,2#

71139VCOVER, FRONT SEAT LEG NO.1

main71139-28220-C0iZRR8#..(ESQIR,NOAH)..(G,X,XI)201401-201706

BLACK,TRIM0#,2#

main71139-28220-C0iZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS201401-201706

BLACK,TRIM2#

main71139-28260-C0iZWR80..G,SI201402-201706

BLACK,TRIM0#,2#

main71139-28260-C0iZWR80..G,SI201402-201706

BLACK,TRIM2#

main79236-58050-C0iZRR85..07S..(SI,ZS);ZRR80..VOXY..08S..X..CBU;ZRR80..08S..(SI,ZS)..CBU;ZRR85..VOXY..07S..X..CBU201404-201706

main79236-58050-C0iZRR80..(ESQIR,NOAH)..08S..(X,XI)..CBU;ZRR85..(ESQIR,NOAH)..07S..(X,XI)..CBU201404-201706

main79236-58050-C0iZRR80..08S..(X,XI)..CBU201709

main79246-D1210-C0iZRR80..(ESQIR,NOAH)..08S..(X,XI)..CBU;ZRR85..(ESQIR,NOAH)..07S..(X,XI)..CBU201404-201706

main79246-D1210-C0iZRR85..07S..(SI,ZS);ZRR80..VOXY..08S..X..CBU;ZRR80..08S..(SI,ZS)..CBU;ZRR85..VOXY..07S..X..CBU201404-201706

main79246-D1210-C0iZRR80..08S..(X,XI)..CBU201709

main79937-D1090-C0iZRR80..(ESQIR,NOAH)..08S..(X,XI)..CBU;ZRR85..(ESQIR,NOAH)..07S..(X,XI)..CBU201404-201706

main79937-D1090-C0iZRR85..07S..(SI,ZS);ZRR80..VOXY..08S..X..CBU;ZRR80..08S..(SI,ZS)..CBU;ZRR85..VOXY..07S..X..CBU201404-201706

main79937-D1090-C0iZRR80..08S..(X,XI)..CBU201709

71139WCOVER, FRONT SEAT LEG(FOR RH SEAT)

main71139-28240-C0iZWR80..(ESQIR,NOAH)..(G,X,XI)201402-201706

BLACK,TRIM2#

main71139-28240-C0iZWR80..VOXY..X;ZWR80..GI,SI,V,ZS201402-201706

BLACK,TRIM0#,2#

71139YCOVER, FRONT SEAT LEG, RH

main71139-28210-C0iZWR80..G,SI201402-201706

BLACK,TRIM0#,2#

main71139-28210-C0iZWR80..GI,V,X,XI,ZS201402-201706

BLACK,TRIM2#

71499YDAMPER, SEATBACK SPRING, RH

main71499-28090iZRR8#201401-201706

71511APAD, FRONT SEAT CUSHION, RH

main71511-28370iZRR8#,ZWR80201401-201504

main71511-28371iZRR8#,ZWR80201504-201706

main71511-28380iZRR80..07S..ZS..CBU201709-201901

main71511-28380iZRR80..07S..ZS..CBU201709-201901

main71511-28380iZRR80..07S..SI..CBU201901

main71511-28380iZRR80..07S..SI..CBU201901

main71511-28380iZRR80..07S..(SI,ZS)..CBU201605-201706

main71511-28380iZRR80..07S..(SI,ZS)..CBU201605-201706

7152

71537XPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-28100-C0iZRR8#,ZWR80..NOAH..(G,X)201509-201712

BLACK,TRIM0#,2#

sub71537-28100

main71537-28100-C0iZRR8#,ZWR80..GI,SI,V,X,XI,ZS201509-201712

BLACK,TRIM2#

sub71537-28100

main71537-28100-C1iZRR8#,ZWR80..(G,SI)..CBU201712

BLACK,TRIM0#,2#

sub71537-28100

main71537-28100-C1iZRR8#,ZWR80..(G,SI)..CBU201712

BLACK,TRIM2#

sub71537-28100

main71537-47010-C0iZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X)201401-201509

BLACK,TRIM2#

sub71537-47010

main71537-47010-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201509

BLACK,TRIM0#,2#

sub71537-47010

71537ZPROTECTOR, FRONT SEAT CUSHION

main71537-47040iZRR8#,ZWR80201401-202112

main71537-58010iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201404-202112

main71537-58010iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201706-202112

main71537-58010iZRR85..07S..SI;ZRR80..08S..SI..CBU201901-202112

71538CPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-28010-C0iZRR8#,ZWR80..GI,SI,V,X,XI,ZS201509-201712

BLACK,TRIM2#

sub71538-28010

main71538-28010-C0iZRR8#,ZWR80..NOAH..(G,X)201509-201712

BLACK,TRIM0#,2#

sub71538-28010

main71538-28010-C1iZRR8#,ZWR80..(G,SI)..CBU201712

BLACK,TRIM2#

sub71538-28010

main71538-28010-C1iZRR80..SI..IV5;ZRR8#,ZWR80..GI,V,X,XI,ZS201712

BLACK,TRIM0#,2#

sub71538-28010

main71538-47010-C0iZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X)201401-201509

BLACK,TRIM2#

sub71538-47010

main71538-47010-C0iZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X)201401-201509

BLACK,TRIM0#,2#

sub71538-47010

71551APAD, FRONT SEATBACK, RH

main71551-28760iZRR8#,ZWR80201401-201706

main71551-28770iZRR8#,ZWR80..07S..GI201901

main71551-28770iZRR8#,ZWR80..CBU201401-201706

main71551-28770iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201901

main71551-28770iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201706

main71551-28770iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201706

main71551-28770iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201706

main71551-28770iZRR8#,ZWR80..GI201601-201706

main71551-28770iZRR8#,ZWR80..SI..CBU201607-201706

main71551-28770iZRR80..07S..SI..CBU201710-201901

main71551-28770iZRR8#,ZWR80..SI..CBU201712-201901

main71551-28770iZRR8#,ZWR80..07S..GI201706-202005

main71551-28770iZRR8#..08S..(X,XI)..CBU201709

main71551-28770iZRR8#..08S..(X,XI)..CBU201709

main71551-28770iZRR8#..07S..(X,XI)..CBU201710

main71551-28770iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main71551-28770iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main71551-28770iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main71551-28770iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main71551-28770iZRR8#,ZWR80..ZS..CBU202010

main71551-28780iZRR80..07S..SI..CBU201709-201901

main71551-28780iZRR80..07S..SI..CBU201901

main71551-28780iZRR80..07S..(SI,ZS)..CBU201605-201706

main71551-28790iZRR80..07S..ZS..CBU201709-201901

main71551-28790iZRR80..07S..(SI,ZS)..CBU201605-201706

main71551-28790iZRR80..07S..SI..CBU201901

71587KPROTECTOR, FRONT SEATBACK EDGE, RH

main71587-52030iZWR80..SI,ZS201601-201706

main71587-52030iZWR80..SI201607-201706

main71587-52030iZWR80..SI201607-201706

main71587-52030iZRR8#..(G,V,X,XI)..CBU201401-201706

main71587-52030iZRR80..07S..(SI,ZS)..CBU201404-201706

main71587-52030iZRR80..07S..(SI,ZS)..CBU201404-201706

main71587-52030iZRR80..07S..(SI,ZS)..CBU201404-201706

main71587-52030iZRR8#,ZWR80201706

71759EHOOK, FRONT SEATBACK, RH

main71759-47011iZWR80;ZRR8#..G,GI,SI,V,XI,ZS201401-201706

main71759-47011iZRR80..08S..X..CBU;ZRR85..07S..X..CBU201404-201706

main71759-47011iZRR80..08S..X..CBU;ZRR85..07S..X..CBU201404-201706

main71759-47011iZRR80..08S..X..CBU;ZRR85..07S..X..CBU201404-201706

main71759-47011iZRR80..08S..X..CBU;ZRR85..07S..X..CBU201404-201706

main71759-47011iZRR80..08S..X..CBU;ZRR85..07S..X..CBU201404-201706

main71759-47011iZRR8#,ZWR80201706

71759HHOOK, FRONT SEATBACK

main71759-28060-A0iZRR8#,ZWR80..NOAH..(G,X)201401-201706

IVORY,TRIM00

main71759-28060-C0iZWR80..NOAH..X;ZRR8#..NOAH..(G,X)201401-201706

BLACK,TRIM00,03,2#

main71759-28060-C0iZWR80..NOAH..X;ZRR8#..NOAH..(G,X)201401-201706

BLACK,TRIM2#

main71759-28060-C0iZWR80..G201402-201706

BLACK,TRIM00,2#

main71759-28060-C0iZRR8#,ZWR80..XI201410-201706

BLACK,TRIM0#,2#

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-12430-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201706

BLACK,TRIM0#,2#

sub71811-12430

main71811-12430-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201706

BLACK,TRIM2#

sub71811-12430

71811WCLIP, FRONT SEAT CUSHION SHIELD, RH

main71769-47020iZWR80..GI201706-201901

main71769-47020iZWR80..GI201901-202005

main71769-47020iZWR80..GI201901-202005

main71769-47020iZWR80..GI201901

main71769-47020iZWR80..GI201901

main71769-47020iZWR80..GI201901

71848NCAP, FRONT SEAT ADJUSTER COVER, RH NO.1

main71848-52040iZRR8#,ZWR80201401-201706

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-28080-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201706

BLACK,TRIM0#,2#

main71861-28080-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201706

BLACK,TRIM2#

71861LCLIP, FRONT SEAT CUSHION SHIELD, RH

main71769-47020iZRR8#,ZWR80201706

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iZRR8#,ZWR80201401-201706

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-28040-C0iZRR85..07S..SI;ZRR80..08S..SI..CBU201404-202112

main71873-28040-C0iZRR80..VOXY..08S..X..CBU;ZRR85..VOXY..07S..X..CBU;ZRR85..07S..(SI,XI,ZS)..CBU;ZRR80..08S..(SI,XI,ZS)..CBU201404-201706

main71873-28040-C0iZRR85..07S..SI;ZRR80..08S..SI..CBU201901-202112

main71873-28040-C0iZRR80..08S..(X,XI)..CBU201706-202112

main71874-47040iZRR8#,ZWR80201401-202112

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-28D30-A1iZRR8#,ZWR80..NOAH..X201401-201706

IVORY,TRIM0#

main71910-28D30-C0iZRR80..07S..(SI,ZS)..CBU201404-201706

main71910-28D30-C0iZRR8#,ZWR80..X201401-202112

BLACK,TRIM2#

main71910-28D30-C0iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-202112

main71910-28D30-C0iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-202112

main71910-28D30-C0iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

main71910-28D30-C0iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

main71910-28D30-C0iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

main71910-28D30-C0iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

main71910-28D30-C0iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

main71910-28D30-C0iZRR8#..07S..SI..CBU201710-202112

main71910-28D30-C0iZRR8#..07S..SI..CBU201710-202112

main71910-28D30-C0iZRR80..08S..(SI,ZS)..IV5201911-202005

main71910-28D30-C0iZRR85..07S..SI;ZRR80..08S..SI..CBU201901-202112

main71910-28D30-C0iZRR85..07S..SI;ZRR80..08S..SI..CBU201901-202112

main71910-28D30-C0iZRR85..07S..SI;ZRR80..08S..SI..CBU201901-202112

main71910-28D30-C0iZRR85..07S..SI;ZRR80..08S..SI..CBU201901-202112

main71910-28D40-C2iZRR8#,ZWR80..SI,ZS201401-201812

BLACK/BLACK,TRIM2#

sub71910-28E30

main71910-28D50-A1iZRR8#,ZWR80..G201401-201706

IVORY,TRIM0#

main71910-28D50-C1iZRR8#,ZWR80..G,V201401-201706

BLACK,TRIM2#

main71910-28E00-C0iZRR8#,ZWR80..G,V201706-201812

BLACK,TRIM2#

sub71910-28F50

main71910-28E00-E0iZRR8#,ZWR80..G201706-201812

DARKBROWN,TRIM0#

sub71910-28F50

main71910-28E20-C0iZRR80..07S..SI..CBU201901-202112

main71910-28E20-C0iZRR80..07S..SI..CBU201901-202112

main71910-28E20-C0iZRR80..07S..ZS..CBU201709-202112

main71910-28E20-C0iZRR80..07S..SI..CBU201709-202112

main71910-28E30-C1iZRR8#,ZWR80..SI,ZS201901-202112

BLACK,TRIM2#

main71910-28E90-C1iZRR8#,ZWR80..SI..CBU201607-201706

main71910-28E90-C1iZRR8#,ZWR80..SI..CBU201712-201901

main71910-28E90-C1iZRR8#,ZWR80..SI..CBU201712-201901

main71910-28E90-C1iZRR8#,ZWR80..07S..GI201706-202005

BLACK,TRIM20,22,24

main71910-28E90-C1iZRR8#,ZWR80..SI..CBU201607-201706

main71910-28E90-C1iZRR8#,ZWR80..GI201410-202112

BLACK,TRIM2#

main71910-28E90-C1iZRR8#,ZWR80..SI..CBU201901-202112

main71910-28E90-C1iZRR8#,ZWR80..SI..CBU201901-202112

main71910-28E90-C1iZRR8#,ZWR80..SI..CBU201901-202112

main71910-28E90-C1iZRR8#,ZWR80..SI..CBU201901-202112

main71910-28E90-C1iZRR8#,ZWR80..ZS..CBU202010-202112

main71910-28E90-C1iZRR8#,ZWR80..ZS..CBU202010-202112

main71910-28E90-E4iZRR8#,ZWR80..07S..GI201706-202005

BURGUNDY,TRIM22

main71910-28F00-C0iZRR8#,ZWR80..XI201410-201812

BLACK,TRIM2#

sub71910-28F60

main71910-28F40-C0iZRR80..07S..(SI,ZS)..CBU201605-201706

main71910-28F40-C0iZRR80..07S..(SI,ZS)..CBU201605-201706

main71910-28F50-C1iZRR8#,ZWR80..G,V201901-202112

BLACK,TRIM2#

main71910-28F50-E1iZRR8#,ZWR80..G201901-202112

DARKBROWN,TRIM0#

main71910-28F60-C1iZRR8#,ZWR80..XI201901-202004

BLACK,TRIM2#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-47020-A1iZRR8#,ZWR80..NOAH..(G,X)201401-201706

sub71930-47020

main71930-47020-C0iZWR80..SI;ZRR85..08S..SI201901-202111

sub71930-47020

main71930-47020-C0iZRR8#,ZWR80..G201706-202111

sub71930-47020

main71930-47020-C0iZRR8#,ZWR80..G201401-202111

sub71930-47020

main71930-47020-C0iZWR80..SI;ZRR85..08S..SI201901-202111

sub71930-47020

main71930-47020-C0iZWR80..SI;ZRR85..08S..SI201901-202111

sub71930-47020

main71930-47020-C0iZWR80..SI;ZRR85..08S..SI201901-202111

sub71930-47020

main71930-47020-C0iZRR8#,ZWR80..SI..CBU201712-201901

sub71930-47020

main71930-47020-C0iZRR8#,ZWR80..07S..GI201706-202005

sub71930-47020

main71930-47020-C0iZRR8#,ZWR80..SI..CBU201712-201901

sub71930-47020

main71930-47020-C4iZRR8#,ZWR80..G202111

sub71930-47020

main71930-47020-C4iZRR8#,ZWR80..G202111

sub71930-47020

main71930-47020-L1iZRR8#,ZWR80..07S..GI201706-202005

sub71930-47020

main71931-47020-A1iZRR80..NOAH..08S..X..CBU;ZRR85..NOAH..07S..X..CBU201404-201706

sub71931-47020

main71931-47020-A1iZRR80..NOAH..08S..X..CBU;ZRR85..NOAH..07S..X..CBU201404-201706

sub71931-47020

main71931-47020-A1iZRR8#..NOAH..X..CBU201401-201706

sub71931-47020

main71931-47020-A1iZRR8#..NOAH..X..CBU201401-201706

sub71931-47020

main71931-47020-C0iZWR80..SI;ZRR85..08S..SI201901-202111

sub71931-47020

main71931-47020-C0iZWR80;ZRR8#..G,GI,SI,V,XI,ZS201401-202111

sub71931-47020

main71931-47020-C0iZWR80;ZRR8#..G,GI,SI,V,XI,ZS201401-201706

sub71931-47020

main71931-47020-C0iZRR80..08S..X..CBU;ZRR85..07S..X..CBU201404-201706

sub71931-47020

main71931-47020-C0iZRR80..08S..X..CBU;ZRR85..07S..X..CBU201404-201706

sub71931-47020

main71931-47020-C0iZRR8#,ZWR80..SI..CBU201712-201901

sub71931-47020

main71931-47020-C0iZRR8#,ZWR80..SI..CBU201712-201901

sub71931-47020

main71931-47020-C0iZRR8#,ZWR80..07S..GI201706-202005

sub71931-47020

main71931-47020-C0iZRR8#,ZWR80..G201706-202111

sub71931-47020

main71931-47020-C0iZWR80..SI;ZRR85..08S..SI201901-202111

sub71931-47020

main71931-47020-C0iZWR80..SI;ZRR85..08S..SI201901-202111

sub71931-47020

main71931-47020-C0iZWR80..SI;ZRR85..08S..SI201901-202111

sub71931-47020

main71931-47020-C4iZRR8#,ZWR80..GI,SI,X,ZS202111

sub71931-47020

main71931-47020-C4iZRR8#,ZWR80..GI,SI,X,ZS202111

sub71931-47020

main71931-47020-L1iZRR8#,ZWR80..07S..GI201706-202005

sub71931-47020

71H75COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

main71875-47030-C0iZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS201401-201706

BLACK,TRIM2#

sub71875-47030

main71875-47030-C0iZRR8#,ZWR80..(G,SI)..CBU201401-201706

BLACK,TRIM0#,2#

sub71875-47030

71H76COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71876-47030-C0iZRR80..SI..IV5;ZRR8#,ZWR80..GI,V,X,XI,ZS201401-201706

BLACK,TRIM0#,2#

sub71876-47030

main71876-47030-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201706

BLACK,TRIM2#

sub71876-47030

72010AADJUSTER ASSY, FRONT SEAT, RH

main72010-28040iZWR80..SI,X,ZS;ZRR8#..G,SI,V,X,XI,ZS201401-201706

main72010-28050iZRR80..07S..(SI,ZS)..CBU201404-201901

main72010-28050iZRR80..07S..(SI,ZS)..CBU201404-201706

main72010-28050iZRR80..07S..(SI,ZS)..CBU201404-201706

main72010-28050iZRR80..07S..(SI,ZS)..CBU201404-201706

main72010-28050iZRR80..07S..(SI,ZS)..CBU201605-201706

main72010-28050iZRR8#,ZWR80..SI..CBU201607-201706

main72010-28050iZRR80..07S..SI..CBU201709-201901

main72010-28050iZRR80..07S..SI..CBU201710-201901

main72010-28050iZRR8#..SI..CBU201712-201901

main72010-28050iZRR8#..G,GI,V;ZWR80..G,GI,SI,V,XI,ZS201401-201706

main72010-28050iZRR8#..08S..(X,XI)..CBU201709

main72010-28050iZRR8#..08S..(X,XI)..CBU201709

main72010-28050iZRR8#..07S..(X,XI)..CBU201710

main72010-28050iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main72010-28050iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main72010-28050iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main72010-28050iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main72010-28050iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main72010-28050iZRR8#..ZS..CBU202010

main72010-28050iZRR8#..GI;ZWR80..G,GI,V,XI201402-201706

72129VPROTECTOR, SEAT TRACK LOWER RAIL, RH

main72129-28470iZRR8#..08S..X..CBU201709-201901

main72129-28470iZRR8#,ZWR80201401-201706

main72129-28470iZRR8#..07S..X..CBU201710-201901

main72129-28470iZRR8#..07S..X..CBU201710-201901

main72129-28470iZRR8#..XI..CBU201901-202004

72211FHANDLE, SEAT TRACK ADJUSTING, RH

main72211-28160iZRR8#,ZWR80201401-201706

main72211-28160iZRR8#..08S..X..CBU201709-201901

main72211-28160iZRR8#..07S..X..CBU201710-201901

main72211-28160iZRR8#..07S..X..CBU201710-201901

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

main72494-42020-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201706

BLACK,TRIM0#,2#

main72494-42020-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201706

BLACK,TRIM2#

72525MHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201710

BLACK,TRIM0#,2#

sub72525-47010

main72525-47010-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201710

BLACK,TRIM2#

sub72525-47010

main72525-47010-C1iZRR8#,ZWR80..(G,SI)..CBU201710

BLACK,TRIM0#,2#

sub72525-47010

main72525-47010-C1iZRR8#,ZWR80..(G,SI)..CBU201710

BLACK,TRIM2#

sub72525-47010

72820ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

main72890-28F40-A1iZRR8#,ZWR80..NOAH..X201401-201706

IVORY,TRIM0#

main72890-28F40-B0iZRR85..07S..(SI,ZS);ZRR80..08S..(SI,ZS)..CBU201404-201706

main72890-28F40-B0iZRR8#,ZWR80..X201401-201706

DK.GRAY,TRIM2#

main72890-28F40-B0iZRR8#..07S..(SI,ZS)..CBU201404-201706

main72890-28F40-B0iZRR8#..07S..(SI,ZS)..CBU201404-201706

main72890-28F40-B0iZRR80..07S..(SI,ZS)..CBU201404-201706

main72890-28F40-B0iZRR80..07S..(SI,ZS)..CBU201404-201706

main72890-28F40-B0iZRR80..07S..(SI,ZS)..CBU201404-201706

main72890-28F40-B0iZRR80..07S..(SI,ZS)..CBU201404-201706

main72890-28F40-B0iZRR80..07S..(SI,ZS)..CBU201404-201706

main72890-28F50-C1iZRR8#,ZWR80..SI,ZS201401-201706

BLACK,TRIM2#

main72890-28F60-A0iZRR8#,ZWR80..G201401-201706

IVORY,TRIM0#

main72890-28F60-C0iZRR8#,ZWR80..G,V201401-201706

BLACK,TRIM2#

main72890-28J60-C1iZRR8#,ZWR80..SI..CBU201607-201706

main72890-28J60-C1iZRR8#,ZWR80..SI..CBU201607-201706

main72890-28J60-C1iZRR8#,ZWR80..GI201410-201706

BLACK,TRIM2#

main72890-28J80-C0iZRR8#,ZWR80..XI201410-201706

BLACK,TRIM2#

main72890-28L50-C0iZRR80..07S..(SI,ZS)..CBU201605-201706

main72890-28L50-C0iZRR80..07S..(SI,ZS)..CBU201605-201706

main72890-28L90-B1iZRR80..08S..(SI,ZS)..IV5201911-202005

main72890-28L90-B1iZRR8#,ZWR80..X201706

DK.GRAY,TRIM2#

main72890-28L90-B1iZRR8#,ZWR80..X201706-201901

main72890-28L90-B1iZRR8#,ZWR80..X201706-201901

main72890-28L90-B1iZRR8#..07S..SI..CBU201901

main72890-28L90-B1iZRR8#..07S..SI..CBU201901

main72890-28L90-B1iZRR8#..07S..SI..CBU201901

main72890-28L90-B1iZRR8#..07S..SI..CBU201901

main72890-28L90-B1iZRR8#..07S..ZS..CBU201710-201901

main72890-28L90-B1iZRR8#..07S..ZS..CBU201710-201901

main72890-28M00-C0iZRR8#,ZWR80..SI,ZS201706

BLACK,TRIM2#

main72890-28M20-C1iZRR8#,ZWR80..ZS..CBU202010

main72890-28M20-C1iZRR8#,ZWR80..SI..CBU201712-201901

main72890-28M20-C1iZRR8#,ZWR80..SI..CBU201712-201901

main72890-28M20-C1iZRR8#,ZWR80..07S..GI201706-202005

BLACK,TRIM20,22,24

main72890-28M20-C1iZRR8#..08S..GI201706

BLACK,TRIM2#

main72890-28M20-C1iZRR8#,ZWR80..SI..CBU201901

main72890-28M20-C1iZRR8#,ZWR80..SI..CBU201901

main72890-28M20-C1iZRR8#,ZWR80..SI..CBU201901

main72890-28M20-C1iZRR8#,ZWR80..SI..CBU201901

main72890-28M20-C1iZRR8#,ZWR80..ZS..CBU202010

main72890-28M20-E0iZRR8#,ZWR80..07S..GI201706-202005

BURGUNDY,TRIM22

main72890-28M30-C1iZRR8#,ZWR80..G,V,XI201706

BLACK,TRIM2#

main72890-28M30-E0iZRR8#,ZWR80..G201706

DARKBROWN,TRIM0#

main72890-28M90-C0iZRR80..07S..ZS..CBU201709-201901

main72890-28M90-C0iZRR80..07S..ZS..CBU201709-201901

main72890-28M90-C0iZRR80..07S..SI..CBU201901

main72890-28M90-C0iZRR80..07S..SI..CBU201901

72848KCAP, SEAT ARMREST, NO.1(FOR RH SEAT)

main72848-28030-A5iZRR8#,ZWR80..NOAH..(G,X)201401-201706

IVORY,TRIM0#

sub72848-28030

main72848-28030-C0iZWR80..SI;ZRR85..08S..SI201901

sub72848-28030

main72848-28030-C0iZWR80..SI;ZRR85..08S..SI201901

sub72848-28030

main72848-28030-C0iZWR80..SI;ZRR85..08S..SI201901

sub72848-28030

main72848-28030-C0iZWR80..SI;ZRR85..08S..SI201901

sub72848-28030

main72848-28030-C0iZRR8#,ZWR80..07S..GI201401-201706

BLACK,TRIM2#

sub72848-28030

main72848-28030-C0iZRR85..08S..GI;ZRR85..SI,V,X,XI,ZS;ZRR80..08S..(GI,SI,V,X,XI,ZS);ZRR80,ZWR80..07S..(SI,V,X,XI,ZS)201706

BLACK,TRIM0#,2#

sub72848-28030

main72848-28030-C0iZRR8#,ZWR80..SI..CBU201712-201901

sub72848-28030

main72848-28030-C0iZRR8#,ZWR80..SI..CBU201712-201901

sub72848-28030

main72848-28030-C0iZRR8#,ZWR80..07S..GI201706-202005

BLACK,TRIM20,22,24

sub72848-28030

main72848-28030-E8iZRR8#,ZWR80..07S..GI201706-202005

BURGUNDY,TRIM22

sub72848-28030

72991CCOVER, FRONT SEAT

main72991-28220iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main72991-28220iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main72991-28220iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201404-201901

main72991-28220iZRR80..08S..(X,XI,ZS)..CBU;ZRR85..07S..(X,XI,ZS)..CBU201404-201901

main72991-28220iZRR80..08S..(X,XI)..CBU201709

main72991-28220iZRR80..08S..(X,XI)..CBU201709

main72991-28220iZRR8#,ZWR80201401-201706

73910BAIRBAG ASSY, FRONT SEAT, RH

main73910-28040iZRR8#,ZWR80..SI..CBU201901

main73910-28040iZRR8#,ZWR80..SI..CBU201901

main73910-28040iZRR8#,ZWR80..SI..CBU201901

main73910-28040iZRR8#,ZWR80..SI..CBU201901

main73910-28040iZRR8#,ZWR80..SI..CBU201901

main73910-28040iZRR8#,ZWR80..SI..CBU201901

main73910-28040iZRR8#,ZWR80..ZS..CBU202010

main73910-28040iZRR8#,ZWR80..CBU201401-201706

main73910-28040iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201901

main73910-28040iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201706

main73910-28040iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201706

main73910-28040iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201706

main73910-28040iZRR8#,ZWR80..GI201601-201706

main73910-28040iZRR80..07S..(SI,ZS)..CBU201605-201706

main73910-28040iZRR8#,ZWR80..SI..CBU201607-201706

main73910-28040iZRR80..07S..SI..CBU201709-201901

main73910-28040iZRR80..07S..SI..CBU201710-201901

main73910-28040iZRR8#,ZWR80..SI..CBU201712-201901

main73910-28040iZRR8#,ZWR80..07S..GI201706-202005

main73910-28040iZRR8#..08S..(X,XI)..CBU201709

main73910-28040iZRR8#..08S..(X,XI)..CBU201709

main73910-28040iZRR8#..07S..(X,XI)..CBU201710

79977NFELT, SEATBACK

main79977-33010iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201901

main79977-33010iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201404-201901

main79977-33010iZRR8#,ZWR80201401-201706

main79977-33010iZRR80..08S..(X,XI)..CBU201709

main79977-33010iZRR80..08S..(X,XI)..CBU201709

main79977-33010iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

main79977-33010iZRR85..07S..SI;ZRR80..08S..SI..CBU201901

8202

87530DHEATER ASSY, FRONT SEATBACK, RH

main87530-28040iZRR8#..GI;ZWR80..G,GI,V,XI201402-201706

87E10BHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-28230iZRR8#..GI;ZWR80..G,GI,V,XI201402-201706

71537V1010WASHER, REAR SEAT ARMREST

main71537-V1010

9011910601

main90119-10601

9011910990

main90119-10990

9016740044

main90167-40044

9017908241

main90179-08241

9167281045

main91672-81045

9326955010

main93269-55010

9417060600

main94170-60600

9418560600

main94185-60600

55 parts on this diagram · 8 diagrams in section
