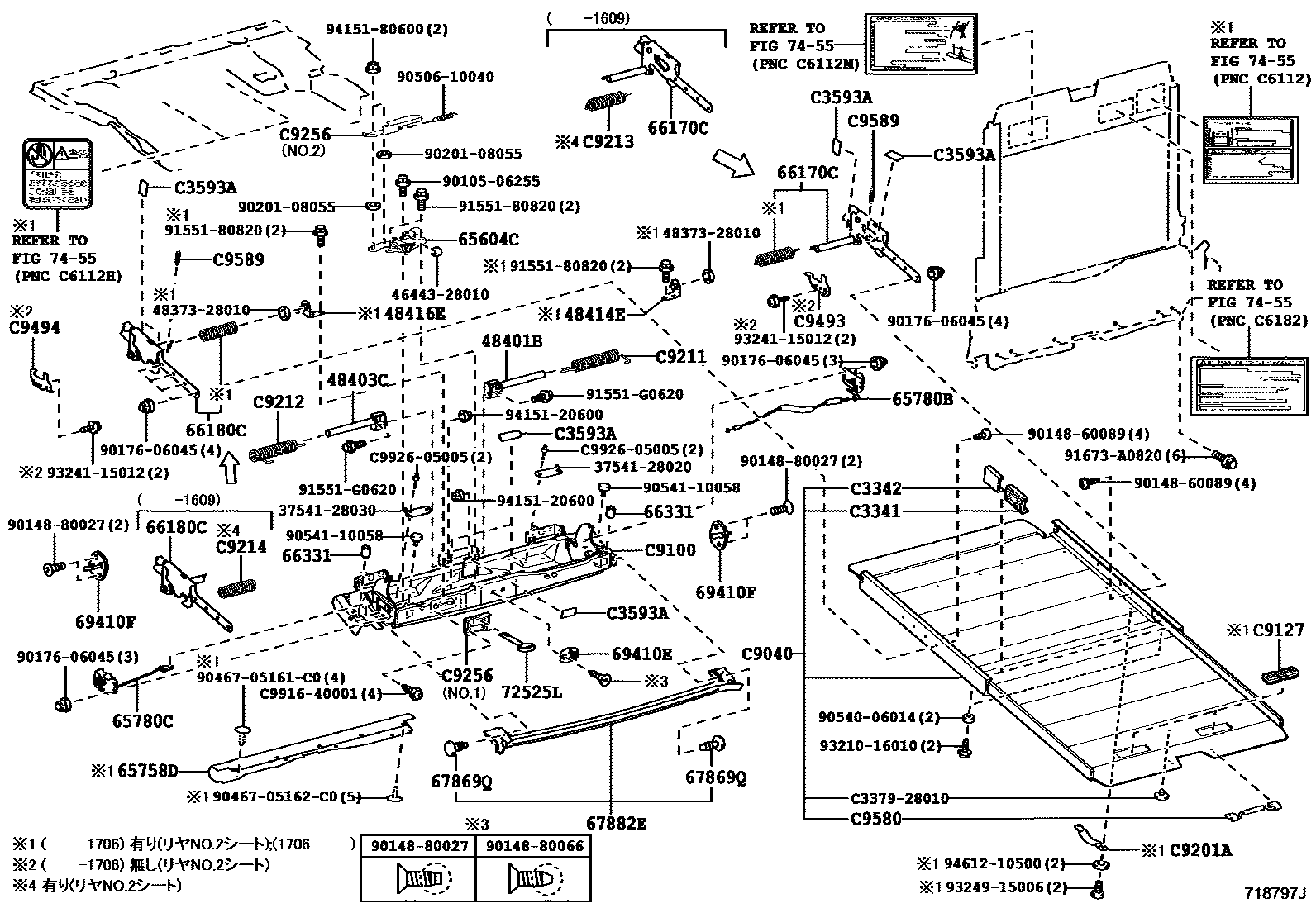

REAR GATE SLOPE & POWER LIFT

0001 1�������(�����) 0002 1�������(������) 0003 1�������(������) 0004 1����������� 0005 1�����������(����������) 0006 1�����(�����) 0007 1�����(������,DOP) 0008 1�����(������������) 0009 1������������

48401BBRACKET SUB-ASSY, SPRING, RH

main48401-28010iZRR8#..IV5201401-202004

48403CBRACKET SUB-ASSY, SPRING, LH

main48403-28010iZRR8#..IV5201401-202004

48414EBRACKET, SPRING, NO.3

main48414-28020iZRR80..IV5;ZRR85..07S..IV5201401-202004

48416EBRACKET, SPRING, NO.4

main48416-28020iZRR80..IV5;ZRR85..07S..IV5201401-202004

65604CLINK SUB-ASSY, TAIL GATE LOCK CONNECTING

main65604-28010iZRR8#..IV5201401-202004

65758DCOVER, TAIL GATE, INNER

main65758-28010iZRR80..IV5;ZRR85..07S..IV5201401-202004

65780BLOCK ASSY, TAIL GATE, RH

main65780-28010iZRR8#..IV5201401-201408

main65780-28011iZRR8#..IV5201408-202004

65780CLOCK ASSY, TAIL GATE, LH

main65790-28010iZRR8#..IV5201401-201408

main65790-28011iZRR8#..IV5201408-202004

66170CLATCH ASSY, TAIL GATE, RH

main66170-28010iZRR80..IV5;ZRR85..07S..IV5201401-201609

sub66170-28011

main66170-28020iZRR85..08S..IV5201401-201609

sub66170-28021

main66170-28021iZRR85..08S..IV5201610-201706

main66170-28040iZRR80..IV5;ZRR85..07S..IV5201610-201706

main66170-28040iZRR80..IV5;ZRR85..07S..IV5201610-201706

main66170-28040iZRR8#..IV5201706

66180CLATCH ASSY, TAIL GATE, LH

main66180-28010iZRR80..IV5;ZRR85..07S..IV5201401-201609

sub66180-28011

main66180-28020iZRR85..08S..IV5201401-201609

sub66180-28021

main66180-28021iZRR85..08S..IV5201610-201706

main66180-28040iZRR80..IV5;ZRR85..07S..IV5201610-201706

main66180-28040iZRR80..IV5;ZRR85..07S..IV5201610-201706

main66180-28040iZRR8#..IV5201706

66331CUSHION, GATE

main69425-28020iZRR80..(SI,ZS)..IV5;ZRR8#..NOAH..X..IV5201401-202004

67869QCLIP

main67869-22010iZRR8#..IV5201401-202004

67882EWEATHERSTRIP, TAIL GATE

main67882-28010iZRR8#..(ESQIR,VOXY)..(X,XI)..IV5201401-202004

69410EPLATE ASSY, DOOR LOCK STRIKER

main69410-60030iZRR8#..(ESQIR,VOXY)..(X,XI)..IV5201401-202004

69410FPLATE ASSY, LOCK STRIKER

main69410-20110iZRR8#..IV5201401-201706

72525LHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-68010-E0iZRR80..(SI,ZS)..IV5;ZRR8#..NOAH..X..IV5201401-202004

GREGE

7455

C3341SUPPORT, SLIDE FLOOR PANEL, NO.1

mainC334128010iZRR8#..IV5201401-202004

C3342SUPPORT, SLIDE FLOOR PANEL, NO.2

mainC334228010iZRR8#..(ESQIR,VOXY)..(X,XI)..IV5201401-202004

C3593ASILENCER, REAR FLOOR, NO.3

mainC359322020iZRR80..IV5;ZRR85..07S..IV5201401-201706

mainC359322020iZRR8#..(ESQIR,VOXY)..(X,XI)..IV5201706-202004

C9040SLOPE ASSY, REAR GATE

mainC904028030iZRR80..IV5;ZRR85..07S..IV5201401-202004

mainC904028040iZRR85..08S..IV5201401-201706

C9100GATE ASSY, TAIL

mainC900128040iZRR8#..IV5201401-202004

C9127COVER, TAIL GATE TOP RAIL

mainC912728010iZRR80..IV5;ZRR85..07S..IV5201401-202004

C9201AHANDLE SUB-ASSY, TAIL GATE

main72203-52010-C2iZRR80..(SI,ZS)..IV5;ZRR8#..NOAH..X..IV5201706-202004

BLACK

main72203-52010-C2iZRR80..(SI,ZS)..IV5;ZRR80..VOXY..X..IV5;ZRR85..VOXY..07S..IV5201401-201706

BLACK,TRIM2#

main72203-52010-C2iZRR80..(SI,ZS)..IV5;ZRR80..VOXY..X..IV5;ZRR85..VOXY..07S..IV5201401-201706

BLACK,TRIM0#,2#

C9211SPRING, TAIL GATE NO.1

mainC921128020iZRR8#..(ESQIR,VOXY)..(X,XI)..IV5201401-202004

C9212SPRING, TAIL GATE NO.2

mainC921228010iZRR8#..IV5201401-202004

C9213SPRING, TAIL GATE NO.3

mainC921328010iZRR80..IV5;ZRR85..07S..IV5201401-201609

C9214SPRING, TAIL GATE NO.4

mainC921428010iZRR80..IV5;ZRR85..07S..IV5201401-201609

C9256COVER, TAIL GATE LOCK

mainC925628040iZRR80..(SI,ZS)..IV5;ZRR8#..NOAH..X..IV5201401-202004

mainC925628080iZRR8#..(ESQIR,VOXY)..(X,XI)..IV5201401-202004

C9493STOPPER, REAR SLOPE, RH

mainC949328020iZRR85..08S..IV5201401-201706

C9494STOPPER, REAR SLOPE, LH

mainC949428010iZRR85..08S..IV5201401-201706

C9580HANDLE ASSY, PLATFORM LOCK

mainC958028010iZRR8#..IV5201401-202004

C9589SPRING, PLATFORM LOCK HANDLE

mainC958928010iZRR8#..IV5201401-202004

3754128020RETAINER, SPRING

main37541-28020

3754128030RETAINER, SPRING

main37541-28030

4644328010CAP, CABLE ADJUSTING

main46443-28010

4837328010SPACER, REAR SPRING

main48373-28010

9010506255

main90105-06255

9014860089

main90148-60089

9014880027

main90148-80027

9014880066

main90148-80066

9017606045

main90176-06045

9020108055

main90201-08055

9046705161C0

main90467-05161C0

9046705162C0

main90467-05162C0

9050610040

main90506-10040

9054006014

main90540-06014

9054110058

main90541-10058

9155180820

main91551-80820

91551G0620

main91551-G0620

91673A0820

main91673-A0820

9321016010

main93210-16010

9324115012

main93241-15012

9324915006

main93249-15006

9415120600

main94151-20600

9415180600

main94151-80600

9461210500

main94612-10500

C337928010

mainC3379-28010

C991640001

mainC9916-40001

C992605005

mainC9926-05005

60 parts on this diagram · 9 diagrams in section
