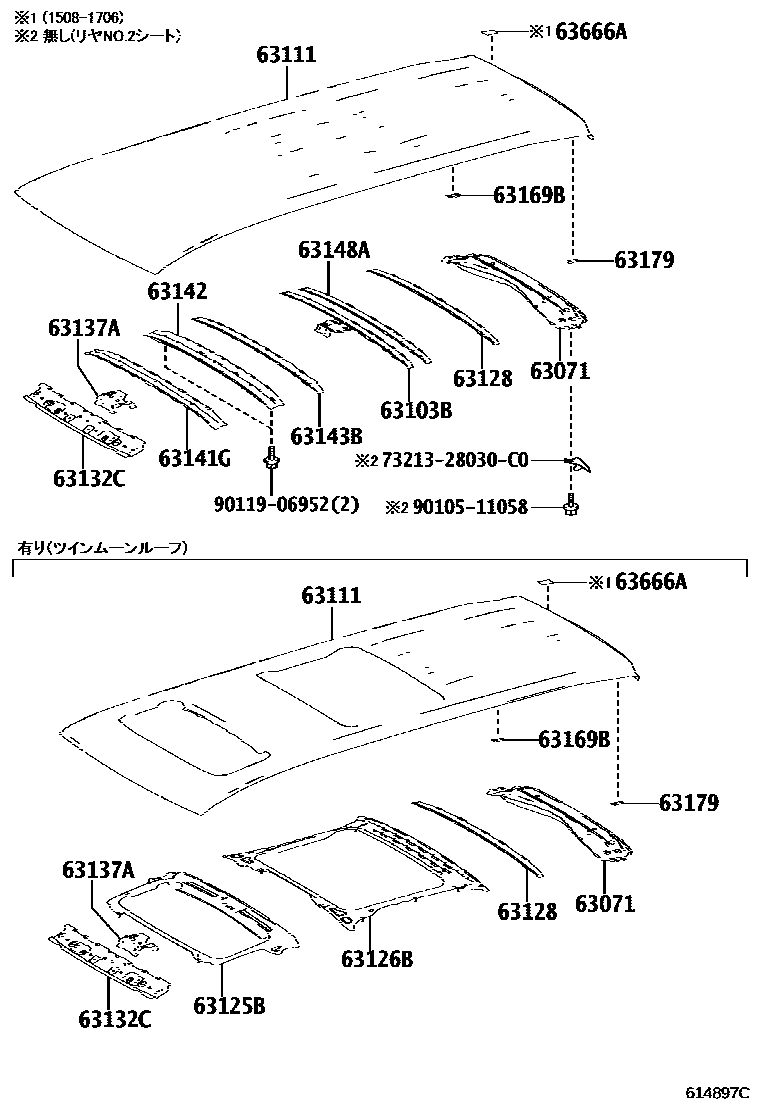

ROOF PANEL & BACK PANEL

0001 1������� 0002 1��(���������(����-� �������))0003 1��(���������(����������-� ���

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28080iZRR8#,ZWR80201401-201706

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-28090iZRR8#,ZWR80201401-201706

63111PANEL, ROOF

main63111-28300iZRR8#,ZWR80201401-201706

main63111-28310iZRR80..V;ZRR85..07S..V201706-202004

63125BREINFORCEMENT, ROOF PANEL, FRONT

main63125-28100iZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU201401-201706

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-28020iZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU201401-201706

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-28030iZRR8#,ZWR80201401-201706

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-28120iZRR8#,ZWR80201401-201706

63137ABRACKET, DOME LAMP, NO.1

main63137-28070iZRR8#,ZWR80201401-201706

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-28160iZRR8#,ZWR80201401-201706

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28110iZRR8#,ZWR80201401-201706

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28110iZRR8#,ZWR80201401-201706

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-28010iZRR8#,ZWR80201401-201706

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-28030iZRR8#,ZWR80201401-201706

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63169-28030iZRR8#,ZWR80201401-201706

63666APROTECTOR, ROOF, REAR

main76587-28060iZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU201508-201706

7321328030C0BELT ASSY, PASSENGER SEAT, NO.2

main73213-28030C0

9010511058

main90105-11058

9011906952

main90119-06952

18 parts on this diagram · 3 diagrams in section
