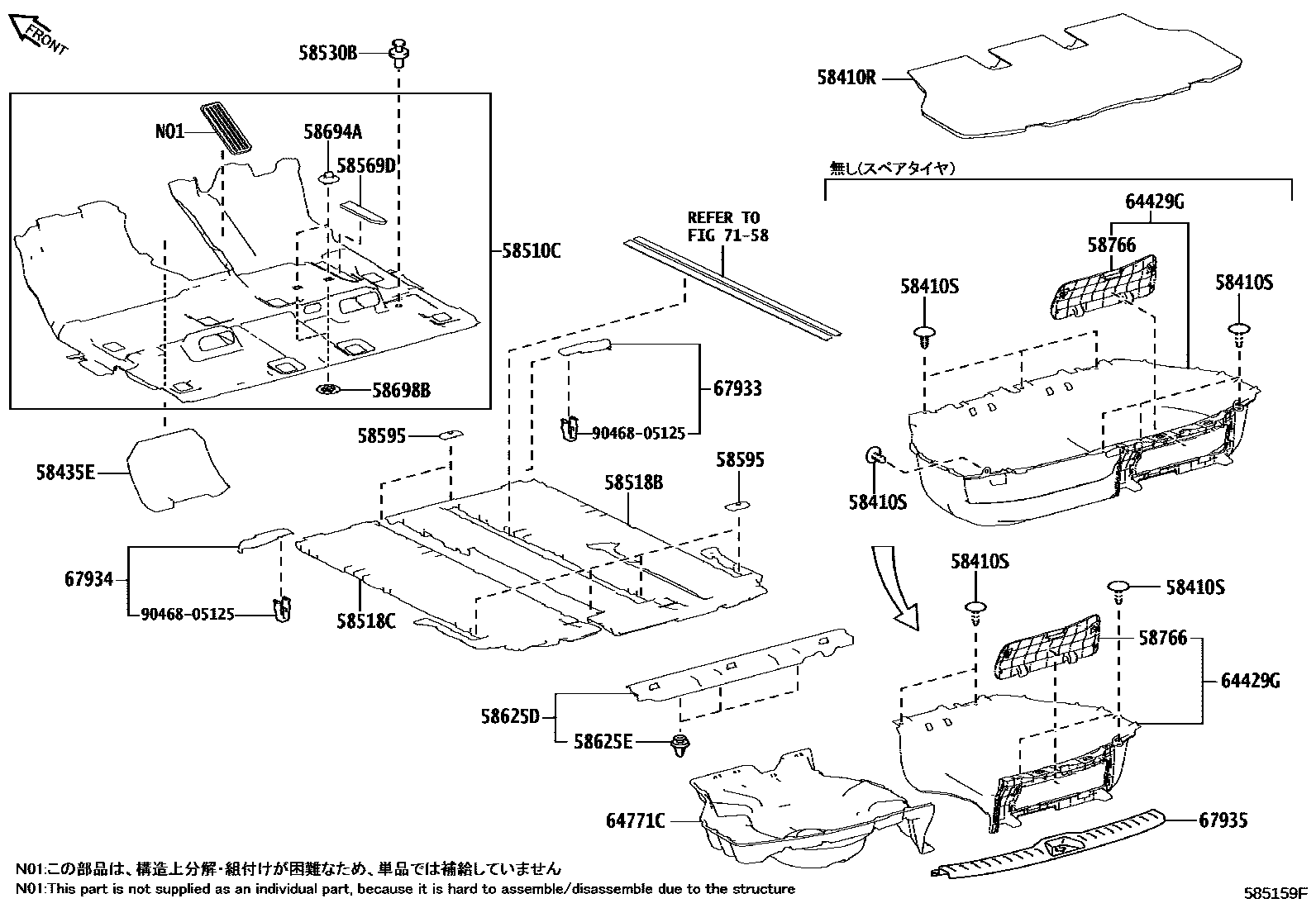

FLOOR MAT & SILENCER PAD

0001 1 0002 1���������������� 0003 1���������� ���������1 0004 1 0005 1 0006 1 0007 1���������� ���������2 0008 1������������������� 0009 1���������� ���������1 �������

58410RBOARD ASSY, DECK

main58410-28090-C1iZRR8#..VOXY..X..CBU;ZRR8#..(GI,SI,V,ZS)..CBU201401-201706

FLOOR CARPET,TRIM2#

main58410-28100-C1iZWR80..VOXY..X;ZWR80..GI,SI,V,ZS201402-201706

FLOOR CARPET,TRIM2#

58410SCLIP, DECK BOARD

58435ESILENCER, FRONT FLOOR, CENTER

main58435-28090iZRR8#,ZWR80201706-202112

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-28F40-B0iZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS201401-201706

GRAY,TRIM0#,2#

main58510-28F70-B0iZWR80..VOXY..X;ZWR80..GI,SI,V,ZS201402-201706

GRAY,TRIM0#,2#

sub58510-28J30

main58510-28F90-B0iZRR8#..GI201706-201901

GRAY,TRIM2#

main58510-28G00-B0iZWR80..G,SI201706-201901

GRAY,TRIM0#,2#

main58510-28G80-B0iZRR85..07S..ZS;ZRR80..08S..ZS..CBU;ZRR80..NOAH..08S..X..CBU;ZRR85..NOAH..07S..X..CBU201901-202112

main58510-28G90-B0iZRR8#..GI201901-202112

GRAY,TRIM2#

main58510-28J00-B0iZWR80..G,SI201901-202112

GRAY,TRIM0#,2#

main58510-28G10-B1iZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201706-201901

main58510-28G30-B0iZRR8#..07S..(SI,ZS)..CBU;ZRR80..VOXY..07S..X..CBU201401-201706

sub58510-28J40

main58510-28G70-B0iZWR80..GI,V,X,XI201706-201901

main58510-28J10-B0iZWR80..GI,V,X,XI201901-202112

main58510-28J20-B0iZRR80..08S..(X,XI)..CBU201901-202112

58518BMAT, REAR FLOOR, NO.2

main58518-28B70-C0supersedes 58518-28F40-C0iZRR8#..(ESQIR,NOAH)..08S..(X,XI)..CBU201401-201706

main58518-28B80-C0supersedes 58518-28F80-C0iZRR8#..07S..(GI,V,ZS)..CBU201706

FLOOR CARPET,TRIM2#

main58518-28B90-C0iZWR80..G,SI201706

FLOOR CARPET,TRIM2#

main58518-28F30-C0supersedes 58518-28F30-C0iZRR8#..(ESQIR,NOAH)..07S..(X,XI)..IV5201401-201706

FLOOR CARPET,TRIM2#

main58518-28F50-C0supersedes 58518-28G20-C0iZRR80..08S..(SI,ZS)..IV5201706

main58518-28D20-C0iZRR80..07S..(SI,ZS)..CBU201401-201706

main58518-28F90-C0supersedes 58518-28F80-C0iZRR80..(ESQIR,NOAH)..07S..(X,XI)..CBU201404-201706

main58518-28G30-C0iZRR85..VOXY..07S..IV5201411-201706

main58518-28G40-C0iZRR85..VOXY..07S..IV5201411-201706

58518CMAT, REAR FLOOR, NO.2

main58518-28F60-C0iZRR8#..08S..IV5201706

BLACK,TRIM2#

main58518-28C10-C0supersedes 58518-28C00-C0iZRR8#..08S..(G,SI)..CBU201706

main58518-28C30-C0supersedes 58518-28C20-C0iZRR8#,ZWR80..07S..(G,SI)..CBU201706

main58518-28G50-C0iZRR85..VOXY..07S..IV5201411-201706

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07215iZRR8#,ZWR80201401-201706

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-28020-B0iZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS201401-201706

GRAY,TRIM0#,2#

58595MOULDING, FLOOR CARPET, NO.3

main58595-28100-C0×5supersedes 58595-28100-C0iZRR8#..08S..(G,SI)..CBU201706

58625DPLATE, REAR FLOOR MAT, NO.1

main58625-28100-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)..CBU201401-201706

BLACK,TRIM2#

58625ECLIP(FOR REAR FLOOR MAT PLATE)

main62217-13010×3iZRR8#,ZWR80..CBU201401-201706

58694APLATE, MAT SET, UPPER

main58694-76010×2iZRR8#,ZWR80201401-201706

58698BPLATE, MAT SET, LOWER

main58698-76010×2iZRR8#,ZWR80201401-201706

58766COVER, JACK BOX HOLE

main64786-28010iZRR8#..08S..(SI,X,XI,ZS)..CBU201401-201706

64429GBOX, LUGGAGE COMPARTMENT TRIM

main64993-28030supersedes 64993-28011iZRR8#..CBU201401-201512

main64993-28031supersedes 64993-28011iZRR8#..CBU201706

main64993-28040supersedes 64993-28020iZWR80201402-201512

main64993-28041supersedes 64993-28021iZWR80201601-201706

64771CCOVER, SPARE WHEEL

main64771-28010iZRR8#,ZWR80..CBU201401-201612

main64771-28011iZRR8#..08S..(SI,X,XI,ZS)..CBU201901

67933PLATE, QUARTER SCUFF, INNER RH

main67933-28060-C0iZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS201401-201706

BLACK,TRIM2#

67934PLATE, QUARTER SCUFF, INSIDE LH

main67934-28050-C0iZRR85..VOXY..08S..X;ZRR80..VOXY..08S..X..IV5;ZRR80..08S..(SI,ZS)..IV5;ZRR85..VOXY..07S..X..CBU;ZRR80,ZWR80..VOXY..X..CBU;ZRR8#,ZWR80..(GI,SI,V,ZS)..CBU201401-201706

BLACK,TRIM2#

67935PLATE, BACK DOOR SCUFF

main67935-28100-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)..CBU201401-201706

BLACK,TRIM2#

7158

9046805125

main90468-05125

21 parts on this diagram · 9 diagrams in section
