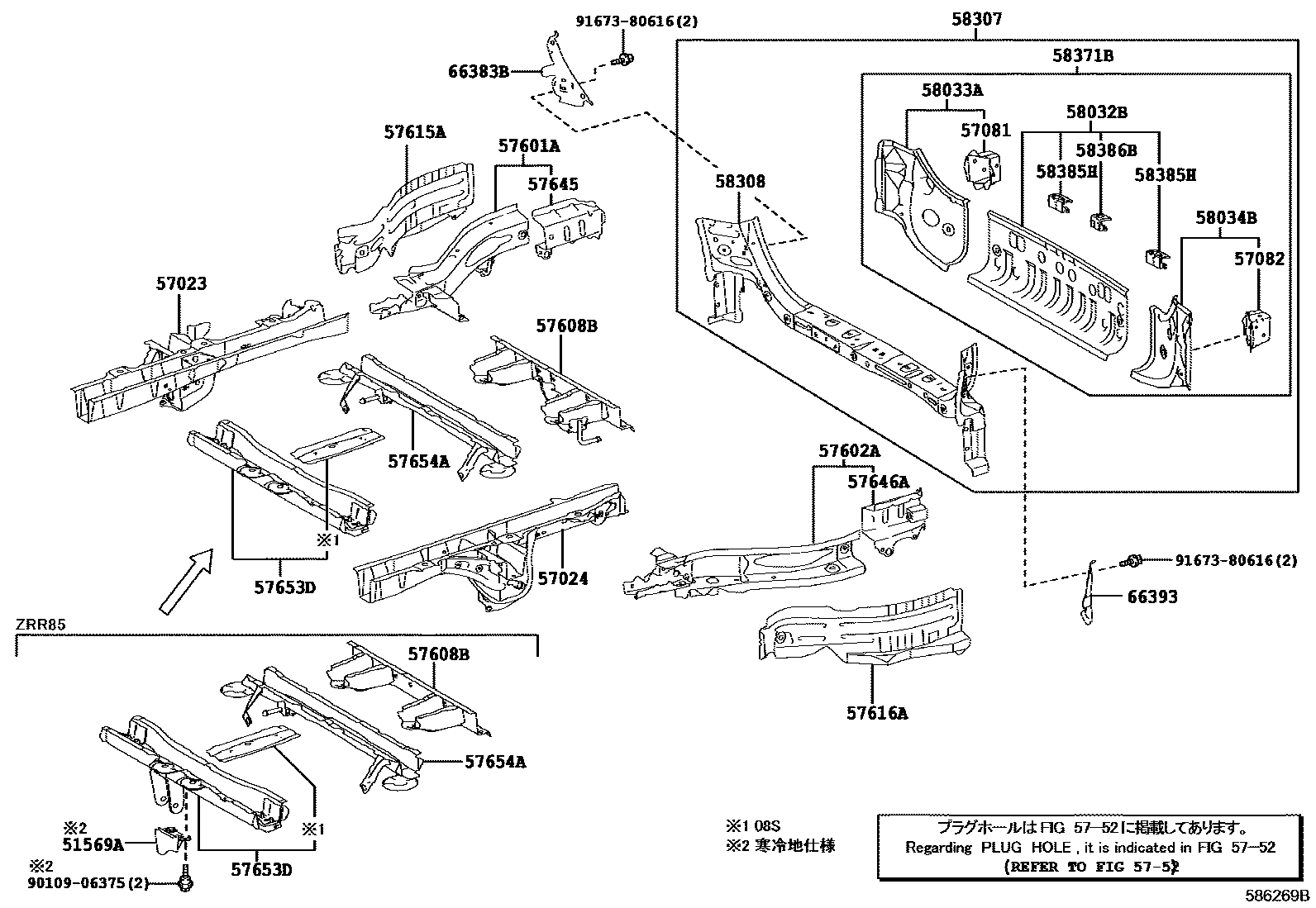

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1����������� 0002 1����������� 0003 1������� 0004 1������� 0005 1�������,G'S OR GR-SPORT

51569AGUARD, PROPELLER SHAFT

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28470iZRR8#,ZWR80¥19,700201401-202004

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28530iZRR8#,ZWR80¥19,700201401-202004

57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING

main57081-28020iZRR8#,ZWR80¥1,620201401-201809

sub57081-28021¥1,350

main57081-28021iZRR8#..(ESQIR,VOXY)..(X,XI)..IV5¥1,350201809-202004

57082BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main57082-28020iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS¥1,350201401-202004

5752

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-28190iZRR8#..IV5¥15,100201401-202004

main57601-28200iZRR8#,ZWR80..CBU¥13,600201401-202004

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-28160iZRR8#..IV5¥15,100201401-202004

main57602-28170iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU¥13,600201401-202004

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-28270iZRR80..(SI,ZS)..IV5;ZRR8#..NOAH..X..IV5¥21,700201401-202004

main57608-28290iZRR80..CBU¥10,900201401-202004

main57608-28300iZRR85..(ESQIR,VOXY)..(V,X,XI)..CBU¥10,900201401-202004

main57608-28310iZWR80¥10,900201402-202004

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-28100iZRR8#,ZWR80¥4,390201401-202004

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-28070iZRR8#,ZWR80¥4,390201401-202004

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-28080iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS¥3,050201401-202004

57646AREINFORCEMENT, REAR SIDE MEMBER, LH

main57646-28070iZRR8#,ZWR80¥4,480201401-202004

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57005-28220iZRR80,ZWR80..NOAH..07S..X;ZRR80,ZWR80..07S..(G,GI,SI,ZS)¥16,200201401-202004

main57005-28230iZRR80..08S..CBU¥18,100201401-202004

main57005-28240iZRR85..07S¥18,100201401-202004

main57005-28250iZRR85..08S..(G,GI,SI,ZS);ZRR85..NOAH..08S..X..CBU¥19,800201401-202004

main57005-28260iZRR80..08S..IV5¥16,200201401-202004

main57005-28270iZRR85..(ESQIR,VOXY)..08S..IV5¥18,100201401-202004

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57063-28030iZRR8#,ZWR80..(ESQIR,VOXY)..07S..(V,X,XI)..CBU¥7,400201401-202004

main57063-28050iZRR8#..(ESQIR,VOXY)..08S..(V,X,XI)..CBU¥7,400201401-202004

main57607-28490iZRR8#..IV5¥23,400201401-202004

58032BPANEL SUB-ASSY, REAR FLOOR, CENTER

main58032-28010iZRR8#,ZWR80..CBU¥7,500201401-201809

sub58032-28011¥6,200

main58032-28011iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU¥6,200201810-202004

58033AREINFORCE SUB-ASSY, BODY LOWER BACK, RH

main58033-28020iZRR8#,ZWR80..CBU¥5,700201401-201809

sub58033-28021¥4,670

main58033-28021iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU¥4,670201810-202004

58034BREINFORCE SUB-ASSY, BODY LOWER BACK, LH

main58034-28020iZRR8#,ZWR80..CBU¥5,700201401-201705

main58034-28021iZRR8#,ZWR80..CBU¥4,670201705-202004

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-28160iZRR8#,ZWR80..CBU¥29,100201401-201705

sub58307-28161¥24,200

main58307-28161iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU¥24,200201705-202004

main58308-28040iZRR8#..IV5¥53,100201401-201512

sub58308-28041¥36,800

main58308-28041iZRR8#..(ESQIR,VOXY)..(X,XI)..IV5¥36,800201601-202004

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-28050iZRR8#,ZWR80..CBU¥13,500201401-202004

58371BPANEL, BODY LOWER BACK, OUTER

main58302-28120iZRR8#,ZWR80..CBU¥16,300201401-201705

sub58302-28122¥13,500

main58302-28121iZRR8#,ZWR80..CBU¥16,300201705-201809

sub58302-28122¥13,500

main58302-28122iZRR8#,ZWR80..NOAH..X..CBU;ZRR8#,ZWR80..(G,GI,SI,ZS)..CBU¥13,500201810-202004

main58307-28150iZRR8#..IV5¥18,900201401-201808

sub58307-28151¥15,700

main58307-28151iZRR80..(SI,ZS)..IV5;ZRR8#..NOAH..X..IV5¥15,700201809-202004

sub58308-V1050¥32,700

sub90119-08D21¥80

sub90333-25001¥140

58385HBRACKET, REAR BUMPER COVER, NO.1

main58386-12020iZRR8#,ZWR80..CBU¥450201401-202004

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-28050iZRR8#,ZWR80..CBU¥350201401-202004

66383BBRACKET, ROPE HOOK, NO.1 RH

main66383-28020iZRR8#,ZWR80¥640201401-202011

66393BRACKET, ROPE HOOK, NO.1 LH

main66393-28030iZRR8#,ZWR80¥640201401-202011

9010906375

main90109-06375¥80

9167380616

main91673-80616¥60
