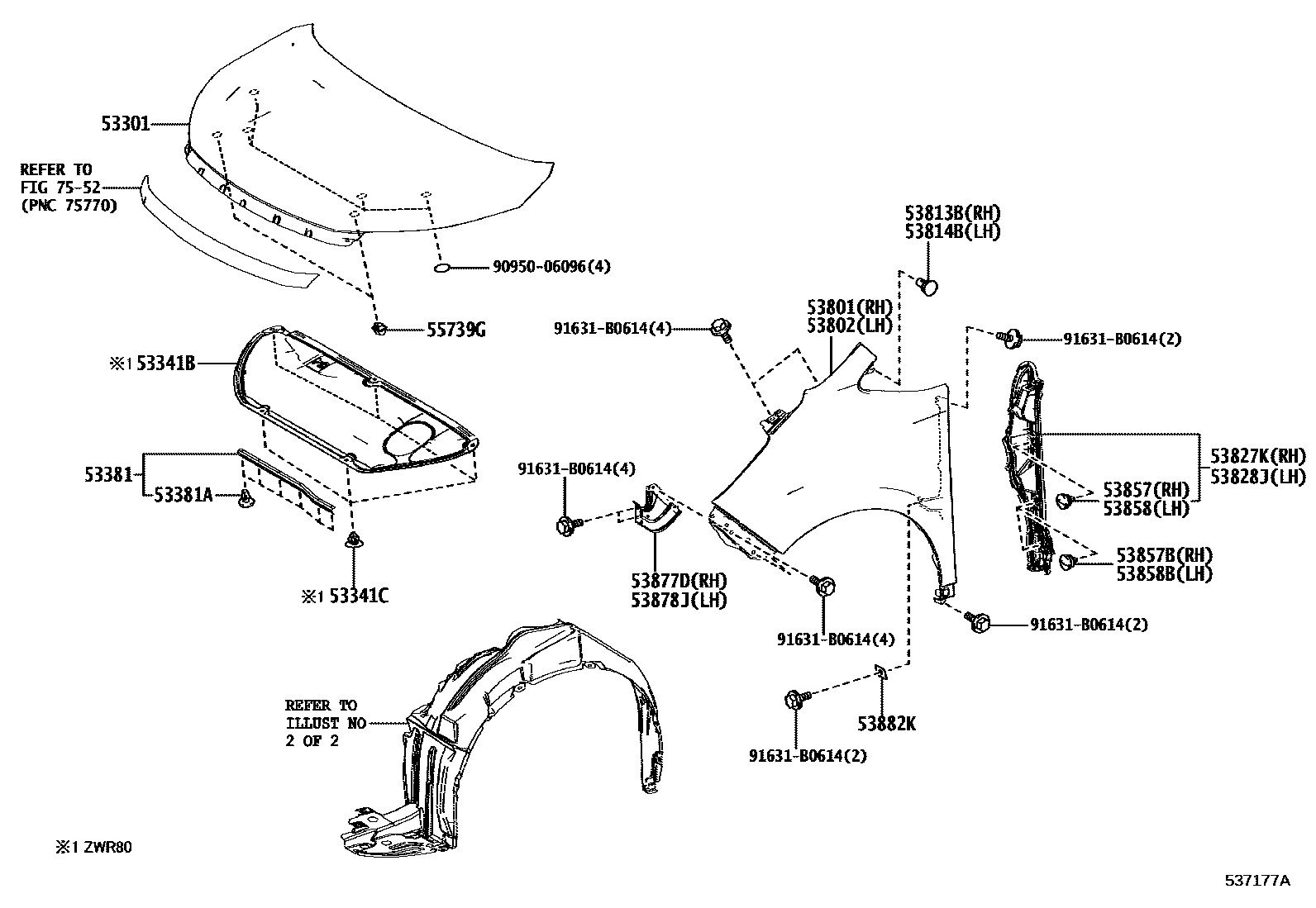

HOOD & FRONT FENDER

0001 1 0002 1�������� 0003 1 0004 1��������

53301HOOD SUB-ASSY

main53301-28160iZRR8#,ZWR80..XI201706-202004

main53301-28170iZRR8#,ZWR80..VOXY..(V,X)201706-202004

53341BINSULATOR, HOOD

main53341-28080iZWR80201402-201706

main53341-28081iZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×5iZWR80201402-201706

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-28111iZRR8#,ZWR80201401-201706

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×6iZRR8#,ZWR80201401-201706

53801FENDER SUB-ASSY, FRONT RH

main53811-28180iZRR8#,ZWR80..XI201706-202004

main53811-28190iZRR8#,ZWR80..SI201706

main53811-28200iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main53811-28210iZRR8#,ZWR80..ZS201401-201706

53802FENDER SUB-ASSY, FRONT LH

main53812-28240iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-201706

main53812-28250iZRR8#,ZWR80..SI201401-201706

main53812-28260iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main53812-28270iZRR8#,ZWR80..ZS201401-201706

53813BEXTENSION, FRONT FENDER, RH

main53813-28140iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

main53813-47040iZRR8#,ZWR80201401-201603

53814BEXTENSION, FRONT FENDER, LH

main53813-28140iZRR8#,ZWR80201604-201706

main53813-47040iZRR8#,ZWR80201401-201603

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-28140iZRR8#,ZWR80201401-201706

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-28160iZRR8#,ZWR80201401-201706

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-28030iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

main53857-47020iZRR8#,ZWR80201401-201501

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-28030×2iZRR8#,ZWR80201403-201706

main53857-47011×2iZRR8#201401-201402

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-28030iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

main53857-47020iZRR8#,ZWR80201401-201501

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-28030×2iZRR8#,ZWR80201403-201706

main53857-47011×2iZRR8#201401-201402

53877DBRACKET, FRONT FENDER LINER, RH

main53877-28060iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

53878JBRACKET, FRONT FENDER LINER, LH

main53878-28170iZRR8#,ZWR80201401-201706

53882KSEAL, FRONT FENDER

main53882-16030×2iZRR8#,ZWR80201401-201706

55739GSTOPPER, HOOD

main55739-28010×2iZRR8#,ZWR80201401-201706

7552

9095006096

main90950-06096

91631B0614

main91631-B0614

22 parts on this diagram · 4 diagrams in section
