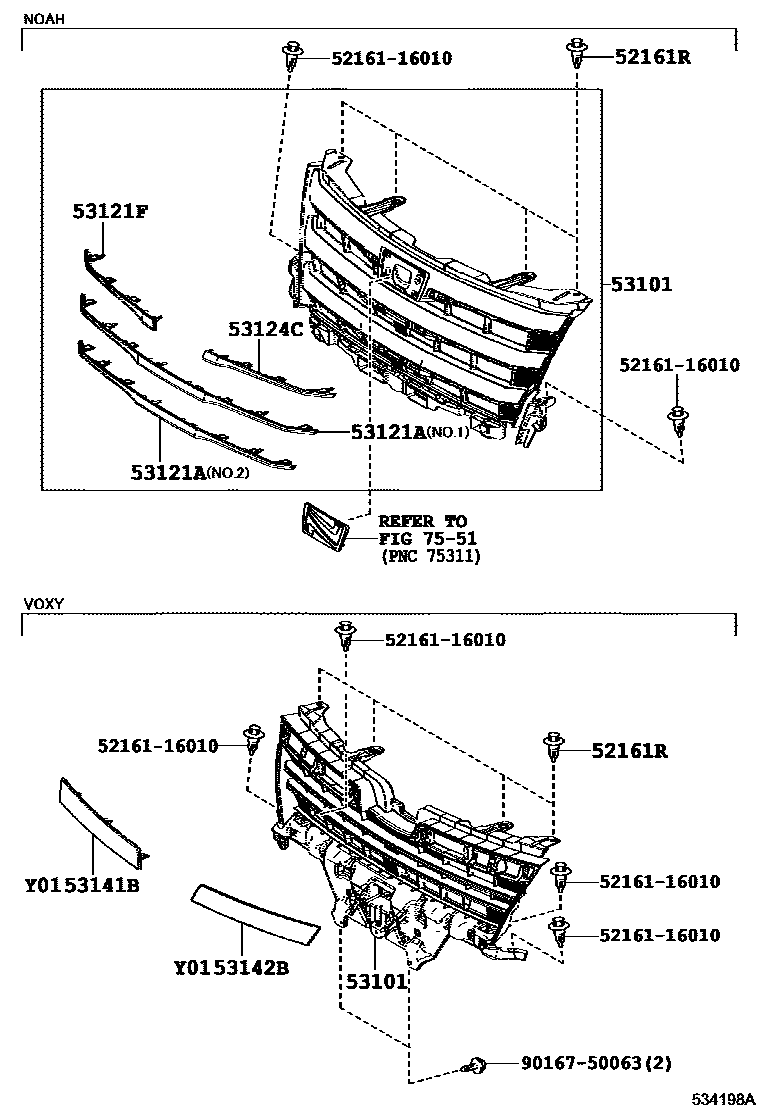

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1 0005 1G'S OR GR-SPORT

52161RPIECE, FRONT BUMPER

main52161-16010×4iZRR8#,ZWR80201706

53101GRILLE SUB-ASSY, RADIATOR

main53101-28390iZRR8#,ZWR80..NOAH..(G,X)201401-201706

main53101-28570iZRR8#,ZWR80..SI201401-201706

main53101-28600-A0iZRR8#,ZWR80..NOAH..(G,X)201706-201901

WHITE PEARL CS.,070

main53101-28600-A1iZRR8#,ZWR80..NOAH..(G,X)201706-201901

LUXURY WHITE PEARL CS.GF.,086

main53101-28600-B0iZRR8#,ZWR80..NOAH..(G,X)201706-201901

SILVER ME.,1F7

main53101-28600-C0iZRR8#,ZWR80..NOAH..(G,X)201706-201901

BLACK,202

main53101-28600-D0iZRR8#,ZWR80..NOAH..(G,X)201706-201901

DEEP RED M.M.,3R9

main53101-28600-E0iZRR8#,ZWR80..NOAH..(G,X)201706-201901

AVANT-GARDE BRONZE ME.,4V8

main53101-28610iZRR8#,ZWR80..SI201706-201901

main53101-28620-A0iZRR8#,ZWR80..VOXY201706

WHITE PEARL CS.,070

main53101-28620-B0iZRR8#,ZWR80..VOXY..(V,X)201706-202004

SILVER ME.,1F7

main53101-28620-C0iZRR8#,ZWR80..VOXY201706

BLACK,202

main53101-28620-C1iZRR8#,ZWR80..VOXY201706

BLACKISH AGEHA GF.,221

main53101-28620-C2iZRR8#,ZWR80..VOXY201706

INAZUMA SPARKING BLACK GF,224

main53101-28620-D0iZRR8#,ZWR80..ZS201706

DEEP RED M.M.,3R9

main53101-28620-E0iZRR8#,ZWR80..VOXY..(V,X)201706-202004

AVANT-GARDE BRONZE ME.,4V8

main53101-28630iZRR8#,ZWR80..ESQIR201706-201901

main53101-28670-A0iZRR8#,ZWR80..NOAH..(G,X)201901

WHITE PEARL CS.,070

main53101-28670-A1iZRR8#,ZWR80..NOAH..(G,X)201901

LUXURY WHITE PEARL CS.GF.,086

main53101-28670-B0iZRR8#,ZWR80..NOAH..(G,X)201901

SILVER ME.,1F7

main53101-28670-C0iZRR8#,ZWR80..NOAH..(G,X)201901

BLACK,202

main53101-28670-D0iZRR8#,ZWR80..NOAH..(G,X)201901

DEEP RED M.M.,3R9

main53101-28670-E0iZRR8#,ZWR80..NOAH..(G,X)201901

AVANT-GARDE BRONZE ME.,4V8

main53101-28680iZRR8#,ZWR80..SI201901

main53101-28690iZRR8#,ZWR80..ESQIR201901

main53105-28020iZRR8#,ZWR80..ESQIR201410-201706

main53111-28680iZRR8#,ZWR80..VOXY201401-201706

main53101-28590iZRR8#,ZWR80..SI..CBU201607-201706

main53101-28700iZRR8#,ZWR80..07S..GI201901

main53105-28060iZRR8#,ZWR80..GI201601-201706

main53111-28710iZRR8#,ZWR80..ZS..CBU201607-201706

main53111-28720-A0iZRR80..07S..SI..CBU201605-201706

main53111-28720-A1iZRR80..07S..SI..CBU201709

main53111-28720-B0iZRR80..07S..SI..CBU201709

main53111-28720-C0iZRR80..07S..SI..CBU201709

main53111-28720-C1iZRR80..07S..SI..CBU201709

main53111-28720-D0iZRR80..07S..SI..CBU201605-201706

main53111-28720-K0iZRR80..07S..SI..CBU201605-201706

main53111-28730-A0iZRR80..07S..ZS..CBU201605-201706

main53111-28730-B0iZRR80..07S..ZS..CBU201709

main53111-28730-C0iZRR80..07S..ZS..CBU201605-201706

main53111-28730-C1iZRR80..07S..ZS..CBU201709

main53111-28730-C2iZRR80..07S..ZS..CBU201709

main53111-28730-D0iZRR80..07S..ZS..CBU201605-201706

53121AMOULDING, RADIATOR GRILLE

main53123-28030iZRR8#,ZWR80..NOAH201401-201706

main53123-28140iZRR8#,ZWR80..NOAH..(G,X)201706

main53124-28030iZRR8#,ZWR80..NOAH201401-201706

main53123-28130iZRR8#,ZWR80..SI..CBU201607-201706

main53124-28130iZRR8#,ZWR80..SI..CBU201607-201706

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-28100iZRR8#,ZWR80..NOAH201401-201706

main53121-28200iZRR8#,ZWR80..SI..CBU201607-201706

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53122-28020iZRR8#,ZWR80..NOAH201401-201706

main53122-28030iZRR8#,ZWR80..SI..CBU201607-201706

53141BGARNISH, RADIATOR GRILLE, NO.1

main53141-28010-A0iZRR8#,ZWR80..VOXY201401-201706

WHITE PEARL CS.,070

main53141-28010-B0iZRR8#,ZWR80..VOXY201401-201706

SILVER ME.,1F7

main53141-28010-C0iZRR8#,ZWR80..VOXY201401-201706

BLACK,202

main53141-28010-C1iZRR8#,ZWR80..VOXY201401-201706

BLACKISH AGEHA M.M.,221

main53141-28010-D0iZRR8#..VOXY;ZWR80..VOXY..(X,ZS)201401-201706

DEEP RED M.M.,3R9

main53141-28010-H0iZRR8#,ZWR80..VOXY..(V,X)201401-201706

OCEAN MINT ME.,789

main53141-28010-K0iZRR8#,ZWR80..VOXY..(V,X)201401-201706

DK.VIOLET M.M.,9AF

main53141-28060-A0iZRR8#,ZWR80..NOAH..(G,X)201706

WHITE PEARL CS.,070

main53141-28060-A1iZRR8#,ZWR80..NOAH..(G,X)201706

LUXURY WHITE PEARL CS.GF.,086

main53141-28060-B0iZRR8#,ZWR80..NOAH..(G,X)201706

SILVER ME.,1F7

main53141-28060-C0iZRR8#,ZWR80..NOAH..(G,X)201706

BLACK,202

main53141-28060-D0iZRR8#,ZWR80..NOAH..(G,X)201706

DEEP RED M.M.,3R9

main53141-28060-E0iZRR8#,ZWR80..NOAH..(G,X)201706

AVANT-GARDE BRONZE ME.,4V8

main53141-28070iZRR8#,ZWR80..SI201706

main53141-28080-A0iZRR8#,ZWR80..VOXY201706

WHITE PEARL CS.,070

main53141-28080-B0iZRR8#,ZWR80..VOXY..(V,X)201706-202004

SILVER ME.,1F7

main53141-28080-C0iZRR8#,ZWR80..VOXY201706

BLACK,202

main53141-28080-C1iZRR8#,ZWR80..VOXY201706

BLACKISH AGEHA GF.,221

main53141-28080-C2iZRR8#,ZWR80..VOXY201706

INAZUMA SPARKING BLACK GF,224

main53141-28080-D0iZRR8#,ZWR80..ZS201706

DEEP RED M.M.,3R9

main53141-28080-E0iZRR8#,ZWR80..VOXY..(V,X)201706-202004

AVANT-GARDE BRONZE ME.,4V8

main53141-28010-B2iZRR8#..ZS..CBU201412-201607

main53141-28050iZRR8#,ZWR80..ZS..CBU201607-201706

53142BRADIATOR GRILLE GARNISH, NO.2

main53142-28010-A0iZRR8#,ZWR80..VOXY201401-201706

WHITE PEARL CS.,070

main53142-28010-B0iZRR8#,ZWR80..VOXY201401-201706

SILVER ME.,1F7

main53142-28010-C0iZRR8#,ZWR80..VOXY201401-201706

BLACK,202

main53142-28010-C1iZRR8#,ZWR80..VOXY201401-201706

BLACKISH AGEHA M.M.,221

main53142-28010-D0iZRR8#..VOXY;ZWR80..VOXY..(X,ZS)201401-201706

DEEP RED M.M.,3R9

main53142-28010-H0iZRR8#,ZWR80..VOXY..(V,X)201401-201706

OCEAN MINT ME.,789

main53142-28010-K0iZRR8#,ZWR80..VOXY..(V,X)201401-201706

DK.VIOLET M.M.,9AF

main53142-28010-B2iZRR8#..ZS..CBU201412-201607

main53142-28030iZRR8#,ZWR80..ZS..CBU201607-201706

7551

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9016750063

main90167-50063

10 parts on this diagram · 5 diagrams in section
