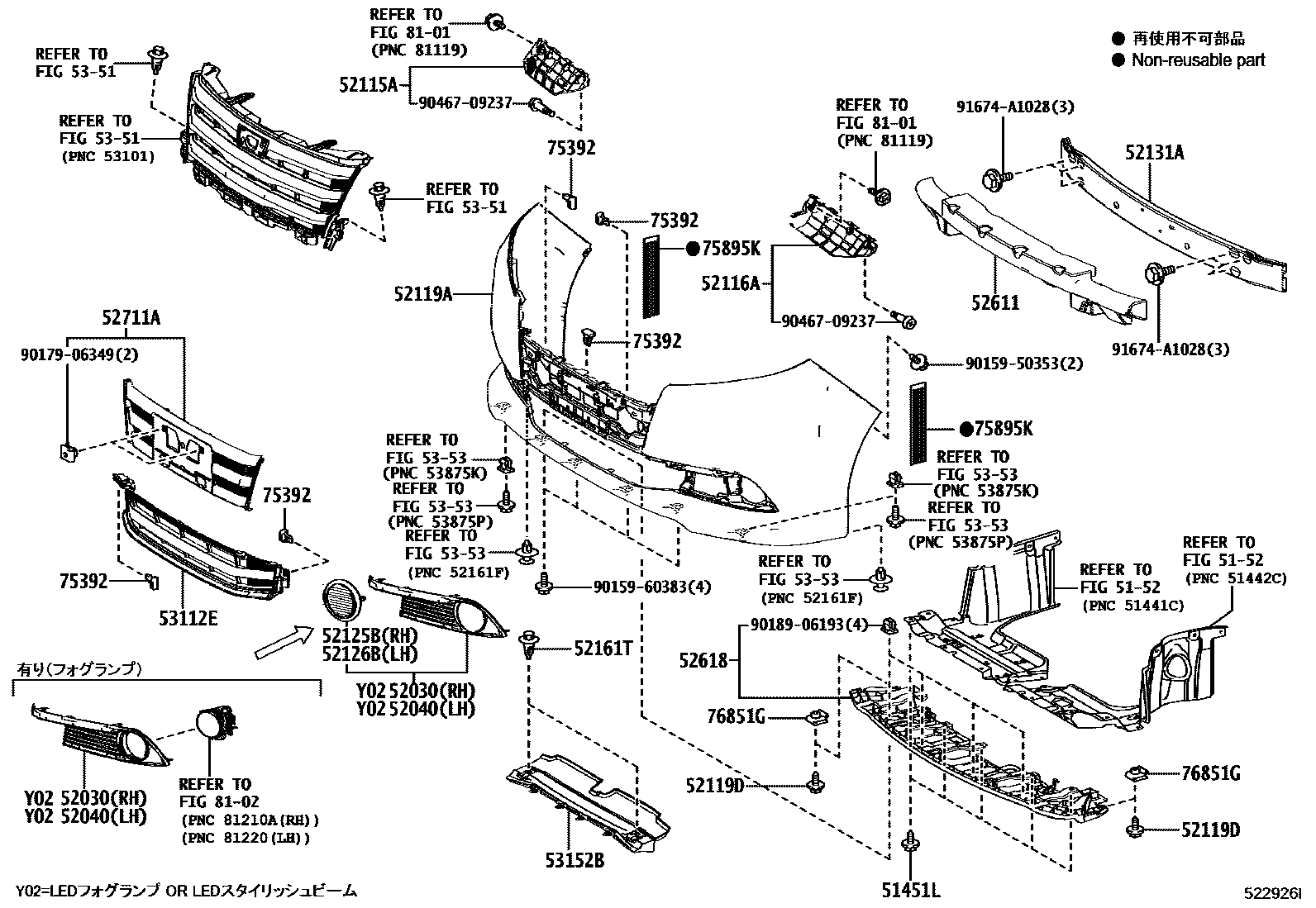

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1G'S OR GR SPORT 0007 1G'S OR GR SPORT 0008 1 0009 1 0010 1 0011 1 0012 1

51451LBOLT, NO.1

main90119-06767iZRR8#,ZWR80201401-201706

5152

52030COVER ASSY, FRONT BUMPER HOLE, RH

main52030-28030iZRR8#,ZWR80..NOAH..X201401-201706

main52030-28030iZRR8#,ZWR80..G201401-201706

main52030-28040iZRR8#,ZWR80..SI201401-201706

main52030-28050iZRR8#,ZWR80..ZS201401-201706

main52030-28060iZRR8#,ZWR80..NOAH..X201401-201706

main52030-28070-A0iZRR8#,ZWR80..ESQIR201410-201504

WHITE PEARL CS.,070

sub52030-28071

main52030-28070-B0iZRR8#,ZWR80..ESQIR201410-201504

SILVER ME.,1F7

sub52030-28071

main52030-28070-C0iZRR8#,ZWR80..ESQIR201410-201504

BLACK,202

sub52030-28071

main52030-28070-C1iZRR8#,ZWR80..ESQIR201410-201504

SPARKLING BLACK PEARL CS.,220

sub52030-28071

main52030-28070-D0iZRR8#,ZWR80..ESQIR201410-201504

DEEP RED M.M.,3R9

sub52030-28071

main52030-28070-H0iZRR8#,ZWR80..ESQIR201410-201504

OCEAN MINT ME.,789

sub52030-28071

main52030-28070-K0iZRR8#,ZWR80..ESQIR201410-201504

DK.VIOLET M.M.,9AF

sub52030-28071

main52030-28071-A0iZRR8#,ZWR80..ESQIR201505-201706

WHITE PEARL CS.,070

main52030-28071-B0iZRR8#,ZWR80..ESQIR201505-201706

SILVER ME.,1F7

main52030-28071-C0iZRR8#,ZWR80..ESQIR201505-201706

BLACK,202

main52030-28071-C1iZRR8#,ZWR80..ESQIR201505-201706

SPARKLING BLACK PEARL CS.,220

main52030-28071-D0iZRR8#,ZWR80..ESQIR201505-201706

DEEP RED M.M.,3R9

main52030-28071-H0iZRR8#,ZWR80..ESQIR201505-201706

OCEAN MINT ME.,789

main52030-28071-K0iZRR8#,ZWR80..ESQIR201505-201706

DK.VIOLET M.M.,9AF

main52030-28110iZRR8#,ZWR80..NOAH..X201706

main52030-28110iZRR8#,ZWR80..G201706

main52030-28120iZRR8#,ZWR80..SI201706

main52030-28130iZRR8#,ZWR80..V201706-202004

main52030-28140iZRR8#,ZWR80..ZS..CBU201706-201901

main52030-28140iZRR80..ZS..IV5201706

main52030-28150iZRR8#,ZWR80..ESQIR201706

main52030-28160iZRR8#,ZWR80..ZS..CBU201901

52040COVER ASSY, FRONT BUMPER HOLE, LH

main52040-28030iZRR8#,ZWR80..G201401-201706

main52040-28030iZRR8#,ZWR80..G201401-201706

main52040-28040iZRR8#,ZWR80..SI201401-201706

main52040-28050iZRR8#,ZWR80..ZS201401-201706

main52040-28060iZRR8#,ZWR80..NOAH..X201401-201706

main52040-28070-A0iZRR8#,ZWR80..ESQIR201410-201504

WHITE PEARL CS.,070

sub52040-28071

main52040-28070-B0iZRR8#,ZWR80..ESQIR201410-201504

SILVER ME.,1F7

sub52040-28071

main52040-28070-C0iZRR8#,ZWR80..ESQIR201410-201504

BLACK,202

sub52040-28071

main52040-28070-C1iZRR8#,ZWR80..ESQIR201410-201504

SPARKLING BLACK PEARL CS.,220

sub52040-28071

main52040-28070-D0iZRR8#,ZWR80..ESQIR201410-201504

DEEP RED M.M.,3R9

sub52040-28071

main52040-28070-H0iZRR8#,ZWR80..ESQIR201410-201504

OCEAN MINT ME.,789

sub52040-28071

main52040-28070-K0iZRR8#,ZWR80..ESQIR201410-201504

DK.VIOLET M.M.,9AF

sub52040-28071

main52040-28071-A0iZRR8#,ZWR80..ESQIR201505-201706

WHITE PEARL CS.,070

main52040-28071-B0iZRR8#,ZWR80..ESQIR201505-201706

SILVER ME.,1F7

main52040-28071-C0iZRR8#,ZWR80..ESQIR201505-201706

BLACK,202

main52040-28071-C1iZRR8#,ZWR80..ESQIR201505-201706

SPARKLING BLACK PEARL CS.,220

main52040-28071-D0iZRR8#,ZWR80..ESQIR201505-201706

DEEP RED M.M.,3R9

main52040-28071-H0iZRR8#,ZWR80..ESQIR201505-201706

OCEAN MINT ME.,789

main52040-28071-K0iZRR8#,ZWR80..ESQIR201505-201706

DK.VIOLET M.M.,9AF

main52040-28110iZRR8#,ZWR80..G201706

main52040-28110iZRR8#,ZWR80..NOAH..X201706

main52040-28120iZRR8#,ZWR80..SI201706

main52040-28130iZRR8#,ZWR80..V201706-202004

main52040-28140iZRR8#,ZWR80..ZS..CBU201706-201901

main52040-28140iZRR80..ZS..IV5201706

main52040-28150iZRR8#,ZWR80..ESQIR201706

main52040-28160iZRR8#,ZWR80..ZS..CBU201901

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-28220iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-201706

main52115-28230iZRR8#..SI201401-201402

sub52115-28231

main52115-28231iZRR8#,ZWR80..SI201402-201706

main52115-28240iZRR8#,ZWR80..VOXY..(V,X)201401-201706

main52115-28250iZRR8#..ZS201401-201402

sub52115-28251

main52115-28251iZRR8#,ZWR80..ZS201402-201706

main52115-28270iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201706

main52115-28280iZRR8#,ZWR80..VOXY..(V,X)201706-202004

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-28090iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-201706

main52116-28120iZRR8#..SI201401-201402

sub52116-28121

main52116-28121iZRR8#,ZWR80..SI201402-201706

main52116-28220iZRR8#,ZWR80..VOXY..(V,X)201401-201706

main52116-28230iZRR8#..ZS201401-201402

sub52116-28231

main52116-28231iZRR8#,ZWR80..ZS201402-201706

main52116-28270iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201706

main52116-28280iZRR8#,ZWR80..VOXY..(V,X)201706-202004

52119ACOVER, FRONT BUMPER

main52119-28G70-A0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-201706

WHITE PEARL CS.,070

sub52119-2J995

main52119-28G70-B0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-201706

SILVER ME.,1F7

sub52119-2J995

main52119-28G70-B2iZRR8#,ZWR80..NOAH..X..CBU201504-201607

ICE TITANIUM M.M.,1H4

sub52119-2J995

main52119-28G70-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-201706

BLACK,202

sub52119-2J995

main52119-28G70-C1iZRR8#,ZWR80..ESQIR201410-201706

SPARKLING BLACK PEARL CS.,220

sub52119-2J995

main52119-28G70-D0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-201706

BORDEAUX M.M,3R9

sub52119-2J995

main52119-28G70-E0iZRR8#,ZWR80..NOAH..(G,X)201401-201706

ROSE CHAMPAGNE M.M.,4W4

sub52119-2J995

main52119-28G70-H0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-201706

OCEAN MINT ME.,789

sub52119-2J995

main52119-28G70-K0iZRR8#,ZWR80..ESQIR201410-201706

DK.VIOLET M.M.,9AF

sub52119-2J995

main52119-28G80-A0iZRR8#,ZWR80..SI201401-201706

WHITE PEARL CS.,070

sub52119-2J952

main52119-28G80-B0iZRR8#,ZWR80..SI201401-201706

SILVER ME.,1F7

sub52119-2J952

main52119-28G80-C0iZRR8#,ZWR80..SI201401-201706

BLACK,202

sub52119-2J952

main52119-28G80-D0iZRR8#,ZWR80..SI201401-201706

BORDEAUX M.M,3R9

sub52119-2J952

main52119-28G80-K0iZRR8#,ZWR80..SI201401-201706

DK.VIOLET M.M.,9AF

sub52119-2J952

main52119-28G90-A0iZRR8#,ZWR80..VOXY..(V,X)201401-201706

WHITE PEARL CS.,070

sub52119-2A918

main52119-28G90-B0iZRR8#,ZWR80..VOXY..(V,X)201401-201706

SILVER ME.,1F7

sub52119-2A918

main52119-28G90-C0iZRR8#,ZWR80..VOXY..(V,X)201401-201706

BLACKISH AGEHA M.M.,221

sub52119-2A918

main52119-28G90-C1iZRR8#,ZWR80..VOXY..(V,X)201401-201706

BLACK,202

sub52119-2A918

main52119-28G90-H0iZRR8#,ZWR80..VOXY..(V,X)201401-201706

OCEAN MINT ME.,789

sub52119-2A918

main52119-28G90-K0iZRR8#,ZWR80..VOXY..(V,X)201401-201706

DK.VIOLET M.M.,9AF

sub52119-2A918

main52119-28J00-A0iZRR8#,ZWR80..ZS201401-201706

WHITE PEARL CS.,070

sub52119-2A919

main52119-28J00-B0iZRR8#,ZWR80..ZS201401-201706

SILVER ME.,1F7

sub52119-2A919

main52119-28J00-C0iZRR8#,ZWR80..ZS201401-201706

BLACK,202

sub52119-2A919

main52119-28J00-C1iZRR8#,ZWR80..ZS201401-201706

BLACKISH AGEHA M.M.,221

sub52119-2A919

main52119-28J00-D0iZRR8#,ZWR80..ZS201401-201706

BORDEAUX M.M,3R9

sub52119-2A919

main52119-28K90-A0iZRR8#,ZWR80..GI201706-201901

WHITE PEARL CS.,070

main52119-28K90-A1iZRR8#,ZWR80..G201706-201901

LUXURY WHITE PEARL CS.GF.,086

main52119-28K90-B0iZRR8#,ZWR80..GI201706-201901

SILVER ME.,1F7

main52119-28K90-C0iZRR8#,ZWR80..GI201706-201901

BLACK,202

main52119-28K90-C1iZRR8#,ZWR80..GI201706-202004

SPARKLING BLACK PEARL CS.,220

main52119-28K90-C2iZRR8#,ZWR80..GI201706-202004

BLACKISH AGEHA GF.,221

main52119-28K90-D0iZRR8#,ZWR80..GI201706-201901

BORDEAUX M.M,3R9

main52119-28K90-E0iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)201706-201901

AVANT-GARDE BRONZE ME.,4V8

main52119-28L00-A0iZRR8#,ZWR80..SI..CBU201706-201901

WHITE PEARL CS.,070

sub52119-2R909

main52119-28L00-A1iZRR8#,ZWR80..SI..CBU201706-201901

LUXURY WHITE PEARL CS.GF.,086

sub52119-2R909

main52119-28L00-C0iZRR8#,ZWR80..SI..CBU201706-201901

BLACK,202

sub52119-2R909

main52119-28L00-C1iZRR8#,ZWR80..SI..CBU201706-201901

BLACKISH AGEHA GF.,221

sub52119-2R909

main52119-28L00-D0iZRR80..SI..IV5201706-201901

BORDEAUX M.M,3R9

sub52119-2R909

main52119-28L10-A0iZRR8#,ZWR80..VOXY..X201706-202004

WHITE PEARL CS.,070

sub52119-2R927

main52119-28L10-B0iZRR8#,ZWR80..V201706-202004

SILVER ME.,1F7

sub52119-2R927

main52119-28L10-C0iZRR8#,ZWR80..VOXY..X201706-202004

BLACK,202

sub52119-2R927

main52119-28L10-C1iZRR8#,ZWR80..VOXY..X201706-202004

BLACKISH AGEHA GF.,221

sub52119-2R927

main52119-28L10-C2iZRR8#,ZWR80..VOXY..X201706-202004

INAZUMA SPARKING BLACK GF,224

sub52119-2R927

main52119-28L10-E0iZRR8#,ZWR80..V201706-202004

AVANT-GARDE BRONZE ME.,4V8

sub52119-2R927

main52119-28L20-A0iZRR8#,ZWR80..ZS..CBU201706-201901

WHITE PEARL CS.,070

main52119-28L20-C0iZRR80..ZS..IV5201706-201901

BLACK,202

main52119-28L20-C1iZRR8#,ZWR80..ZS..CBU201706-201901

BLACKISH AGEHA GF.,221

main52119-28L20-C2iZRR8#,ZWR80..ZS..CBU201706-201901

INAZUMA SPARKING BLACK GF,224

main52119-28L20-D0iZRR80..ZS..IV5201706-201901

BORDEAUX M.M,3R9

main52119-2R910-A0iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU201901

WHITE PEARL CS,070

sub52119-2R919

sub52119-2R916

main52119-2R910-A0iZRR8#,ZWR80..G,GI201901

sub52119-2R919

sub52119-2R916

main52119-2R910-A1iZRR8#,ZWR80..NOAH..X..CBU201901

sub52119-2R919

sub52119-2R916

main52119-2R910-A1iZRR8#,ZWR80..G201901

LUXURY WHITE PEARL CS GF,086

sub52119-2R919

sub52119-2R916

main52119-2R910-B0iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU201901

SILVER ME,1F7

sub52119-2R919

sub52119-2R916

main52119-2R910-B0iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU201901

sub52119-2R919

sub52119-2R916

main52119-2R910-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU201901

sub52119-2R919

sub52119-2R916

main52119-2R910-C0iZRR8#,ZWR80..G,GI201901

BLACK,202

sub52119-2R919

sub52119-2R916

main52119-2R910-C1iZRR8#,ZWR80..GI201901

BALCKISH AGEHA GF,221

sub52119-2R919

sub52119-2R916

main52119-2R910-C3iZRR8#,ZWR80..GI201901

SPAKLING BLACK PEARL CS,220

sub52119-2R919

sub52119-2R916

main52119-2R910-D0iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU201901

sub52119-2R919

sub52119-2R916

main52119-2R910-D0iZRR8#,ZWR80..G,GI201901

BORDEAUX M.M,3R9

sub52119-2R919

sub52119-2R916

main52119-2R910-E0iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU201901

AVANT-GARDE BRONZE ME,4V8

sub52119-2R919

sub52119-2R916

main52119-2R910-E0iZRR8#,ZWR80..G,GI201901

sub52119-2R919

sub52119-2R916

main52119-2R911-A0iZRR8#,ZWR80..SI..CBU201901

WHITE PEARL CS,070

sub52119-2R920

sub52119-2R917

main52119-2R911-A1iZRR8#,ZWR80..SI..CBU201901

LUXURY WHITE PEARL CS GF,086

sub52119-2R920

sub52119-2R917

main52119-2R911-C0iZRR8#,ZWR80..SI..CBU201901

BLACK,202

sub52119-2R920

sub52119-2R917

main52119-2R911-C1iZRR8#,ZWR80..SI..CBU201901

BLACKISH AGEHA GF,221

sub52119-2R920

sub52119-2R917

main52119-2R911-D0iZRR8#,ZWR80..SI..CBU201901

BORDEAUX M.M,3R9

sub52119-2R920

sub52119-2R917

main52119-2R912-A0iZRR8#,ZWR80..V201901-202004

sub52119-2R921

main52119-2R912-A0iZRR8#,ZWR80..VOXY..X..CBU201901-202004

WHITE PEARL CS,070

sub52119-2R921

main52119-2R912-B0iZRR8#,ZWR80..VOXY..X..CBU201901-202004

sub52119-2R921

main52119-2R912-B0iZRR8#,ZWR80..VOXY..X..CBU201901-202004

SILVER ME,1F7

sub52119-2R921

main52119-2R912-C0iZRR8#,ZWR80..VOXY..X..CBU201901-202004

sub52119-2R921

main52119-2R912-C0iZRR8#,ZWR80..VOXY..X..CBU201901-202004

BLACK,202

sub52119-2R921

main52119-2R912-C1iZRR8#,ZWR80..VOXY..X..CBU201901-202004

sub52119-2R921

main52119-2R912-C1iZRR8#,ZWR80..VOXY..X..CBU201901-202004

BLACKISH AGEHA GF,221

sub52119-2R921

main52119-2R912-C2iZRR8#,ZWR80..VOXY..X..CBU201901-202004

INAZUMA SPARKING BLACK GF,224

sub52119-2R921

main52119-2R912-C2iZRR8#,ZWR80..VOXY..X..CBU201901-202004

sub52119-2R921

main52119-2R912-E0iZRR8#,ZWR80..V201901-202004

AVANT-GARDE BRONZE ME,4V8

sub52119-2R921

main52119-2R912-E0iZRR8#,ZWR80..V201901-202004

sub52119-2R921

main52119-2R913-A0iZRR8#,ZWR80..ZS..CBU201901

WHITE PEARL CS,070

sub52119-28L20

main52119-2R913-A0iZRR8#,ZWR80..ZS..CBU201901

sub52119-28L20

main52119-2R913-C0iZRR8#,ZWR80..ZS..CBU201901

BLACK,202

sub52119-28L20

main52119-2R913-C0iZRR8#,ZWR80..ZS..CBU201901

sub52119-28L20

main52119-2R913-C1iZRR8#,ZWR80..ZS..CBU201901

BLACKISH AGEHA GF,221

sub52119-28L20

main52119-2R913-C1iZRR8#,ZWR80..ZS..CBU201901

sub52119-28L20

main52119-2R913-C2iZRR8#,ZWR80..ZS..CBU201901

sub52119-28L20

main52119-2R913-C2iZRR8#,ZWR80..ZS..CBU201901

INAZUMA SPARKING BLACK GF,224

sub52119-28L20

main52119-2R913-D0iZRR8#,ZWR80..ZS..CBU201901

BORDEAUX M.M,3R9

sub52119-28L20

52119DSCREW, NO.1

main90159-60383iZRR8#,ZWR80201401-201706

52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH

main52125-28070iZRR8#,ZWR80..NOAH..X201401-201706

52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH

main52126-28050iZRR8#,ZWR80..NOAH..X201401-201706

52131AREINFORCEMENT, FRONT BUMPER

main52131-28170iZRR8#,ZWR80201401-202004

52161TPIECE, FRONT BUMPER

main52161-16010iZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI)201401-201901

52611ABSORBER, FRONT BUMPER ENERGY

main52611-28110iZRR8#,ZWR80201401-201706

main52611-28111iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

52618ABSORBER, FRONT BUMPER, LOWER

main52618-28030iZRR8#,ZWR80201401-201706

52711MOULDING, FRONT BUMPER

main52711-28210iZRR8#,ZWR80..SI201706

main52711-28220iZRR8#,ZWR80..ZS201706

52711AGARNISH, FRONT BUMPER

main53105-28030iZRR8#,ZWR80..NOAH..(G,X)201401-201706

main53105-28040iZRR8#,ZWR80..SI201401-201706

main53105-28050-C0iZRR8#,ZWR80..ZS201401-201706

BLACK,202

main53105-28050-C1iZRR8#,ZWR80..ZS201401-201706

BLACK MC.,070 ,1F7 ,221 ,3R9

main53105-28080-A0iZRR8#,ZWR80..NOAH..(G,X)201706

WHITE PEARL CS.,070

main53105-28080-A1iZRR8#,ZWR80..NOAH..(G,X)201706

LUXURY WHITE PEARL CS.GF.,086

main53105-28080-B0iZRR8#,ZWR80..NOAH..(G,X)201706

SILVER ME.,1F7

main53105-28080-C0iZRR8#,ZWR80..NOAH..(G,X)201706

BLACK,202

main53105-28080-D0iZRR8#,ZWR80..NOAH..(G,X)201706

DEEP RED M.M.,3R9

main53105-28080-E0iZRR8#,ZWR80..NOAH..(G,X)201706

AVANT-GARDE BRONZE ME.,4V8

main53105-28090iZRR8#,ZWR80..SI201706

53112EGRILLE, RADIATOR, LOWER NO.1

main53102-28060iZRR8#,ZWR80..SI201706

main53102-28070iZRR8#,ZWR80..ZS201706-201901

sub53102-28090

sub53121-28260

sub53122-28090

sub90167-50063

main53102-28090iZRR8#,ZWR80..ZS201901

main53112-28220iZRR8#,ZWR80..NOAH..(G,X)201401-201706

main53112-28230iZRR8#,ZWR80..SI201401-201706

main53112-28240iZRR8#,ZWR80..VOXY..(V,X)201401-201706

main53112-28250iZRR8#,ZWR80..ZS201401-201706

main53112-28260iZRR8#,ZWR80..ESQIR201410-201706

main53112-28310iZRR8#,ZWR80..NOAH..(G,X)201706

main53112-28330iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main53112-28350iZRR8#,ZWR80..ESQIR201706

53152BGUIDE, RADIATOR GRILLE AIR

main53152-28040iZRR8#,ZWR80..G,GI,V,X,XI201401-201706

main53152-28060iZRR8#,ZWR80..SI,ZS201401-201706

5351

5353

75392RETAINER, OUTSIDE MOULDING

main75392-35200iZRR8#,ZWR80..GI,XI,ZS201401-201706

75895KTAPE, MOULDING, NO.1

main75895-28010iZRR8#,ZWR80201401-201706

76851GGROMMET, SCREW, NO.1

main90189-06131iZRR8#,ZWR80201401-201706

8101

8102

9015950353

main90159-50353

9015960383

main90159-60383

9017906349

main90179-06349

9018906193

main90189-06193

9046709237

main90467-09237

91674A1028

main91674-A1028

31 parts on this diagram · 12 diagrams in section
