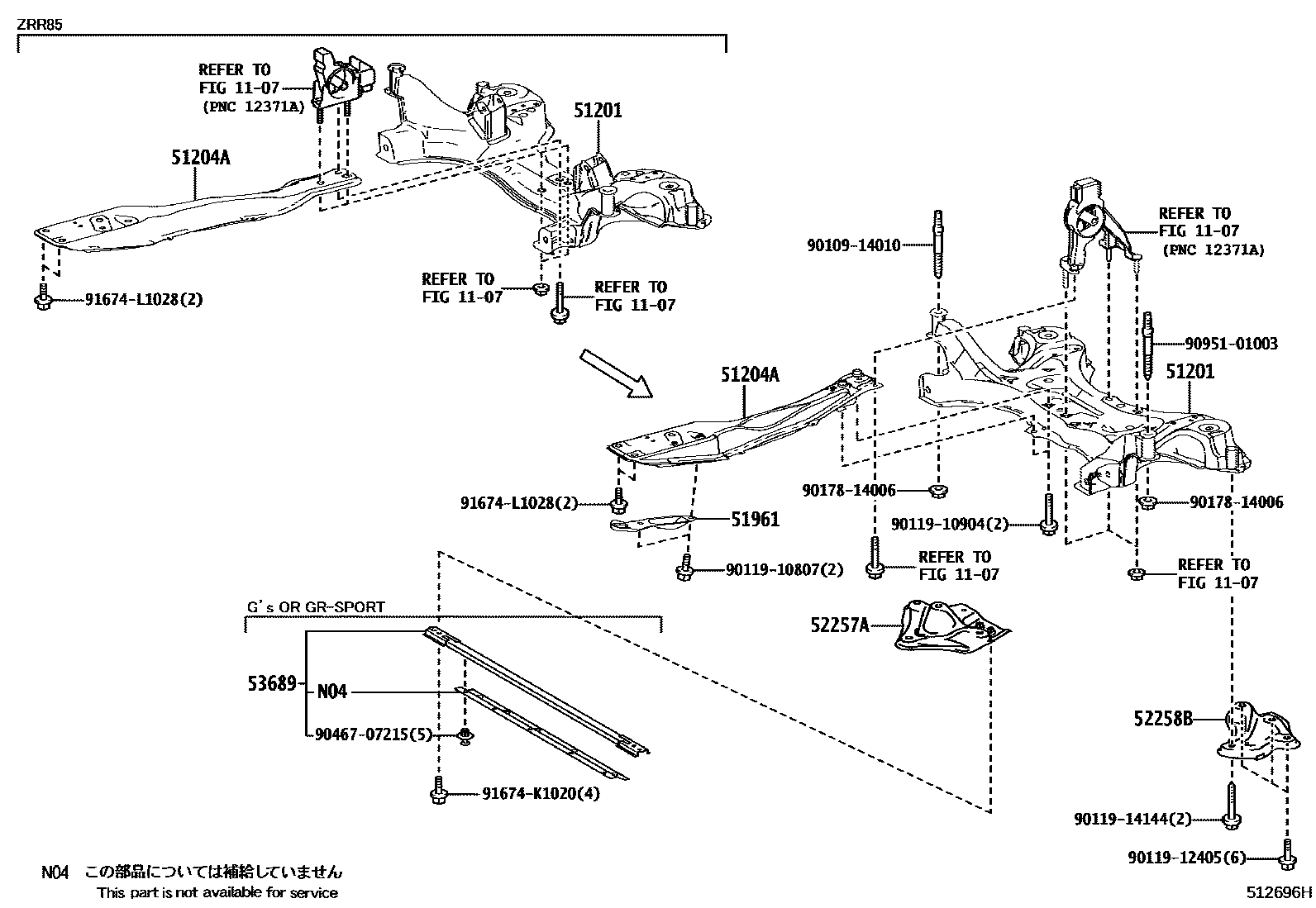

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1��������

1107

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28231iZRR80,ZWR80201401-202004

main51201-28241iZRR85201401-202004

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-28020iZRR80,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

main51204-44020iZRR85..(ESQIR,VOXY)..(V,X,XI)201401-202004

51961HOOK, NO.1

main51963-32040iZRR8#,ZWR80201401-202004

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-28050iZRR8#,ZWR80201401-202004

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-28040iZRR8#,ZWR80201401-202004

53689BRACE, FRONT SUSPENSION, LOWER CENTER

main53609-WY010

9010914010

main90109-14010

9011910807

main90119-10807

9011910904

main90119-10904

9011912405

main90119-12405

9011914144

main90119-14144

9017814006

main90178-14006

9046707215

main90467-07215

9095101003

main90951-01003

91674K1020

main91674-K1020

91674L1028

main91674-L1028

17 parts on this diagram · 2 diagrams in section
