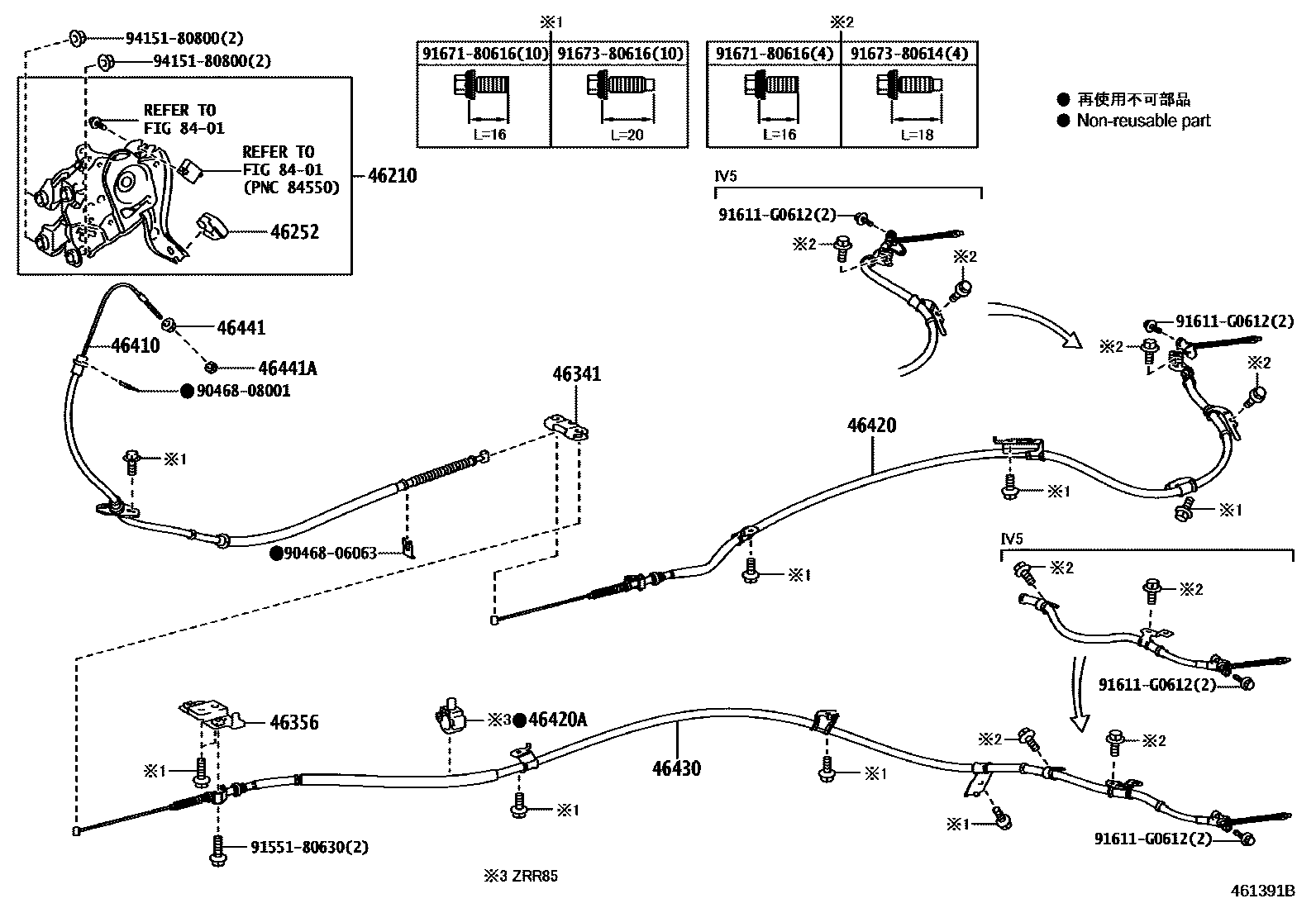

PARKING BRAKE & CABLE

0001 1����� 0002 1�������� & ����

46210LEVER ASSY, PARKING BRAKE

main46210-28351iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

46252PAD, PARKING PEDAL

main46252-52020iZRR8#,ZWR80201401-202004

46341EQUALIZER, PARKING BRAKE

main46341-20070iZRR8#,ZWR80201401-202004

46356BRACKET, EQUALIZER SUPPORT

main46356-28090iZRR8#,ZWR80201401-202004

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28300iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28500iZRR80..(G,GI,V,X,XI)..CBU201401-202004

main46420-28510iZRR85,ZWR80..CBU;ZRR80..(SI,ZS)..CBU201401-202004

main46420-28520iZRR8#..IV5201401-202004

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-28010iZRR85201401-202004

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28500iZRR80..(ESQIR,NOAH)..(G,GI,X)..CBU201401-202004

main46430-28510iZRR85,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU201401-202004

main46430-28520iZRR8#..IV5201401-202004

46441NUT, WIRE ADJUSTING, NO.1

main90182-06008iZRR8#,ZWR80201401-202004

46441ANUT, WIRE ADJUSTING, NO.2

main94151-80600iZRR8#,ZWR80201401-202004

8401

9046806063

main90468-06063

9046808001

main90468-08001

9155180630

main91551-80630

91611G0612

main91611-G0612

9167180616

main91671-80616

9167380614

main91673-80614

9167380616

main91673-80616

9415180800

main94151-80800

19 parts on this diagram · 2 diagrams in section
