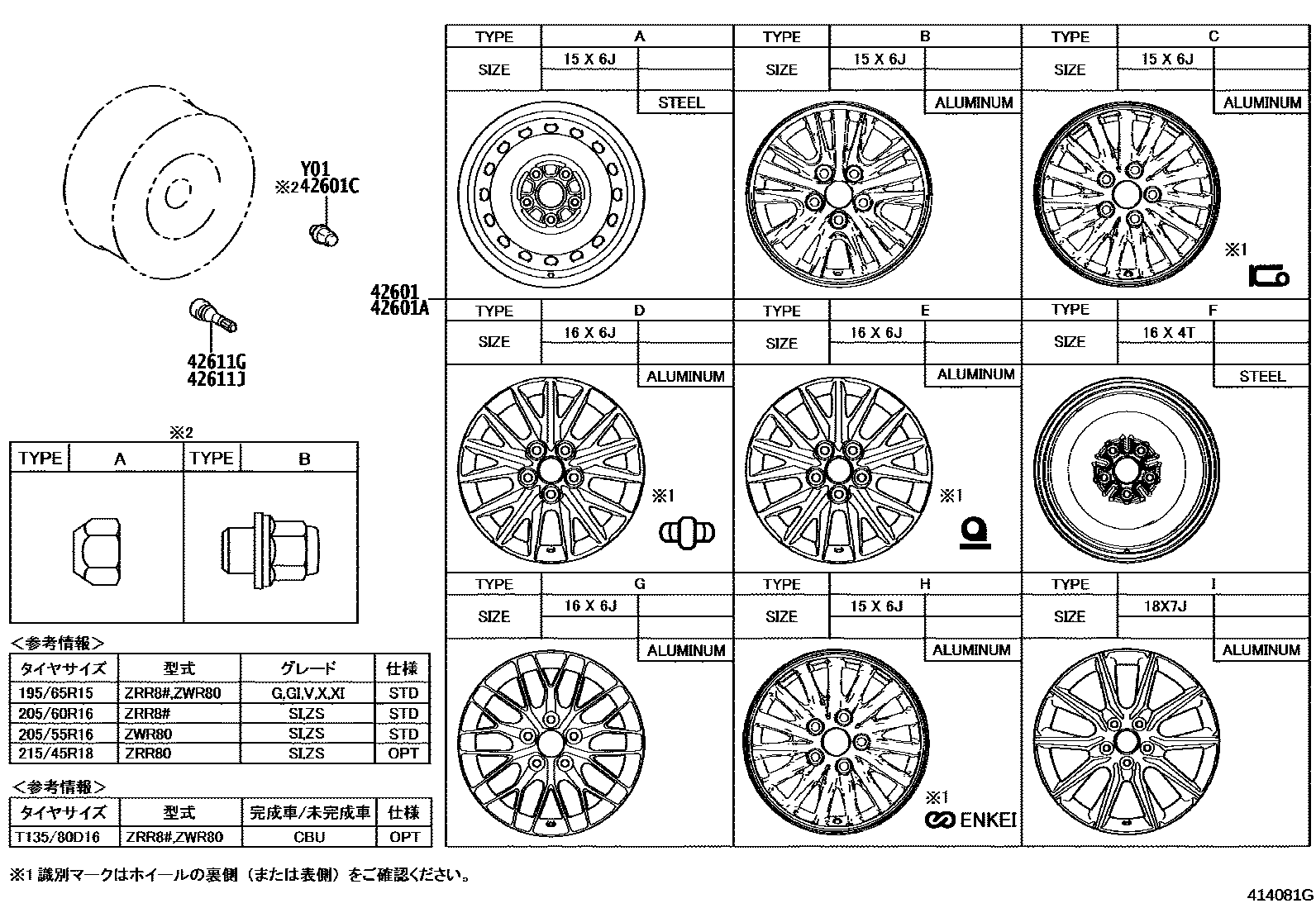

DISC WHEEL & WHEEL CAP

0001 1��������� 0002 1��������� 0003 1������������� & ��������� 0004 1���������

42601WHEEL, DISC

main42611-28711iZRR8#..NOAH..X201401-202004

main42611-28800iZWR80..ESQIR201410-201706

main42611-28850iZWR80..G,V,X201402-201706

main42611-28860iZRR8#..G,V201401-201706

main42611-28870iZRR8#..SI,ZS201401-201706

sub42611-28880

main42611-28870iZRR8#..SI,ZS201401-201706

sub42611-28880

main42611-28880iZRR8#..SI,ZS201401-201706

main42611-28A10iZRR8#..ESQIR201410-201706

main42611-28A30iZRR8#..G;ZWR80..NOAH..(G,X)201706-202004

main42611-28A60iZRR8#..G;ZWR80..NOAH..(G,X)201706-202004

main42611-28A70iZWR80..G,V,X201604-201706

main42611-28A80iZRR8#,ZWR80..XI201706-202004

main42611-28B00iZRR8#,ZWR80..GI201706-202004

main42611-28B10iZRR8#..SI,ZS201706

main42611-28B30iZRR8#..SI,ZS201706-201801

sub42611-28B31

main42611-28B31iZRR8#..SI,ZS201801

main42611-WY280iZRR80..07S..(SI,ZS)..CBU201709

main42611-WY280iZRR80..07S..(SI,ZS)..CBU201605-201706

main42611-WY290iZRR80..07S..(SI,ZS)..CBU201605-201706

main42611-WY290iZRR80..07S..(SI,ZS)..CBU201709

main42611-WY300iZRR80..07S..(SI,ZS)..CBU201605-201706

main42611-WY300iZRR80..07S..(SI,ZS)..CBU201709

main4261A-28080iZWR80..SI,ZS201601-201706

42601AWHEEL, DISC (FOR SPARE)

main42611-21280iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU201706-202004

main42611-28690iZRR8#,ZWR80..CBU201401-201706

sub42611-28691

42601CNUT, HUB (FOR AXLE)

main90942-01007iZRR8#..X201401-202004

main90942-01033iZWR80;ZRR8#..G,GI,SI,V,XI,ZS201401-202004

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZRR8#,ZWR80201401-202004

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZRR8#,ZWR80..CBU201401-201706

main90942-05009iZRR8#,ZWR80..NOAH..X..CBU;ZRR8#,ZWR80..(G,GI,SI,ZS)..CBU201706-202004

5 parts on this diagram · 4 diagrams in section
