TRANSAXLE ASSY(CVT)

0001 1K114,K114F 0002 1K114,K114F 0003 1K114,K114F 0004 1K114,K114F 0005 1K114,K114F

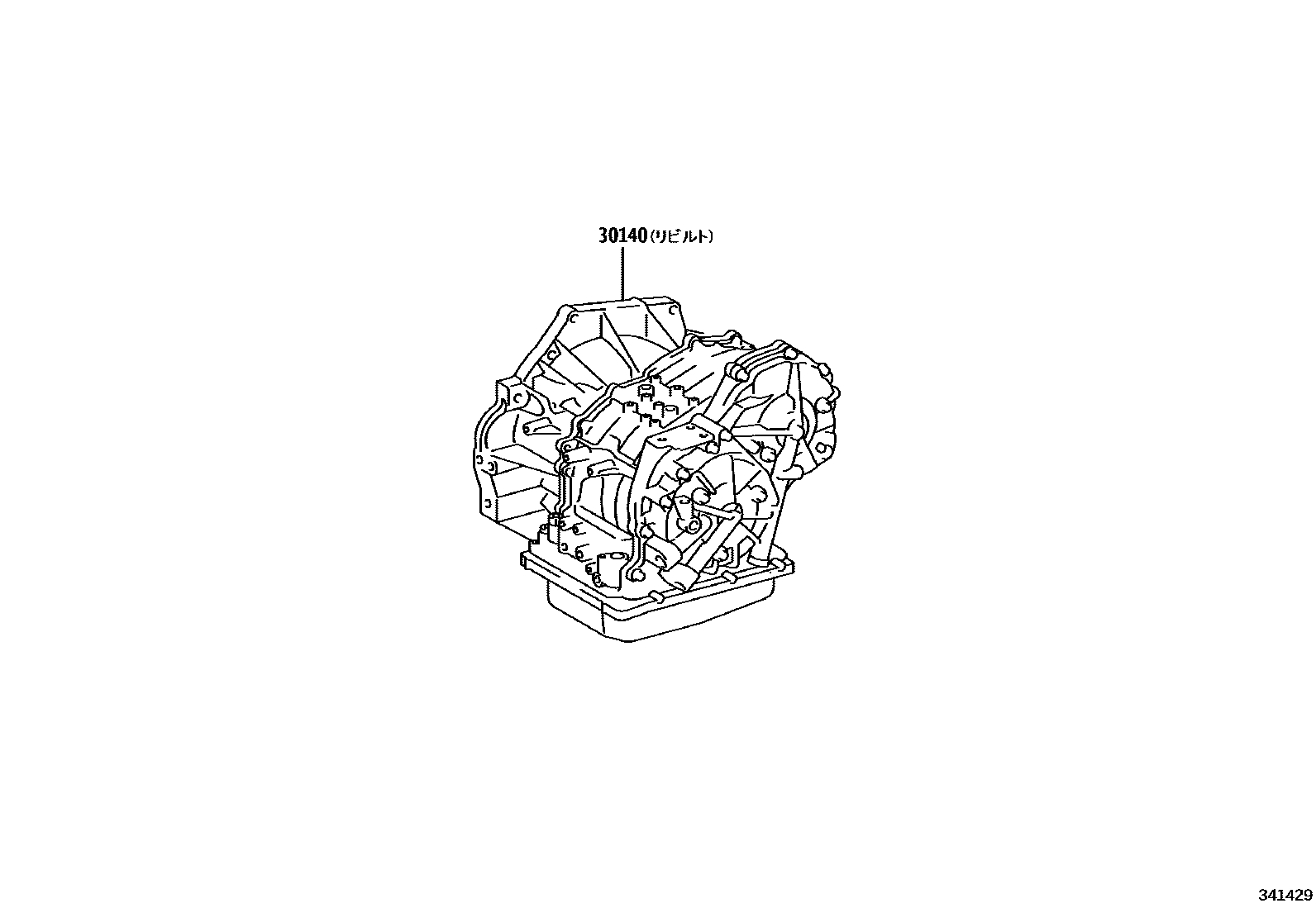

30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)

main30140-28060iZRR80..X201401-201409

sub30140-28061

sub35012-28030

main30140-28061iZRR80..X201409-201706

main30140-28070iZRR85..X..CBU201401-201409

sub30140-28071

sub35012-28030

main30140-28071iZRR85..X..CBU201409-201706

main30140-28080iZRR80201401-201409

sub30140-28081

sub35012-28030

main30140-28081iZRR80201409-202112

main30140-28090iZRR85201401-201409

sub30140-28091

sub35012-28030

main30140-28091iZRR85201409-202112

1 parts on this diagram · 5 diagrams in section
