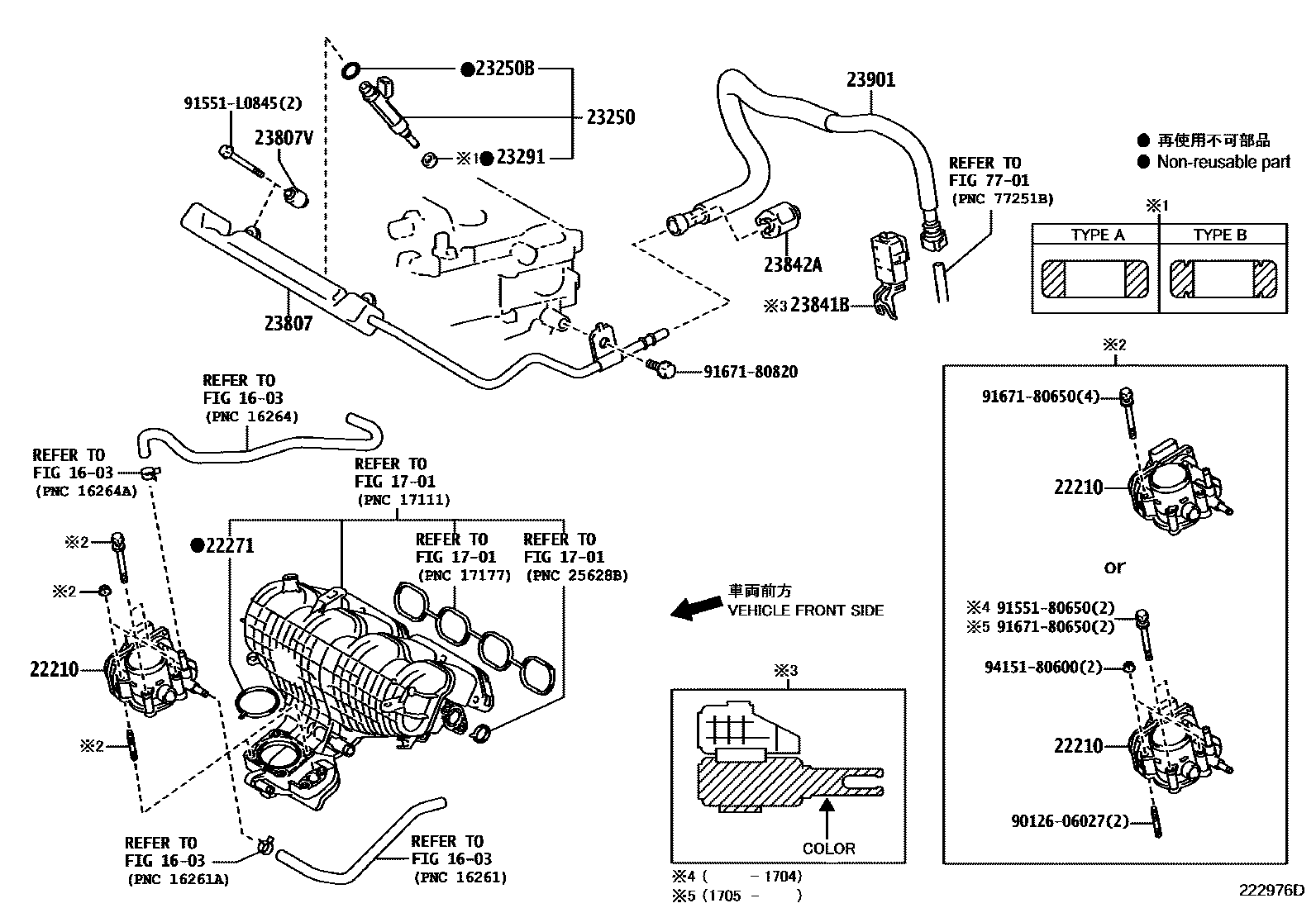

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1701

22210BODY ASSY, THROTTLE

main22030-37050i3ZRFAE..ZRR8#201401-201706

main22030-37060i2ZRFXE..ZWR80201402-201706

22271GASKET, THROTTLE BODY

main22271-37010i2ZRFXE..ZWR80201402-201706

main22271-75031i3ZRFAE..ZRR8#..(ESQIR,VOXY)..(V,X,XI)201706-202004

23250INJECTOR ASSY, FUEL

main23209-39146×4i2ZRFXE..ZWR80201402-201706

main23209-39235×4i3ZRFAE..ZRR8#201401-201706

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

main23291-28020×4i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-201706

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051i3ZRFAE..ZRR8#201401-201706

main23814-37061i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..NOAH..X;2ZRFXE,3ZRFAE..ZRR8#,ZWR80..G,GI,SI,ZS201706

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37080i2ZRFXE..ZWR80..SI,ZS201401-201602

main23841-37081i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201602-201706

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..NOAH..X;2ZRFXE,3ZRFAE..ZRR8#,ZWR80..G,GI,SI,ZS201706

23901TUBE SUB-ASSY, FUEL

main23901-37140i3ZRFAE..ZRR8#201401-201706

main23901-37230i2ZRFXE..ZWR80201402-201706

7701

9012606027

main90126-06027

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180650

main91671-80650

9167180820

main91671-80820

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
