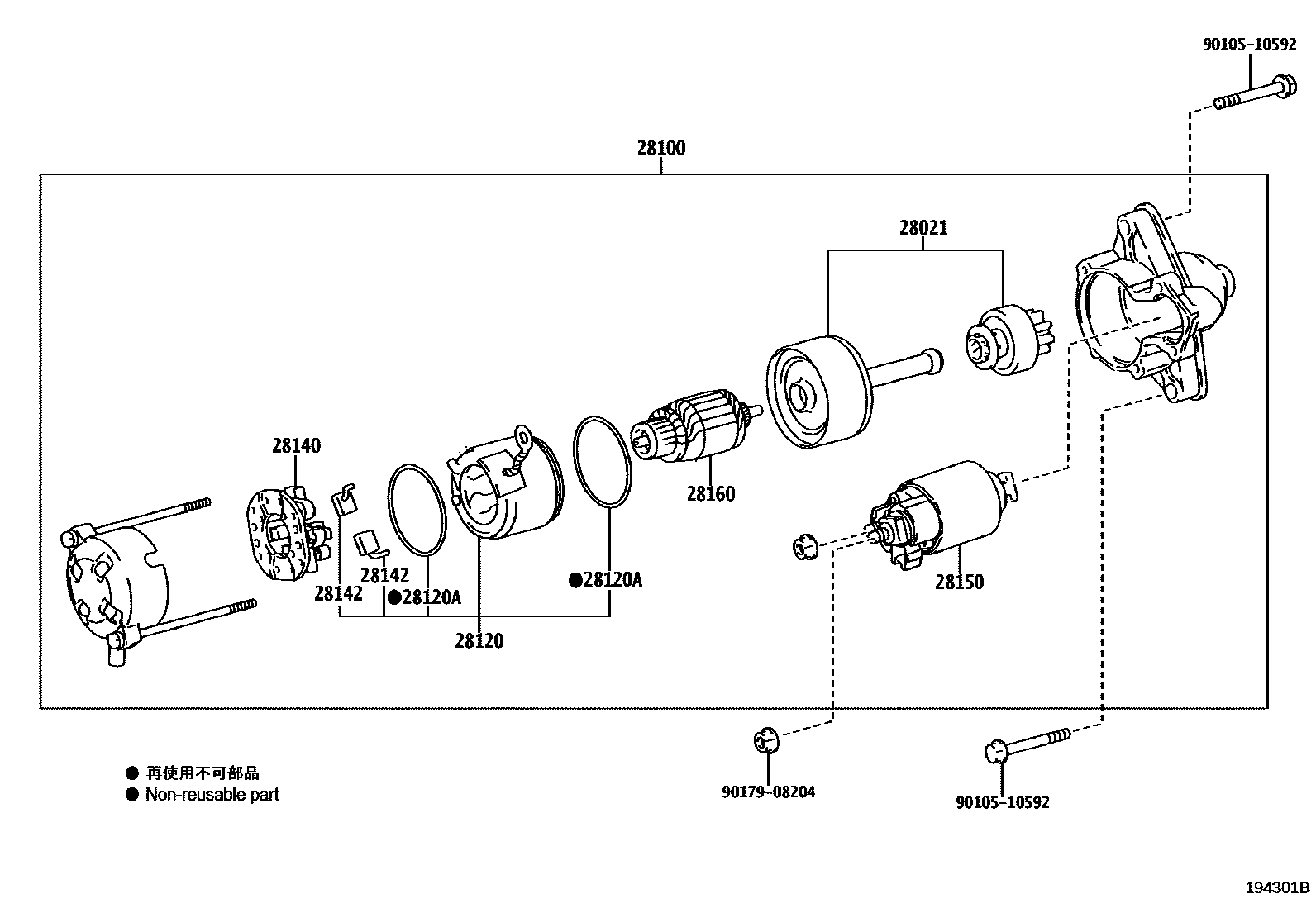

STARTER

0001 112V 1.0KW 0002 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21100i3ZRFAE..ZRR8#..NOAH..X;3ZRFAE..ZRR8#..G,GI,SI,ZS201706

main28021-70020i3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU201401-201706

28100STARTER ASSY

main28100-37100i3ZRFAE..ZRR8#201401-201407

main28100-37101i3ZRFAE..ZRR8#201408-201706

main28100-37031i3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU201401-201407

main28100-37032i3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU201408-201706

28120YOKE ASSY, STARTER

main28120-37100i3ZRFAE..ZRR8#201401-201706

main28120-40130i3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU201401-201706

28120ARING, O(FOR STARTER YOKE)

main90099-14092×2i3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU201401-201706

28140HOLDER ASSY, STARTER BRUSH

main28140-21100i3ZRFAE..ZRR8#..(ESQIR,VOXY)..(V,X,XI)201706-202004

main28140-70020i3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU201401-201706

28142BRUSH, STARTER

main28142-70020×2i3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU201401-201706

28150SWITCH ASSY, MAGNET STARTER

main28150-22100i3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU201401-201706

28160ARMATURE ASSY, STARTER

main28160-36110i3ZRFAE..ZRR8#..NOAH..X;3ZRFAE..ZRR8#..G,GI,SI,ZS201706

main28160-37100i3ZRFAE..ZRR8#201503-201701

main28160-38070i3ZRFAE..ZRR8#201401-201503

main28160-70050i3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU201401-201706

9010510592

main90105-10592

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
