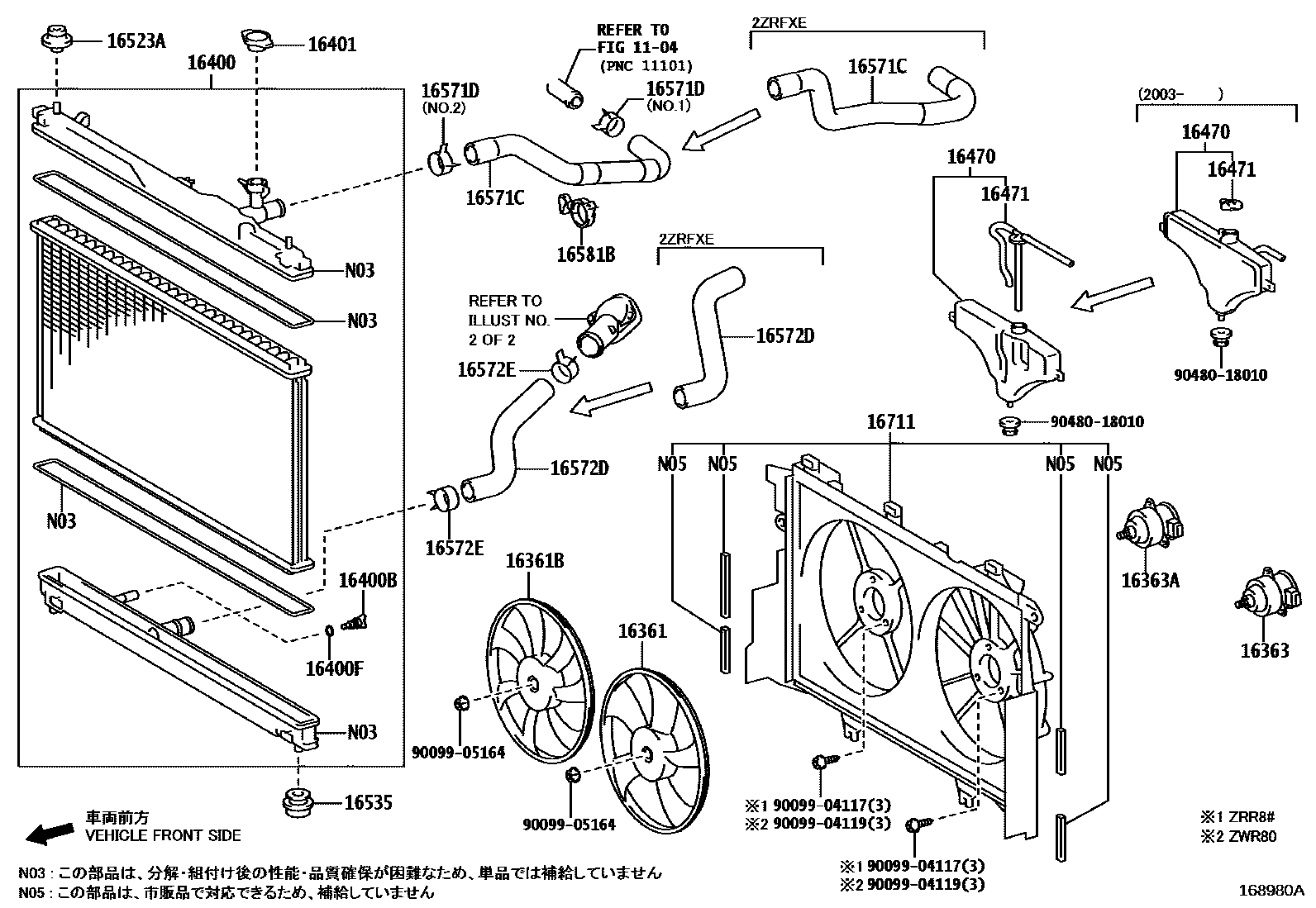

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1104

16361FAN

main16361-28260i3ZRFAE..ZRR8#201401-202004

main16361-28280i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201402-202004

16361BFAN, NO.2

main16361-28180i3ZRFAE..ZRR8#..(ESQIR,VOXY)..(V,X,XI)201401-202004

main16361-28270i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201402-202004

16363MOTOR, COOLING FAN

main16363-23010i3ZRFAE..ZRR8#201401-202004

main16363-28200i2ZRFXE..ZWR80201402-202004

16363AMOTOR, COOLING FAN, NO.2

main16363-23010i3ZRFAE..ZRR8#..NOAH..X;3ZRFAE..ZRR8#..G,GI,SI,ZS201401-202004

main16363-28200i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201402-202004

16400RADIATOR ASSY

main16400-37280i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-202004

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-202004

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-202004

16401CAP SUB-ASSY, RADIATOR

main16401-31520i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-201706

sub16401-36020

main16401-36020i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

16470TANK ASSY, RADIATOR RESERVE

main16470-37020i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-202002

sub16470-37021

main16470-37021i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)202003-202004

16471CAP SUB-ASSY, RESERVE TANK

main16405-37010i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-202002

main16471-23010i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)202003-202004

16523ACUSHION, RADIATOR SUPPORT

main16523-20020i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

16535SUPPORT, RADIATOR, LOWER

main16535-28030i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

16571CHOSE, RADIATOR, NO.1

main16571-37190i3ZRFAE..ZRR8#..NOAH..X;3ZRFAE..ZRR8#..G,GI,SI,ZS201401-202004

main16571-37200i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201402-202004

16571DCLIP, RADIATOR HOSE, NO.1

main96136-43901i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-202004

main96136-44301i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-202004

16572DHOSE, RADIATOR, NO.2

main16572-37170i3ZRFAE..ZRR8#201401-202004

main16572-37180i2ZRFXE..ZWR80201402-202004

16572ECLIP, RADIATOR HOSE, NO.2

main96136-44301i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-202004

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-37010i3ZRFAE..ZRR8#..(ESQIR,VOXY)..(V,X,XI)201401-202004

main16581-37100i3ZRFAE..ZRR8#..(ESQIR,VOXY)..(V,X,XI)201401-202004

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-37031i3ZRFAE..ZRR8#201401-201405

main16581-37120i3ZRFAE..ZRR8#..NOAH..X;3ZRFAE..ZRR8#..G,GI,SI,ZS201406-202004

16711SHROUD, FAN

main16711-37120i3ZRFAE..ZRR8#..NOAH..X;3ZRFAE..ZRR8#..G,GI,SI,ZS201401-202004

main16711-37130i2ZRFXE..ZWR80..NOAH..X;2ZRFXE..ZWR80..G,GI,SI,ZS201402-202004

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9048018010

main90480-18010

24 parts on this diagram · 3 diagrams in section
