STANDARD TOOL

09110JACK ASSY

main09111-28230iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

09113HANDLE, JACK

main09113-42030iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201401-202004

09120BAG, TOOL

main09120-37030iZRR8#,ZWR80201401-202004

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700iZRR8#..IV5201401-201706

main99915-10700iZRR8#..IV5201401-201706

main99915-10700iZRR8#,ZWR80..CBU201401-201706

main99915-10700iZRR8#,ZWR80..CBU201401-201706

main99915-10700iZRR8#,ZWR80..CBU201401-201706

main99915-10700iZRR8#,ZWR80..CBU201401-201706

main99915-10700iZRR8#,ZWR80..CBU201401-201901

main99915-10700iZRR8#,ZWR80..CBU201401-201706

main99915-10700iZRR8#,ZWR80..CBU201401-201706

main99915-10700iZRR8#,ZWR80..CBU201401-201706

main99915-10700iZRR8#..IV5201706-201901

main99915-10700iZRR8#..IV5201706-201901

main99915-10700iZRR8#..IV5201706-201901

09141SPANNER

main99914-10810iZRR8#,ZWR80201401-201706

main99914-10810iZRR8#..IV5201401-201901

main99914-10810iZRR8#..IV5201401-201706

main99914-10810iZRR8#..IV5201401-201706

main99914-10810iZRR8#..IV5201401-201706

main99914-10810iZRR8#..IV5201401-201706

main99914-10810iZRR8#..IV5201401-201901

main99914-10810iZRR8#..IV5201401-201706

main99914-10810iZRR8#..IV5201401-201706

main99914-10810iZRR8#..IV5201401-201706

main99914-10810iZRR8#..IV5201401-201706

main99914-10810iZRR8#..IV5201706-201901

main99914-10810iZRR8#..IV5201706-201901

main99914-10810iZRR8#..IV5201706-201901

main99914-11214iZRR8#,ZWR80201401-201706

main99914-11214iZRR8#,ZWR80201401-201706

main99914-11214iZRR8#,ZWR80201401-201901

main99914-11214iZRR8#,ZWR80201401-201706

main99914-11214iZRR8#,ZWR80201401-201706

main99914-11214iZRR8#,ZWR80201401-201706

main99914-11214iZRR8#,ZWR80201401-201706

main99914-11214iZRR8#,ZWR80201401-201706

main99914-11214iZRR8#,ZWR80201401-201901

main99914-11214iZRR8#,ZWR80201401-201706

main99914-11214iZRR8#,ZWR80201401-201706

main99914-11214iZRR8#..07S..(X,XI)..CBU201706-201901

main99914-11214iZRR8#..07S..(X,XI)..CBU201706-201901

main99914-11214iZRR8#..07S..(X,XI)..CBU201706-201901

09150WRENCH, HUB NUT BOX

main09150-42010iZRR8#,ZWR80201401-202004

09184STOPPER, WHEEL

main09184-00010

44890DCOMPRESSOR ASSY, AIR

main44890-52021iZRR8#,ZWR80201401-202108

sub44890-52022

main44890-52022iZRR8#,ZWR80202109

51960AHOOK ASSY, REAR

main51960-10010iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)202003-202004

main51961-50042iZRR8#,ZWR80201401-202003

C6048REPAIR SET, TIRE

main42683-52021iZRR8#,ZWR80201401-201706

main42683-52021iZRR8#,ZWR80201706

C6048ASEALANT, REPAIR TIRE

mainC604852021iZRR8#,ZWR80201401-201706

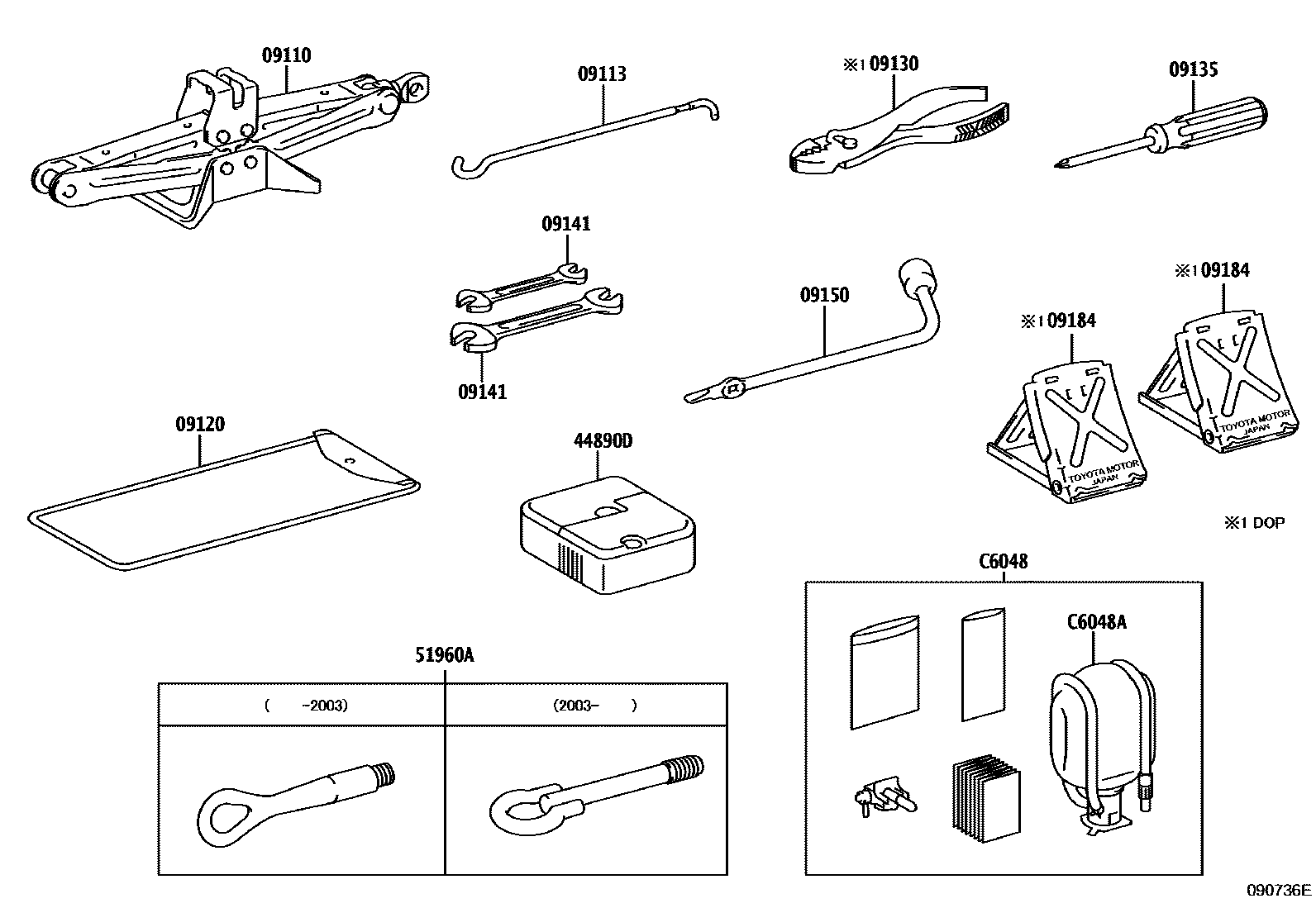

12 parts on this diagram · 1 diagram in section
