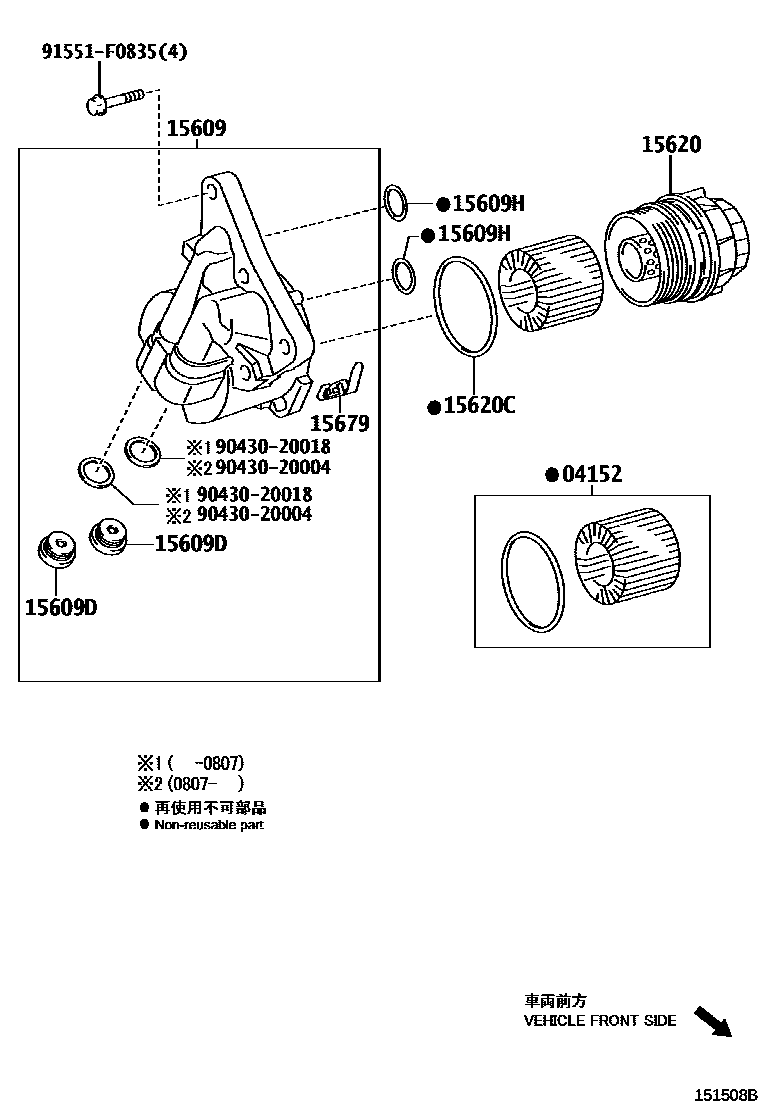

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37030i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-200807

main15609-37040i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200807-201004

main15609-37041i3ZRFAE..ZRR7#..CBU,IV5201310-201401

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002×2i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020×2i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

15620CAP ASSY, OIL FILTER

main15620-37010i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

15679CLIP, OIL FILTER BRACKET

main15679-37010i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

sub15679-37011

9043020004

main90430-20004

9043020018

main90430-20018

91551F0835

main91551-F0835

10 parts on this diagram · 1 diagram in section
