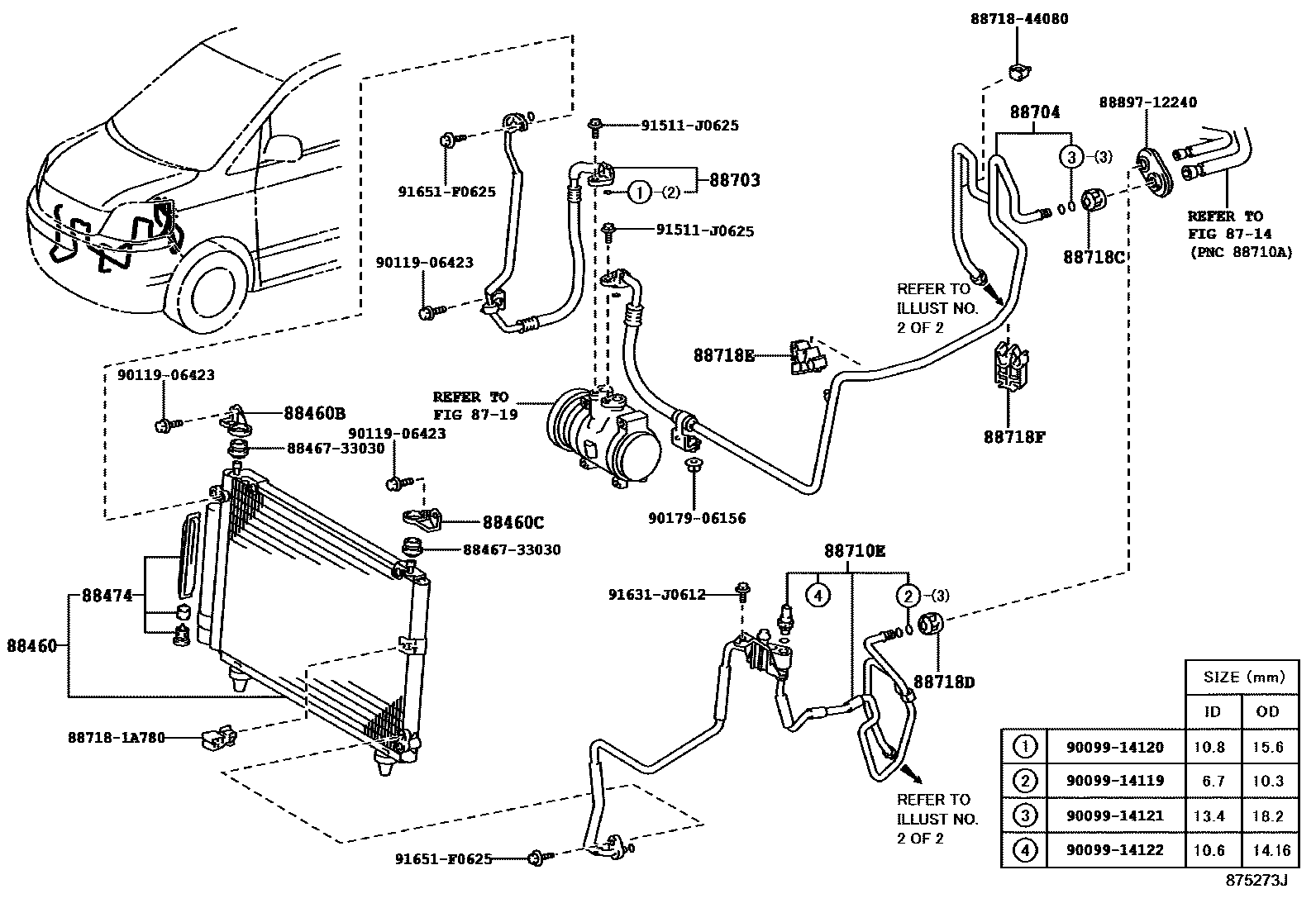

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1����:��������� 0003 1����:��������� 0004 1��

8714

8719

88460CONDENSER ASSY, COOLER

main88460-28580iAZR6#200111-200408

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-2J800iAZR6#200111-200408

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-2J810iAZR6#200111-200408

88474DRYER, COOLER

main88474-47010iAZR6#200111-200408

88703HOSE SUB-ASSY, DISCHARGE

main88703-28060iAZR6#200111-200408

main88703-28120iAZR6#200408

88704HOSE SUB-ASSY, SUCTION

main88704-28160iAZR6#200111-200408

main88704-28220iAZR6#200408

main88704-28230iAZR6#..05S200408

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-2R750iAZR6#200111-200408

main88710-2X100iAZR6#200408

main88710-2X110iAZR6#..05S200408

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-2D140×2iAZR6#200111-200408

88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

main88718-2D150×2iAZR6#200111-200408

88718ECLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

main88718-2J210iAZR6#200111-200408

88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

main88718-44230iAZR6#200111-200408

8846733030CUSHION, COOLER CONDENSER, NO.1

main88467-33030

887181A780PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A780

8871844080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44080

8889712240VALVE, COOLER MAGNET

main88897-12240

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9011906423

main90119-06423

9017906156

main90179-06156

91511J0625

main91511-J0625

91631J0612

main91631-J0612

91651F0625

main91651-F0625

26 parts on this diagram · 4 diagrams in section
