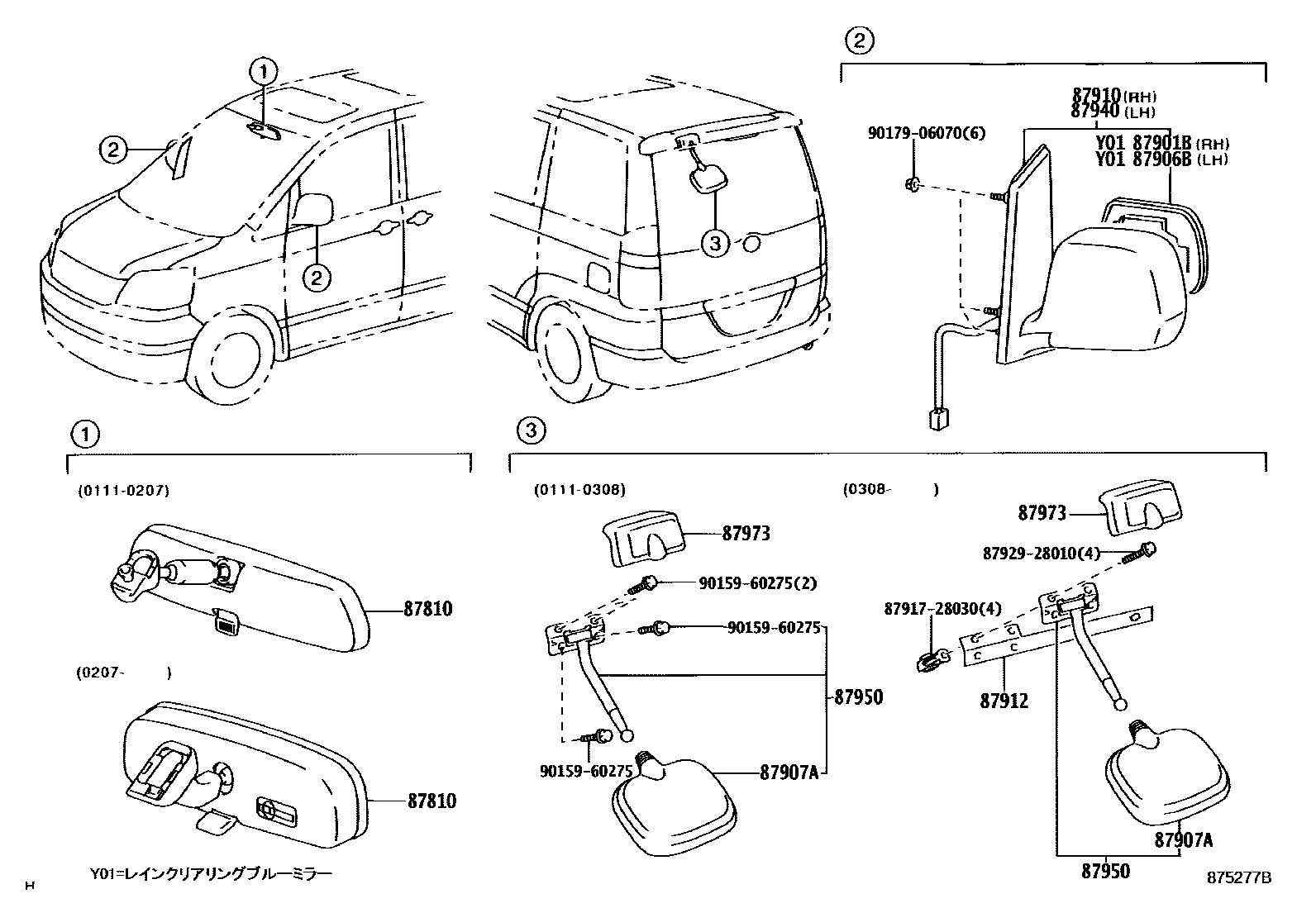

MIRROR

0001 1 0002 1 0003 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030iAZR6#..4HC200111-200207

main87810-52040iAZR6#200207-200612

sub87810-52041

main87810-52041iAZR6#200701

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-28750iAZR6#..4HC..Z200207-200308

main87931-28750iAZR6#..S,X,Z200111-200408

main87931-28750iAZR6#..Z200504

main87931-28750iAZR6#..08S..X200408

main87931-28800iAZR6#200408

main87931-28810iAZR6#..NOAH..X200308-200408

main87931-28810iAZR6#..4HC..Z200308-200407

main87931-28810iAZR6#..NOAH..4HC..X200304-200308

main87931-28820iAZR6#..4HC..Z200308-200407

main87931-28820iAZR6#..NOAH..X200308-200408

main87931-28820iAZR6#..NOAH..4HC..X200304-200308

main87931-48130iAZR6#200111-200408

main87931-48140iAZR6#200111-200408

main87931-48200iAZR6#..X200408

sub87931-48201

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-28730iAZR6#..4HC..Z200207-200308

main87961-28730iAZR6#..Z200504

main87961-28730iAZR6#..08S..X200408

main87961-28730iAZR6#..S,X,Z200111-200408

main87961-28780iAZR6#200408

main87961-28810iAZR6#..4HC..Z200308-200407

main87961-28810iAZR6#..NOAH..4HC..X200304-200308

main87961-28810iAZR6#..NOAH..X200308-200408

main87961-28820iAZR6#..4HC..Z200308-200407

main87961-28820iAZR6#..NOAH..4HC..X200304-200308

main87961-28820iAZR6#..NOAH..X200308-200408

main87961-48130iAZR6#200111-200408

main87961-48140iAZR6#200111-200408

main87961-48200iAZR6#..X200408

sub87961-48201

87907AMIRROR SUB-ASSY, OUTER UNDER REAR VIEW

main87907-28010iAZR6#..VOXY..4HC..X200212-200308

main87907-28010iAZR6#..NOAH..4HC..X200212-200308

main87907-28010iAZR6#..L,V,X200111-200408

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-28740iAZR6#..S,X,Z200111-200706

main87910-28750-A0iAZR6#..X200111-200408

sub87910-28780

main87910-28750-A1iAZR6#..S,X,Z200111-200408

sub87910-28780

main87910-28750-B0iAZR6#..S,X,Z200111-200408

sub87910-28780

main87910-28750-B1iAZR6#..S,X,Z200111-200408

sub87910-28780

main87910-28750-C0iAZR6#..NOAH..4HC..X200207-200308

sub87910-28780

main87910-28750-C0iAZR6#..4HC..Z200207-200308

sub87910-28780

main87910-28750-D0iAZR6#..VOXY..X200111-200408

sub87910-28780

main87910-28750-D1iAZR6#..X200111-200408

sub87910-28780

main87910-28750-F0iAZR6#..NOAH..X200111-200408

sub87910-28780

main87910-28750-J0iAZR6#..S,X,Z200111-200408

sub87910-28780

main87910-28760-A0iAZR6#..L,V,X200111-200408

sub87910-28780

main87910-28760-A1iAZR6#200111-200408

sub87910-28780

main87910-28760-B0iAZR6#200111-200408

sub87910-28780

main87910-28760-B1iAZR6#200111-200408

sub87910-28780

main87910-28760-D0iAZR6#..VOXY..(V,X)200111-200408

sub87910-28780

main87910-28760-D1iAZR6#..L,V,X200111-200408

sub87910-28780

main87910-28760-F0iAZR6#..NOAH..(L,X)200111-200408

sub87910-28780

main87910-28760-J0iAZR6#200111-200408

sub87910-28780

main87910-28780-A0iAZR6#..L,V,X200111-200408

main87910-28780-A1iAZR6#200111-200408

main87910-28780-B0iAZR6#200111-200408

main87910-28780-B1iAZR6#200111-200408

main87910-28780-D0iAZR6#..VOXY..(V,X)200111-200408

main87910-28780-D1iAZR6#..L,V,X200111-200408

main87910-28780-F0iAZR6#..NOAH..(L,X)200111-200408

main87910-28780-J0iAZR6#200111-200408

main87910-28790iAZR6#..4HC..Z200301-200306

main87910-28790iAZR6#..Z200504

main87910-28790iAZR6#..4HC..Z200207-200308

main87910-28790iAZR60..VOXY..X200404-200405

main87910-28800-A0iAZR6#..X200408-200706

sub87910-28890

sub87910-28800

main87910-28800-A1iAZR6#200408-200706

sub87910-28890

sub87910-28800

main87910-28800-B0iAZR6#200408-200706

sub87910-28890

sub87910-28800

main87910-28800-B1iAZR6#..07S,08S200408-200706

sub87910-28890

sub87910-28800

main87910-28800-C0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),BLACK,202

sub87910-28890

sub87910-28800

main87910-28800-C0iAZR6#..05S200408-200706

sub87910-28890

sub87910-28800

main87910-28800-C0iAZR6#..NOAH..08S..X200504

sub87910-28890

sub87910-28800

main87910-28800-D0iAZR6#..NOAH..(X,YY)200408-200706

sub87910-28890

sub87910-28800

main87910-28800-D1iAZR6#..VOXY..X200408-200706

sub87910-28890

sub87910-28800

main87910-28800-E0iAZR6#..X200408-200706

sub87910-28890

sub87910-28800

main87910-28800-J0iAZR6#..S,TRASX,X,Z200408-200706

sub87910-28890

sub87910-28800

main87910-28800-J1iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),LT.PURPLISH BLUE M.M.,8K2

sub87910-28890

sub87910-28800

main87910-28800-J1iAZR6#..NOAH..08S..X200504

sub87910-28890

sub87910-28800

main87910-28840-A0iAZR6#..NOAH..4HC..X200308-200407

sub87910-28850

main87910-28840-A0iAZR6#..NOAH..4HC..X200304-200308

sub87910-28850

main87910-28840-B0iAZR6#..NOAH..4HC..X200308-200407

sub87910-28850

main87910-28840-B0iAZR6#..NOAH..4HC..X200304-200308

sub87910-28850

main87910-28840-J0iAZR6#..NOAH..4HC..X200308-200407

sub87910-28850

main87910-28840-J0iAZR6#..NOAH..4HC..X200304-200308

sub87910-28850

main87910-28840-J1iAZR6#..NOAH..4HC..X200308-200407

sub87910-28850

main87910-28850-A0iAZR6#..NOAH..4HC..X200308-200407

main87910-28850-A0iAZR6#..NOAH..4HC..X200304-200308

main87910-28850-B0iAZR6#..NOAH..4HC..X200308-200407

main87910-28850-B0iAZR6#..NOAH..4HC..X200304-200308

main87910-28850-J0iAZR6#..NOAH..4HC..X200304-200308

main87910-28850-J0iAZR6#..NOAH..4HC..X200308-200407

main87910-28850-J1iAZR6#..NOAH..4HC..X200308-200407

main87910-28870iAZR6#..4HC..Z200308-200407

sub87910-28880

main87910-28880iAZR6#..4HC..Z200308-200407

main87910-28890-A0iAZR6#..X200408-200706

main87910-28890-A1iAZR6#..X200408-200706

main87910-28890-B0iAZR6#..X200408-200706

main87910-28890-B1iAZR6#..X200408-200706

main87910-28890-D0iAZR6#..NOAH..X200408-200706

main87910-28890-D1iAZR6#..VOXY..X200408-200706

main87910-28890-E0iAZR6#..X200408-200706

main87910-28890-J0iAZR6#..X200408-200706

87912PROTECTOR, OUTER MIRROR

main87912-28030iAZR6#..L,V,X200308-200408

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-28720iAZR6#..08S..X200111-200706

main87940-28730-A0iAZR6#..X200111-200408

sub87940-28760

main87940-28730-A1iAZR6#..S,X,Z200111-200408

sub87940-28760

main87940-28730-B0iAZR6#..S,X,Z200111-200408

sub87940-28760

main87940-28730-B1iAZR6#..S,X,Z200111-200408

sub87940-28760

main87940-28730-C0iAZR6#..NOAH..4HC..X200207-200308

sub87940-28760

main87940-28730-C0iAZR6#..4HC..Z200207-200308

sub87940-28760

main87940-28730-D0iAZR6#..VOXY..X200111-200408

sub87940-28760

main87940-28730-D1iAZR6#..X200111-200408

sub87940-28760

main87940-28730-F0iAZR6#..NOAH..X200111-200408

sub87940-28760

main87940-28730-J0iAZR6#..S,X,Z200111-200408

sub87940-28760

main87940-28740-A0iAZR6#..L,V,X200111-200408

sub87940-28760

main87940-28740-A1iAZR6#200111-200408

sub87940-28760

main87940-28740-B0iAZR6#200111-200408

sub87940-28760

main87940-28740-B1iAZR6#200111-200408

sub87940-28760

main87940-28740-D0iAZR6#..VOXY..(V,X)200111-200408

sub87940-28760

main87940-28740-D1iAZR6#..L,V,X200111-200408

sub87940-28760

main87940-28740-F0iAZR6#..NOAH..(L,X)200111-200408

sub87940-28760

main87940-28740-J0iAZR6#200111-200408

sub87940-28760

main87940-28760-A0iAZR6#..L,V,X200111-200408

main87940-28760-A1iAZR6#200111-200408

main87940-28760-B0iAZR6#200111-200408

main87940-28760-B1iAZR6#200111-200408

main87940-28760-D0iAZR6#..VOXY..(V,X)200111-200408

main87940-28760-D1iAZR6#..L,V,X200111-200408

main87940-28760-F0iAZR6#..NOAH..(L,X)200111-200408

main87940-28760-J0iAZR6#200111-200408

main87940-28770iAZR6#..Z200504

main87940-28770iAZR6#..4HC..Z200207-200308

main87940-28770iAZR6#..4HC..Z200301-200306

main87940-28770iAZR60..VOXY..X200404-200405

main87940-28780-A0iAZR6#..X200408-200706

sub87940-28790

sub87940-28780

main87940-28780-A1iAZR6#200408-200706

sub87940-28790

sub87940-28780

main87940-28780-B0iAZR6#200408-200706

sub87940-28790

sub87940-28780

main87940-28780-B1iAZR6#..07S,08S200408-200706

sub87940-28790

sub87940-28780

main87940-28780-C0iAZR6#..05S200408-200706

sub87940-28790

sub87940-28780

main87940-28780-C0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),BLACK,202

sub87940-28790

sub87940-28780

main87940-28780-C0iAZR6#..NOAH..08S..X200504

sub87940-28790

sub87940-28780

main87940-28780-D0iAZR6#..NOAH..(X,YY)200408-200706

sub87940-28790

sub87940-28780

main87940-28780-D1iAZR6#..VOXY..X200408-200706

sub87940-28790

sub87940-28780

main87940-28780-E0iAZR6#..X200408-200706

sub87940-28790

sub87940-28780

main87940-28780-J0iAZR6#..S,TRASX,X,Z200408-200706

sub87940-28790

sub87940-28780

main87940-28780-J1iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),LT.PURPLISH BLUE M.M.,8K2

sub87940-28790

sub87940-28780

main87940-28780-J1iAZR6#..NOAH..08S..X200504

sub87940-28790

sub87940-28780

main87940-28790-A0iAZR6#..X200408-200706

main87940-28790-A1iAZR6#..X200408-200706

main87940-28790-B0iAZR6#..X200408-200706

main87940-28790-B1iAZR6#..X200408-200706

main87940-28790-D0iAZR6#..NOAH..X200408-200706

main87940-28790-D1iAZR6#..VOXY..X200408-200706

main87940-28790-E0iAZR6#..X200408-200706

main87940-28790-J0iAZR6#..X200408-200706

main87940-28800-A0iAZR6#..X200408-200706

main87940-28800-A1iAZR6#..X200408-200706

main87940-28800-B0iAZR6#..X200408-200706

main87940-28800-B1iAZR6#..X200408-200706

main87940-28800-D0iAZR6#..NOAH..X200408-200706

main87940-28800-D1iAZR6#..VOXY..X200408-200706

main87940-28800-E0iAZR6#..X200408-200706

main87940-28800-J0iAZR6#..X200408-200706

main87940-28840-A0iAZR6#..NOAH..4HC..X200304-200308

sub87940-28850

main87940-28840-A0iAZR6#..NOAH..4HC..X200308-200407

sub87940-28850

main87940-28840-B0iAZR6#..NOAH..4HC..X200308-200407

sub87940-28850

main87940-28840-B0iAZR6#..NOAH..4HC..X200304-200308

sub87940-28850

main87940-28840-J0iAZR6#..NOAH..4HC..X200304-200308

sub87940-28850

main87940-28840-J0iAZR6#..NOAH..4HC..X200308-200407

sub87940-28850

main87940-28840-J1iAZR6#..NOAH..4HC..X200308-200407

sub87940-28850

main87940-28850-A0iAZR6#..NOAH..4HC..X200308-200407

main87940-28850-A0iAZR6#..NOAH..4HC..X200304-200308

main87940-28850-B0iAZR6#..NOAH..4HC..X200304-200308

main87940-28850-B0iAZR6#..NOAH..4HC..X200308-200407

main87940-28850-J0iAZR6#..NOAH..4HC..X200308-200407

main87940-28850-J0iAZR6#..NOAH..4HC..X200304-200308

main87940-28850-J1iAZR6#..NOAH..4HC..X200308-200407

main87940-28870iAZR6#..4HC..Z200308-200407

sub87940-28880

main87940-28880iAZR6#..4HC..Z200308-200407

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-28130iAZR6#..NOAH..4HC..X200212-200308

main87950-28130iAZR6#..4HC200111-200308

main87950-28130iAZR6#..VOXY..4HC..X200212-200308

main87950-28140iAZR6#..TRASX,X,YY200308-200408

87973COVER, OUTER UNDER RR VIEW MIRROR

main87973-28040iAZR6#..NOAH..4HC..X200212-200308

main87973-28040iAZR6#..NOAH..4HC..X200212-200308

main87973-28040iAZR6#..L,V,X200111-200408

8791728030ESCUTCHEON

main87917-28030

8792928010RETAINER, OUTER REAR VIEW MIRROR, LH

main87929-28010

9015960275

main90159-60275

9017906070

main90179-06070

13 parts on this diagram · 3 diagrams in section
