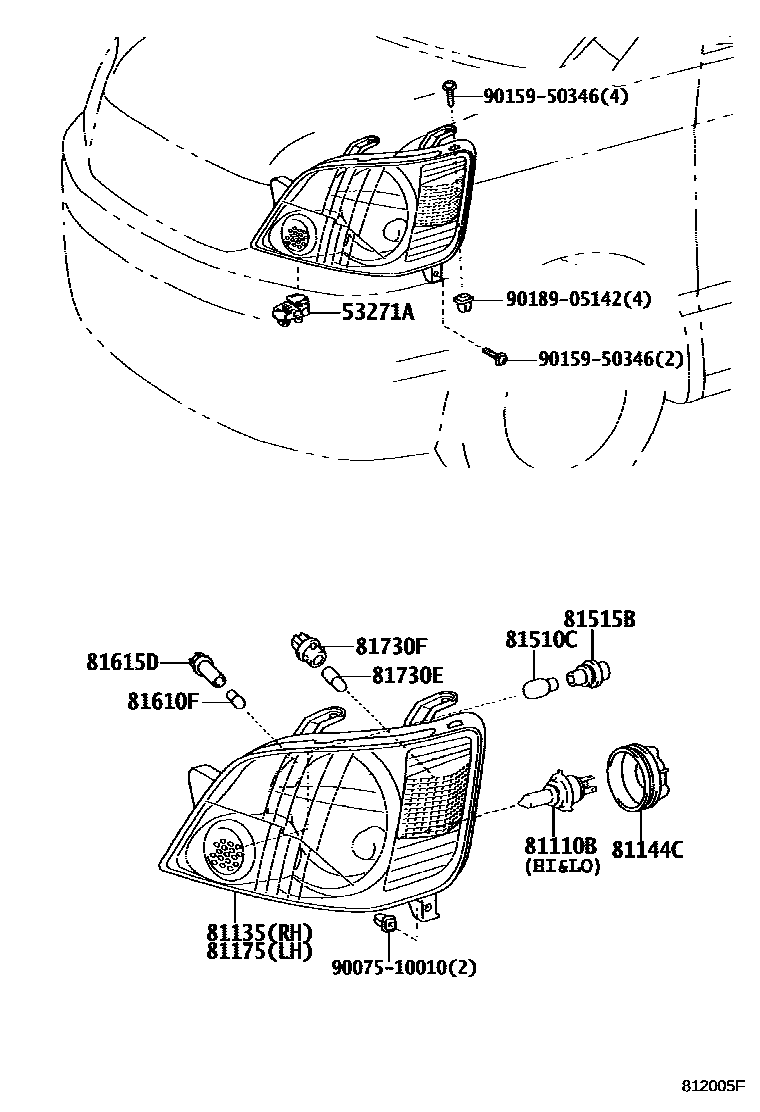

HEADLAMP

0001 1����� �������� 0002 1����� �������� 0003 1������-�� �������� 0004 1������-�� �������� 0005 1 0006 1 0007 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iAZR6#200408

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iAZR6#200111-200212

main90981-13046×2iAZR6#200212-200408

main90981-13047×2iAZR6#..NOAH..(X,YY)200408-200706

main90981-13058×2iAZR6#200111-200408

main90981-13075×2iAZR6#..VOXY..(TRASX,X)200408-200706

81135UNIT ASSY, HEADLAMP, RH

main81130-28630iAZR6#..NOAH..(L,X)200111-200408

main81130-28640iAZR6#..VOXY..(V,X)200111-200408

main81130-28690iAZR6#..S200111-200408

main81130-28700iAZR6#..Z200111-200408

main81130-28720-A0iAZR6#..NOAH..4HC..X200207-200308

main81130-28720-B0iAZR6#..NOAH..4HC..X200207-200308

main81130-28720-C0iAZR6#..NOAH..4HC..X200207-200308

main81130-28810iAZR6#..NOAH..(X,YY)200508

main81130-28820iAZR6#..NOAH..(X,YY)200408-200508

main81130-28850iAZR6#..VOXY..(TRASX,X)200408-200508

main81130-28890iAZR6#..VOXY..(TRASX,X)200508

main81140-28650iAZR6#..S200111-200408

main81140-28660iAZR6#..Z200111-200408

main81140-28670iAZR6#..NOAH..(L,X)200111-200408

main81140-28680iAZR6#..VOXY..(V,X)200111-200408

main81145-28830iAZR6#..NOAH..(X,YY)200408

main81145-28840iAZR6#..S200408

main81145-28860iAZR6#..VOXY..(TRASX,X)200408

main81145-28870iAZR6#..Z200408

main81145-28B00iAZR6#..NOAH..08S..X200504

LIMITED *(P)

main81145-28B10iAZR6#..Z200504

81144CCOVER, HEADLAMP SOCKET

main81135-3A150×2iAZR6#200111-200408

main90075-65002×2iAZR6#200111-200408

81175UNIT ASSY, HEADLAMP, LH

main81070-28650iAZR6#..S200111-200408

main81070-28660iAZR6#..Z200111-200408

main81070-28670iAZR6#..NOAH..(L,X)200111-200408

main81070-28680iAZR6#..VOXY..(V,X)200111-200408

main81170-28610-A0iAZR6#..NOAH..4HC..X200207-200308

main81170-28610-B0iAZR6#..NOAH..X200212-200308

main81170-28610-C0iAZR6#..NOAH..X200212-200308

main81170-28630iAZR6#..NOAH..(L,X)200111-200408

main81170-28640iAZR6#..VOXY..(V,X)200111-200408

main81170-28690iAZR6#..S200111-200408

main81170-28700iAZR6#..Z200111-200408

main81170-28810iAZR6#..NOAH..(X,YY)200508

main81170-28820iAZR6#..NOAH..(X,YY)200408-200508

main81170-28850iAZR6#..VOXY..(TRASX,X)200408-200508

main81170-28890iAZR6#..VOXY..(TRASX,X)200508

main81185-28830iAZR6#..NOAH..(X,YY)200408

main81185-28840iAZR6#..S200408

main81185-28860iAZR6#..VOXY..(TRASX,X)200408

main81185-28870iAZR6#..Z200408

main81185-28B00iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S)

main81185-28B10iAZR6#..Z200504

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2iAZR6#200111-200408

main90981-15011×2iAZR6#..NOAH..(X,YY)200408

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iAZR6#..NOAH200408

main90075-99128×2iAZR6#..VOXY200408

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iAZR6#..NOAH200111-200408

81615DSOCKET, CLEARANCE LAMP

main90075-60046×2iAZR6#..NOAH..(X,YY)200408-200507

main90075-60075×2iAZR6#..VOXY200408

main90075-60077×2iAZR6#..NOAH200111-200408

81730EBULB (FOR SIDE TURN SIGNAL)

main90981-15012×2iAZR6#..NOAH..(L,X)200111-200408

main99132-12050×2iAZR6#..S200111-200408

81730FSOCKET PLUG, SIDE TURN SIGNEL LAMP

main90075-60016×2iAZR6#200111-200408

main90075-60056×2iAZR6#..VOXY200408

main99159-10228×2iAZR6#..NOAH200408

9007510010

main90075-10010

9015950346

main90159-50346

9018905142

main90189-05142

14 parts on this diagram · 7 diagrams in section
