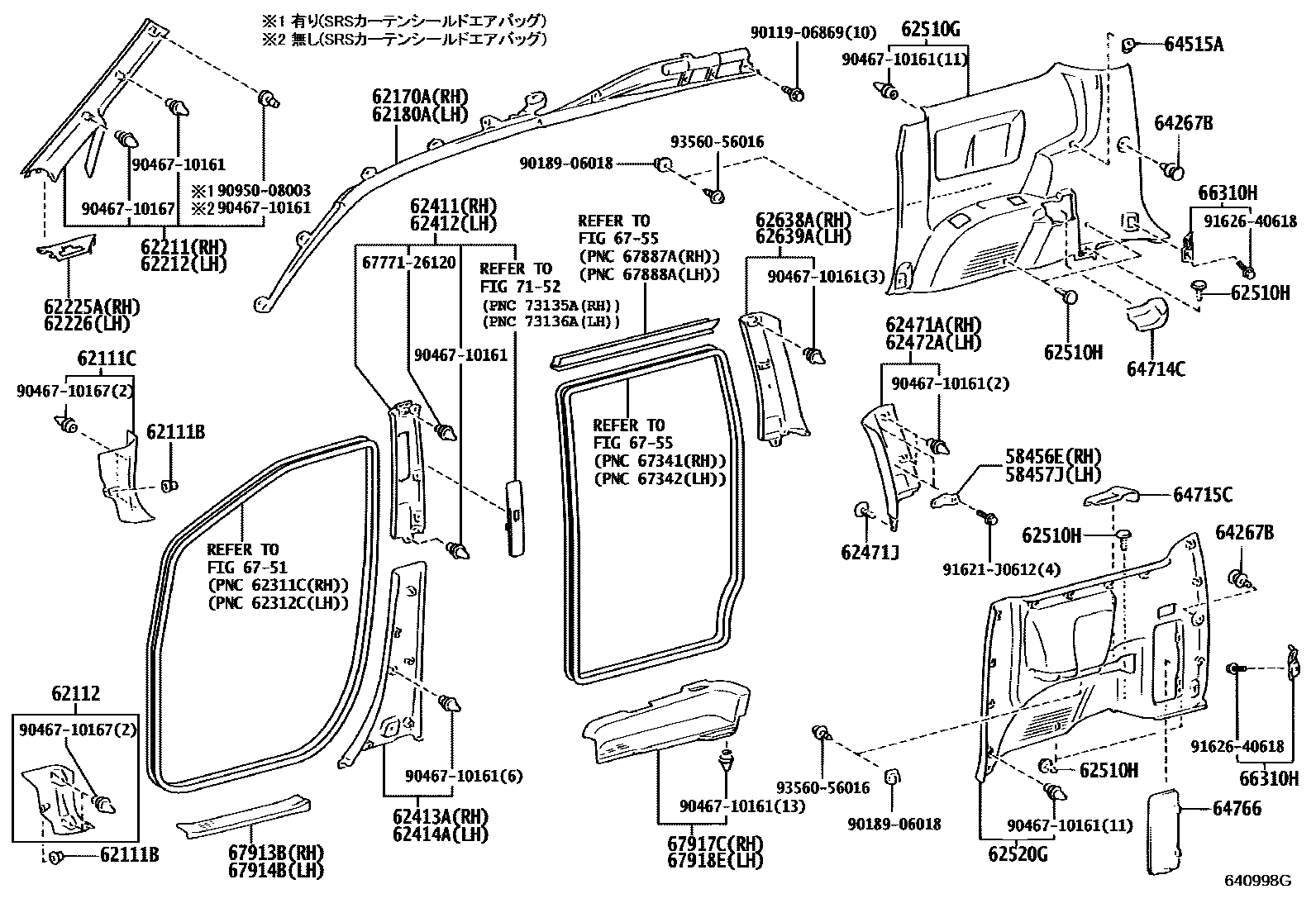

INSIDE TRIM BOARD

0001 1 0002 1

58456EBRACKET, REAR GARNISH, NO.1 RH

main58456-28030iAZR6#200111-200408

58457JBRACKET, REAR GARNISH, NO.1 LH

main58456-28030iAZR6#..X200408

main58456-28030iAZR6#200111-200408

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06193-B0iAZR6#..S;AZR6#..VOXY200111-200408

LT.GRAY,TRIM1#

main90467-06193-B0iAZR6#200408-200706

LT.GRAY

main90467-06193-B0iAZR6#..NOAH..(L,X)200111-200408

LT.GRAY,TRIM1#,4#

62111CBOARD, COWL SIDE TRIM, RH

main62111-28130-B0iAZR6#200111-200408

STONE,TRIM1#

sub62111-28130

main62111-28130-B1iAZR6#200408-200706

GRAY,TRIM1#

sub62111-28130

main62111-28130-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub62111-28130

62112BOARD, COWL SIDE TRIM, LH

main62112-28140-B0iAZR6#200111-200408

STONE,TRIM1#

sub62112-28140

main62112-28140-B1iAZR6#200408-200706

GRAY,TRIM1#

sub62112-28140

main62112-28140-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub62112-28140

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-28010iAZR6#200111-200408

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-28010iAZR6#200111-200408

62211GARNISH, FRONT PILLAR, RH

main62210-28030-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62210-28030

main62210-28030-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62210-28030

main62210-28030-B0iAZR6#200111-200706

LT.GRAY,TRIM1#

sub62210-28030

main62210-28040-A0iAZR6#..NOAH..(L,X)200111-200408

sub62210-28040

main62210-28040-A1iAZR6#..NOAH..X200408-200706

sub62210-28040

main62210-28040-B0iAZR6#200111-200706

sub62210-28040

62212GARNISH, FRONT PILLAR, LH

main62220-28030-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62220-28030

main62220-28030-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62220-28030

main62220-28030-B0iAZR6#200111-200706

LT.GRAY,TRIM1#

sub62220-28030

main62220-28040-A0iAZR6#..NOAH..(L,X)200111-200408

sub62220-28040

main62220-28040-A1iAZR6#..NOAH..X200408-200706

sub62220-28040

main62220-28040-B0iAZR6#200111-200706

sub62220-28040

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-28020-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62225-28020

main62225-28020-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62225-28020

main62225-28020-B0iAZR6#200111-200706

LT.GRAY,TRIM1#

sub62225-28020

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-28020-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62226-28020

main62226-28020-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62226-28020

main62226-28020-B0iAZR6#200111-200706

LT.GRAY,TRIM1#

sub62226-28020

62411GARNISH, CENTER PILLAR, RH

main62410-28050-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62410-28050

main62410-28050-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62410-28050

main62410-28050-B0iAZR6#200111-200706

LT.GRAY,TRIM1#

sub62410-28050

main62410-28060-A0iAZR6#..NOAH..(L,X)200111-200408

sub62410-28060

main62410-28060-A1iAZR6#..NOAH..X200408-200706

sub62410-28060

main62410-28060-B0iAZR6#200111-200706

sub62410-28060

62412GARNISH, CENTER PILLAR, LH

main62420-28050-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62420-28050

main62420-28050-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62420-28050

main62420-28050-B0iAZR6#200111-200706

LT.GRAY,TRIM1#

sub62420-28050

main62420-28060-A0iAZR6#..NOAH..(L,X)200111-200408

sub62420-28060

main62420-28060-A1iAZR6#..NOAH..X200408-200706

sub62420-28060

main62420-28060-B0iAZR6#200111-200706

sub62420-28060

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-28070-B0iAZR6#200111-200408

STONE,TRIM1#

sub62413-28070

main62413-28070-B1iAZR6#200408-200706

GRAY,TRIM1#

sub62413-28070

main62413-28070-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub62413-28070

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-28100-B0iAZR6#200111-200408

STONE,TRIM1#

sub62414-28100

main62414-28100-B1iAZR6#200408-200706

GRAY,TRIM1#

sub62414-28100

main62414-28100-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub62414-28100

62471AGARNISH, ROOF SIDE, INNER RH

main62471-28150-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62471-28150

main62471-28150-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62471-28150

main62471-28150-B0iAZR6#200111-200706

LT.GRAY,TRIM1#

sub62471-28150

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-05020-22iAZR6#..VOXY..(V,X)200111-200209

BLACK,TRIM19

sub90467-05020

sub90467-05027

main90467-05020-22iAZR6#..NOAH..(L,X)200111-200209

BLACK,TRIM19,41

sub90467-05020

sub90467-05027

main90467-05020-E4iAZR6#..NOAH..(L,X)200111-200209

SANDAL WOOD,TRIM41

sub90467-05020

sub90467-05027

main90467-05020-P1iAZR6#..S,Z200111-200209

DK.GRAY,TRIM1#

sub90467-05020

sub90467-05027

main90467-05020-P1iAZR6#..S,Z200111-200209

DK.GRAY,TRIM19

sub90467-05020

sub90467-05027

main90467-05161-C0iAZR6#..NOAH..(L,X)200209-200408

BLACK,TRIM1#

sub90467-05161

main90467-05161-C0iAZR6#..NOAH..(L,X)200209-200408

BLACK,TRIM1#,4#

sub90467-05161

main90467-05161-C0iAZR6#200408-200706

BLACK

sub90467-05161

main90467-05161-C0iAZR6#200408-200706

sub90467-05161

62472AGARNISH, ROOF SIDE, INNER LH

main62472-28170-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62472-28170

main62472-28170-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62472-28170

main62472-28170-B0iAZR6#200111-200706

LT.GRAY,TRIM1#

sub62472-28170

main62472-28180-A0iAZR6#..NOAH..X200408-200706

main62472-28180-B0iAZR6#..X200408-200706

62510GTRIM ASSY, SIDE NO.1, RH

main62510-28220-B0iAZR6#200111-200408

STONE,TRIM1#

main62510-28220-B1iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

main62510-28220-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

main62510-28260-B0iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-05027-B4iAZR6#200111-200408

STONE,TRIM1#

sub90467-05027

main90467-05027-B6iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

sub90467-05027

main90467-05027-B7iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

sub90467-05027

main90467-05027-E1iAZR6#..NOAH..X200111-200706

FAWN,TRIM4#

sub90467-05027

62520GTRIM ASSY, SIDE NO.1, LH

main62520-28370-B0iAZR6#200111-200408

STONE,TRIM1#

main62520-28370-B1iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

main62520-28370-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

main62520-28380-B0iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

main62520-28390-B0iAZR6#..X200408-200706

main62520-28390-E0iAZR6#..NOAH..X200408-200706

62638AGARNISH, QUARTER PILLAR, RH

main62638-28180-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62638-28181

main62638-28180-B0iAZR6#200111-200408

LT.GRAY,TRIM1#

sub62638-28181

main62638-28181-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62638-28181

main62638-28181-B0iAZR6#200408-200706

LT.GRAY,TRIM1#

sub62638-28181

62639AGARNISH, QUARTER PILLAR, LH

main62639-28210-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

sub62639-28211

main62639-28210-B0iAZR6#200111-200408

LT.GRAY,TRIM1#

sub62639-28211

main62639-28211-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

sub62639-28211

main62639-28211-B0iAZR6#200408-200706

LT.GRAY,TRIM1#

sub62639-28211

64267BHOOK, PACKAGE HOLDER NET

main58492-28030-B0iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

sub58492-28030

main64267-28020-B0iAZR6#200111-200408

STONE,TRIM1#

main64267-28020-B2iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

main64267-28020-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

64515AHOLDER, LUGGAGE COMPARTMENT DOOR HOOK

main64515-28010-B0iAZR6#200111-200408

STONE,TRIM1#

sub64515-28010

main64515-28010-B1iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

sub64515-28010

main64515-28010-B2iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

sub64515-28010

main64515-28010-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub64515-28010

64714CCOVER, DECK SIDE TRIM, RH

main64714-28010-B0iAZR6#200111-200408

STONE,TRIM1#

sub64714-28010

main64714-28010-B1iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

sub64714-28010

main64714-28010-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub64714-28010

main64714-28020-B0iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

sub64714-28020

64715CCOVER, DECK SIDE TRIM, LH

main64715-28010-B0iAZR6#200111-200408

STONE,TRIM1#

sub64715-28010

main64715-28010-B1iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

sub64715-28010

main64715-28010-E0iAZR6#..NOAH..X200111-200706

FAWN,TRIM4#

sub64715-28010

main64715-28020-B0iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

sub64715-28020

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-28020-B0iAZR6#200111-200408

STONE,TRIM1#

sub64766-28020

main64766-28020-B1iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

sub64766-28020

main64766-28020-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub64766-28020

main64766-28030-B0iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

66310HHOOK ASSY, ROPE

main66310-28070-B0iAZR6#200111-200408

STONE,TRIM1#

sub66310-28070

main66310-28070-B1iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

sub66310-28070

main66310-28070-B2iAZR6#..05S200408-200706

DK.GRAY,TRIM18

sub66310-28070

main66310-28070-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub66310-28070

6751

6755

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-28040-B0iAZR6#200111-200408

STONE,TRIM1#

sub67913-28040

main67913-28040-B1iAZR6#200408-200706

GRAY,TRIM1#

sub67913-28040

main67913-28040-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub67913-28040

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-28040-B0iAZR6#200111-200408

STONE,TRIM1#

sub67914-28040

main67914-28040-B1iAZR6#200408-200706

GRAY,TRIM1#

sub67914-28040

main67914-28040-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub67914-28040

67917CPLATE, REAR DOOR SCUFF, RH

main67917-28080-B0iAZR6#200111-200408

STONE,TRIM1#

sub67917-28080

main67917-28080-B1iAZR6#..05S,08S200408-200706

GRAY,TRIM1#

sub67917-28080

main67917-28080-E0iAZR6#..NOAH..08S..X200111-200706

FAWN,TRIM4#

sub67917-28080

main67917-28090-B0iAZR6#200111-200408

sub67917-28090

main67917-28090-B1iAZR6#..07S,08S200408-200706

sub67917-28090

main67917-28090-E0iAZR6#..NOAH..(L,X)200111-200706

sub67917-28090

67918EPLATE, REAR DOOR SCUFF, LH

main67918-28080-B0iAZR6#200111-200408

STONE,TRIM1#

sub67918-28080

main67918-28080-B1iAZR6#..05S,08S200408-200706

GRAY,TRIM1#

sub67918-28080

main67918-28080-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

sub67918-28080

main67918-28090-B0iAZR6#200111-200408

sub67918-28090

main67918-28090-B1iAZR6#..07S,08S200408-200706

sub67918-28090

main67918-28090-E0iAZR6#..NOAH..(L,X)200111-200706

sub67918-28090

7152

6777126120WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26120

9011906869

main90119-06869

9018906018

main90189-06018

9046710161

main90467-10161

9046710167

main90467-10167

9095008003

main90950-08003

91621J0612

main91621-J0612

9162640618

main91626-40618

9356056016

main93560-56016

45 parts on this diagram · 2 diagrams in section
