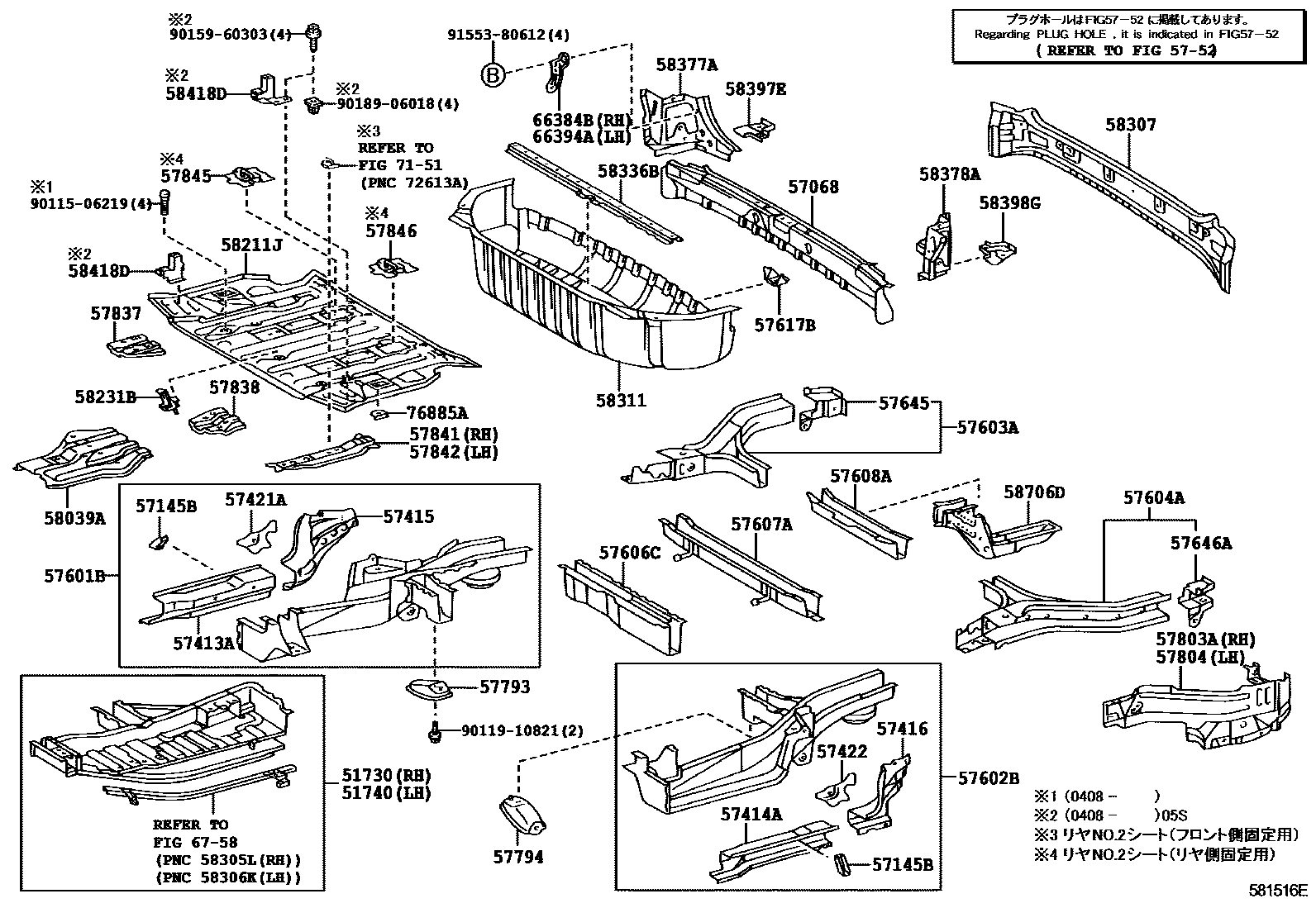

REAR FLOOR PANEL & REAR FLOOR MEMBER
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57145BPATCH, FRONT SIDE MEMBER, REAR
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57415RAIL, FLOOR SIDE, REAR RH
57416RAIL, FLOOR SIDE, REAR LH
57421APLATE, FLOOR SIDE RAIL, RH
57422PLATE, FLOOR SIDE RAIL, LH
5752
57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57617BRETAINER, REAR BUMPER ARM
57645REINFORCEMENT, REAR SIDE MEMBER, RH
57646AREINFORCEMENT, REAR SIDE MEMBER, LH
57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1
57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57842REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57845REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH
57846REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH
58039AREINFORCEMENT SUB-ASSY, REAR FLOOR PANEL
58211JPAN, CENTER FLOOR
58231BBRACKET, CENTER FLOOR HEAT INSULATOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58336BREINFORCEMENT, REAR FLOOR PAN
58377APANEL, BODY LOWER BACK, RH
58378APANEL, BODY LOWER BACK, LH
58397ECOVER, BODY LOWER BACK, RH
58398GCOVER, BODY LOWER BACK, LH
58706DBRACKET SUB-ASSY, JACK CARRIER, NO.1
66384BBRACKET, ROPE HOOK, NO.2 RH
66394ABRACKET, ROPE HOOK, NO.2 LH
6758
7151
76885ARETAINER, REAR SPOILER
9011506219
main90115-06219
9011910821
main90119-10821
9015960303
main90159-60303
9018906018
main90189-06018
9155380612
main91553-80612
53 parts on this diagram · 2 diagrams in section
