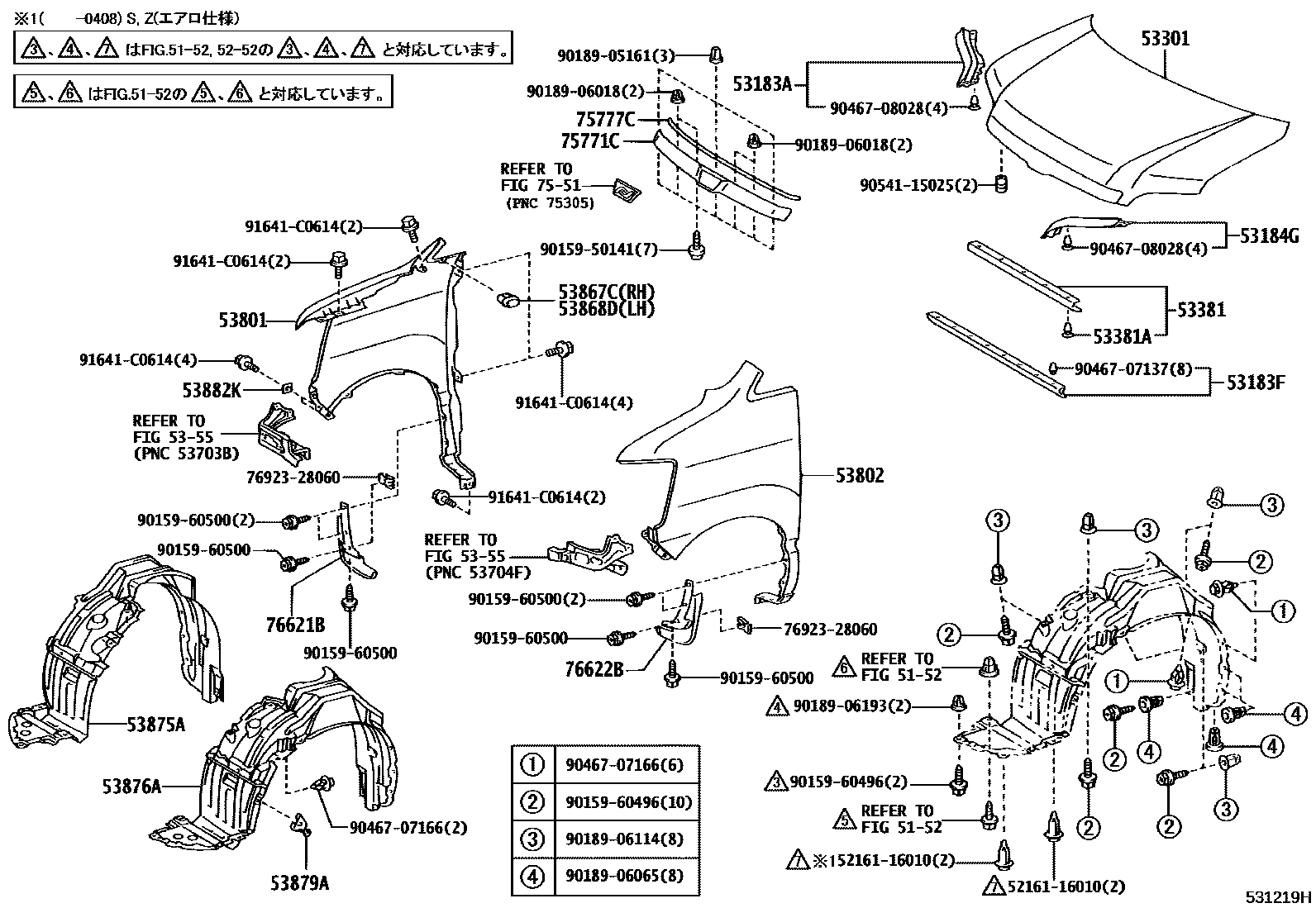

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

5152

53183ASEAL, HEADLAMP COVER, RH

main53183-28070iAZR6#..NOAH200111-200408

main53183-28100iAZR6#..VOXY200111-200408

53183FSEAL, HEADLAMP COVER TO HOOD

main53017-28010iAZR6#..NOAH200111-200408

53184GSEAL, HEADLAMP COVER, LH

main53184-28030iAZR6#..NOAH200111-200408

53301HOOD SUB-ASSY

main53301-28080iAZR6#..NOAH200111-200408

main53301-28090iAZR6#..VOXY200111-200408

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-28080iAZR6#200111-200408

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×5iAZR6#200408

5355

53801FENDER SUB-ASSY, FRONT RH

main53811-28120iAZR6#..NOAH..(X,YY)200408

main53811-28130iAZR6#..VOXY..(TRASX,X)200408

main53811-28140iAZR6#..S200111-200408

main53811-28150iAZR6#..Z200111-200408

53802FENDER SUB-ASSY, FRONT LH

main53802-28130iAZR6#..NOAH..(X,YY)200508

main53802-28140iAZR6#..VOXY..(TRASX,X)200508

main53802-28150iAZR6#..S200508

main53802-28160iAZR6#..Z200508

main53812-28120iAZR6#..NOAH..(L,X)200111-200408

main53812-28130iAZR6#..VOXY..(V,X)200111-200408

main53812-28140iAZR6#..S200111-200408

main53812-28150iAZR6#..Z200408-200508

53867CRETAINER, FRONT SIDE PANEL, RH

main53867-48010iAZR6#200111-200408

53868DRETAINER, FRONT SIDE PANEL, LH

main53867-48010iAZR6#200111-200408

53875ALINER, FRONT FENDER, RH

main53875-28100iAZR6#..L,V,X200111-200408

main53875-28110iAZR6#..S,Z200111-200408

main53875-28150iAZR6#..S,YY,Z;AZR6#..NOAH..X200408

53876ALINER, FRONT FENDER, LH

main53876-28130iAZR6#..L,V,X200111-200408

main53876-28140iAZR6#..S,Z200111-200408

main53876-28190iAZR6#..S,YY,Z;AZR6#..NOAH..X200408

53879ARETAINER, FRONT FENDER LINER

main53879-28010×2iAZR6#200111-200303

main53879-28030×2iAZR6#200304-200408

53882KSEAL, FRONT FENDER

main53882-16030×4iAZR6#200111-200408

7551

75771CMOULDING, HOOD, FRONT

main75771-28010iAZR6#..NOAH..(L,X)200111-200408

main75771-28020iAZR6#..NOAH..4HC..X200308-200407

main75771-28030-A0iAZR6#..NOAH..4HC..X200207-200308

main75771-28030-B0iAZR6#..NOAH..4HC..X200207-200308

main75771-28030-C0iAZR6#..NOAH..4HC..X200207-200308

main75771-28040iAZR6#..NOAH..(X,YY)200408

main75771-28050iAZR6#..S200408

75777CPAD, HOOD FRONT MOULDING

main75777-28010iAZR6#..NOAH200111-200408

main75777-28020iAZR6#..NOAH200408

76621BMUDGUARD, FRONT BODY, RH

main76621-28110-A0iAZR6#..X200408-200706

SUPER WHITE 2,040

main76621-28110-A1iAZR6#..TRASX,X,YY200408-200706

WHITE PM.,042

main76621-28110-B0iAZR6#..TRASX,X,YY200408-200706

SILVER ME.,1D4

main76621-28110-B1iAZR6#..X200408-200706

DARK GRAY M.M.,1E2

main76621-28110-C0iAZR6#..NOAH..08S..X200504

LIMITED *(P),BLACK,202

main76621-28110-D0iAZR6#..VOXY..X200408-200706

BORDEAUX MC.,3P2

main76621-28110-D1iAZR6#..L,V,X200111-200408

LT.ROSE M.M.,3Q1

main76621-28110-D2iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

main76621-28110-E0iAZR6#..X200408-200706

BEIGE ME.,4R4

main76621-28110-F0iAZR6#..NOAH..(L,X)200111-200408

YELLOW PM,591

main76621-28110-J0iAZR6#..L,V,X200111-200408

DARK BLUE MC,8Q7

main76621-28110-J1iAZR6#..NOAH..4HC..X200308-200407

main76621-28110-J2iAZR6#..TRASX,X200408-200706

DARK BLUE MC.,8P8

main76621-28110-J3iAZR6#..NOAH..08S..X200504

LIMITED *(P),LT.PURPLISH BLUE M.M.,8K2

76622BMUDGUARD, FRONT BODY, LH

main76622-28110-A0iAZR6#..L,V,X200111-200408

SUPER WHITE 2,040

main76622-28110-A1iAZR6#..TRASX,X,YY200408-200706

WHITE PM.,042

main76622-28110-B0iAZR6#..TRASX,X,YY200408-200706

SILVER ME.,1D4

main76622-28110-B1iAZR6#..L,V,X200111-200408

DARK GRAY M.M.,1E2

main76622-28110-C0iAZR6#..NOAH..08S..X200504

LIMITED *(P),BLACK,202

main76622-28110-D0iAZR6#..VOXY..(V,X)200111-200408

BORDEAUX MC.,3P2

main76622-28110-D1iAZR6#..L,V,X200111-200408

LT.ROSE M.M.,3Q1

main76622-28110-D2iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

main76622-28110-E0iAZR6#..X200408-200706

BEIGE ME.,4R4

main76622-28110-F0iAZR6#..NOAH..(L,X)200111-200408

YELLOW PM,591

main76622-28110-J0iAZR6#..L,V,X200111-200408

DARK BLUE MC,8Q7

main76622-28110-J1iAZR6#..NOAH..4HC..X200304-200308

main76622-28110-J2iAZR6#..TRASX,X200408-200706

DARK BLUE MC.,8P8

main76622-28110-J3iAZR6#..NOAH..08S..X200504

LIMITED *(P),LT.PURPLISH BLUE M.M.,8K2

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

7692328060RETAINER, SIDE MUDGUARD

main76923-28060

9015950141

main90159-50141

9015960496

main90159-60496

9015960500

main90159-60500

9018905161

main90189-05161

9018906018

main90189-06018

9018906065

main90189-06065

9018906114

main90189-06114

9018906193

main90189-06193

9046707137

main90467-07137

9046707166

main90467-07166

9046708028

main90467-08028

9054115025

main90541-15025

91641C0614

main91641-C0614

36 parts on this diagram · 3 diagrams in section
