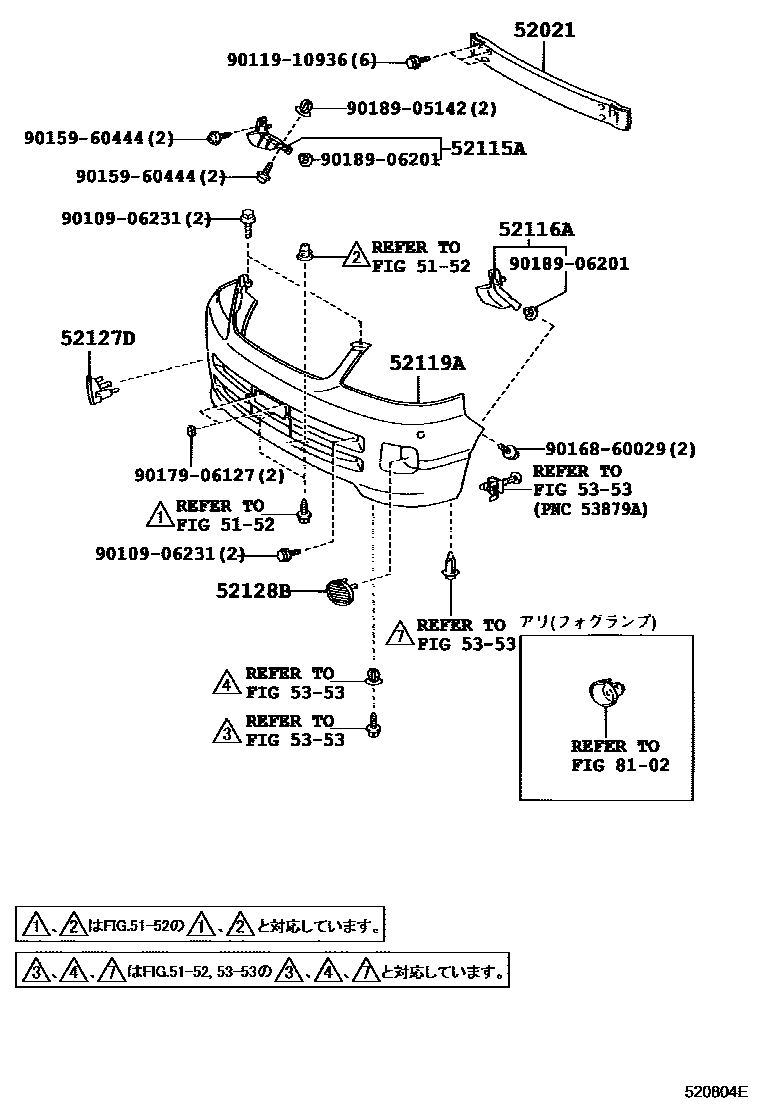

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

5152

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-28190iAZR6#200111-200408

main52021-28200iAZR6#200408

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-28100iAZR6#..NOAH200111-200408

main52115-28110iAZR6#..VOXY200111-200408

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-28100iAZR6#..NOAH200111-200408

main52116-28110iAZR6#..VOXY200111-200408

52119ACOVER, FRONT BUMPER

main52119-28A60-A0iAZR6#..NOAH..X200408-200706

SUPER WHITE 2,040

sub52119-28984

main52119-28A60-A1iAZR6#..NOAH..(X,YY)200408-200706

WHITE PM.,042

sub52119-28984

main52119-28A60-B0iAZR6#..NOAH..(X,YY)200408-200706

SILVER ME.,1D4

sub52119-28984

main52119-28A60-B1iAZR6#..NOAH..X200408-200706

DARK GRAY M.M.,1E2

sub52119-28984

main52119-28A60-C0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),BLACK,202

sub52119-28984

main52119-28A60-C0iAZR6#..YY200408-200706

BLACK,202

sub52119-28984

main52119-28A60-C0iAZR6#..NOAH..08S..X200504

LIMITED *(P),BLACK,202

sub52119-28984

main52119-28A60-D0iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

sub52119-28984

main52119-28A60-E0iAZR6#..NOAH..X200408-200706

BEIGE ME.,4R4

sub52119-28984

main52119-28A60-J0iAZR6#..NOAH..X200408-200706

DARK BLUE MC.,8P8

sub52119-28984

main52119-28A60-J1iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),LT.PURPLISH BLUE MC.,8K2

sub52119-28984

main52119-28A60-J1iAZR6#..NOAH..08S..X200504

LIMITED *(P),LT.PURPLISH BLUE M.M.,8K2

sub52119-28984

main52119-28A70-A0iAZR6#..NOAH..X200408-200706

sub52119-28985

main52119-28A70-A1iAZR6#..NOAH..X200408-200706

sub52119-28985

main52119-28A70-B0iAZR6#..NOAH..X200408-200706

sub52119-28985

main52119-28A70-B1iAZR6#..NOAH..X200408-200706

sub52119-28985

main52119-28A70-C0iAZR6#..NOAH..08S..X200607-200705

sub52119-28985

main52119-28A70-C0iAZR6#..NOAH..08S..X200504

sub52119-28985

main52119-28A70-D0iAZR6#..NOAH..X200408-200706

sub52119-28985

main52119-28A70-E0iAZR6#..NOAH..X200408-200706

sub52119-28985

main52119-28A70-J0iAZR6#..NOAH..X200408-200706

sub52119-28985

main52119-28A70-J1iAZR6#..NOAH..08S..X200607-200705

sub52119-28985

main52119-28A70-J1iAZR6#..NOAH..08S..X200504

sub52119-28985

main52119-28A80-A0iAZR6#..VOXY..X200408-200706

SUPER WHITE 2,040

sub52119-28986

main52119-28A80-A1iAZR6#..VOXY..(TRASX,X)200408-200706

WHITE PM.,042

sub52119-28986

main52119-28A80-B0iAZR6#..VOXY..(TRASX,X)200408-200706

SILVER ME.,1D4

sub52119-28986

main52119-28A80-B1iAZR6#..VOXY..X200408-200706

DARK GRAY M.M.,1E2

sub52119-28986

main52119-28A80-C0iAZR6#..TRASX200408-200706

BLACK,202

sub52119-28986

main52119-28A80-D0iAZR6#..VOXY..X200408-200706

BORDEAUX MC.,3P2

sub52119-28986

main52119-28A80-E0iAZR6#..VOXY..X200408-200706

BEIGE ME.,4R4

sub52119-28986

main52119-28A80-J0iAZR6#..VOXY..(TRASX,X)200408-200706

DARK BLUE MC.,8P8

sub52119-28986

main52119-28A90-A0iAZR6#..VOXY..X200408-200706

sub52119-28987

main52119-28A90-A1iAZR6#..VOXY..X200408-200706

sub52119-28987

main52119-28A90-B0iAZR6#..VOXY..X200408-200706

sub52119-28987

main52119-28A90-B1iAZR6#..VOXY..X200408-200706

sub52119-28987

main52119-28A90-D0iAZR6#..VOXY..X200408-200706

sub52119-28987

main52119-28A90-E0iAZR6#..VOXY..X200408-200706

sub52119-28987

main52119-28A90-J0iAZR6#..VOXY..X200408-200706

sub52119-28987

main52119-28B00-A0iAZR6#..S200408-200706

WHITE PM.,042

sub52119-28988

main52119-28B00-B0iAZR6#..S200408-200706

SILVER ME.,1D4

sub52119-28988

main52119-28B00-B1iAZR6#..S200408-200706

DARK GRAY M.M.,1E2

sub52119-28988

main52119-28B00-J0iAZR6#..S200408-200706

DARK BLUE MC.,8P8

sub52119-28988

main52119-28B10-A0iAZR6#..S200408-200706

sub52119-28989

main52119-28B10-B0iAZR6#..S200408-200706

sub52119-28989

main52119-28B10-B1iAZR6#..S200408-200706

sub52119-28989

main52119-28B10-J0iAZR6#..S200408-200706

sub52119-28989

main52119-28B20-A0iAZR6#..Z200408-200706

WHITE PM.,042

sub52119-2R915

main52119-28B20-B0iAZR6#..Z200408-200706

SILVER ME.,1D4

sub52119-2R915

main52119-28B20-B1iAZR6#..Z200408-200706

DARK GRAY M.M.,1E2

sub52119-2R915

main52119-28B20-B2iAZR6#..Z200504

sub52119-2R915

main52119-28B20-C0iAZR6#..Z200504

sub52119-2R915

main52119-28B20-J0iAZR6#..Z200408-200706

DARK BLUE MC.,8P8

sub52119-2R915

main52119-28B30-A0iAZR6#..Z200408-200706

sub52119-28990

main52119-28B30-B0iAZR6#..Z200408-200706

sub52119-28990

main52119-28B30-B1iAZR6#..Z200408-200706

sub52119-28990

main52119-28B30-B2iAZR6#..Z200504

sub52119-28990

main52119-28B30-C0iAZR6#..Z200504

sub52119-28990

main52119-28B30-J0iAZR6#..Z200408-200706

sub52119-28990

main52119-28B40-A0iAZR6#..S200408-200706

sub52119-28991

main52119-28B40-B0iAZR6#..S200408-200706

sub52119-28991

main52119-28B40-B1iAZR6#..S200408-200706

sub52119-28991

main52119-28B40-J0iAZR6#..S200408-200706

sub52119-28991

main52119-28B50-A0iAZR6#..S200408-200706

sub52119-28992

main52119-28B50-B0iAZR6#..S200408-200706

sub52119-28992

main52119-28B50-B1iAZR6#..S200408-200706

sub52119-28992

main52119-28B50-J0iAZR6#..S200408-200706

sub52119-28992

main52119-2J190-A0iAZR6#..NOAH..(L,X)200111-200408

SUPER WHITE 2,040

sub52119-2J913

main52119-2J190-A1iAZR6#..NOAH..(L,X)200111-200408

WHITE PM.,042

sub52119-2J913

main52119-2J190-B0iAZR6#..NOAH..(L,X)200111-200408

SILVER ME.,1D4

sub52119-2J913

main52119-2J190-B1iAZR6#..NOAH..(L,X)200111-200408

DARK GRAY M.M.,1E2

sub52119-2J913

main52119-2J190-C0iAZR6#..NOAH..4HC..X200212-200308

sub52119-2J913

main52119-2J190-C0iAZR6#..NOAH..4HC..X200207-200308

sub52119-2J913

main52119-2J190-D0iAZR6#..NOAH..(L,X)200111-200408

LT.ROSE M.M.,3Q1

sub52119-2J913

main52119-2J190-F0iAZR6#..NOAH..(L,X)200111-200408

YELLOW PM,591

sub52119-2J913

main52119-2J190-J0iAZR6#..NOAH..(L,X)200111-200408

DARK BLUE MC,8Q7

sub52119-2J913

main52119-2J190-J1iAZR6#..NOAH..4HC..X200308-200407

sub52119-2J913

main52119-2J190-J1iAZR6#..NOAH..4HC..X200304-200308

sub52119-2J913

main52119-2J200-A0iAZR6#..VOXY..(V,X)200111-200408

SUPER WHITE 2,040

sub52119-2J905

main52119-2J200-A1iAZR6#..VOXY..(V,X)200111-200408

WHITE PM.,042

sub52119-2J905

main52119-2J200-B0iAZR6#..VOXY..(V,X)200111-200408

SILVER ME.,1D4

sub52119-2J905

main52119-2J200-B1iAZR6#..VOXY..(V,X)200111-200408

DARK GRAY M.M.,1E2

sub52119-2J905

main52119-2J200-C0iAZR60..VOXY..X200404-200405

sub52119-2J905

main52119-2J200-D0iAZR6#..VOXY..(V,X)200111-200408

BORDEAUX MC.,3P2

sub52119-2J905

main52119-2J200-D1iAZR6#..VOXY..(V,X)200111-200408

LT.ROSE M.M.,3Q1

sub52119-2J905

main52119-2J200-J0iAZR6#..VOXY..(V,X)200111-200408

DARK BLUE MC,8Q7

sub52119-2J905

main52119-2J220-A0iAZR6#..NOAH..(L,X)200111-200408

sub52119-2J906

main52119-2J220-A1iAZR6#..NOAH..(L,X)200111-200408

sub52119-2J906

main52119-2J220-B0iAZR6#..NOAH..(L,X)200111-200408

sub52119-2J906

main52119-2J220-B1iAZR6#..NOAH..(L,X)200111-200408

sub52119-2J906

main52119-2J220-C0iAZR6#..NOAH..4HC..X200207-200308

sub52119-2J906

main52119-2J220-C0iAZR6#..NOAH..4HC..X200212-200308

sub52119-2J906

main52119-2J220-D0iAZR6#..NOAH..(L,X)200111-200408

sub52119-2J906

main52119-2J220-F0iAZR6#..NOAH..(L,X)200111-200408

sub52119-2J906

main52119-2J220-J0iAZR6#..NOAH..(L,X)200111-200408

sub52119-2J906

main52119-2J240-A0iAZR6#..VOXY..(V,X)200111-200408

sub52119-2J907

main52119-2J240-A1iAZR6#..VOXY..(V,X)200111-200408

sub52119-2J907

main52119-2J240-B0iAZR6#..VOXY..(V,X)200111-200408

sub52119-2J907

main52119-2J240-B1iAZR6#..VOXY..(V,X)200111-200408

sub52119-2J907

main52119-2J240-C0iAZR60..VOXY..X200404-200405

sub52119-2J907

main52119-2J240-D0iAZR6#..VOXY..(V,X)200111-200408

sub52119-2J907

main52119-2J240-D1iAZR6#..VOXY..(V,X)200111-200408

sub52119-2J907

main52119-2J240-J0iAZR6#..VOXY..(V,X)200111-200408

sub52119-2J907

main52119-2J250-A0iAZR6#..S200111-200408

WHITE PM.,042

sub52119-2J908

main52119-2J250-B0iAZR6#..S200111-200408

SILVER ME.,1D4

sub52119-2J908

main52119-2J250-B1iAZR6#..S200111-200408

DARK GRAY M.M.,1E2

sub52119-2J908

main52119-2J250-J0iAZR6#..S200111-200408

DARK BLUE MC,8Q7

sub52119-2J908

main52119-2J260-A0iAZR6#..S200111-200408

sub52119-2J909

main52119-2J260-B0iAZR6#..S200111-200408

sub52119-2J909

main52119-2J260-B1iAZR6#..S200111-200408

sub52119-2J909

main52119-2J260-J0iAZR6#..S200111-200408

sub52119-2J909

main52119-2J270-A0iAZR6#..Z200111-200408

WHITE PM.,042

sub52119-2J910

main52119-2J270-B0iAZR6#..Z200111-200408

SILVER ME.,1D4

sub52119-2J910

main52119-2J270-B1iAZR6#..Z200111-200408

DARK GRAY M.M.,1E2

sub52119-2J910

main52119-2J270-B2iAZR6#..4HC..Z200308-200407

sub52119-2J910

main52119-2J270-C0iAZR6#..4HC..Z200308-200407

sub52119-2J910

main52119-2J270-C0iAZR6#..4HC..Z200207-200308

sub52119-2J910

main52119-2J270-D0iAZR6#..4HC..Z200207-200308

sub52119-2J910

main52119-2J270-J0iAZR6#..Z200111-200408

DARK BLUE MC,8Q7

sub52119-2J910

main52119-2J370-A0iAZR6#..Z200111-200408

sub52119-2J912

main52119-2J370-B0iAZR6#..Z200111-200408

sub52119-2J912

main52119-2J370-B1iAZR6#..Z200111-200408

sub52119-2J912

main52119-2J370-C0iAZR6#..4HC..Z200207-200308

sub52119-2J912

main52119-2J370-D0iAZR6#..4HC..Z200207-200308

sub52119-2J912

main52119-2J370-J0iAZR6#..Z200111-200408

sub52119-2J912

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-28100-A0iAZR6#..VOXY..X200111-200408

SUPER WHITE 2,040

sub52127-28906

main52127-28100-A1iAZR6#..VOXY..X200111-200408

WHITE PM.,042

sub52127-28906

main52127-28100-B0iAZR6#..VOXY..X200111-200408

SILVER ME.,1D4

sub52127-28906

main52127-28100-B1iAZR6#..VOXY..X200111-200408

DARK GRAY M.M.,1E2

sub52127-28906

main52127-28100-C0iAZR60..VOXY..X200404-200405

sub52127-28906

main52127-28100-D0iAZR6#..VOXY..X200111-200408

BORDEAUX MC.,3P2

sub52127-28906

main52127-28100-D1iAZR6#..VOXY..X200111-200408

LT.ROSE M.M.,3Q1

sub52127-28906

main52127-28100-J0iAZR6#..VOXY..X200111-200408

DARK BLUE MC,8Q7

sub52127-28906

main52127-28120-A0iAZR6#..NOAH..X200111-200706

SUPER WHITE 2,040

sub52127-28908

main52127-28120-A1iAZR6#..NOAH..(X,YY)200111-200706

WHITE PM.,042

sub52127-28908

main52127-28120-B0iAZR6#..NOAH..(X,YY)200111-200706

SILVER ME.,1D4

sub52127-28908

main52127-28120-B1iAZR6#..NOAH..X200111-200706

DARK GRAY M.M.,1E2

sub52127-28908

main52127-28120-C0iAZR6#..YY200408-200706

BLACK,202

sub52127-28908

main52127-28120-C0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),BLACK,202

sub52127-28908

main52127-28120-C0iAZR6#..NOAH..4HC..X200212-200308

sub52127-28908

main52127-28120-C0iAZR6#..NOAH..4HC..X200207-200308

sub52127-28908

main52127-28120-D0iAZR6#..NOAH..X200111-200408

LT.ROSE M.M.,3Q1

sub52127-28908

main52127-28120-D2iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

sub52127-28908

main52127-28120-E0iAZR6#..NOAH..X200408-200706

BEIGE ME.,4R4

sub52127-28908

main52127-28120-F0iAZR6#..NOAH..X200111-200408

YELLOW PM,591

sub52127-28908

main52127-28120-J0iAZR6#..NOAH..X200111-200408

DARK BLUE MC,8Q7

sub52127-28908

main52127-28120-J2iAZR6#..NOAH..X200408-200706

DARK BLUE MC.,8P8

sub52127-28908

main52127-28120-J3iAZR6#..NOAH..08S..X200504

LIMITED *(P),LT.PURPLISH BLUE M.M.,8K2

sub52127-28908

main52127-28120-J3iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),LT.PURPLISH BLUE M.M.,8K2

sub52127-28908

main52127-28170iAZR6#..VOXY..(TRASX,X)200408-200706

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-28100-A0iAZR6#..VOXY..X200111-200408

SUPER WHITE 2,040

sub52128-28907

main52128-28100-A1iAZR6#..VOXY..X200111-200408

WHITE PM.,042

sub52128-28907

main52128-28100-B0iAZR6#..VOXY..X200111-200408

SILVER ME.,1D4

sub52128-28907

main52128-28100-B1iAZR6#..VOXY..X200111-200408

DARK GRAY M.M.,1E2

sub52128-28907

main52128-28100-C0iAZR60..VOXY..X200404-200405

sub52128-28907

main52128-28100-D0iAZR6#..VOXY..X200111-200408

BORDEAUX MC.,3P2

sub52128-28907

main52128-28100-D1iAZR6#..VOXY..X200111-200408

LT.ROSE M.M.,3Q1

sub52128-28907

main52128-28100-J0iAZR6#..VOXY..X200111-200408

DARK BLUE MC,8Q7

sub52128-28907

main52128-28110iAZR6#..VOXY..(TRASX,X)200408-200706

main52128-28120-A0iAZR6#..NOAH..X200111-200706

SUPER WHITE 2,040

sub52128-28908

main52128-28120-A1iAZR6#..NOAH..(X,YY)200111-200706

WHITE PM.,042

sub52128-28908

main52128-28120-B0iAZR6#..NOAH..(X,YY)200111-200706

SILVER ME.,1D4

sub52128-28908

main52128-28120-B1iAZR6#..NOAH..X200111-200706

DARK GRAY M.M.,1E2

sub52128-28908

main52128-28120-C0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),BLACK,202

sub52128-28908

main52128-28120-C0iAZR6#..NOAH..4HC..X200207-200308

sub52128-28908

main52128-28120-C0iAZR6#..NOAH..4HC..X200212-200308

sub52128-28908

main52128-28120-C0iAZR6#..YY200408-200706

BLACK,202

sub52128-28908

main52128-28120-D0iAZR6#..NOAH..X200111-200408

LT.ROSE M.M.,3Q1

sub52128-28908

main52128-28120-D2iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

sub52128-28908

main52128-28120-E0iAZR6#..NOAH..X200408-200706

BEIGE ME.,4R4

sub52128-28908

main52128-28120-F0iAZR6#..NOAH..X200111-200408

YELLOW PM,591

sub52128-28908

main52128-28120-J0iAZR6#..NOAH..X200111-200408

DARK BLUE MC,8Q7

sub52128-28908

main52128-28120-J2iAZR6#..NOAH..X200408-200706

DARK BLUE MC.,8P8

sub52128-28908

main52128-28120-J3iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),LT.PURPLISH BLUE M.M.,8K2

sub52128-28908

main52128-28120-J3iAZR6#..NOAH..08S..X200504

LIMITED *(P),LT.PURPLISH BLUE M.M.,8K2

sub52128-28908

5353

8102

9010906231

main90109-06231

9011910936

main90119-10936

9015960444

main90159-60444

9016860029

main90168-60029

9017906127

main90179-06127

9018905142

main90189-05142

9018906201

main90189-06201

16 parts on this diagram · 8 diagrams in section
