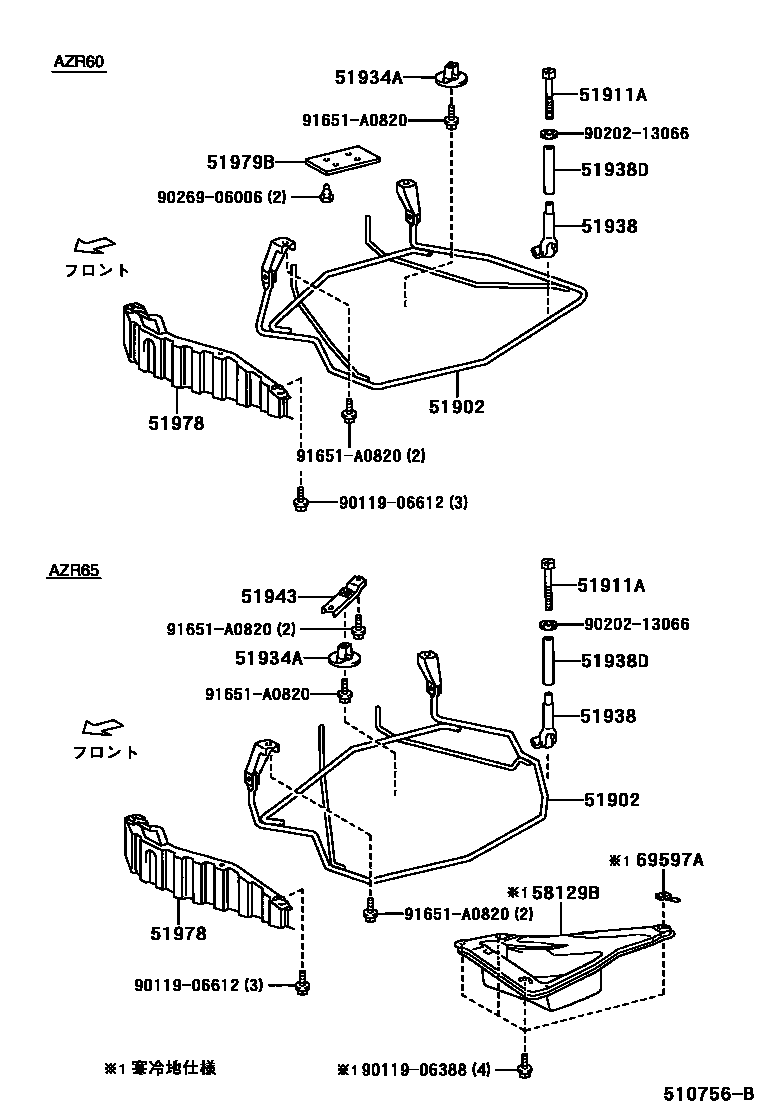

SPARE WHEEL CARRIER

51902CARRIER SUB-ASSY, SPARE WHEEL

main51903-28050iAZR60200111-200408

main51903-28060iAZR65200111-200408

51911ABOLT, SPARE WHEEL

main51911-28070iAZR6#200111-200408

51934ASTOPPER, SPARE WHEEL, NO.2

main51904-28080iAZR6#200111-200408

51938LOCK, SPARE WHEEL CARRIER

main51938-44010iAZR6#200111-200408

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17067iAZR6#200111-200408

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main58351-28040iAZR65200111-200408

51978PROTECTOR, SPARE WHEEL CARRIER

main51099-28010iAZR6#200111-200408

main51978-28010iAZR6#200111-200408

51979BCUSHION, SPARE WHEEL CARRIER PROTECTOR

main51979-28020iAZR60200111-200408

58129BCUSHION, FRONT FLOOR, NO.2

main58129-28020iAZR65200111-200408

69597ANUT, SPARE WHEEL LOCK

main69597-28010iAZR65200111-200408

9011906388

main90119-06388

9011906612

main90119-06612

9020213066

main90202-13066

9026906006

main90269-06006

91651A0820

main91651-A0820

15 parts on this diagram · 1 diagram in section
