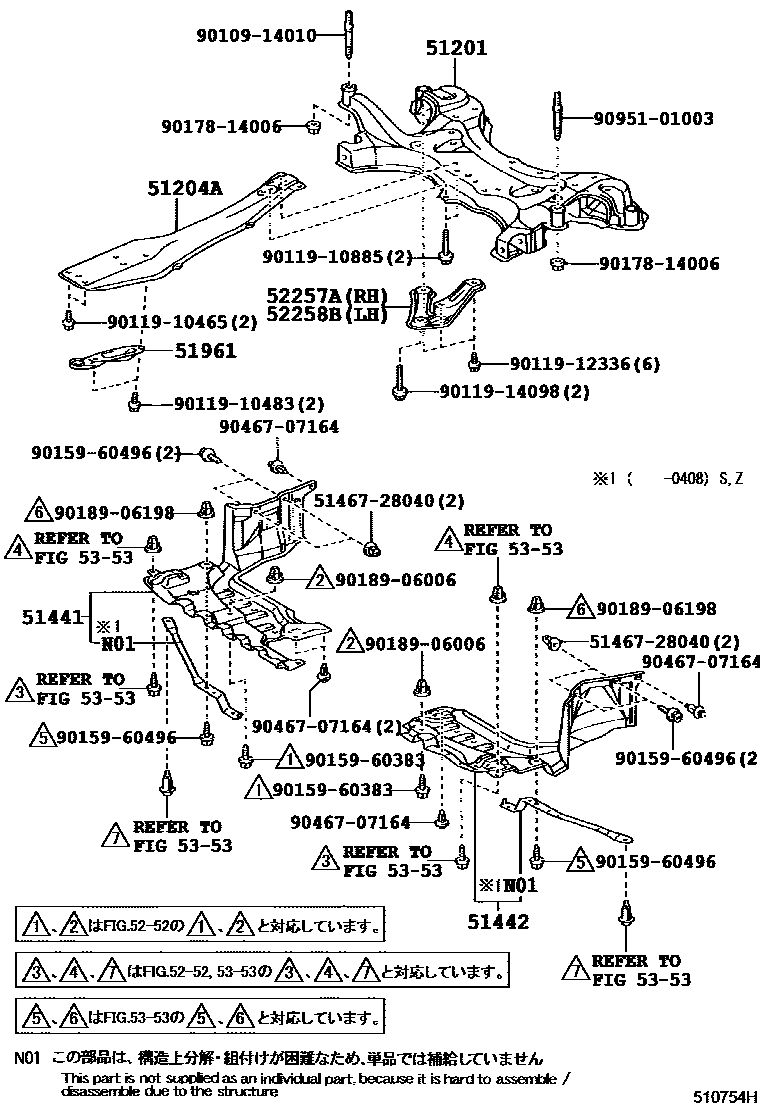

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28230iAZR60200111-200408

sub51201-28231

main51201-28240iAZR65200111-200408

sub51201-28241

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-44010iAZR60200111-200408

main51204-44020iAZR65200111-200408

51441COVER, ENGINE UNDER, NO.1

main51440-28110iAZR6#..S,Z200111-200408

main51441-28130iAZR6#200111-200408

51442COVER, ENGINE UNDER, NO.2

main51442-28130iAZR6#..L,V,X200111-200408

main51450-28050iAZR6#..S,Z200111-200408

51961HOOK, NO.1

main51963-32040iAZR6#200111-200408

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-28030iAZR6#200111-200408

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-28030iAZR6#200111-200408

5353

5146728040RETAINER, ENGINE UNDER COVER

main51467-28040

9010914010

main90109-14010

9011910465

main90119-10465

9011910483

main90119-10483

9011910885

main90119-10885

9011912336

main90119-12336

9011914098

main90119-14098

9015960383

main90159-60383

9015960496

main90159-60496

9017814006

main90178-14006

9018906006

main90189-06006

9018906198

main90189-06198

9046707164

main90467-07164

9095101003

main90951-01003

22 parts on this diagram · 2 diagrams in section
