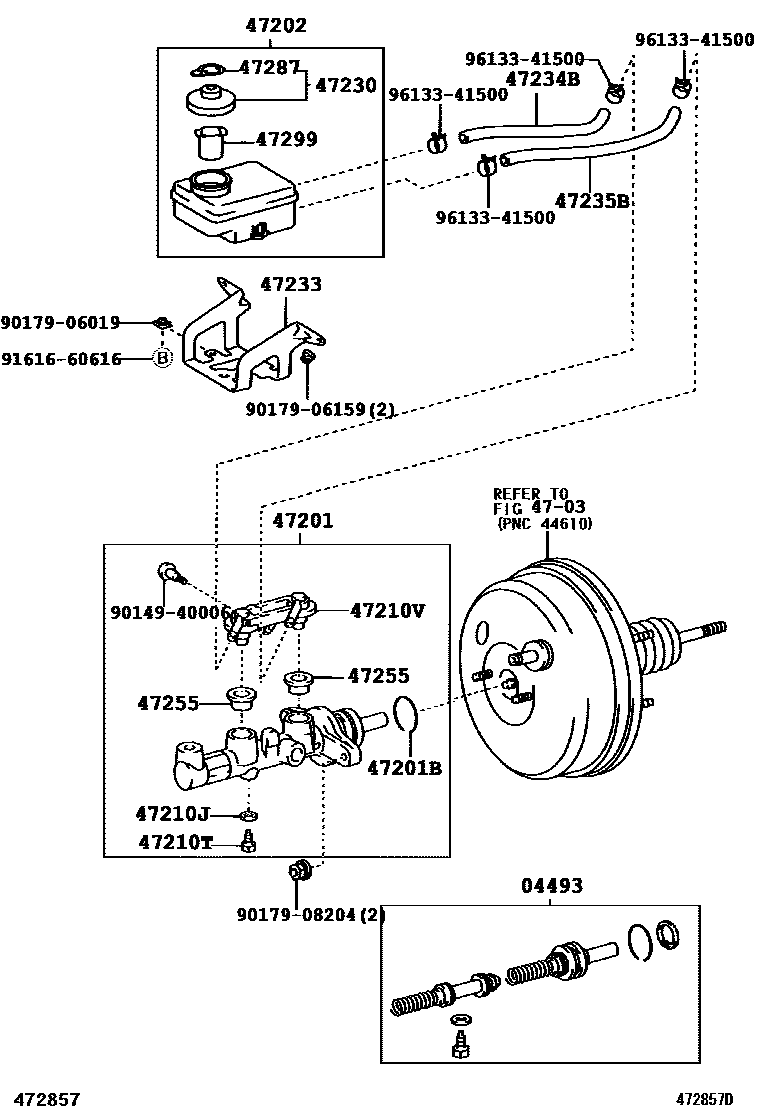

BRAKE MASTER CYLINDER

0001 1 0002 1��(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-28150iAZR65200111-200408

main04493-44020iAZR6#200111-200408

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28581iAZR65200111-200408

main47201-44130iAZR6#200111-200408

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iAZR6#200111-200408

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28240iAZR6#200111-200408

main47220-28270iAZR65200111-200408

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iAZR6#200112-200408

main90430-06104iAZR6#..4HC200111-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAZR6#200111-200408

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40402iAZR6#200111-200408

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28240iAZR6#200111-200408

47233BRACKET, RESERVOIR

main47233-28110iAZR6#200111-200408

47234BTUBE, RESERVOIR, NO.1

main47234-28110iAZR6#200111-200408

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-28110iAZR6#200111-200408

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAZR6#200111-200408

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iAZR6#200111-200408

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iAZR6#200111-200408

9014940006

main90149-40006

9017906019

main90179-06019

9017906159

main90179-06159

9017908204

main90179-08204

9161660616

main91616-60616

9613341500

main96133-41500

21 parts on this diagram · 2 diagrams in section
