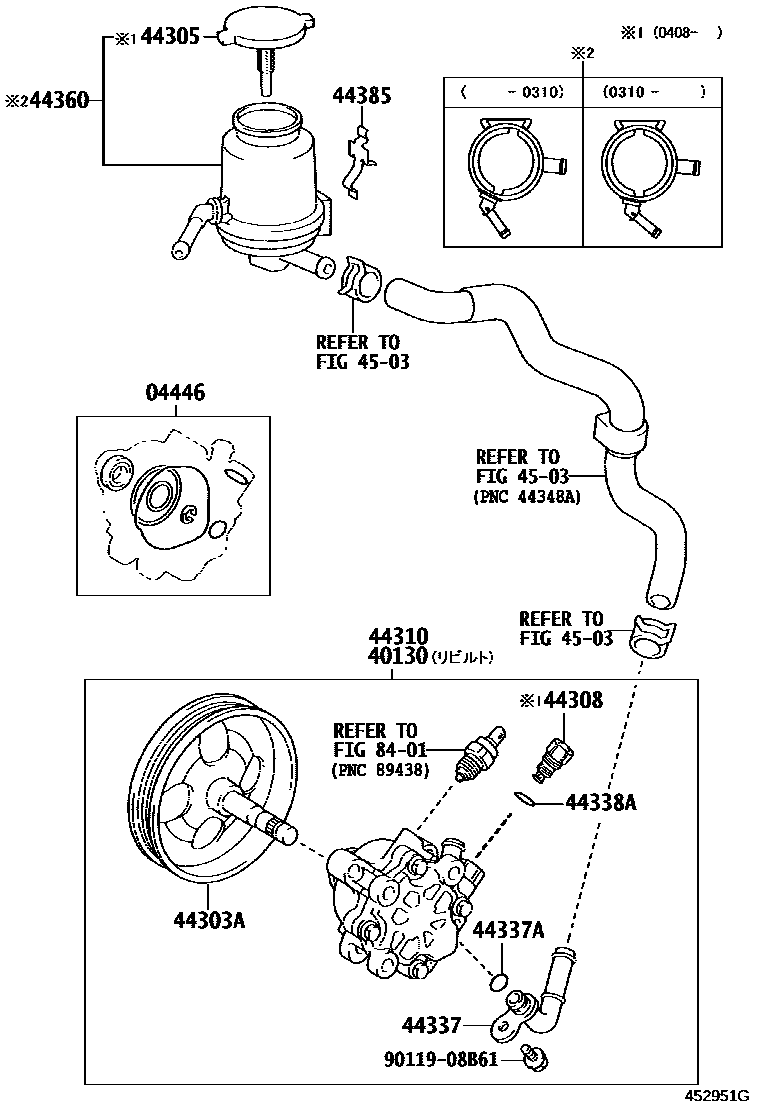

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-20170iAZR6#¥860200611

main04446-32050iAZR6#¥970200111-200610

40130PUMP ASSY,VANE REBUILT

main40130-28270iAZR6#¥66,500200611-200706

sub44310-28270¥94,600

main40130-42070iAZR6#¥66,500200111-200610

sub40130-28270¥66,500

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iAZR6#¥5,400200111-200408

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iAZR6#¥1,590200408

sub44305-28060¥1,590

44308UNION SUB-ASSY, PRESSURE PORT

main44308-42010iAZR6#¥1,990200408

44310PUMP ASSY, VANE

main44310-28270iAZR6#¥94,600200611

main44310-42070iAZR6#¥94,600200111-200610

sub44310-28270¥94,600

44337UNION, POWER STEERING SUCTION PORT

main44337-42010iAZR6#¥1,670200111-200408

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iAZR6#¥140200111-200408

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iAZR6#¥140200111-200706

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-44010iAZR6#¥10,300200111-200310

sub44360-44030¥10,200

main44360-44030iAZR6#¥10,200200310-200408

44385SUPPORT, SPRING, UPPER(FOR VANE PUMP OIL RESERVOIR)

main44385-38010iAZR6#¥120200111-200408

4503

8401

9011908B61

main90119-08B61¥60

14 parts on this diagram · 1 diagram in section
