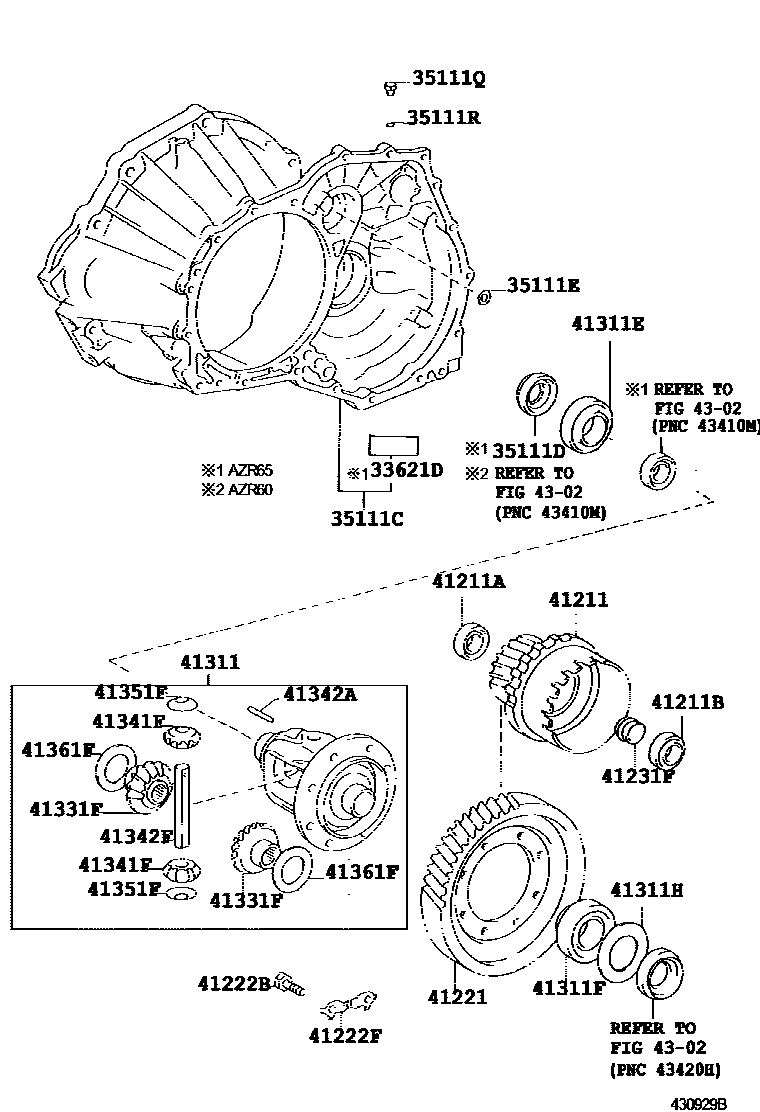

FRONT AXLE HOUSING & DIFFERENTIAL
33621DLABEL, TRANSAXLE OIL INFORMATION
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
35111EWASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)
35111QPLUG, NO.2 (FOR TRANSAXLE HOUSING)
35111RRING, O (FOR TRANSAXLE HOUSING PLUG NO.2)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
4302
24 parts on this diagram · 1 diagram in section
