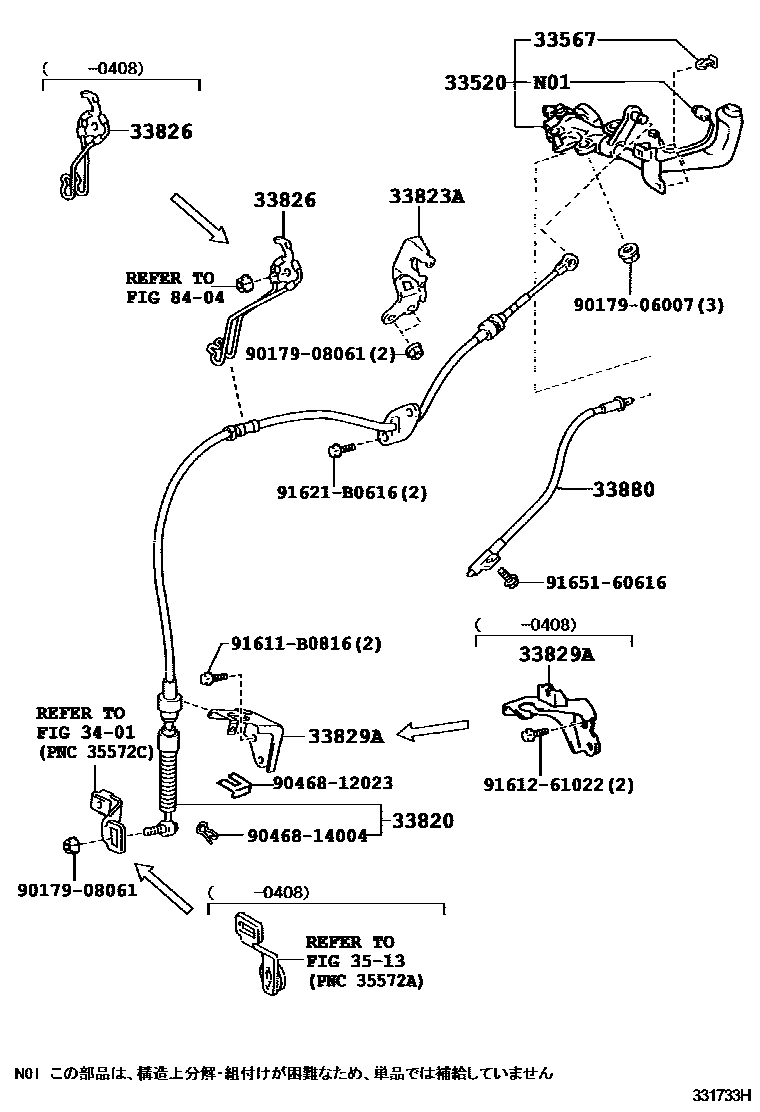

CONTROL SHAFT & CROSSSHAFT

33520SHAFT ASSY, CONTROL

main33520-28230-C0iAZR6#..NOAH..X200111-200310

BLACK,TRIM1#,4#

main33520-28231-C0iAZR6#..NOAH..X200310-200408

BLACK,TRIM1#,4#

main33520-28302-C0iAZR6#..NOAH..X200408-200706

BLACK,TRIM1#,4#

main33520-28312-C0iAZR6#..NOAH..X200408-200706

main33520-44070-C0iAZR6#..S,V,Z200111-200310

main33520-44071-C0iAZR6#..S,V,Z200310-200408

33567CLAMP, CONTROL SHAFT TUBE

main33567-44010×2iAZR6#200111-200408

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-28400iAZR6#200111-200408

sub33820-28401

main33820-28410iAZR6#200408

sub33820-28411

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-28220iAZR6#200111-200408

33826BRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-28100iAZR6#200111-200408

main33826-28110iAZR6#200408

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33823-28260iAZR6#200408

main33829-44030iAZR6#200111-200408

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-28080iAZR6#200111-200408

3401

3513

8404

9017906007

main90179-06007

9017908061

main90179-08061

9046812023

main90468-12023

9046814004

main90468-14004

91611B0816

main91611-B0816

9161261022

main91612-61022

91621B0616

main91621-B0616

9165160616

main91651-60616

18 parts on this diagram · 1 diagram in section
