STANDARD TOOL

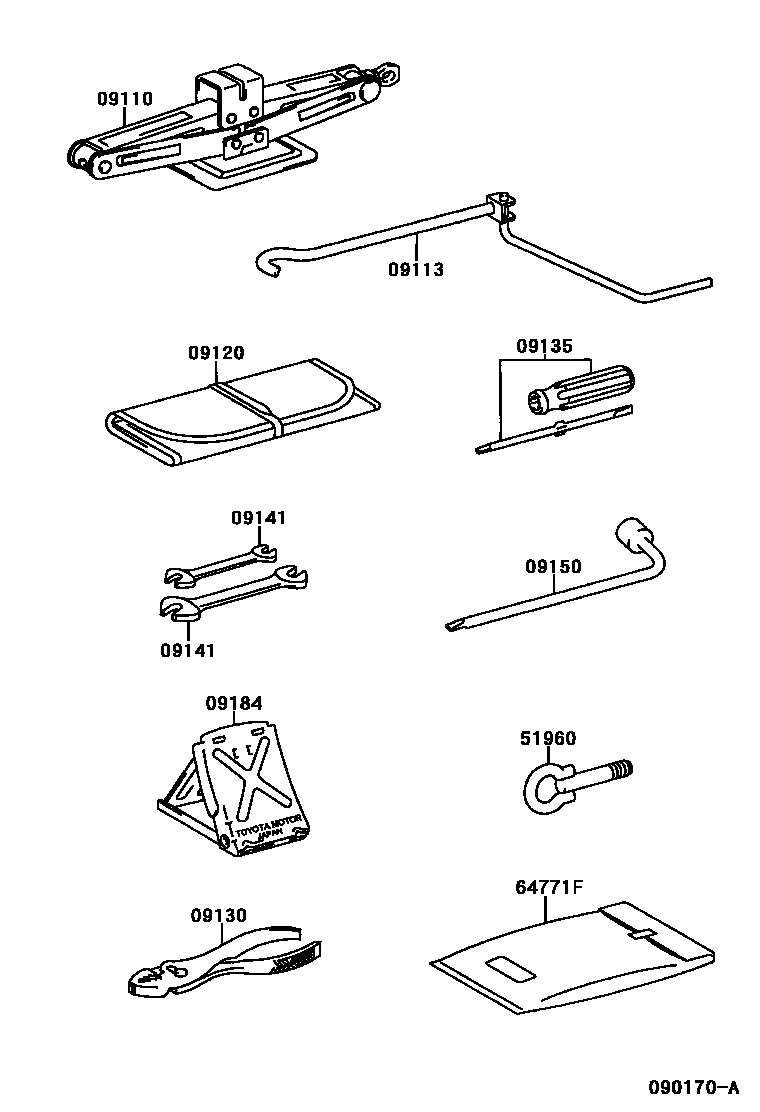

Parts diagram

09110JACK ASSY

main09111-28110i200111-200408

main09111-50051i200408-200706

09113HANDLE, JACK

main09113-44010i200111-200408

09120BAG, TOOL

main09120-12011i200111-200307

main09120-16030i200408

main09120-16030i200111-200408

09130PLIERS

main99913-11500i200111-200408

09135DRIVER, SCREW

main99915-10700i200111-200408

09141SPANNER

main99914-10810i200111-200408

main99914-11214i200111-200408

mainC649422010i200111-200408

09150WRENCH, HUB NUT BOX

main09150-40010i200111-200706

09184STOPPER, WHEEL

main09184-00010i200111-200408

51960HOOK ASSY, FRONT

main51960-28010i200111-200408

64771FCOVER, SPARE WHEEL

main64771-44010i200111-200706

10 parts on this diagram · 1 diagram in section
