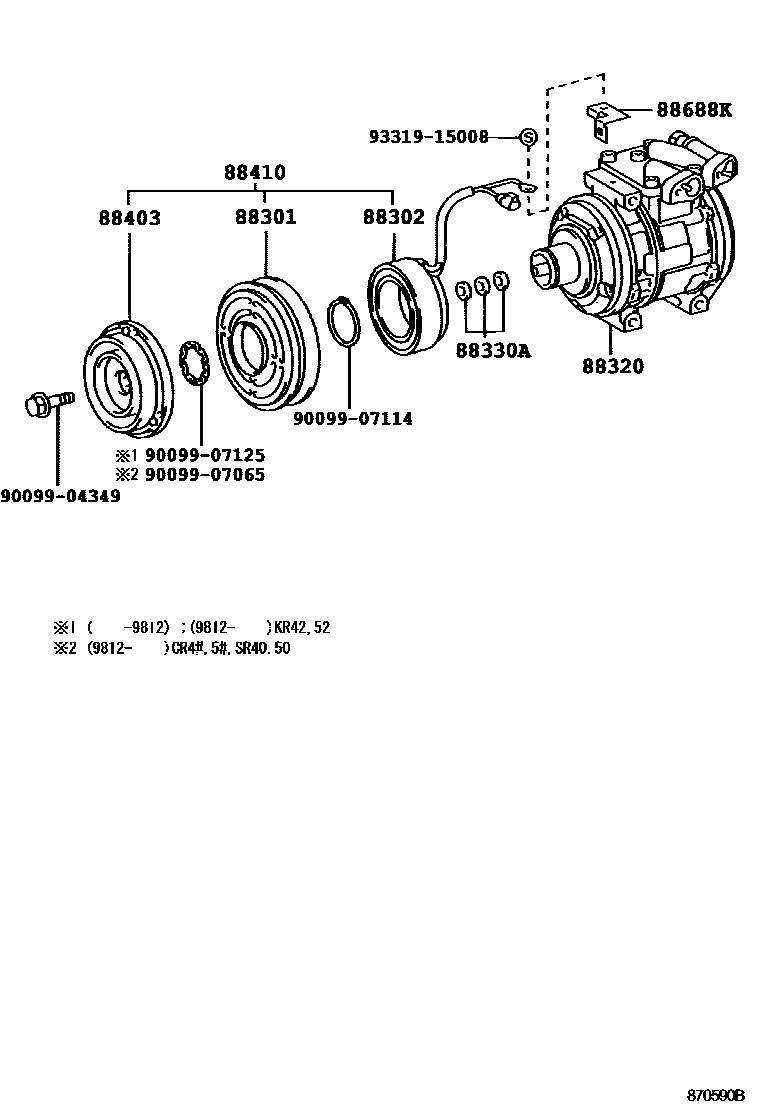

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-28060iSR40,50199812-200111

main88412-28070iCR4#,5#199812-200407

main88412-2A060iKR42..D..CBU;KR42..HRF..IV5..V1200111-200708

main88412-30430iKR42..D199611-200708

sub88412-2A060

main88412-33040iSR40,50199610-199812

sub88412-2A050

main88412-38010iCR4#,5#199610-199812

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iCR4#,5#,KR4#,SR40,50199610-199708

sub88411-2A030

main88411-2A030iCR4#,5#,KR4#,SR40,50199708-200708

88320COMPRESSOR ASSY, COOLER

main88320-28270iCR41,51199611-199812

sub88320-60H91

main88320-28280iSR40,50199610-199812

main88320-28290iKR42,52199611-199812

main88320-28300iCR40,50199610-199812

sub88320-26H91

main88320-28320iSR40,50199812-200111

main88320-28330iCR40,50199812-200111

main88320-28340iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iCR42..06S..MTM..IV5199812-200407

main88403-2A010iSR40,50199812-200111

main88403-30290iCR4#,5#,KR4#,SR40,50199610-199812

88410CLUTCH ASSY, MAGNET

main88410-22480iKR4#199611-199812

main88410-28160iCR4#,5#199610-199812

main88410-28170iSR40,50199610-199812

main88410-28180iSR40,50199812-200111

main88410-28190iCR42..06S..MTM..IV5199812-200407

88688KBRACKET, COOLER COMPRESSOR

main88688-2J350iCR4#,5#,SR40,50199610-199812

sub88371-28330

main88688-2J460iKR4#199611-199812

main88688-2J590iCR4#,5#,SR40,50199812-200407

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9009907125

main90099-07125

9331915008

main93319-15008

12 parts on this diagram · 5 diagrams in section
