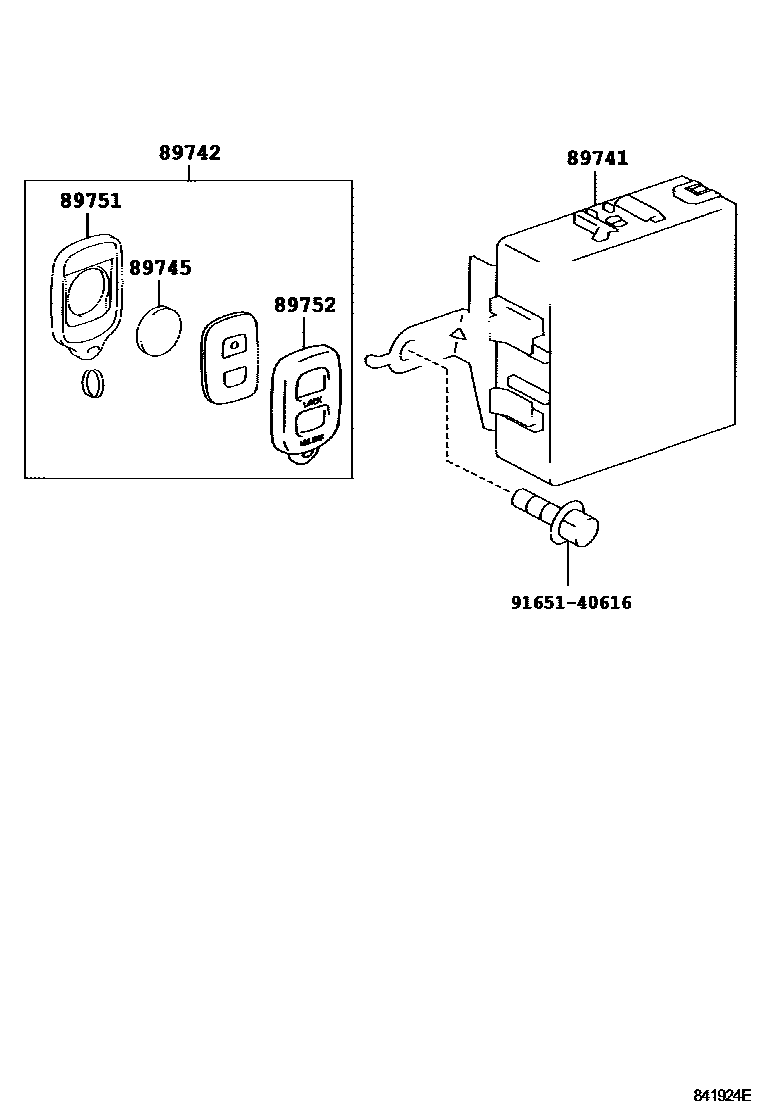

WIRELESS DOOR LOCK

0001 1 0002 1

89741RECEIVER, DOOR CONTROL

main89741-28070iCR40,50,SR40,50..E..CBU199801-199812

main89741-28080iCR40,50,SR40,50..E,Q,S,V199812-200111

89742TRANSMITTER, DOOR CONTROL

main89742-33120iCR40,50,SR40,50..E..CBU199801-199812

89745BATTERY, TRANSMITTER

main89745-41010iCR40,50,SR40,50..E,Q,S,V199812-200111

main89745-50010iCR40,50,SR40,50..E..CBU199801-199812

sub89745-71010

89751COVER, TRANSMITTER HOUSING

main89751-44010iCR40,50,SR40,50..E,Q,S,V199812-200111

main89751-44050iCR40,50,SR40,50..E..CBU199801-199812

9165140616

main91651-40616

5 parts on this diagram · 2 diagrams in section
