ABS & VSC

0001 1 0002 1

85999MBRACKET, RELAY

main85999-28430iCR40,50,SR40,50199812-200111

88263ARELAY, SKID CONTROL

main88263-14110iCR4#,5#,KR4#,SR40,50199610-199812

88263ERELAY, SKID CONTROL NO.2

main88263-24030iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

89540COMPUTER ASSY, SKID CONTROL

main89540-28250iCR40,SR40..07S,08S199812-200111

main89540-28260iCR40,SR40;CR41,KR4#..V1199801-199812

main89540-28270iCR50,SR50199812-200111

sub89540-28271

main89540-28280iCR51199801-199812

main89540-28281iKR52200412

main89540-28290iCR41,KR4#..SJL199801-199812

89541COMPUTER, SKID CONTROL

main89541-28100iCR40,SR40;CR41,KR4#..V1199610-199801

main89541-28110iCR50,SR50199610-199801

main89541-28130iCR51199611-199801

main89541-28140iCR41,KR4#..SJL199611-199801

89542SENSOR, SPEED, FRONT RH

main89542-28070iCR4#,KR4#,SR40199610-199812

main89542-28080iCR5#,SR50199610-199812

89543SENSOR, SPEED, FRONT LH

main89543-28070iCR4#,KR4#,SR40199610-199812

main89543-28080iCR5#,SR50199610-199812

89545SENSOR, SPEED, REAR RH

main89545-28130iCR40,50,SR40,50199812-200111

main89545-28140iKR42..SJL199812

89546SENSOR, SPEED, REAR LH

main89546-28130iCR42..06S..MTM..IV5..V1199812-200208

main89546-28140iCR42..CBU..SJL199812-200407

89549BRACKET, SKID CONTROL COMPUTER

main89549-28110iCR4#,5#,KR4#,SR40,50199610-199801

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12010iCR42..06S..MTM..IV5199812-200208

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12010iCR4#,5#,KR4#,SR40,50199610-199812

9017906161

main90179-06161

9165160612

main91651-60612

9165160614

main91651-60614

9165160616

main91651-60616

9165160818

main91651-60818

91651B0616

main91651-B0616

9326954010

main93269-54010

9671119020

main96711-19020

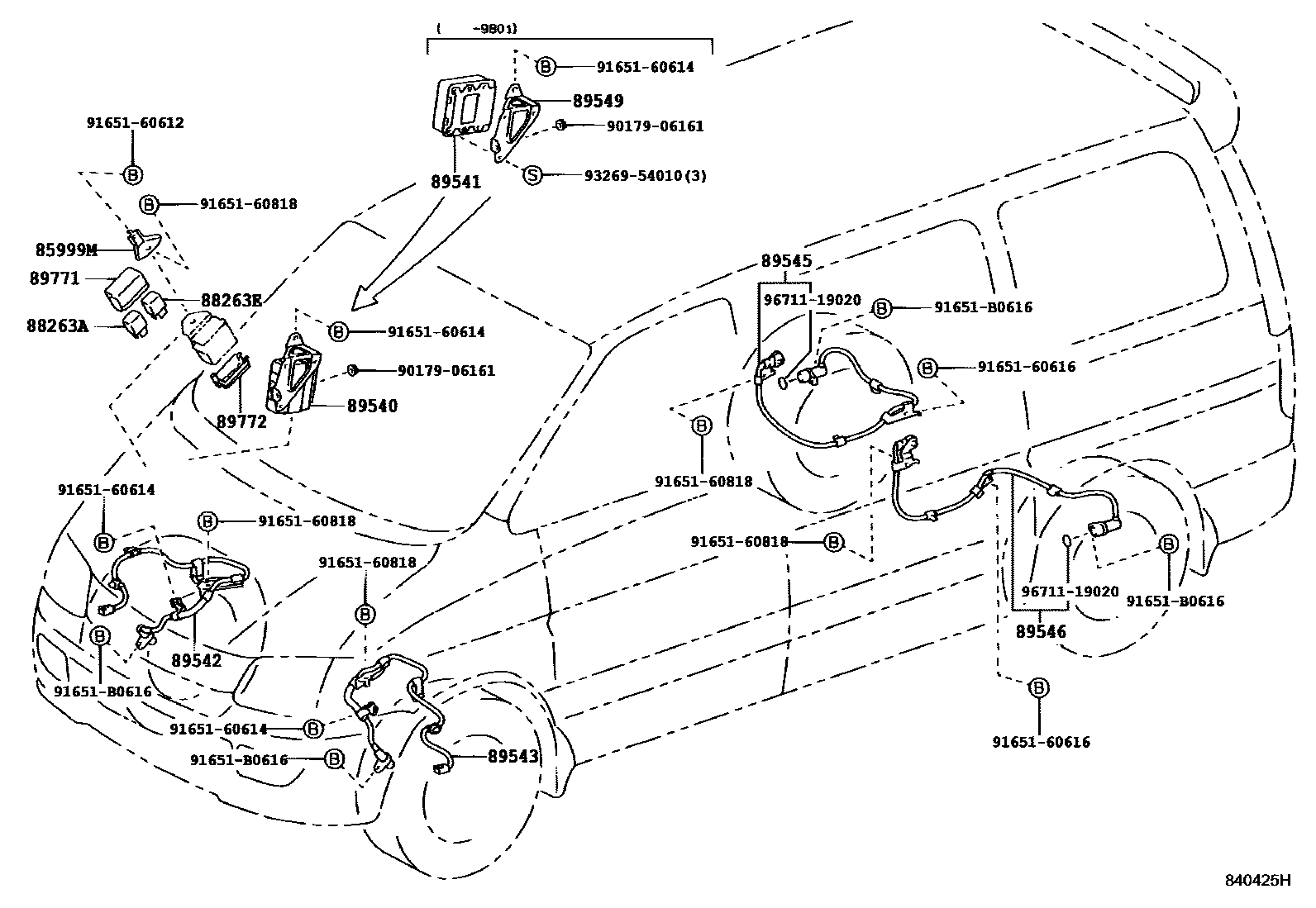

20 parts on this diagram · 2 diagrams in section
