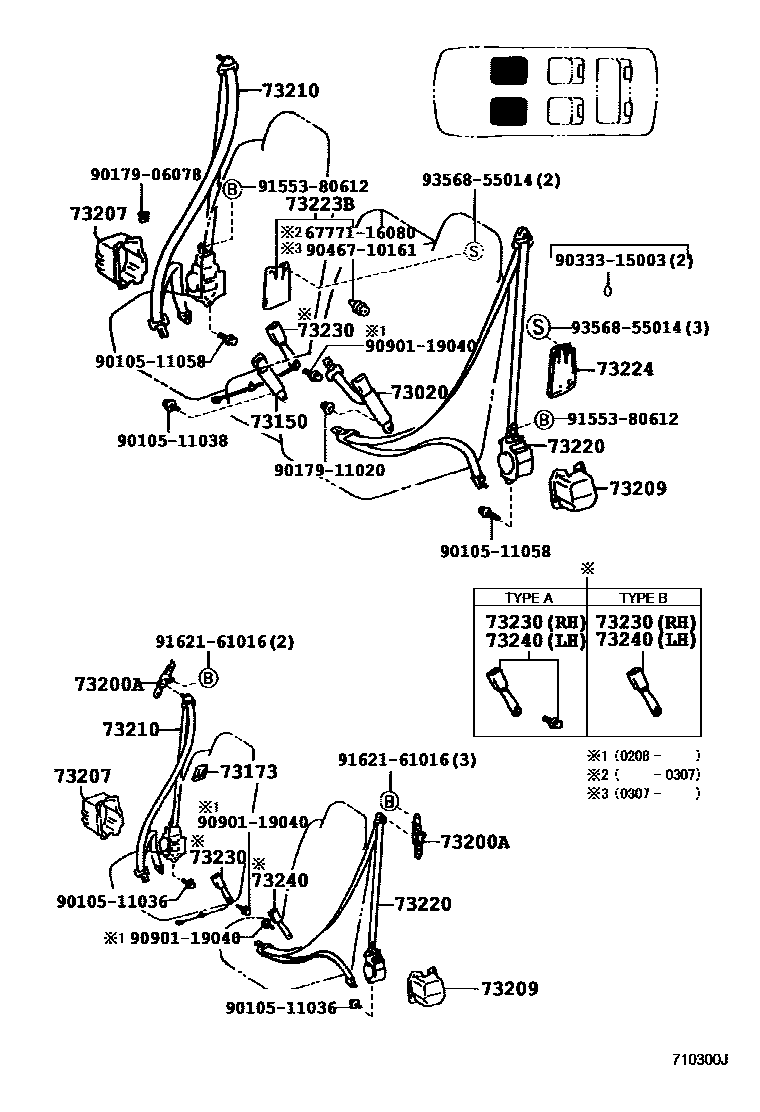

SEAT BELT

0001 1���� �-� 0002 1�� NO.1��� 0004 1�� NO.1��� 0005 1�� NO.1���(����� ��� ����) 0006 1�� NO.1��� 0007 1�� NO.2���

73020BELT ASSY, FRONT SEAT, CENTER W/INNER

main73020-28030-B0iCR41,51,KR4#,SR40,50..03S,06S199611-200208

BLUISH GRAY,TRIM1#

main73020-28040-B0iCR42,52,KR42..D199812-200208

main73020-28040-B0iSR40,50..B199812-200111

BLUISH GRAY,TRIM1#

main73020-28050-B0iCR42,52,KR42,52..D200208

BLUISH GRAY,TRIM1#

main73020-28060-B0iCR42,52,KR42,52..D200208

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-28020-B0iCR42,52,KR42,SR40,50..03S,06S199611-200208

BLUISH GRAY,TRIM1#

main73150-28030-B0iCR42,52,KR42,52..D200208

BLUISH GRAY,TRIM1#

73173COVER, FRONT SEAT BELT HOLE, RH

main73173-28010-B0iCR40,50,SR40,50..E,Q,V199610-200111

MOON MIST,TRIM1#

sub73173-28010

main73173-28010-B0iCR40,50,SR40,50..S,V199812-200111

sub73173-28010

main73173-28010-G0iCR40,50,SR40,50..E,Q199610-200111

SAGE,TRIM6#

sub73173-28010

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-28020-B0iCR40,50,SR40,50..S,V199812-200111

MOON MIST,TRIM1#

sub73200-28020

main73200-28020-B0iCR40,50,SR40,50..E,Q,V199610-199812

sub73200-28020

main73200-28020-B0iCR40,50,SR40,50..S,V199812-200111

sub73200-28020

main73200-28020-G0iCR40,50,SR40,50..E,Q199610-199812

sub73200-28020

main73200-28020-G0iCR40,50,SR40,50..E,Q199812-200111

SAGE,TRIM6#

sub73200-28020

main73290-28010-B0iCR40,50,SR40,50..S,V199610-200111

sub73290-28010

main73290-28010-G0iCR40,50,SR40,50..E,Q199610-200111

sub73290-28010

73207COVER SUB-ASSY, SEAT BELT RETRACTOR, RH

main73207-28020iCR4#,5#,KR4#,SR40,50199610-199710

sub73207-28030

main73207-28030iCR4#,5#,KR4#,SR40,50199710-200012

main73207-28040iCR4#,5#,KR42,SR40,50200012-200208

73209COVER SUB-ASSY, SEAT BELT RETRACTOR, LH

main73209-28030iCR4#,5#,KR4#,SR40,50199610-199710

sub73209-28040

main73209-28040iCR4#,5#,KR4#,SR40,50199710-200208

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-28470-B0iCR40,50,SR40,50..E,Q,V199610-199801

BLUISH GRAY,TRIM1#

sub73210-28470

main73210-28470-G0iCR40,50,SR40,50..E,Q199610-199801

DARK AGATE,TRIM6#

sub73210-28470

main73210-28480-B0iCR41,51,KR4#,SR40,50..03S,05S,06S199611-199801

BLUISH GRAY,TRIM1#

main73210-28490-B0iCR40,50,SR40,50..D199611-199801

BLUISH GRAY,TRIM1#

main73210-28560-B0iCR40,50,SR40,50..E,Q,V199801-199812

sub73210-28560

main73210-28560-G1iCR40,50,SR40,50..E,Q199801-199812

sub73210-28560

main73210-28570-B0iCR4#,5#,KR4#,SR40,50..B,D,N199801-199812

main73210-28580-B0iCR41,51,KR4#..D199801-199812

BLUISH GRAY,TRIM1#

main73210-28620-B1iCR40,50,SR40,50..S,V199812-200111

sub73210-28620

main73210-28620-B1iCR40,50,SR40,50..S,V199812-200111

BLUISH GRAY,TRIM1#

sub73210-28620

main73210-28620-G0iCR40,50,SR40,50..E,Q199812-200111

DARK AGATE,TRIM6#

sub73210-28620

main73210-28630-B0iCR4#,5#,KR42,SR40,50..B,D,N199812-200208

main73210-28640-B0iCR42,52,KR42..D199812-200208

BLUISH GRAY,TRIM1#

main73210-28710-B0iCR42,52,KR42,52200208

BLUISH GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-28420-B0iSR40,50..B199611-199812

main73220-28420-B0iSR40,50..B199611-199812

BLUISH GRAY,TRIM1#

main73220-28450-B0iCR40,50,SR40,50..E,Q,V199610-199801

BLUISH GRAY,TRIM1#

sub73220-28450

main73220-28450-G0iCR40,50,SR40,50..E,Q199610-199801

DARK AGATE,TRIM6#

sub73220-28450

main73220-28460-B0iCR4#,5#,KR4#,SR40,50..B,D,N199611-199801

main73220-28480-B0iCR40,50,SR40,50..S,V199812-200111

sub73220-28480

main73220-28480-B0iSR40,50..E..CBU199812-200111

sub73220-28480

main73220-28480-G0iCR40,50,SR40,50..E,Q199812-200111

sub73220-28480

main73220-28490-B0iCR40,50,SR40,50..E,Q,V199801-199812

BLUISH GRAY,TRIM1#

sub73220-28490

main73220-28490-G0iCR40,50,SR40,50..E,Q199801-199812

DARK AGATE,TRIM6#

sub73220-28490

main73220-28500-B0iCR41,51,KR4#199801-199812

main73220-28500-B0iCR40,50,SR40,50..B,D199801-199812

BLUISH GRAY,TRIM1#

main73220-28580-B0iCR4#,5#,KR42,SR40,50..B,D,N199812-200208

BLUISH GRAY,TRIM1#

main73220-28590-B0iCR40,50,SR40,50..S,V199812-200111

sub73220-28590

main73220-28590-B0iSR40,50..E..CBU199812-200111

sub73220-28590

main73220-28590-G0iCR40,50,SR40,50..E,Q199812-200111

sub73220-28590

main73220-28600-B0iCR4#,5#,KR42,SR40,50..B,D,N199812-200208

main73220-28670-B0iCR42,52,KR42,52200208

BLUISH GRAY,TRIM1#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-28010-B0iCR4#,5#,KR4#,SR40,50..B,D,N199611-200208

MD.MOON MIST,TRIM1#

main73223-28020-B0iCR40,50,SR40,50..D199801-199905

main73223-28020-B0iCR41,51,KR4#,SR40,50..03S,05S,06S199801-199905

main73223-28020-B0iKR52;KR42..SRF..IV5;KR42..IV5..SJL200208

MD.MOON MIST,TRIM1#

main73223-28030-B0iCR40,50,SR40,50..D199801-200111

73224COVER, FRONT SEAT BELT RETRACTOR, LH

main73224-28020-B0iCR42,52,KR42..D199611-200208

MD.MOON MIST,TRIM1#

main73224-28030-B0iCR4#,5#,KR42,52,SR40,50..B,D,N199801-199812

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-28220-B0iCR4#,5#,KR4#,SR40,50199610-200208

main73230-28220-B0iSR40,50..E..CBU199812-200111

main73230-28220-G0iCR40,50,SR40,50..E,Q199610-200111

main73230-28300-B0iCR42,52,KR42200208

main73230-28300-B0iKR52200412

MD.MOON MIST,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-28130-B0iCR42,52,KR42..N;CR52,KR42..HRF..5D..ATM..D..V1199610-200208

main73240-28130-B0iSR40,50..5D..ATM199806-199812

main73240-28130-B1iCR51,KR41..HRF..5D..ATM..D..V1199801-199812

main73240-28130-G0iCR40,50,SR40,50..E,Q199610-199812

main73240-28150-B0iCR42,52,KR42,52..N200208

main73240-28160-B0iCR40,50,SR40,50..D,S,V199812-200111

main73240-28160-B0iCR40,50,SR40,50..D,S,V199812-200111

main73240-28160-B0iCR42,52,KR42..N;CR52,KR42..HRF..5D..ATM..D..V1199812-200208

main73240-28160-G0iCR40,50,SR40,50..E,Q199812-200111

main73240-28180-B0iCR42,52,KR42,52..N200208

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

9010511036

main90105-11036

9010511038

main90105-11038

9010511058

main90105-11058

9017906078

main90179-06078

9017911020

main90179-11020

9033315003

main90333-15003

9046710161

main90467-10161

9090119040

main90901-19040

9155380612

main91553-80612

9162161016

main91621-61016

9356855014

main93568-55014

24 parts on this diagram · 6 diagrams in section
