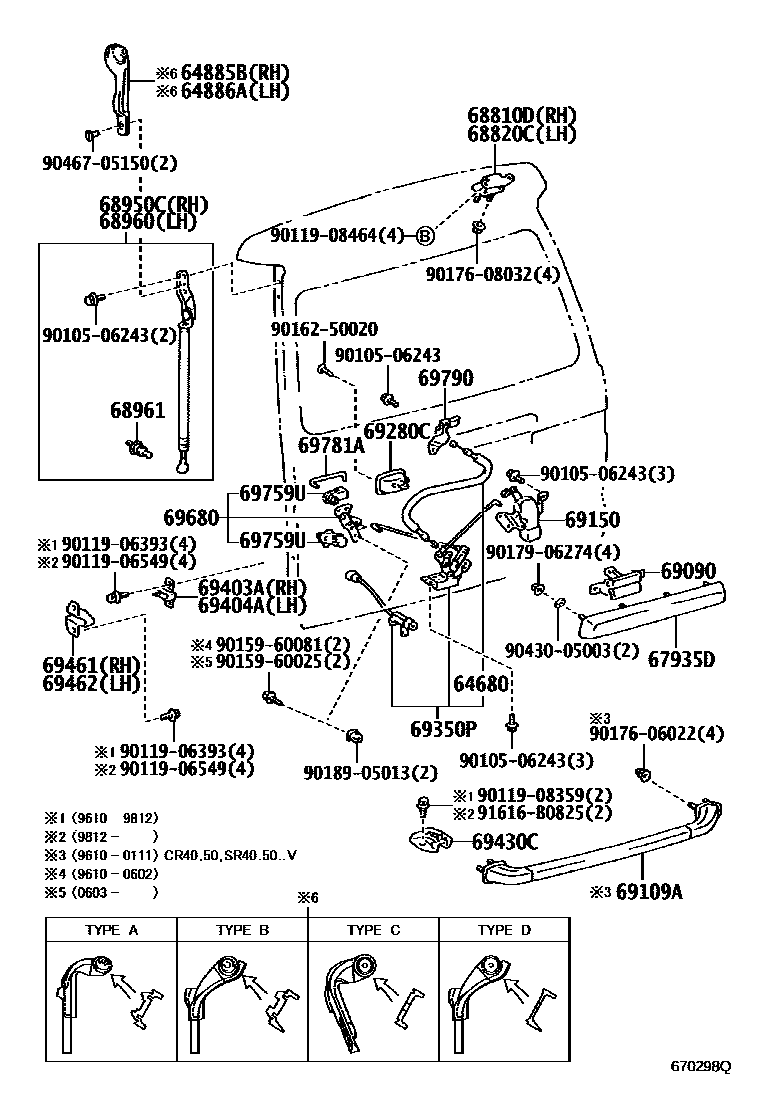

BACK DOOR LOCK & HINGE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-28010iCR4#,5#,KR4#,SR40,50199610-199801

main64680-28020iCR40,50,SR40,50199812-200111

64885BCHANNEL, BACK WINDOW GLASS, RH

main64885-28010iCR40,50,SR40,50..SRF..(E,Q,V)199610-199812

main64885-28020iCR40,50,SR40,50..HRF..(E,Q)199610-199812

main64885-28030iCR41,51,KR4#..SRF199611-199812

main64885-28040iSR40,50..B199611-199812

64886ACHANNEL, BACK WINDOW GLASS, LH

main64886-28010iSR40,50..5D..ATM199806-199812

main64886-28020iCR40,50,SR40,50..HRF..(E,Q)199610-199812

main64886-28030iCR41,51,KR4#..SRF199611-199812

main64886-28040iSR40,50..B199611-199812

67935DGARNISH, BACK DOOR

main67935-28030iCR40,50,SR40,50..B,D199812-200111

68810DHINGE ASSY, BACK DOOR, RH

main68810-95J02iCR4#,5#,KR42,52,SR40,50199812

68820CHINGE ASSY, BACK DOOR, LH

main68820-28030iCR41,51,KR42..CBU;CR40,50,KR41,SR40,50199610-199812

main68820-95J02iCR4#,5#,KR4#,SR40,50..B,D199611-199812

68950CSTAY ASSY, BACK DOOR, RH

main68950-29905iCR40,50,SR40,50..SRF..(E,Q)199610-199611

main68950-29906iCR42,52..03S..IV5199812-200407

main68950-29915iCR4#,5#,KR4#,SR40,50..SRF..D199611-199703

main68950-29916iKR52..SRF..D200412

main68950-29925iCR4#,50,KR42,SR40,50..SRF..(E,N,Q)199610-199703

main68950-29926iCR42,52..03S..IV5199812-200407

main68950-29935iCR4#,5#,KR4#,SR40,50..SRF..(D,N)..CBU199611-199703

main68950-29936iKR42..SRF..D..CBU199812

main68950-29945iCR40,50,SR40,50..HRF..(E,Q)199610-199703

main68950-29946iCR40,50,SR40,50..HRF..(E,Q)199703-199812

main68950-29955iCR41,51,KR42..06S..IV5;CR40,50,SR40,50..HRF..(E,Q)199610-199703

main68950-29956iCR40,50,SR40,50..HRF..(E,Q)199812-200111

main68950-29965iCR41,51,KR4#,SR40,50..HRF..(B,D,N)199611-199703

main68950-29966iKR42..HRF199812

main68950-29975iCR41,51,KR42..HRF..N199611-199703

main68950-29976iKR52..HRF200412

main68950-29985iCR40,50,SR40,50..V199610-199703

main68950-29986iCR40,50,SR40,50..V199703-199812

main68950-29995iCR40,50,SR40,50..V199610-199703

main68950-29996iCR40,50,SR40,50..V199703-199812

main68950-80053iCR40,50,SR40,50..V199610-199703

main68950-80060iCR40,50,SR40,50..V199812-200111

68960STAY ASSY, BACK DOOR, LH

main68960-29905iCR40,50,SR40,50..SRF..(E,Q)199610-199611

main68960-29906iCR41,51..03S..IV5199703-199812

main68960-29915iCR4#,5#,KR4#,SR40,50..SRF..D199611-199703

main68960-29916iKR52..SRF..D200412

main68960-29925iCR4#,5#,KR4#,SR40,50..SRF..D199610-199703

main68960-29926iCR42,52..03S..IV5199812-200407

main68960-29935iCR4#,5#,KR4#,SR40,50..SRF..(D,N)..CBU199611-199703

main68960-29936iKR52..SRF..D200412

main68960-29945iCR40,50,SR40,50..HRF..(E,Q)199610-199703

main68960-29946iCR42..ATM..IV5;CR52..06S..IV5199812-200407

main68960-29955iCR41,51,KR42..06S..IV5;CR40,50,SR40,50..HRF..(E,Q)199610-199703

main68960-29956iCR40,50,SR40,50..HRF..(E,Q)199812-200111

main68960-29966iKR52..HRF200412

main68960-29975iCR41,51,KR42..HRF..N199611-199703

main68960-29976iCR52..HRF;CR42..HRF..CBU;CR42..ATM..IV5199812-200407

main68960-29985iCR40,50,SR40,50..V199610-199703

main68960-29986iCR40,50,SR40,50..V199703-199812

main68960-29995iCR40,50,SR40,50..V199610-199703

main68960-29996iCR40,50,SR40,50..V199703-199812

main68960-80009iCR40,50,SR40,50..V199610-199703

main68960-80012iCR40,50,SR40,50..V199703-199812

68961BOLT, BACK DOOR STAY

main68961-28020×2iKR42,52199812

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-28030iCR40,50,SR40,50..E,Q,V199610-199812

main69090-28041iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

69109AGRIP SUB-ASSY, BACK DOOR, OUTSIDE

main69109-28010iCR40,50,SR40,50..V199610-199812

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-28030iCR4#,5#,KR4#,SR40,50199610-199812

69280CHANDLE ASSY, DOOR, INSIDE LH

main69270-28020iCR42..06S..MTM..IV5199812-200208

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28040iCR41,51,KR42;CR40,50,KR41,SR40,50..CBU199610-199801

main69350-28050iCR4#,5#,KR4#,SR40,50199801-199812

main69350-28070iCR4#,5#,KR42,SR40,50..IV5199610-199801

main69350-28090iCR4#,5#,KR42,SR40,50..IV5199801-199812

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-28010iCR4#,5#,KR4#,SR40,50199610-199812

sub69403-26050

main69403-28020iCR42..06S..MTM..IV5199812-200208

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69403-28010iCR4#,5#,KR4#,SR40,50199610-199812

sub69403-26050

main69403-28020iCR40,50,SR40,50199812-200111

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28030iCR4#,5#,KR4#,SR40,50199610-199812

main69430-28040iCR40,50,SR40,50199812-200111

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-28020×2iCR4#,5#,KR4#,SR40,50199610-199812

main69461-28030iKR42,52199812

69462STOPPER, BACK DOOR SIDE MALE, LH

main69461-28030iKR42,52199812

69680CONTROL ASSY, BACK DOOR LOCK, INSIDE

main69680-28010iKR42,52..IV5199812

69759USNAP, BACK DOOR LOCK CONTROL LINK

main69759-24080iKR42,52..IV5199812

main69759-95701iCR42..06S..MTM..IV5199812-200208

69781ALINK, BACK DOOR INSIDE HANDLE

main69781-28020iCR40,50,SR40,50..IV5199610-199611

69790CONTROL ASSY, BACK DOOR LOCK

main69790-28110iCR4#,5#,KR4#,SR40,50199610-199812

9010506243

main90105-06243

9011906393

main90119-06393

9011906549

main90119-06549

9011908359

main90119-08359

9011908464

main90119-08464

9015960025

main90159-60025

9015960081

main90159-60081

9016250020

main90162-50020

9017606022

main90176-06022

9017608032

main90176-08032

9017906274

main90179-06274

9018905013

main90189-05013

9043005003

main90430-05003

9046705150

main90467-05150

91616B0825

main91616-B0825

38 parts on this diagram · 1 diagram in section
