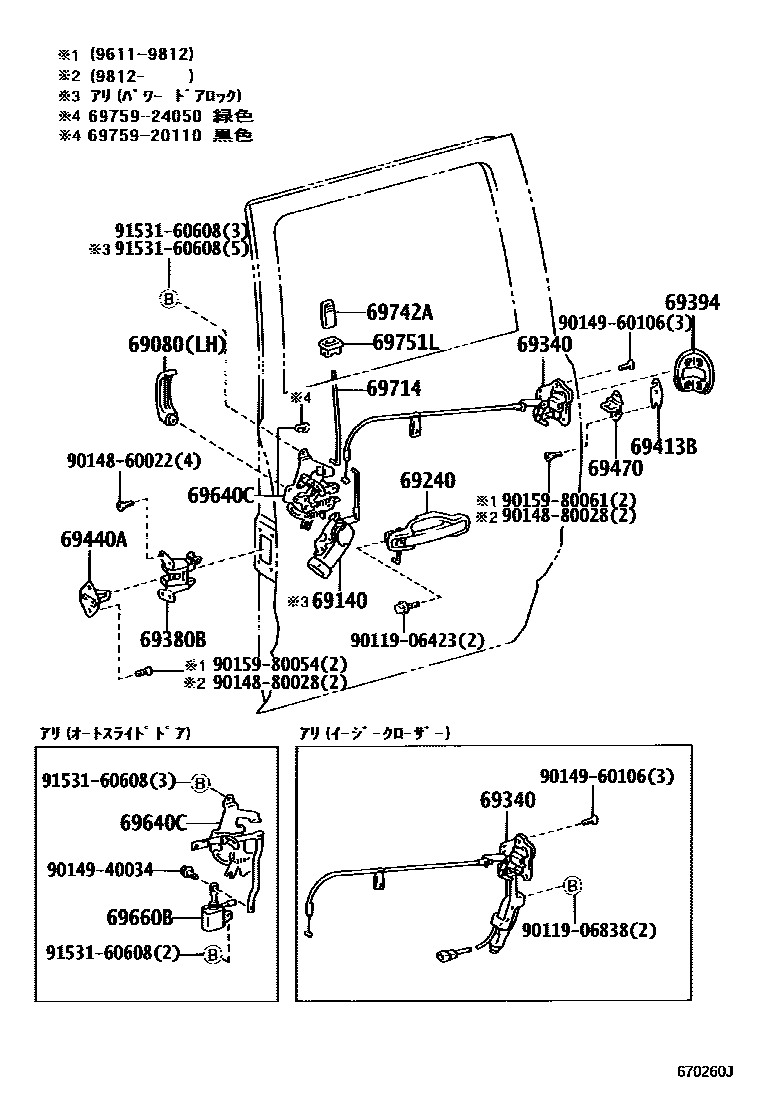

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69070-28050-B1iCR40,50,SR40,50..B,D,S,V199812-200111

main69070-28050-G2iCR40,50,SR40,50..E,Q199812-200111

DARK.SAGE,TRIM6#

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-28040iCR4#,5#,KR4#,SR40,50199610-199812

main69140-28050iCR40,50,SR40,50199812-200111

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-28040iCR4#,5#,KR4#,SR40,50..03S,05S,06S,08S199610-199812

main69240-28050-A0iCR40,50,SR40,50..(E,Q)..CBU199802-199812

main69240-28050-B0iCR40,50,SR40,50..E..CBU199709-199712

main69240-28050-B1iCR40,50,SR40,50..(E,Q)..CBU199802-199812

main69240-28050-B2iCR40,50,SR40,50..E,Q199801-199812

CRYSTAL SILVER PEARL,2EM

main69240-28050-B3iCR40,50,SR40,50..E..CBU199804-199812

main69240-28050-C0iCR40,50,SR40,50..E..CBU199709-199712

main69240-28050-E0iCR40,50,SR40,50..Q199610-199801

BEIGE M.M.OP.,2CQ

main69240-28050-G0iCR40,50,SR40,50..Q199610-199801

OLIVE GREEN ME.,2CP

main69240-28050-G1iCR40,50,SR40,50..E,Q199801-199812

DK. GREEN MC.,2EN

main69240-28050-J0iCR40,50,SR40,50..Q199610-199801

BLUE M.M.,2CM

main69240-28060iCR40,50,SR40,50..B,D,E199812-200111

main69240-28061iKR42,52200208

main69240-28070-A0iCR40,50,SR40,50..E..CBU200010-200110

main69240-28070-A1iSR40,50..HRF..E..CBU200001-200111

main69240-28070-B0iSR40,50..S200012-200110

main69240-28070-B1iCR40,50,SR40,50..E,Q199812-200111

CRYSTAL SILVER PEARL,2EM

main69240-28070-C0iSR40,50..S200012-200110

main69240-28070-D0iCR40,50,SR40,50..V199812-200111

RED MC,2ES

main69240-28070-E0iCR40,50,SR40,50..E,Q199812-200111

BEIGE M.M.OP.,4N9

main69240-28070-F0iCR40,50,SR40,50..E..CBU200012-200110

main69240-28070-G0iCR40,50,SR40,50..E,Q199812-200111

DK. GREEN MC.,2EN

main69240-28070-J0iCR40,50,SR40,50..E,Q,V199812-200111

DK.BLUE M.M.,2EU

main69240-28070-K0iCR40,50,SR40,50..V199812-200111

PURPLE ME.OP.,2ET

69340LOCK ASSY, REAR DOOR, LH

main69340-28020iCR51..IV5;CR41..03S..IV5;CR51..(05S,06S)..CBU;CR4#,50,KR4#,SR40,50..05S,06S,08S199610-199704

main69340-28030iCR40,50,SR40,50..E,Q,V199610-199704

main69340-28040iCR41,51,KR41..03S..CBU199611-199704

main69340-28070iCR51..IV5;CR41..03S..IV5;CR51..(05S,06S)..CBU;CR4#,50,KR4#,SR40,50..05S,06S,08S199704-199812

main69340-28080iCR40,50,SR40,50..Q199801-199812

main69340-28090iCR41,51,KR41..03S..CBU199704-199812

main69340-28100iCR40,50,SR40,50..E,Q,S,V199812-200111

sub69340-28101

main69340-28110iCR40,50,SR40,50..B,D,E,S,V199812-200111

main69340-28130iKR42,52..03S199812

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28040iCR42..06S..MTM..IV5199812-200208

main69380-28050iCR40,50,SR40,50199812-200111

69394COVER, REAR DOOR LOCK, OUTER LH

main69394-28010iCR4#,5#,KR4#,SR40,50199704-199812

69413BSHIM, DOOR LOCK STRIKER

main69413-28020iCR4#,5#,KR4#,SR40,50199610-199812

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iCR4#,5#,KR4#,SR40,50..4D..(06S,07S,08S)199610-199812

sub69440-46010

main69440-28040×2iCR42,52..5D..(05S,06S)199812-200407

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28060iCR4#,5#,KR4#,SR40,50..4D199610-199812

main69470-28070iCR40,50,SR40,50..4D199812-200111

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28110iCR41,51,KR4#199611-199812

main69640-28120iCR40,50,SR40,50199610-199812

main69640-28130iKR42,52199812

main69640-28140iCR40,50,SR40,50199812-200111

main69640-28180iCR40,50,SR40,50..E,Q,S,V199812-200111

69660BCONTROL ASSY, POWER SLIDE DOOR LOCK REMOTE

main69660-28030iCR40,50,SR40,50..E,Q,S,V199812-200111

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-28030iCR42..06S..MTM..IV5199812-200208

main69714-28040iCR40,50,SR40,50..E,Q,V199610-199812

69742AKNOB, REAR DOOR LOCK CONTROL, LH

main69741-28020-G0iCR40,50,SR40,50..E,Q,V199610-199812

DK.SAGE,TRIM6#

main69741-87003-B5iCR42..06S..MTM..IV5199812-200208

MD.MOON MIST,TRIM1#

69751LHOLDER, REAR DOOR LOCK CONTROL KNOB, LH

main69751-12060-B2iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

DARK.SAGE,TRIM1#

main69751-28010-B4iCR40,50,SR40,50..S,V199812-200111

MD.MOON MIST,TRIM1#

main69751-28010-G2iCR40,50,SR40,50..E,Q199812-200111

DK.SAGE,TRIM6#

9011906423

main90119-06423

9011906838

main90119-06838

9014860022

main90148-60022

9014880028

main90148-80028

9014940034

main90149-40034

9014960106

main90149-60106

9015980054

main90159-80054

9015980061

main90159-80061

9153160608

main91531-60608

23 parts on this diagram · 2 diagrams in section
