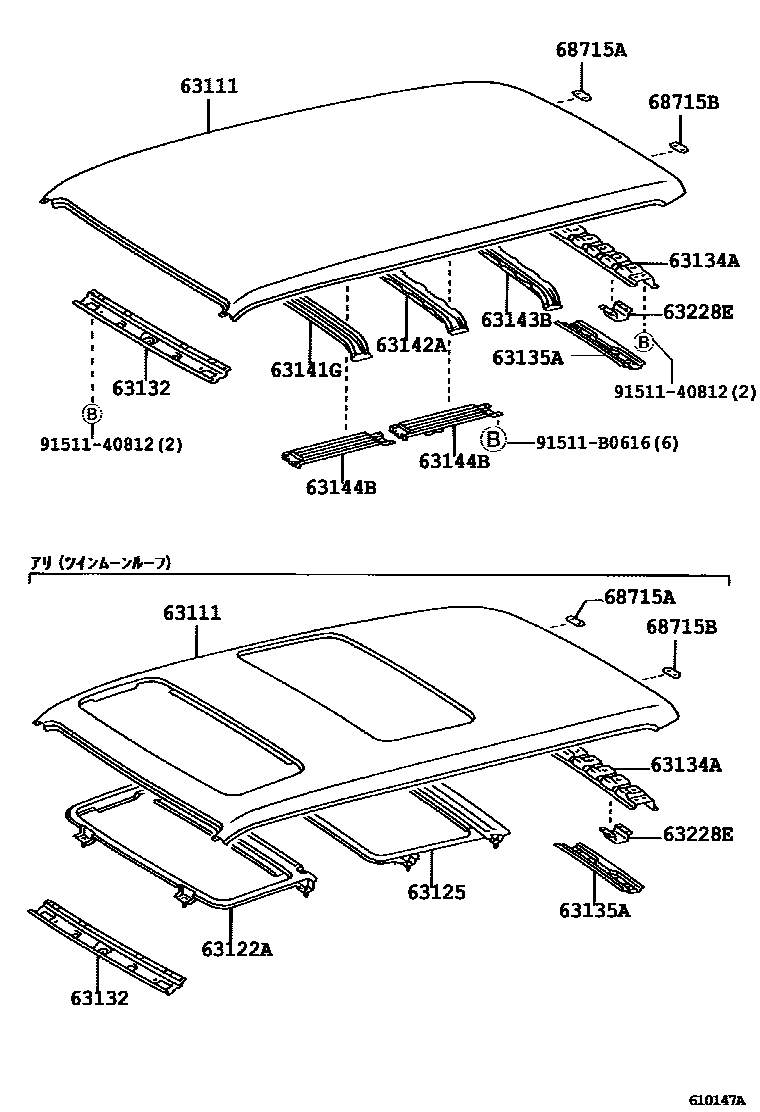

ROOF PANEL & BACK PANEL

0001 1 0002 1��(��� �-��-�) 0003 1��(�-� ���)

63111PANEL, ROOF

main63111-28070iSR40,50..5D..ATM199806-199812

main63111-28070iKR42,52..SRF199610-200407

main63111-28090iCR52..HRF;CR42..HRF..CBU;CR42..ATM..IV5199610-200407

main63111-28100iCR40,50..HRF;SR40,50..08S..Q199610-200111

main63111-28100iSR40,50..07S;SR40,50..HRF..E199812-200111

main63111-28110iCR40,50,SR40,50..S,V199610-200111

main63111-28110iSR40,50..SRF..E199706-199812

main63111-28120iSR40,50..S;CR40,50..S,V199610-200111

main63111-28120iSR40,50..S;CR40,50..S,V199812-200111

main63111-28120iSR40,50..SRF..E199706-199812

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-28030iSR40,50..SRF..E199706-199801

main63122-28030iCR40,50,SR40,50..V199610-200111

main63122-28030iSR40,50..SRF..E199801-199812

main63122-28040iCR40,50,SR40,50..HRF..(E,Q)199610-200111

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-28030iSR40,50..SRF..E199706-199801

main63125-28030iCR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q)199610-200111

main63125-28030iSR40,50..SRF..E199801-199812

63132PANEL, WINDSHIELD HEADER, INNER

main63132-28040iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-28030iKR42,52..HRF199610-200407

main63134-28040iCR4#,5#,KR4#,SR40,50..SRF199610-200407

main63134-28040iSR40,50..5D..ATM199806-199812

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-28030iKR42,52..HRF199610-200407

main63135-28040iCR40,50,SR40,50..SRF199610-200407

main63135-28040iSR40,50..5D..ATM199806-199812

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-28040iSR40,50..5D..ATM199806-199812

sub63141-28050

main63141-28040iCR41,51,KR4#..SRF199611-199812

sub63141-28050

main63141-28050iCR40,50,SR40,50..SRF199610-200407

main63141-28060iCR41,51,KR4#,SR40,50..HRF..(B,D,N)199611-199812

sub63141-28100

main63141-28100iCR42..06S..MTM..IV5199610-200407

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-28040iCR42,52..SRF199610-200407

main63142-28040iSR40,50..5D..ATM199806-199812

main63142-28050iCR52..HRF;CR42..HRF..CBU;CR42..ATM..IV5199610-200407

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28030iKR42,52..SRF199610-200407

main63143-28030iSR40,50..5D..ATM199806-199812

main63143-28040iCR42..06S..MTM..IV5199610-200407

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63046-28010iCR40,50,SR40,50..E,Q,S,V199610-200111

main63144-28040iCR4#,5#,KR4#,SR40,50..B,D,N199611-200407

main63144-28040iCR40,50,SR40,50..E,Q,S,V199610-200111

63228EBRACKET, ROOF HEADLINING, NO.1

main63228-28030iCR4#,5#,KR4#,SR40,50199610-200407

68715APLATE, DOOR HINGE, UPPER

main68715-28030iCR4#,5#,KR4#,SR40,50199610-200111

sub68715-28040

main68715-28040iSR40,50..B199812-200407

68715BPLATE, DOOR HINGE, UPPER

main68715-28040iCR4#,5#,KR4#,SR40,50199610-200407

9151140812

main91511-40812

91511B0616

main91511-B0616

15 parts on this diagram · 3 diagrams in section
