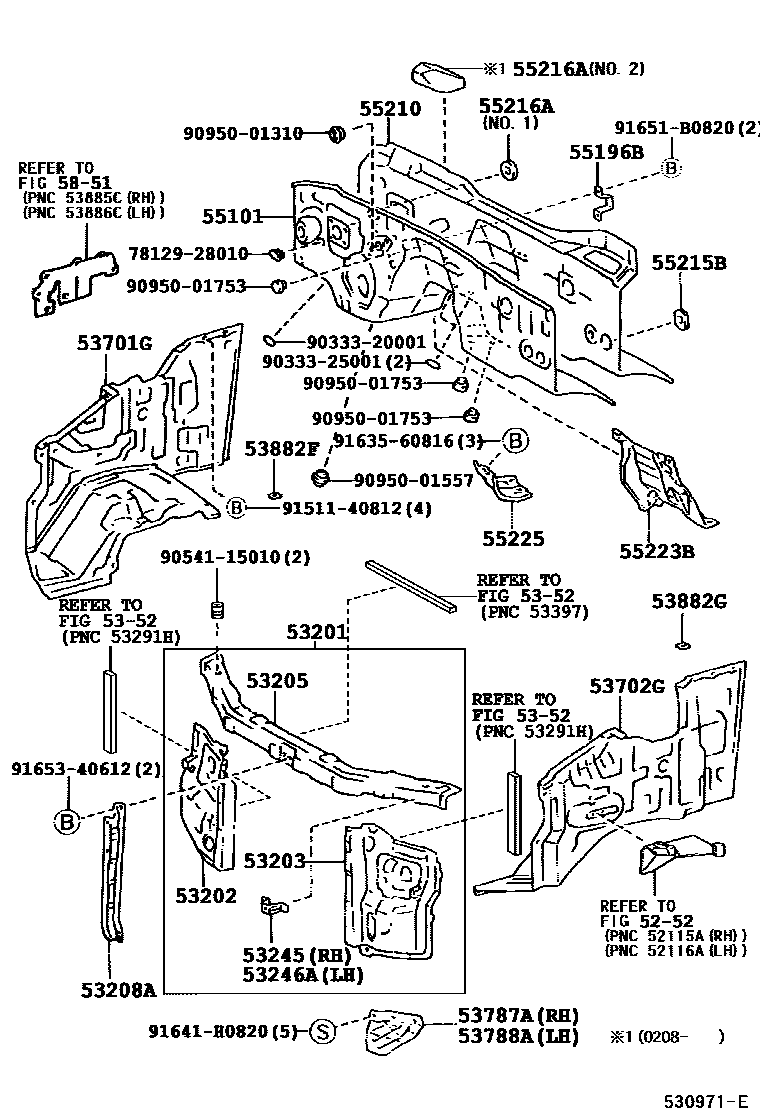

FRONT FENDER APRON & DASH PANEL

5252

53201SUPPORT SUB-ASSY, RADIATOR

main53201-28060iCR40,50199610-200111

main53201-28080iCR41,51199611-200407

main53201-28080iCR40,50..(E,Q)..CBU199802-199812

main53201-28090iSR40,50..07S,08S199610-200111

sub53201-28060

main53201-28100iSR40,50..(E,Q)..CBU199802-199812

sub53201-28120

sub90179-06150

main53201-28100iKR4#,SR40,50..03S,05S,06S199611-199812

sub53201-28120

sub90179-06150

main53201-28120iKR42,52,SR40,50..03S,05S,06S199812-200508

sub53201-28080

main53201-28200iKR42,52200508

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-28030iCR40,50,SR40,50..07S,08S199610-200111

main53202-28040iCR40,50,SR40,50..(E,Q)..CBU199802-199812

main53202-28040iCR42..06S..MTM..IV5199611-200508

main53202-28100iKR42,52200508

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-28030iCR40,50,SR40,50..07S,08S199610-200111

main53203-28040iCR40,50,SR40,50..(E,Q)..CBU199802-199812

main53203-28040iSR40,50..B199611-200508

main53203-28100iKR42,52200508

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-28110iCR4#,5#199610-200407

main53205-28120iKR4#,SR40,50199610-199812

sub53205-28130

sub90179-06150

main53205-28130iKR42,52199812-200111

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-28030iCR40,50,SR40,50199610-200407

53245BRACKET, HEADLAMP, RH

main53245-28020iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199611-200407

main53245-28020iCR40,50,SR40,50..(E,Q)..CBU199802-199812

53246ABRACKET, HEADLAMP MOUNTING, UPPER LH

main53246-28020iCR40,50,SR40,50..(E,Q)..CBU199802-199812

main53246-28020iSR40,50..B199611-200407

5352

53701GAPRON SUB-ASSY, FRONT FENDER, RH

main53701-28590iCR41,51,KR4#,SR40,50..03S,05S,06S199611-199812

sub53701-28760

main53701-28600iCR4#,5#,KR4#,SR40,50199610-199812

sub53701-28770

main53701-28750iCR4#,5#,KR42,52,SR40,50199812

sub53701-28770

main53701-28760iCR41,51,KR4#,SR40,50..03S,05S,06S199805-199812

sub53701-28770

sub90333-20001

main53701-28770iCR4#,5#,KR4#,SR40,50199805-199812

main53701-28790iCR4#,5#,KR42,52,SR40,50199812

sub53701-28770

53702GAPRON SUB-ASSY, FRONT FENDER, LH

main53702-28590iCR4#,5#,KR4#,SR40,50199610-199812

sub53702-28660

main53702-28660iCR4#,5#,KR42,52,SR40,50199812

main53702-28660iCR4#,5#,KR4#,SR40,50199805-199812

53787AGUSSET, FRONT FENDER APRON, LOWER RH

main53707-28120iCR4#,5#,KR4#,SR40,50199610-200407

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-28110iCR42..06S..MTM..IV5199610-200407

53882FSEAL, FRONT FENDER

main53882-16030iCR40,50,SR40,50199610-200407

53882GSEAL, FRONT FENDER

main53882-16030iKR42,52199610-200407

55101PANEL SUB-ASSY, DASH

main55101-2R270iKR4#..ATM199611-199801

sub55101-2R271

sub90333-20001

sub94223-80800

main55101-2R271iKR4#..ATM199801-199808

sub55101-2R272

sub78119-28010

main55101-2R272iKR4#..ATM199808-199812

sub55101-2R273

sub90950-01557

main55101-2R300iCR41,51..MTM199611-199801

sub55101-2R301

sub90333-20001

sub94223-80800

main55101-2R301iCR41,51..MTM199801-199808

sub55101-2R302

sub78119-28010

main55101-2R302iCR41,51..MTM199808-199812

sub55101-2R303

sub90950-01557

main55101-2R310iCR50..MTM;CR40..MTM..E199610-199801

sub55101-2R311

sub90333-20001

sub94223-80800

main55101-2R311iCR50..MTM;CR40..MTM..E199801-199808

sub55101-2R312

sub78119-28010

main55101-2R312iCR50..MTM;CR40..MTM..E199808-199812

sub55101-2R313

sub90950-01557

main55101-2R320iCR41,51..ATM199611-199801

sub55101-2R321

sub90333-20001

sub94223-80800

main55101-2R321iCR41,51..ATM199801-199808

sub55101-2R322

sub78119-28010

main55101-2R322iCR41,51..ATM199808-199812

sub55101-2R323

sub90950-01557

main55101-2R330iCR50..ATM;CR40..ATM..(E,Q,V)199610-199801

sub55101-2R331

sub90333-20001

sub94223-80800

main55101-2R331iCR50..ATM;CR40..ATM..(E,Q,V)199801-199808

sub55101-2R332

sub78119-28010

main55101-2R332iCR50..ATM;CR40..ATM..(E,Q,V)199808-199812

sub55101-2R333

sub90950-01557

main55101-2R340iSR40..MTM..B199611-199801

sub55101-2R341

sub90333-20001

sub94223-80800

main55101-2R341iSR40..MTM..B199801-199808

sub55101-2R342

sub78119-28010

main55101-2R342iSR40..MTM..B199808-199812

sub55101-2R343

sub90950-01557

main55101-2R360iSR40,50..ATM..B199611-199801

sub55101-2R361

sub90333-20001

sub94223-80800

main55101-2R361iSR40,50..ATM..B199801-199808

sub55101-2R362

sub78119-28010

main55101-2R362iSR40,50..ATM..B199808-199812

sub55101-2R363

sub90950-01557

main55101-2R370iSR40,50..E,Q,V199610-199801

sub55101-2R371

sub90333-20001

sub94223-80800

main55101-2R370iSR50..B,D199611-199801

sub55101-2R371

sub90333-20001

sub94223-80800

main55101-2R371iSR50;SR40..E,Q,V199801-199808

sub55101-2R372

sub78119-28010

main55101-2R372iSR50;SR40..E,Q,V199808-199812

sub55101-2R373

sub90950-01557

main55101-2R380iKR4#..MTM199611-199801

sub55101-2R381

sub90333-20001

sub94223-80800

main55101-2R381iKR4#..MTM199801-199808

sub55101-2R382

sub78119-28010

main55101-2R382iKR4#..MTM199808-199812

sub55101-2R383

sub90950-01557

main55101-2R400iCR4#,51..MTM..(D,N)199611-199801

sub55101-2R401

sub90333-20001

sub94223-80800

main55101-2R401iCR4#,51..MTM..(D,N)199801-199808

sub55101-2R402

sub78119-28010

main55101-2R402iCR4#,51..MTM..(D,N)199808-199812

sub55101-2R403

sub90950-01557

main55101-2R410iCR4#,51..ATM..(D,N)199611-199801

sub55101-2R411

sub90333-20001

sub94223-80800

main55101-2R411iCR4#,51..ATM..(D,N)199801-199808

sub55101-2R412

sub78119-28010

main55101-2R412iCR4#,51..ATM..(D,N)199808-199812

sub55101-2R413

sub90950-01557

main55101-2R420iKR4#..MTM199611-199801

sub55101-2R421

sub90333-20001

sub94223-80800

main55101-2R421iKR4#..MTM199801-199808

sub55101-2R422

sub78119-28010

main55101-2R422iKR4#..MTM199808-199812

sub55101-2R423

sub90950-01557

main55101-2R430iKR4#..ATM199611-199801

sub55101-2R431

sub90333-20001

sub94223-80800

main55101-2R431iKR4#..ATM199801-199808

sub55101-2R432

sub78119-28010

main55101-2R432iKR4#..ATM199808-199812

sub55101-2R433

sub90950-01557

main55101-2R690iSR40..MTM199611-199801

sub55101-2R691

sub90333-20001

sub94223-80800

main55101-2R691iSR40..MTM199801-199808

sub55101-2R692

sub78119-28010

main55101-2R692iSR40..MTM199808-199812

sub55101-2R693

sub90950-01557

main55101-2R700iSR40..ATM..(B,D)199611-199801

sub55101-2R701

sub90333-20001

sub94223-80800

main55101-2R701iSR40..ATM..(B,D)199801-199808

sub55101-2R702

sub78119-28010

main55101-2R702iSR40..ATM..(B,D)199808-199812

sub55101-2R703

sub90950-01557

main55101-2R760iKR42..ATM199812

sub55101-2R903

main55101-2R760iKR52..ATM200412

sub55101-2R903

main55101-2R780iSR40,50..E,Q,S,V199812-200111

sub55101-2R901

main55101-2R790iCR42,52..MTM199812-200407

main55101-2R800iCR42,52..ATM199812-200407

sub55101-2R903

main55101-2R810iCR40,50..E,Q,S,V199812-200111

sub55101-2R901

main55101-2R820iSR40..MTM..D199812-200111

sub55101-2R902

main55101-2R840iSR50..B,D;SR40..ATM..D199812-200111

sub55101-2R903

main55101-2R860iKR52..MTM200412

sub55101-2R902

main55101-2R860iKR42..MTM199812

sub55101-2R902

main55101-2R880iCR42,52..MTM199812-200407

sub55101-2R902

main55101-2X010iSR40..MTM..B199812-200111

sub55101-2R902

main55101-2X020iSR40..ATM..B199812-200111

sub55101-2R903

main55101-2X030iCR42,52..ATM199812-200407

sub55101-2R903

main55101-2X040iCR40,50..D199812-200111

sub55101-2R903

55196BBRACKET, CLUTCH START SWITCH MOUNTING

main55196-28030iKR52..MTM200008-200407

55210INSULATOR ASSY, DASH PANEL

main55210-28050iCR40,50,SR40,50199610-199709

sub55210-28090

main55210-28060iCR41,51,KR4#199611-199812

main55210-28090iCR40,50,SR40,50199709-199812

main55210-28100iCR40,50,SR40,50..07S,08S199812-200111

main55210-28110iSR40,50..B199812-200407

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-28040iCR42..06S..MTM..IV5199610-200407

55216APAD, DASH PANEL INSULATOR, NO.4

main55216-28030iKR42,52199812-200407

main55216-28030iCR4#,5#,KR4#,SR40,50199610-199812

main55216-28050iCR42,52200311-200407

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55223-28010iCR40,50..E,Q,S,V199812-200111

55225INSULATOR, DASH PANEL HEAT

main55225-28010iKR4#,SR40,50199610-200111

5851

7812928010STOPPER, ACCELERATOR PEDAL

main78129-28010

9033320001

main90333-20001

9033325001

main90333-25001

9054115010

main90541-15010

9095001310

main90950-01310

9095001557

main90950-01557

9095001753

main90950-01753

9151140812

main91511-40812

9163560816

main91635-60816

91641H0820

main91641-H0820

91651B0820

main91651-B0820

9165340612

main91653-40612

35 parts on this diagram · 1 diagram in section
