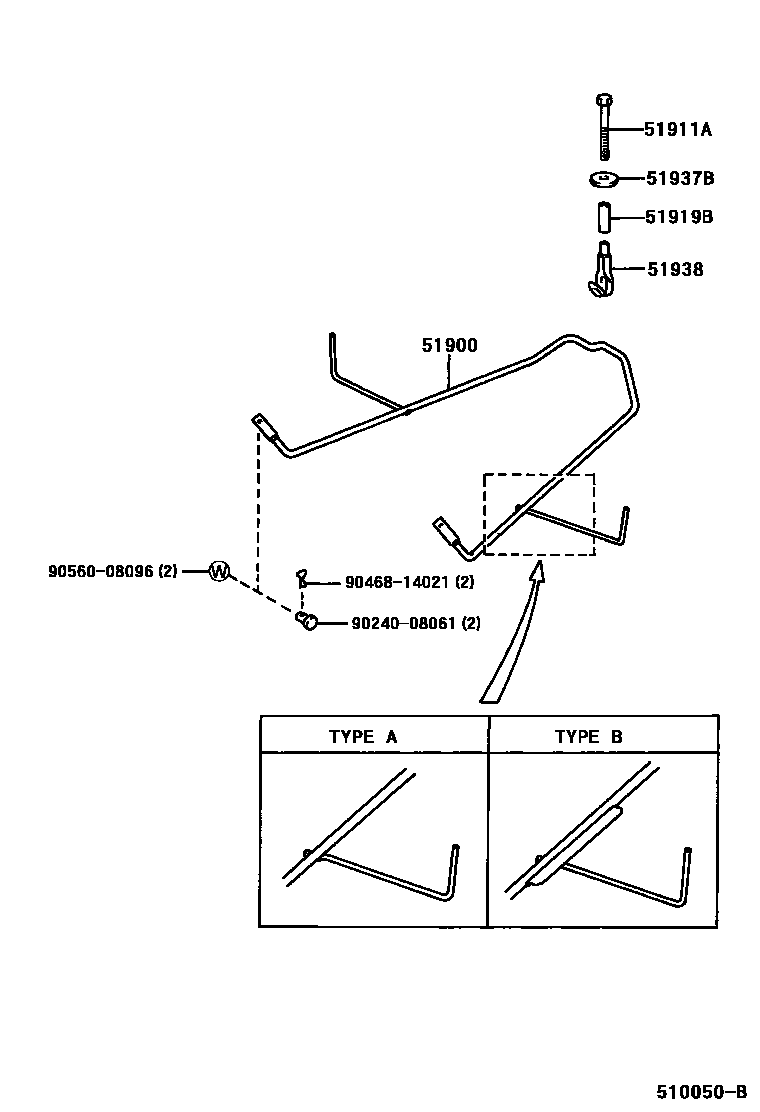

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-28190iCR40,SR40;CR41,KR4#..V1199610-199812

main51900-28200iCR5#,SR50199610-199812

main51900-28230iKR52199812-200407

sub51900-28250

main51900-28240iCR42..ATM..IV5;CR42..06S..CBU..V1;CR42..(03S,05S)..V1199812-200407

sub51900-28260

main51901-28020iKR42..SJL199611-200407

51911ABOLT, SPARE WHEEL

main51911-28020iCR42..06S..MTM..IV5..V1199611-200407

main51911-28040iCR40,50,SR40,50..07S,08S199610-200111

main51911-28040iSR40,50..ATM..D199711-199712

main51911-28040iSR40,50..5D..ATM199806-199812

main51911-28050iCR51,SR40,50..03S,05S,06S199611-199812

main51911-28060iCR42..IV5..SJL199611-200407

51919BSPACER, SPARE WHEEL CARRIER

main51919-28010iCR52;CR42..ATM..IV5;CR42..06S..CBU..V1;CR42..(03S,05S)..V1199611-200407

main51919-28030iSR40,50..ATM..D199711-199712

main51919-28030iSR40,50..5D..ATM199806-199812

main51919-28030iCR40,50,SR40,50..07S,08S199610-200111

main51919-28040iCR51,SR40,50..03S,05S,06S199611-199812

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-28010iCR40,50,SR40,50199610-200407

51938LOCK, SPARE WHEEL CARRIER

main51938-27070iCR40,50,SR40,50199610-200407

main51938-28090iKR42..SJL199611-200407

9024008061

main90240-08061

9046814021

main90468-14021

9056008096

main90560-08096

8 parts on this diagram · 2 diagrams in section
