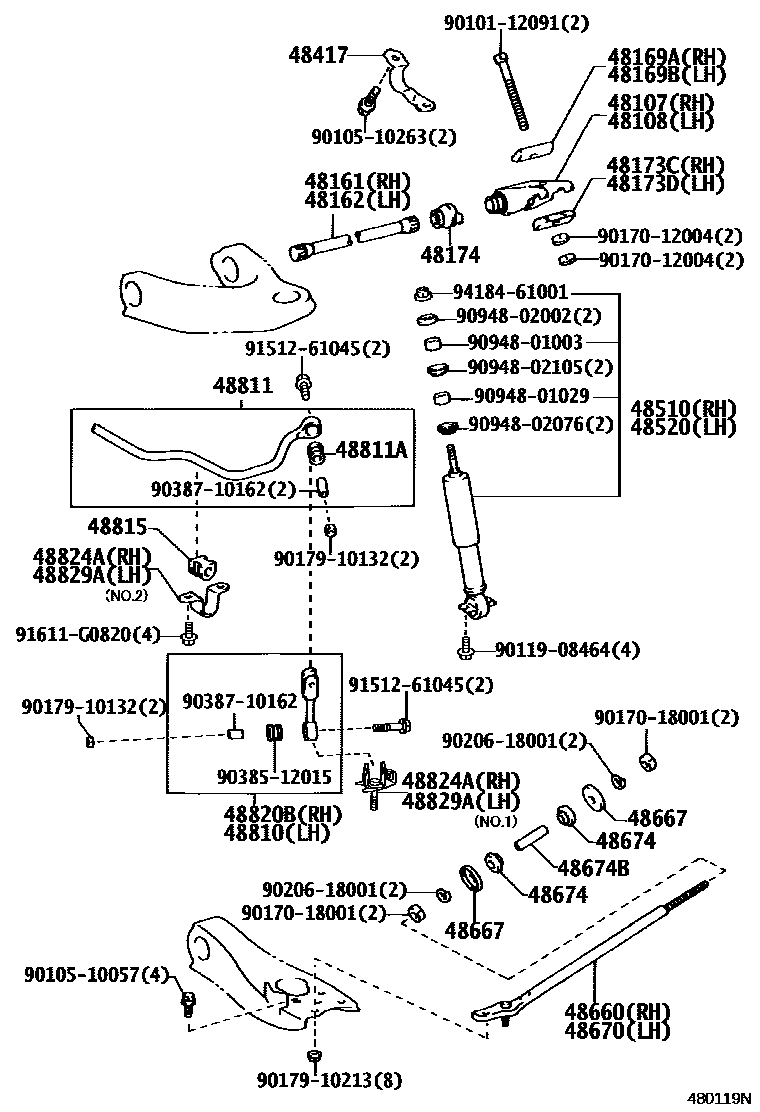

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0004 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-28020iCR40,50,SR40,50199610-200407

48108ARM SUB-ASSY, ANCHOR, LH

main48108-27030iKR42,52199610-200407

48161SPRING, TORSION BAR, RH

main48161-28070iCR4#,KR4#,SR40199610-200407

main48161-28080iCR5#,SR50199610-199812

main48161-28090iKR52199812-200407

48162SPRING, TORSION BAR, LH

main48162-28070iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

main48162-28080iCR5#,SR50199610-199812

main48162-28090iKR52199812-200407

48169ASWIVEL, ANCHOR ARM, RH

main48169-28030iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

48169BSWIVEL, ANCHOR ARM, LH

main48169-28040iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

48173CSEAT, ANCHOR ARM ADJUSTER, RH

main48173-27010iCR4#,5#,KR4#,SR40,50199610-200407

48173DSEAT, ANCHOR ARM ADJUSTER, LH

main48173-27010iCR4#,5#,KR4#,SR40,50199610-200407

48174COVER, TORSION BAR DUST

main48175-27010iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

48417BRACKET, SPRING

main48417-28040iCR4#,5#,KR4#,SR40,50199610-199812

sub48417-28041

main48417-28041iCR40,50,SR40,50199812-200407

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-29655iCR40,SR40199610-199812

main48500-29665iCR41,KR4#199611-199812

main48500-29675iCR50,SR50199610-199812

main48500-29685iCR52199812-200407

sub48500-29725

main48500-29685iCR51199611-199812

sub48500-29725

main48500-29705iCR40,SR40199812-200111

main48500-29715iCR50,SR50199812-200111

main48500-29725iKR52200412

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-29655iCR40,SR40199610-199812

main48500-29665iCR41,KR4#199611-199812

main48500-29675iCR50,SR50199610-199812

main48500-29685iCR51199611-199812

sub48500-29725

main48500-29685iCR52199812-200407

sub48500-29725

main48500-29705iCR40,SR40199812-200111

main48500-29715iCR50,SR50199812-200111

main48500-29725iKR52200412

48660BAR ASSY, STRUT, RH

main48660-28040iCR40,SR40199610-200407

48667RETAINER, STRUT BAR

main48667-28010iCR4#,KR4#,SR40199610-200407

48670BAR ASSY, STRUT, LH

main48670-28040iCR4#,KR4#,SR40199610-200407

48674CUSHION, STRUT BAR

main48674-28010iCR4#,KR4#,SR40199610-200407

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18090iCR4#,KR4#,SR40199610-200407

48810LINK ASSY, FRONT STABILIZER, LH

main48810-28030iCR50,SR50..07S,08S199812-200111

main48820-28020iCR4#,KR4#,SR40199610-199709

sub48820-28021

main48820-28021iCR40,SR40199709-200407

48811BAR, STABILIZER, FRONT

main48804-28030iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

main48804-28071iCR50,SR50..07S,08S199812-200111

main48811-28150iCR5#,SR50199610-199812

main48811-28180iKR52199812-200407

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-11021iCR4#,KR4#,SR40199610-199708

main90385-12015iCR4#,KR4#,SR40199709-200407

main90385-29002iCR50,SR50..07S,08S199812-200006

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28030iCR5#,SR50199610-199812

main48815-28080iCR4#,KR4#,SR40199709-200407

main48815-28090iCR50,SR50..07S,08S199812-200111

main48815-28100iKR52199812-200407

main48815-30080iCR4#,KR4#,SR40199610-199708

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-28020iCR4#,KR4#,SR40199610-199709

sub48820-28021

main48820-28021iKR42199709-200407

main48820-28040iCR50,SR50..07S,08S199812-200111

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-28110iCR4#,KR4#,SR40199610-199709

sub48824-28111

main48824-28111iCR4#,KR4#,SR40199709-200407

main48824-28120iCR52199610-200407

main48824-28130iKR42199610-200407

main48824-28150iCR50,SR50..07S,08S199812-200111

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-28120iCR52199610-200407

main48824-28130iCR40,SR40199610-200407

main48824-28150iCR50,SR50..07S,08S199812-200111

main48829-28050iCR4#,KR4#,SR40199610-199709

sub48829-28051

main48829-28051iCR40,SR40199709-200407

9010112091

main90101-12091

9010510057

main90105-10057

9010510263

main90105-10263

9011908464

main90119-08464

9017012004

main90170-12004

9017018001

main90170-18001

9017910132

main90179-10132

9017910213

main90179-10213

9020618001

main90206-18001

9038512015

main90385-12015

9038710162

main90387-10162

9094801003

main90948-01003

9094801029

main90948-01029

9094802002

main90948-02002

9094802076

main90948-02076

9094802105

main90948-02105

9151261045

main91512-61045

91611G0820

main91611-G0820

9418461001

main94184-61001

43 parts on this diagram · 3 diagrams in section
