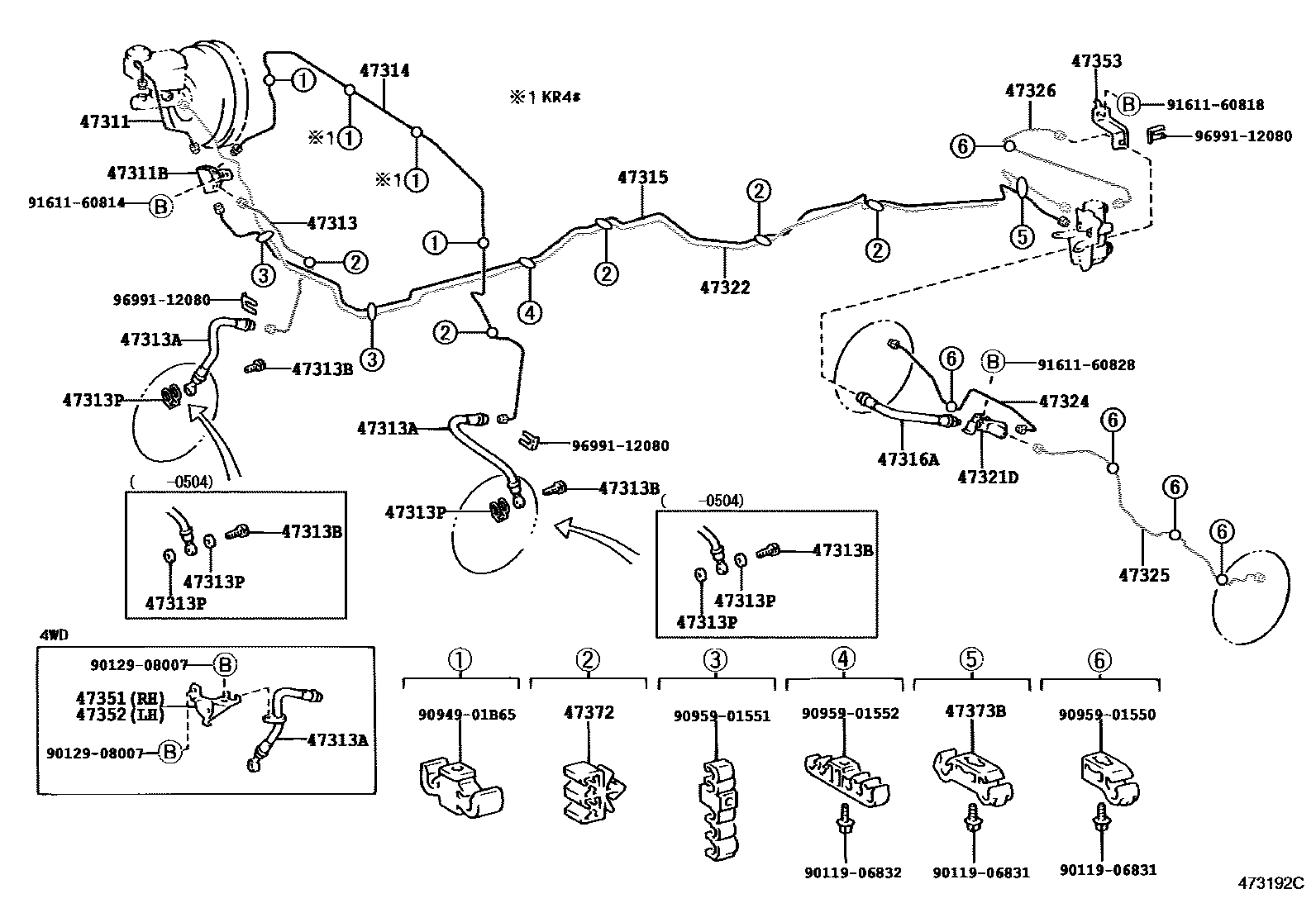

BRAKE TUBE & CLAMP

0001 1 0003 1��(ABS) 0005 1 0007 1��(ABS) 0008 1

47311TUBE, FRONT BRAKE, NO.1

main47311-28430iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

main47311-28440iCR50,SR50;CR40,SR40..E,Q,V199610-199812

main47311-28450iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

main47311-28480iCR40,50,SR40,50..07S,08S199812-200111

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-28020iCR41,51,KR4#,SR40,50..03S,05S,06S199611-199812

main90413-10183iCR42..06S..MTM..IV5199812-200208

47313TUBE, FRONT BRAKE, NO.3

main47313-28260iKR42199812

main47313-28270iCR40,SR40199812-200111

main47313-28280iCR5#,SR50199610-199812

main47313-28290iCR52199812-200407

main47313-28300iCR50,SR50199812-200111

main47313-28302iKR52200412

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02904×2iCR4#,KR4#,SR40199610-199812

main90947-02905iCR5#,SR50199610-199812

main90947-02906iCR5#,SR50199610-199812

main90947-02A53×2iCR4#,KR42,SR40199812-200708

main90947-02A88iCR5#,KR52,SR50199812-200708

main90947-02A89iCR5#,KR52,SR50199812-200708

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iCR4#,5#,KR4#,SR40,50199610-199812

main90401-10058×2iKR42,52200504

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iKR42,52200504

main90430-10074×4iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

47314TUBE, FRONT BRAKE, NO.4

main47314-28240iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

main47314-28250iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

main47314-28260iCR5#,SR50199610-199812

main47314-28270iCR51,SR50..03S,05S,06S199611-199812

main47314-28280iCR50,SR50199812-200111

main47314-28282iKR52200412

47315TUBE, FRONT BRAKE, NO.5

main47315-28190iSR50..B;CR41,KR4#..V1;CR40,51,SR40..B,D,N199611-199812

main47315-28200iCR41,KR4#..SJL199611-199812

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02892iCR40,SR40;CR41,KR4#..V1199610-199812

main90947-02893iCR5#,SR50199610-199812

main90947-02894iCR41,KR4#..SJL199611-199812

main90947-02A54iCR42..06S..MTM..IV5..V1199812-200208

main90947-02A85iCR50,SR50199812-200111

main90947-02A86iCR42..CBU..SJL199812-200407

47321TUBE, REAR BRAKE, NO.1

main47321-28430iCR50,SR50;CR40,SR40..E,Q,V199610-199812

main47321-28440iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

main47321-28450iCR40,50,SR40,50..07S,08S199812-200111

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10147iCR42..06S..MTM..IV5200202-200208

main90413-10156iCR42,52,KR42199812-200202

47322TUBE, REAR BRAKE, NO.2

main47322-28210iCR41,KR4#..V1;CR51,SR40,50..03S,05S,06S199611-199812

main47322-28220iCR50,SR50;CR40,SR40..E,Q,V199610-199812

main47322-28230iCR42..CBU..SJL199812-200407

main47322-28240iSR40..B199812-200111

main47322-28250iCR42..CBU..SJL199812-200407

47324TUBE, REAR BRAKE, NO.4

main47324-28200iKR42..V1199812

main47324-28210iCR52199812-200407

main47324-28230iCR42..IV5..SJL199812-200208

47325TUBE, REAR BRAKE, NO.5

main47325-28230iCR42..06S..MTM..IV5..V1199812-200208

main47325-28240iCR52199812-200407

main47325-28260iKR42..SJL199812

47326TUBE, REAR BRAKE, NO.6

main47326-28250iSR50..B;CR4#,51,KR4#,SR40..B,D,N199611-199812

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-28130iCR5#,SR50199610-199806

main47351-28131iCR5#,SR50199806-199812

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-28120iCR5#,SR50199610-199806

main47352-28121iCR5#,SR50199806-199812

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-28031iCR4#,5#,KR4#,SR40,50199610-199812

47372CLAMP, BRAKE TUBE, NO.2

main90469-02001×5iCR41,51,KR4#,SR40,50..03S,05S,06S199611-199710

main90469-02002×3iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

47373BCLAMP, BRAKE TUBE, NO.3

main47371-24070iSR50..B;CR4#,51,KR4#,SR40..B,D,N199611-199812

9011906831

main90119-06831

9011906832

main90119-06832

9012908007

main90129-08007

9094901B65

main90949-01B65

9095901550

main90959-01550

9095901551

main90959-01551

9095901552

main90959-01552

9161160814

main91611-60814

9161160818

main91611-60818

9161160828

main91611-60828

9699112080

main96991-12080

31 parts on this diagram · 5 diagrams in section
